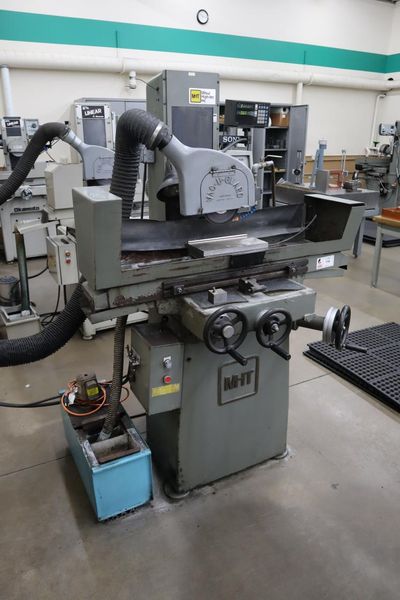

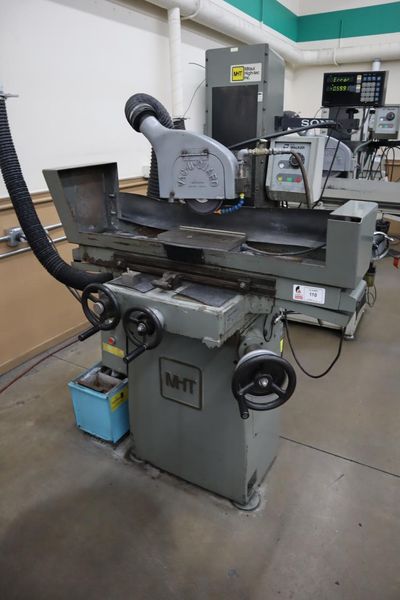

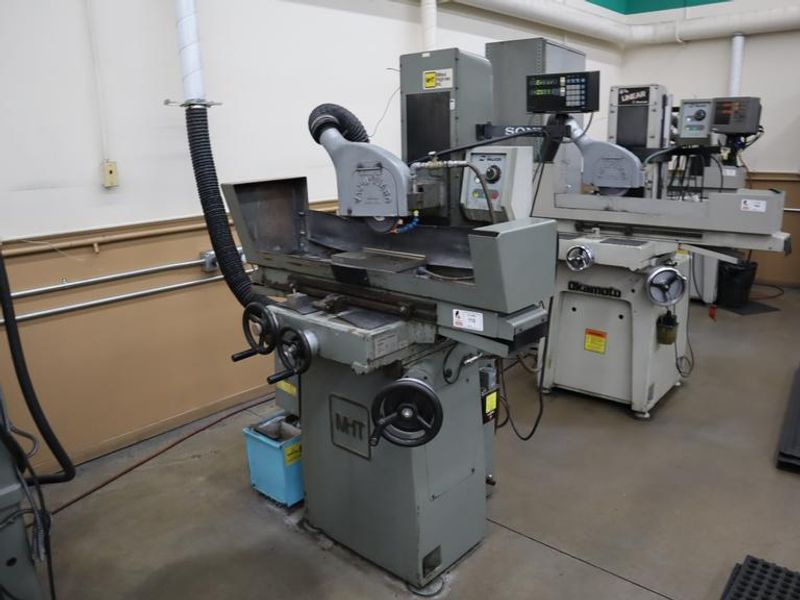

Lot 110: Mitsui High-Tech MSG-200MH Hand Feed Surface Grinder,6"x18", Sony 1-Axis DRO, Electromagnetic Chuck, Coolant
Equipped With:

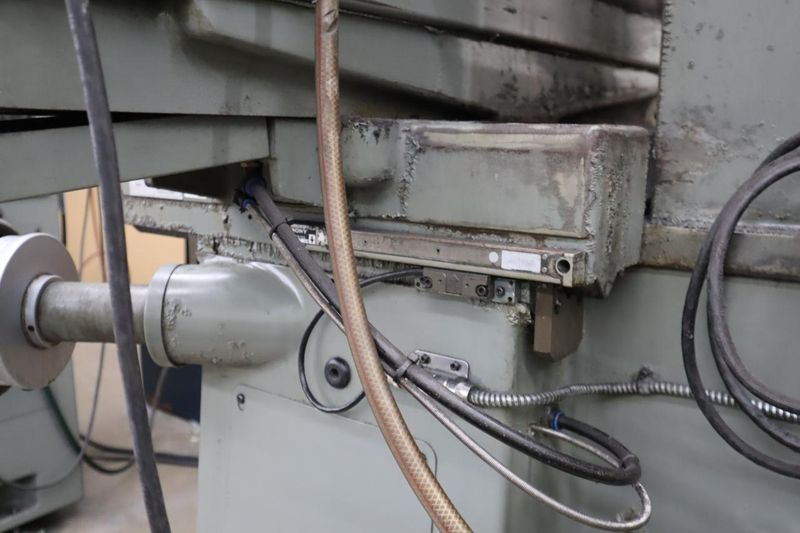

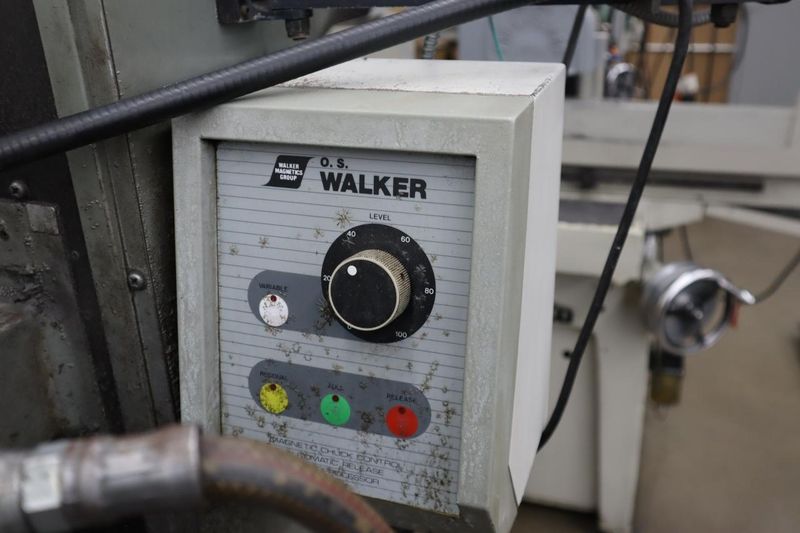

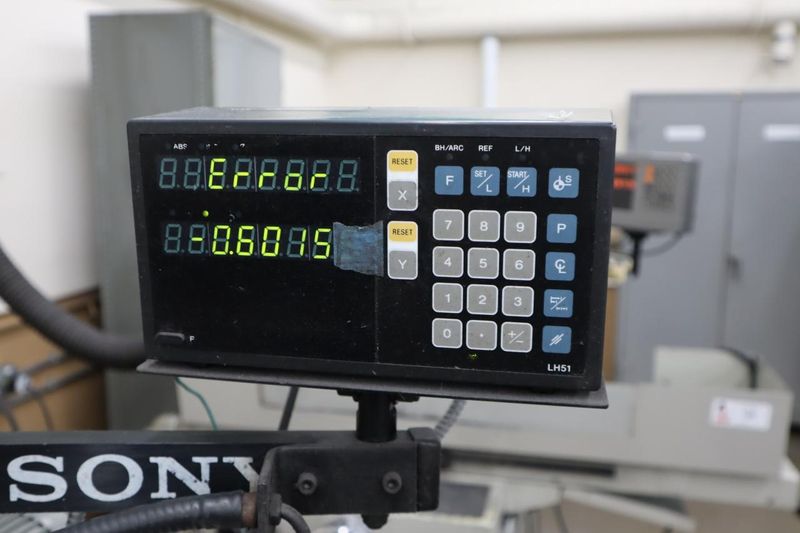

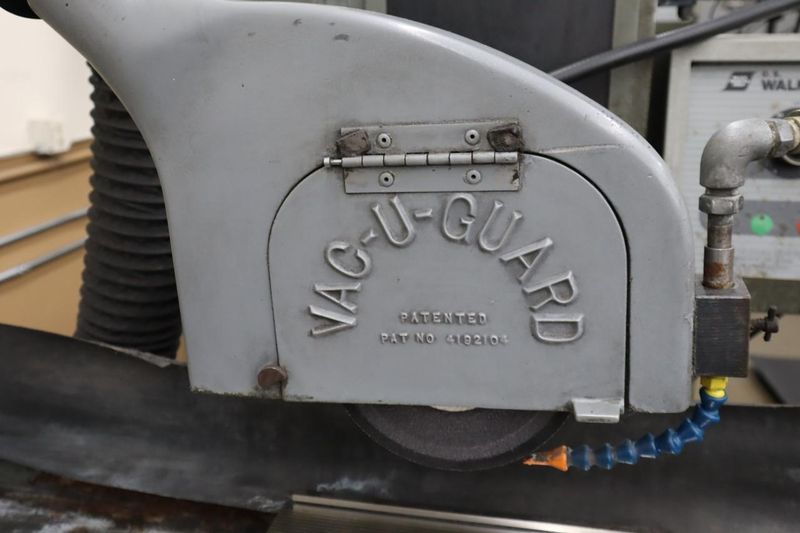

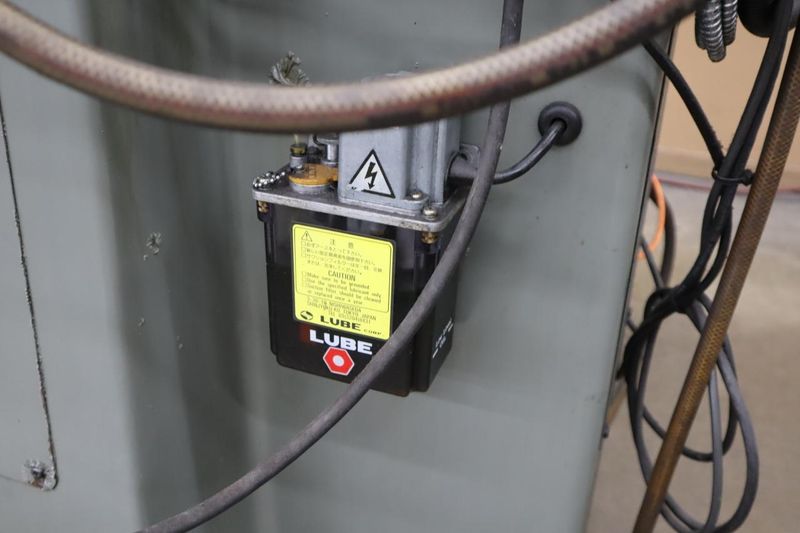

Sony 1-Axis DRO on Cross Feed, Walker 6"x12" Fine Line Electromagnetic Chuck with O.S. Walker Smart Chuck Control, Vac-U-Guard Wheel Guard, Coolant Tank & Pump, Automatic Lubrication, Hand Feeds, Wheel Hub and Nut

Description:
The Mitsui High-Tec MSG-200MH is a high-precision manual surface grinder designed for toolroom, mold making, medical device, aerospace, and precision manufacturing applications. Known for exceptional accuracy, rigidity, and superior surface finishes, the MSG-200MH is a popular choice for shops requiring reliable grinding performance.
Electrics:

220 Volt, 3 Phase

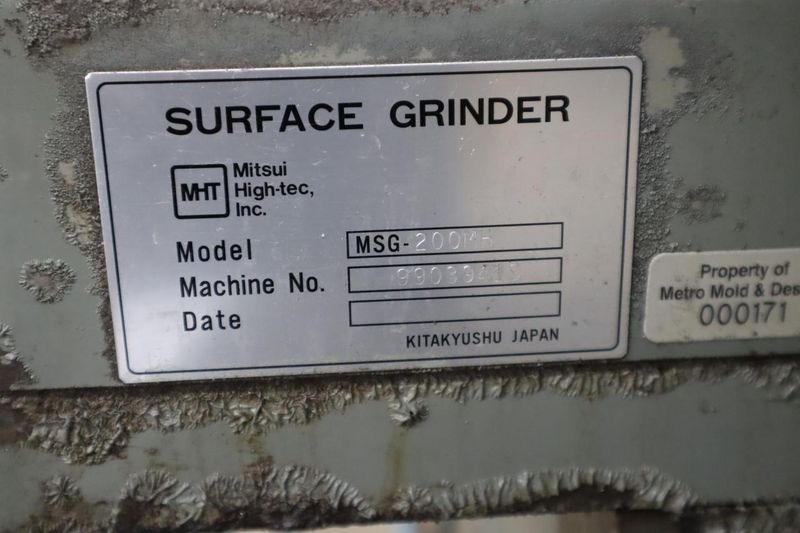

Manufacturer: Mitsui High-Tech Model: MSG-200MH Year: 1999 Serial Number: 99039419
Main Unit Approx Weight: 1980.00 lbs
Main Unit Dimensions (in inches): Length: 44.00"  Width: 48.00"  Height: 72.00"
Components:

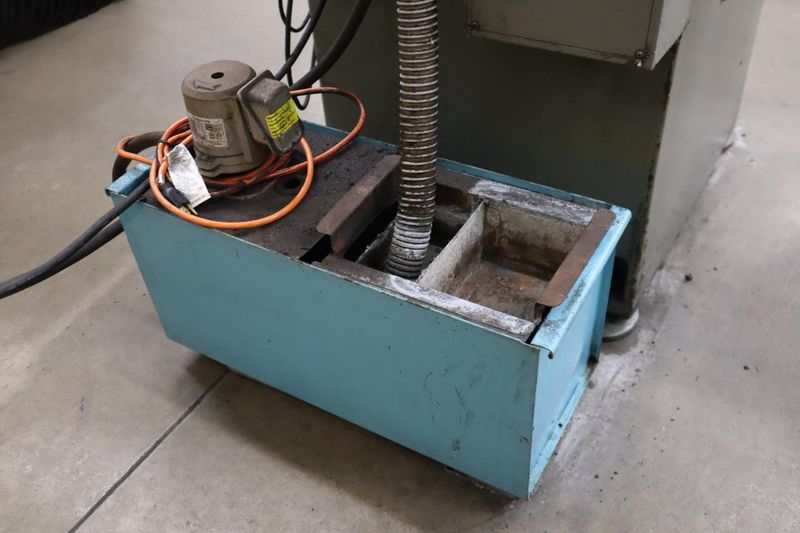

Coolant Pump and Tank: Length: 24.00"  Width: 12.00"  Height: 15.00"
Specs:

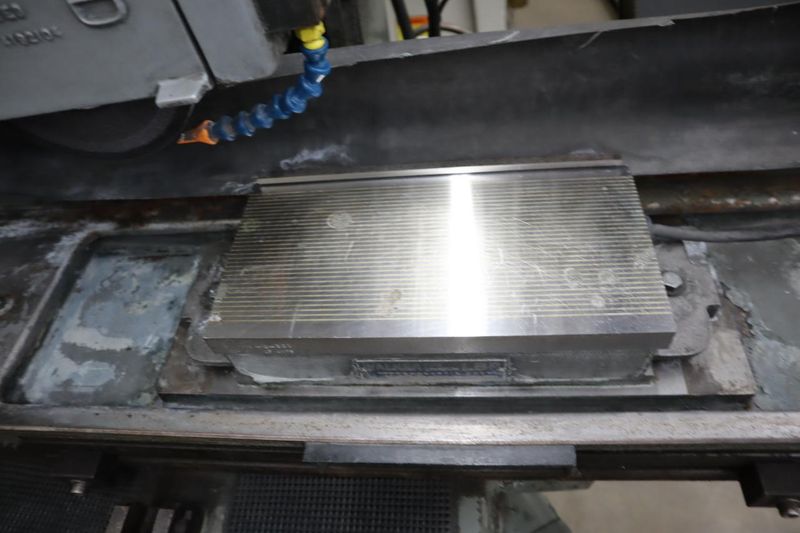

Chuck Size: 6" x 12"
Table Size: 6" x 13.5"
Max Carriage / Table Movement: 8" x 15"
Max Height Spindle Center To Table: 18"
Max Wheel Size: 8" x 3/4" x 1.25"

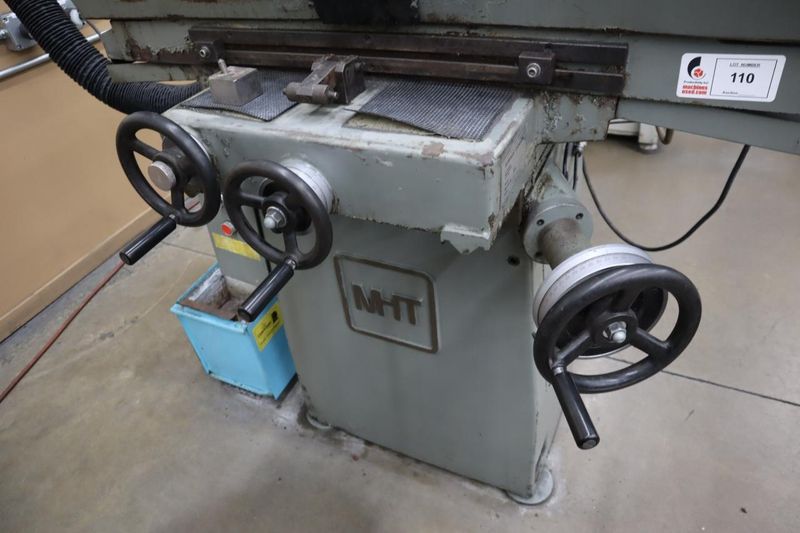

Longitudinal Feed Rate: Hand Feed 4" Per Handwheel Rev.
Cross Feed Movement Per Handwheel Revolution: .1" Per Rev / .001 Increments / .00005 Optional Fine Feed
Wheelhead Feed Increments: Hand Feed .05" Per Rev. / .0001 Increments / .00001 Increments Optional Fine Feed
Wheelhead Rapid Feedrate: Optional Poer Vertical Feed: 17-1/3 IPM
Spindle Speed: 3,470 RPM
Spindle Drive: 1.3 HP
Seller Company: Paradigme Engineering - A Velosity Company
Seller Contact: Machinesused.com Phone: (763) 745-1166
Item Location: Paradigme Engineering - A Velosity Company, 14085 Commerce Drive, Becker, MN 55308
Location Contact: Machinesused.com Phone: (763) 745-1166
Inspection Date & Time: Friday, October 23, 2026 9AM-4PM
Dock Door: 12' x 12' Ground Level Door
Loading Dock: 8' x 8' Loading Dock
Removal Dates and Times: This item must be removed between Monday, November 2, 2026 and Thursday, November 5, 2026
