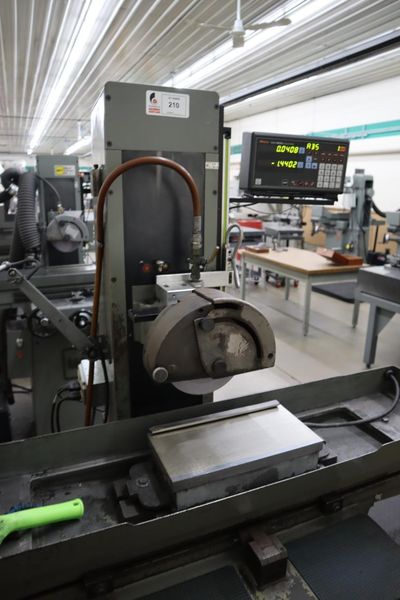

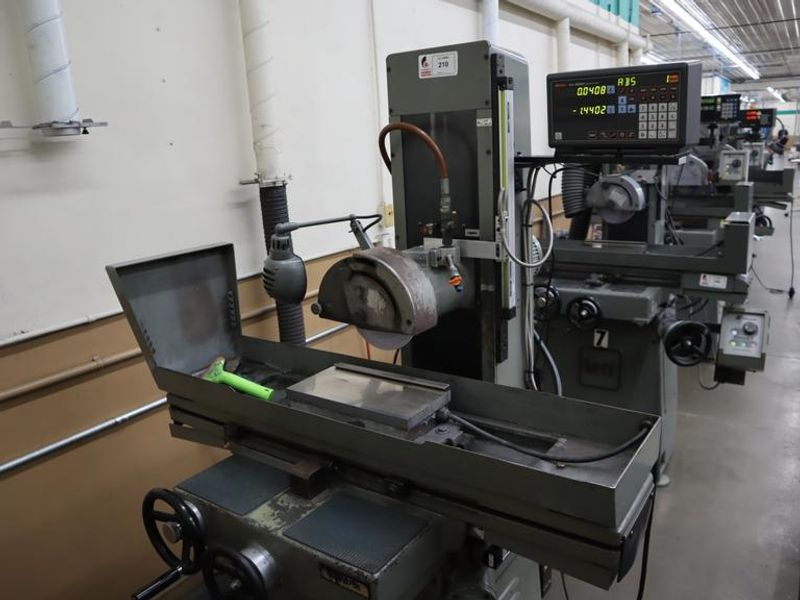

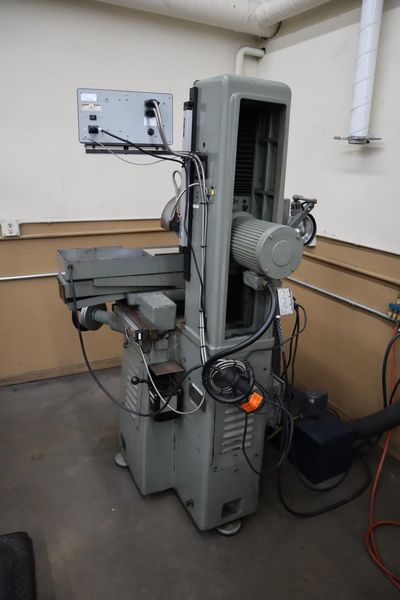

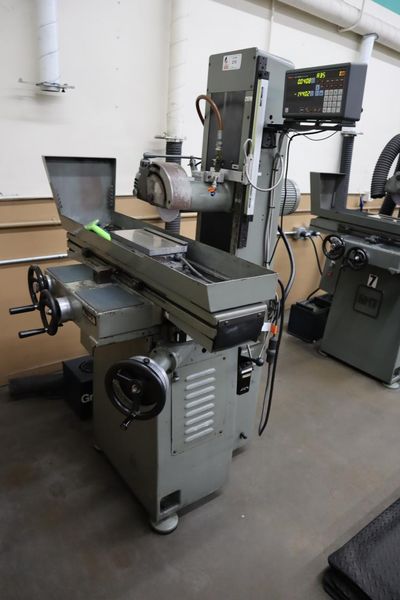

Lot 210: Mitsui High-Tech MSG-200MH Hand Feed Surface Grinder, Mitutoyo KA-200 2-Axis DRO, 6"x12" Fine Pole Chuck, Coolant
Equipped With:

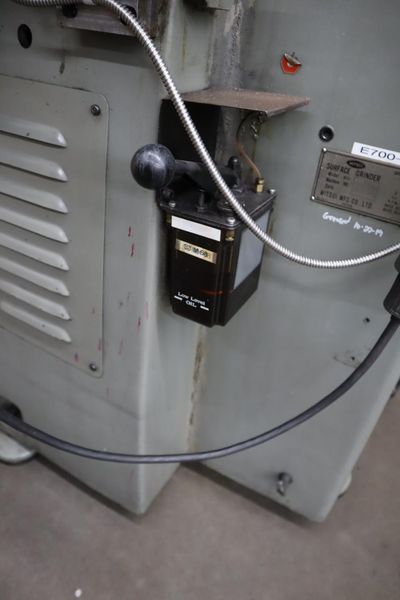

Mitutoyo KA-200 2-Axis DRO on Cross and Vertical Feeds, Walker 6"x12" Fine Pole Electromagnectic Chuck with O.S. Walker Smart Chuck Control, Coolant Tank and Pump, 1-Shot Lubrication, Wheel Hub and Nut

Electrics:

220 Volt, 3 Phase

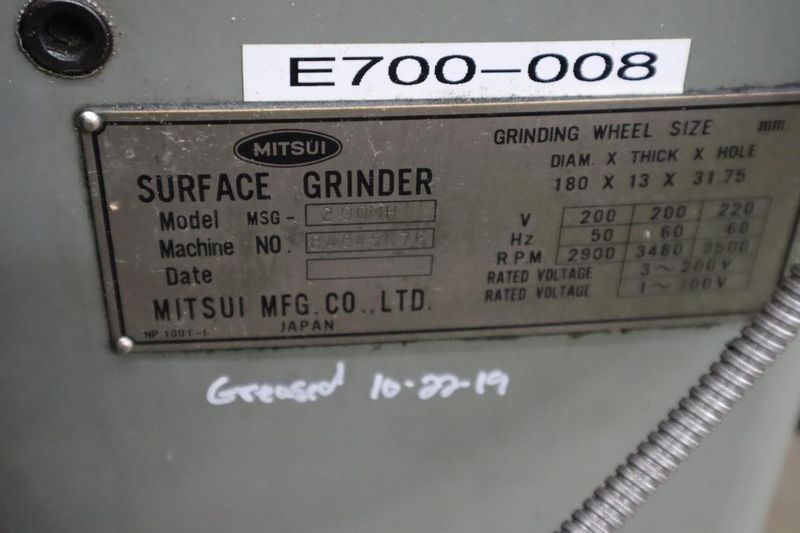

Manufacturer: Mitsui High-Tech Model: MSG-200MH Year: 1984 Serial Number: 84045076
Main Unit Approx Weight: 1980.00 lbs
Main Unit Dimensions (in inches): Length: 44.00"  Width: 48.00"  Height: 72.00"
Components:

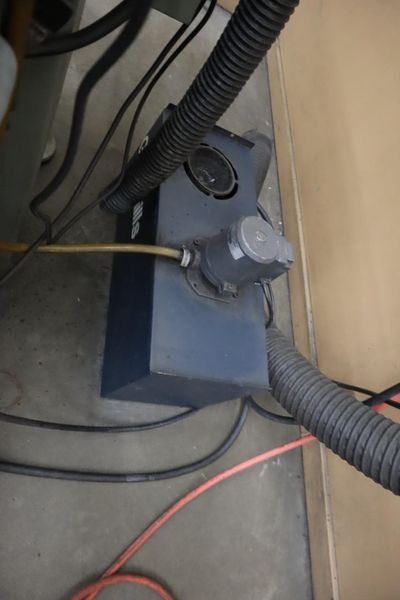

Coolant Pump and Tank: Length: 24.00"  Width: 12.00"  Height: 15.00"
Specs:

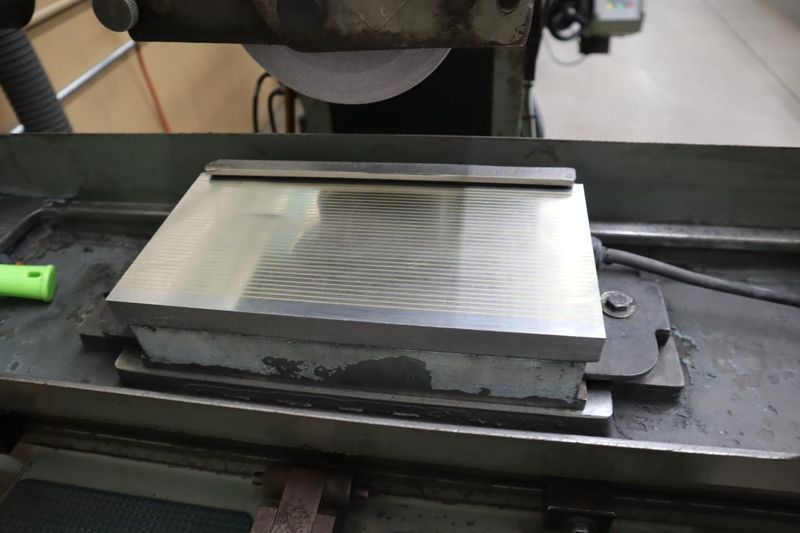

Chuck Size: 6" x 12"
Table Size: 6" x 13.5"
Max Carriage / Table Movement: 8" x 15"
Max Height Spindle Center To Table: 18"

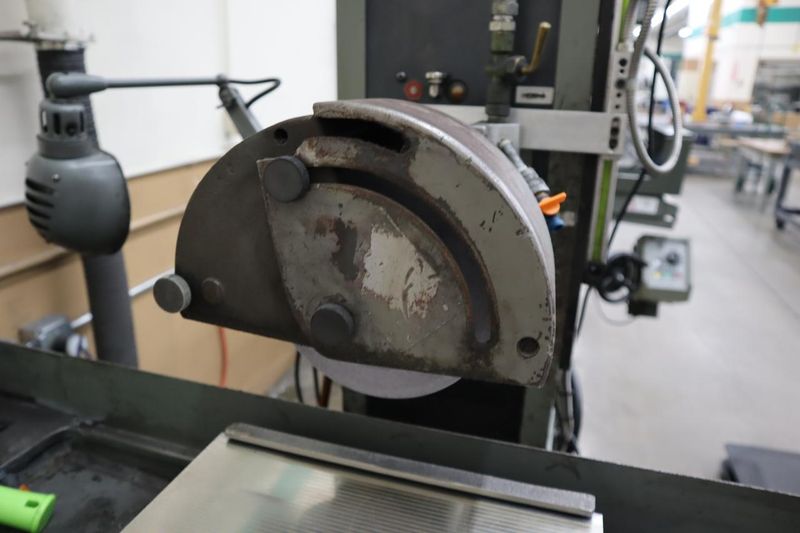

Max Wheel Size: 8" x 3/4" x 1.25"
Longitudinal Feed Rate: Hand Feed 4" Per Handwheel Rev.
Cross Feed Movement Per Handwheel Revolution: .1" Per Rev / .001 Increments / .00005 Optional Fine Feed
Wheelhead Feed Increments: Hand Feed .05" Per Rev. / .0001 Increments / .00001 Increments Optional Fine Feed
Wheelhead Rapid Feedrate: Optional Poer Vertical Feed: 17-1/3 IPM
Spindle Speed: 3,470 RPM
Spindle Drive: 1.3 HP
Seller Company: Paradigme Engineering - A Velosity Company
Seller Contact: Machinesused.com Phone: (763) 745-1166
Item Location: Paradigme Engineering - A Velosity Company, 14085 Commerce Drive, Becker, MN 55308
Location Contact: Machinesused.com Phone: (763) 745-1166
Inspection Date & Time: Friday, October 23, 2026 9AM-4PM
Dock Door: 12' x 12' Ground Level Door
Loading Dock: 8' x 8' Loading Dock
Removal Dates and Times: This item must be removed between Monday, November 2, 2026 and Thursday, November 5, 2026
