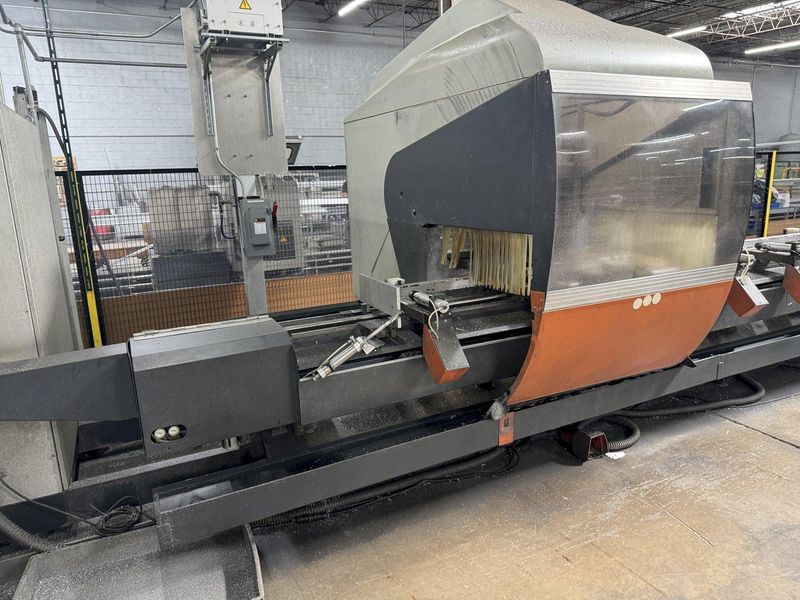

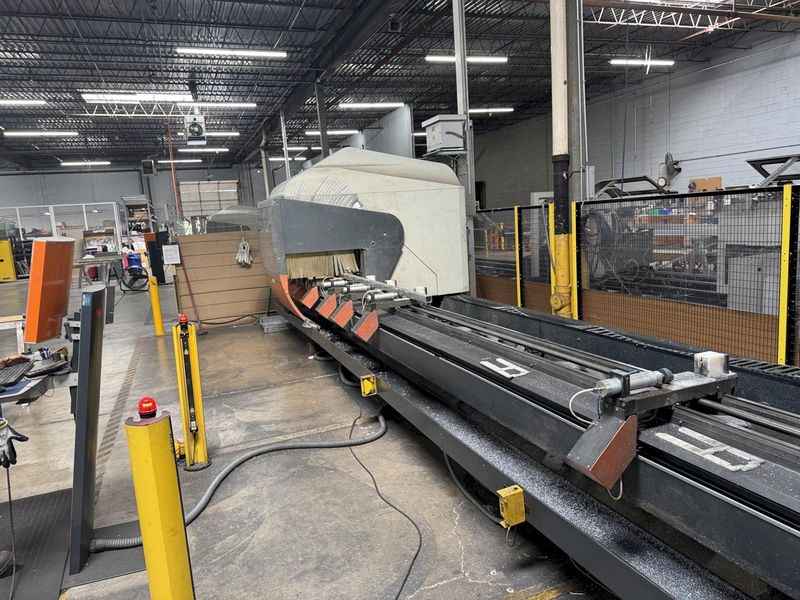

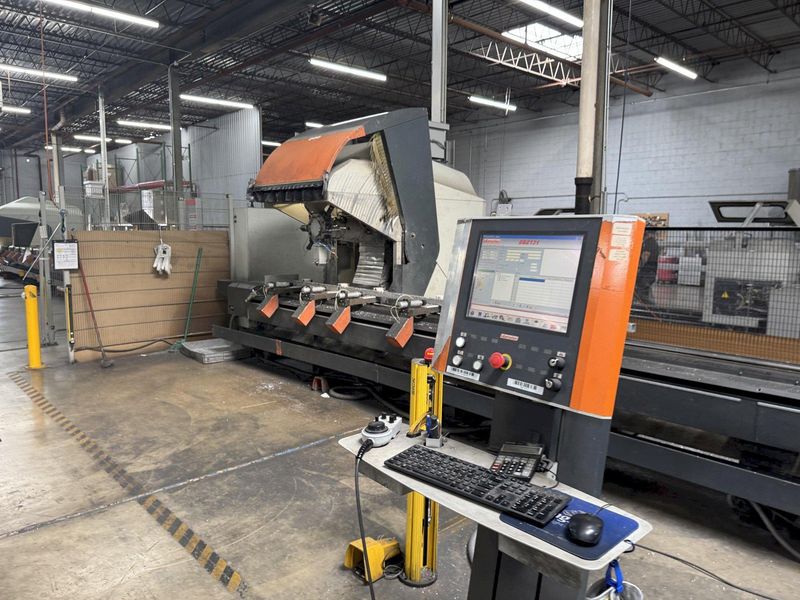

Elumatec SBZ131.10 Travelling Head Profile Machining Center

Manufacturer

ELUMATEC

Category

Machining Centers

Type

MACHINING CENTERS, ALUMINUM PROFILE

Stock

m138

Model

SBZ131.10

Dealer Location

Illinois

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet




Max Processing Area with End Machining       10800mm 396"
Max Processing Area without End Machining   10200mm 401"
Tool Size BT30
X-Axis 10200mm 401"
Y-Axis 15.74"
Z-Axis 10.43"
Rapid Traverse Rate, X & Z Axis 708.48 IPM
Rapid Traverse Rate, Y Axis 2361.60 IPM
Spindle Speeds 1-6000 RPM

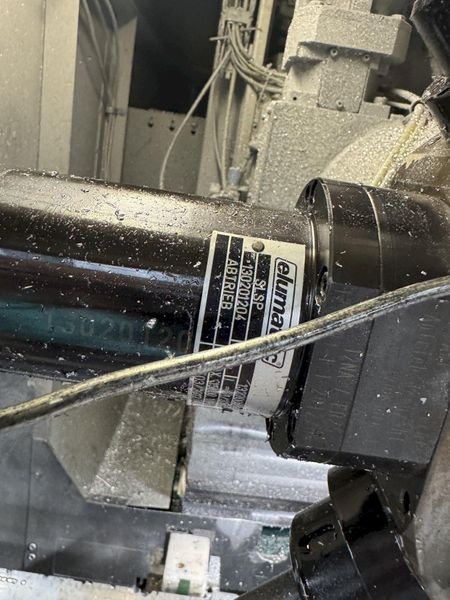

Router Spindle Output 7.5 HP
Approximate Weight 16,000 lbs

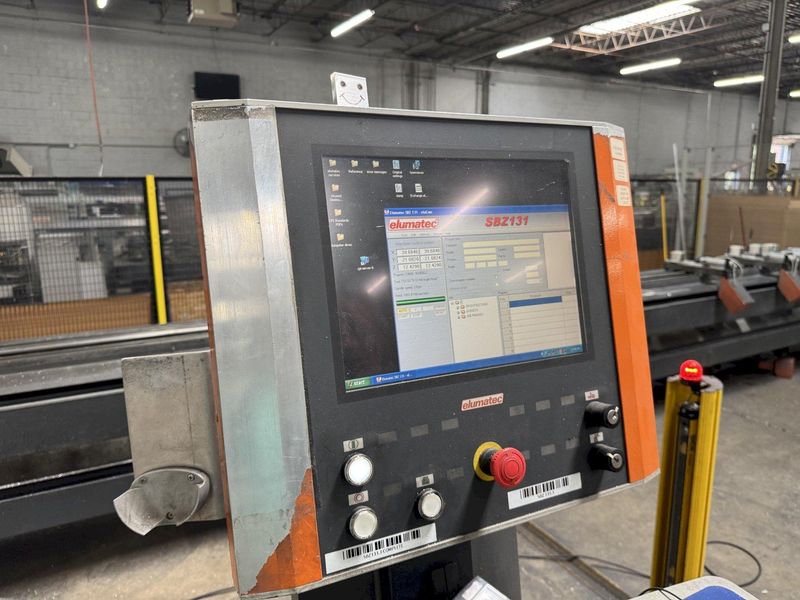

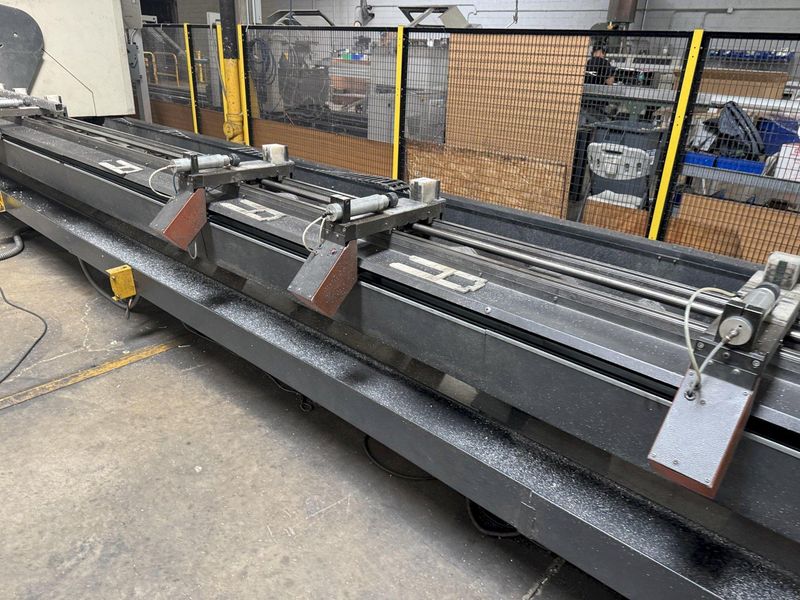

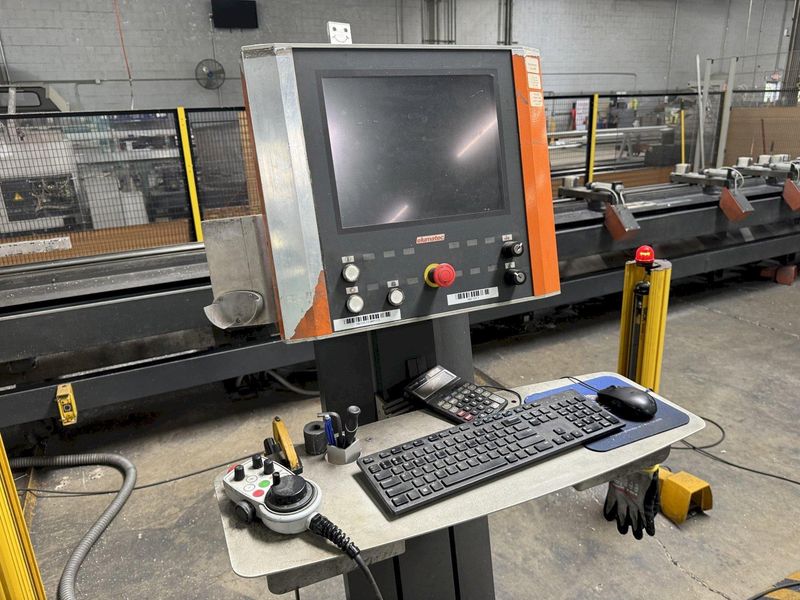

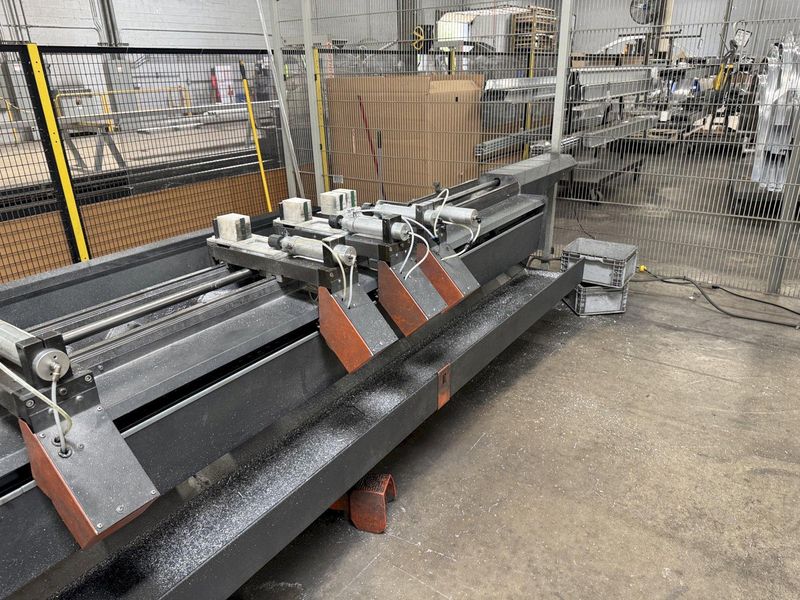

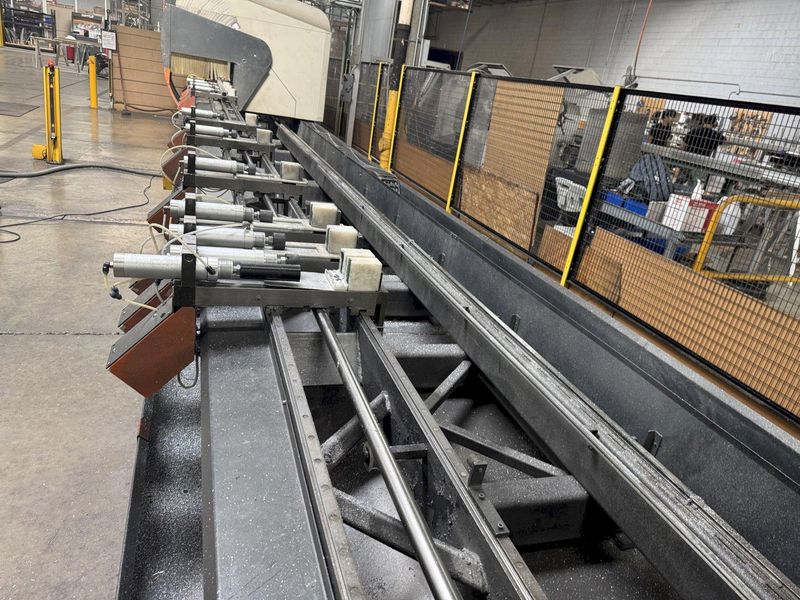

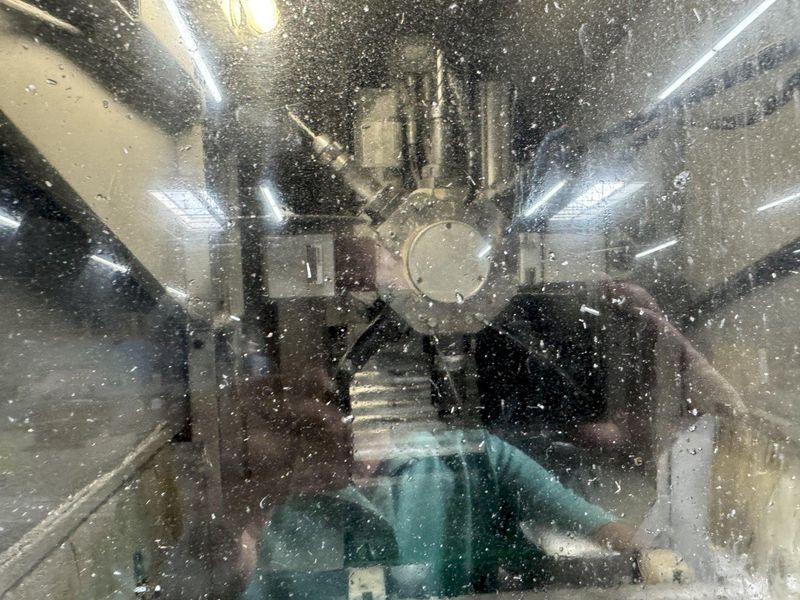

High Speed Processing Of Aluminum And Light Steel Profiles By Travelling Head Capable Of Drilling Milling And Tapping. Elumatec EluCam Conversational CNC Programming With Graphics. Pendant Control For Set-Up. 7.5 HP Router Spindle. 8-Position Turret. Circular Blade Sawing Attachment,  Indexing Angle Head for Front and Rear Lateral and End Machining.  (12) Horizontal Pneumatic Clamps With Automatic Positioning Recognition System. (2) Pneumatic Work Stops. Foot Pedal Controlled Material Stop. Work Enclosure With Window. Coolant System.
