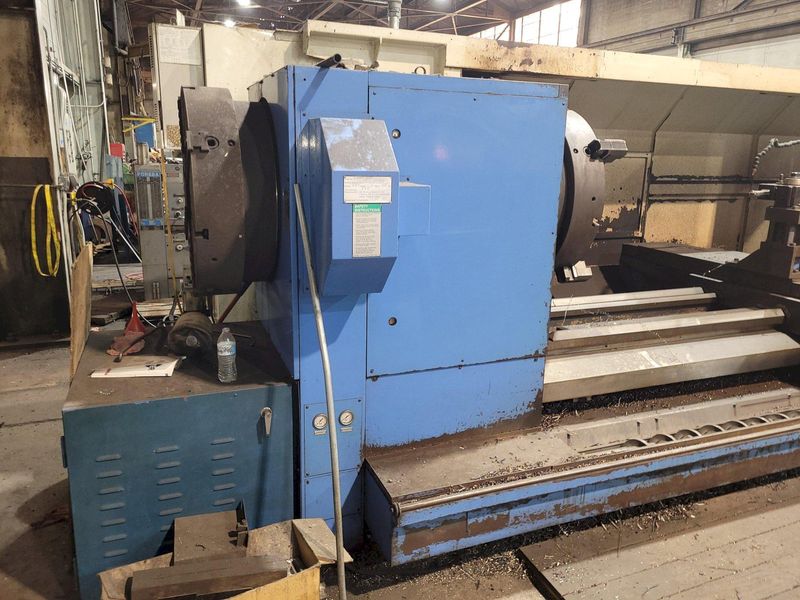

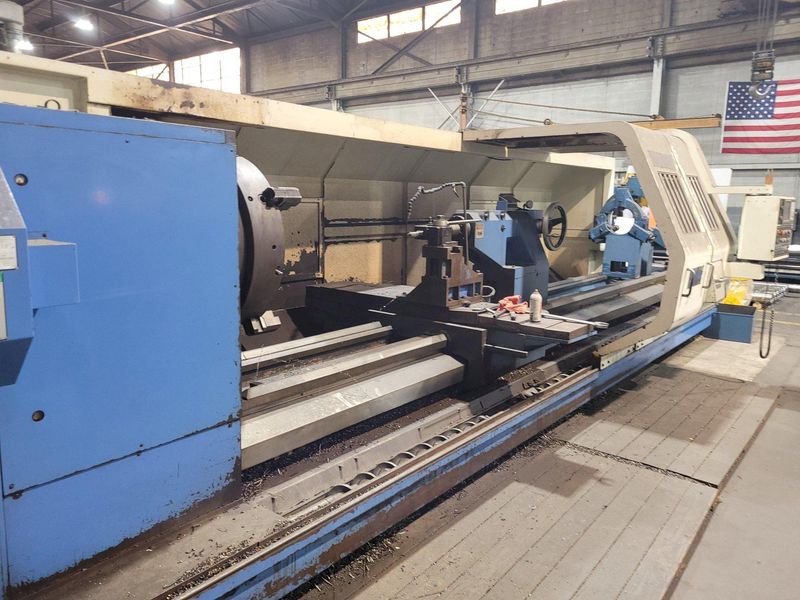

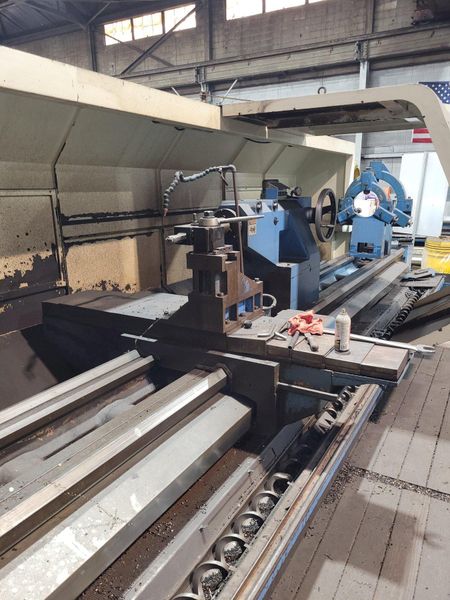

50" x 200" Kingston LD50-200 CNC Hollow Spindle CNC Lathe

Manufacturer

KINGSTON

Category

Lathes

Type

LATHES, FLAT BED, CNC

Stock

MT6087

Model

50" x 200" LD50-200

Dealer Location

Illinois

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Swing Over Bed - 50"
Swing over Cross Slide - 33.5"
Max Dist Between Centers - 200"
Hole Thru Spindle - 14.5"
Center Height - 25.6"
Spindle Speed - 9-300 RPM
Width of Cross Slide - 16.5"
Width of Carriage - 37.4"
Tailstock Center - 6 MT
Spindle Nose - A2-20
Approx Weight - 50600 lbs

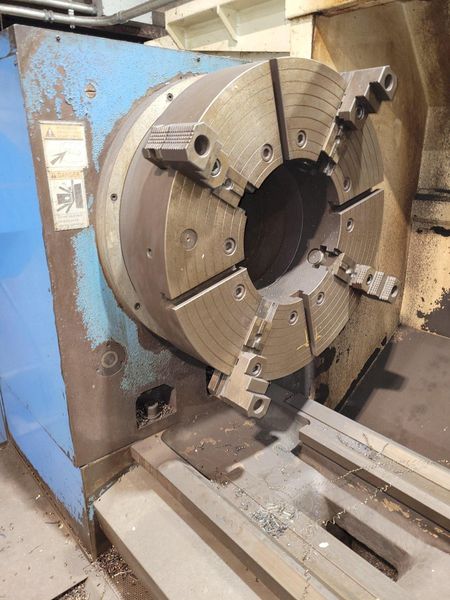

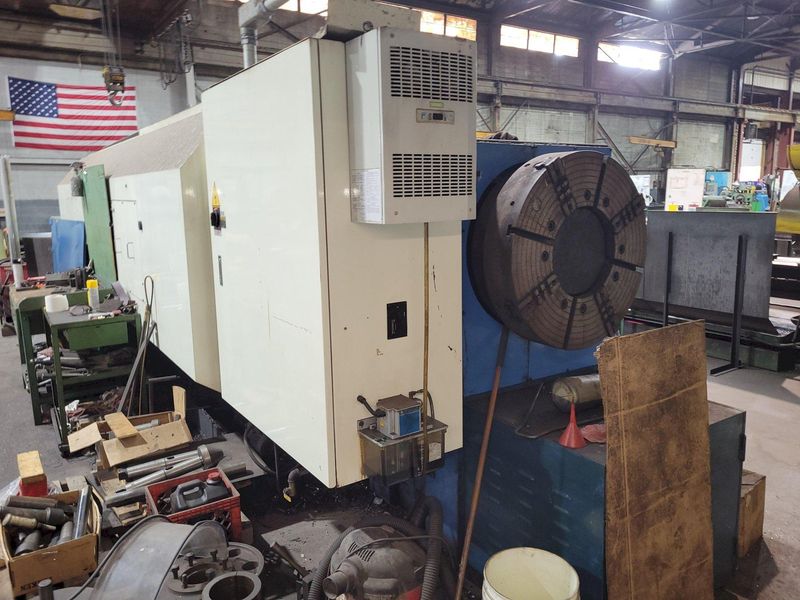

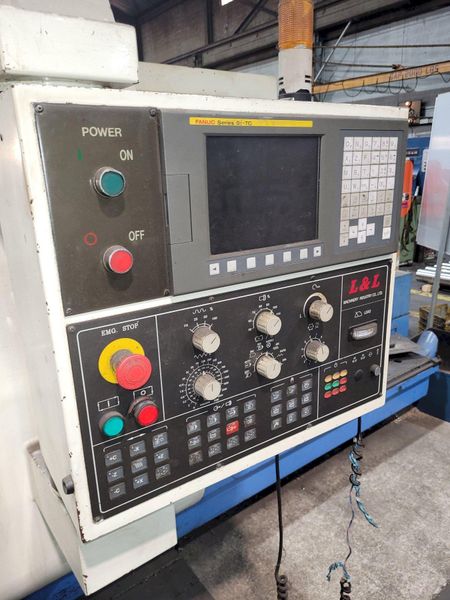

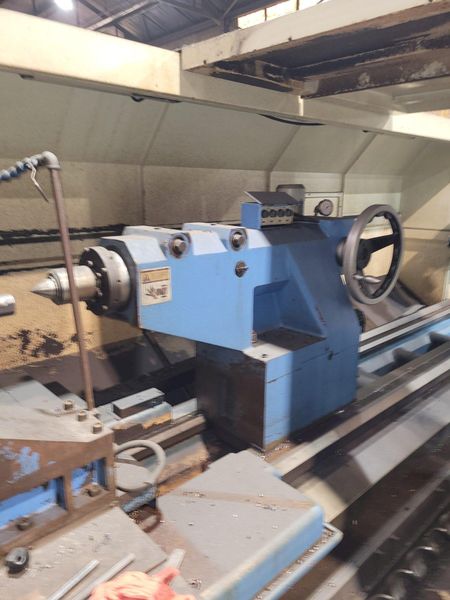

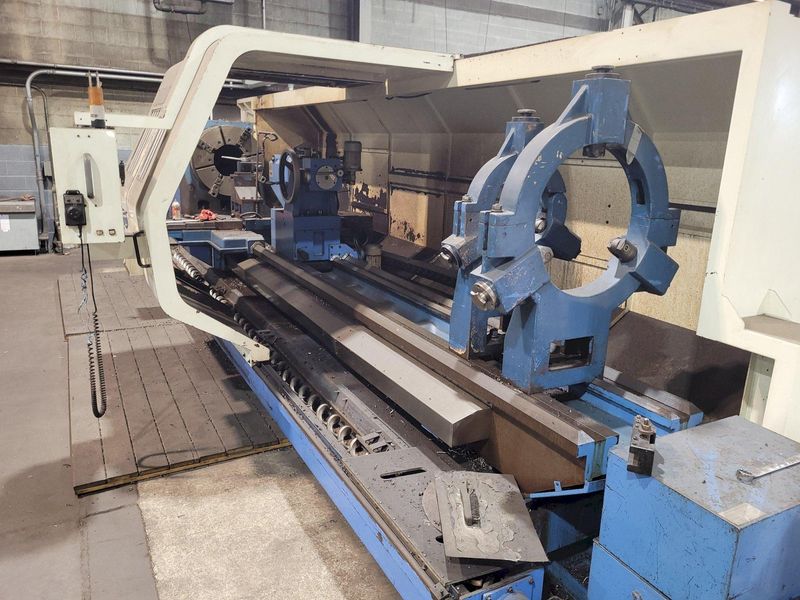

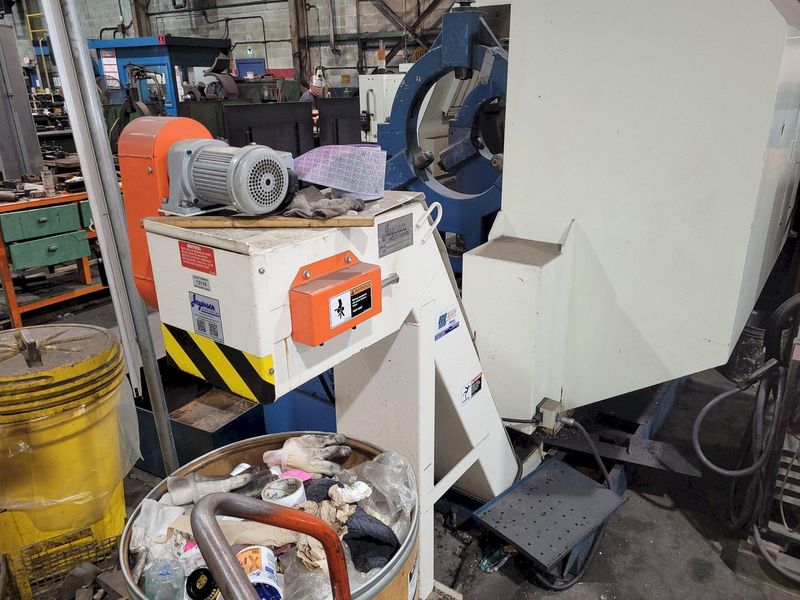

Equipped With: Fanuc 0iTC Swivelling Pendant Mounted CNC Controls with Remote MPG. 14.5" Hole Thru Spindle (2) 32" 4 Jaw Hole Thru Chucks Mounted Front and Rear.  Hydraulic Tailstock with Rotating Quill wih Push Button Controls for Positioning and Quill Advance and Retract. Programable Cross Slide with front Mounted Tool Post. (1) 22" Capacity Steady Rest. (1) 12" Capacity Steady Rest.  Full Length Jorgenson Chip Conveyor.  Full Length Splash Guard.  Sliding Front Splash and Chip Guard. Misc Tooling.
