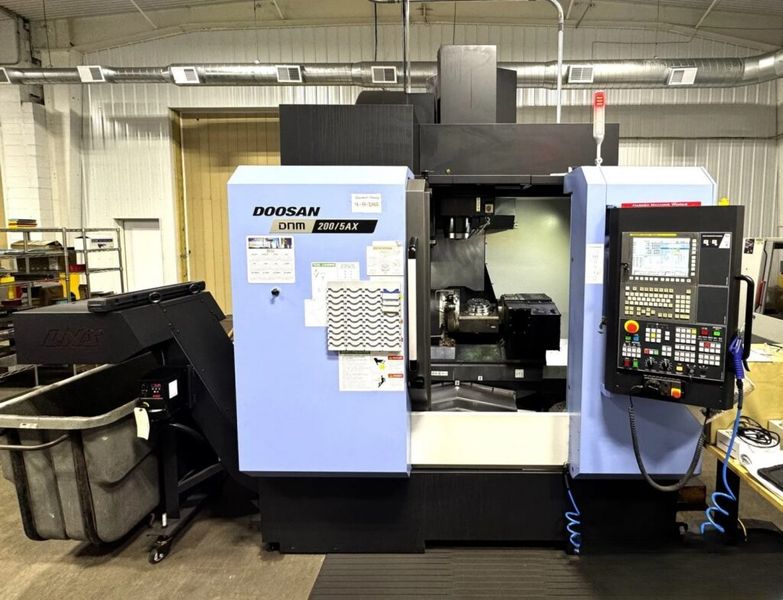

Doosan DNM 200/5AX CNC 5-Axis Vertical Machining Center (2017)

Manufacturer

Doosan

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

163260053

Model

DNM 200/5AX

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 163260053
  • Brand: Doosan
  • Model: DNM 200/5AX
  • Year: 2017
  • Location: PA
  • Approx. Shipping Weight: 12,500 lb

Specifications

  • Table Length: 7.87"
  • Table Width: 7.87"
  • X-Axis Travel: 15.75"
  • Y-Axis Travel: 17.13"
  • Z-Axis Travel: 19.69"
  • A-Axis Rotation: +30° -120°
  • C-Axis Rotation: 360°
  • Spindle Speed: 12,000 RPM
  • Spindle Motor: 25 hp
  • Spindle Taper: CAT 40 (BIG PLUS)
  • Tool Capacity (ATC): 40
  • Rapid Traverse – X Axis: 1,417 in/min.
  • Rapid Traverse – Y Axis: 1,417 in/min.
  • Rapid Traverse – Z-Axis: 1,181 in/min.

Equipped With

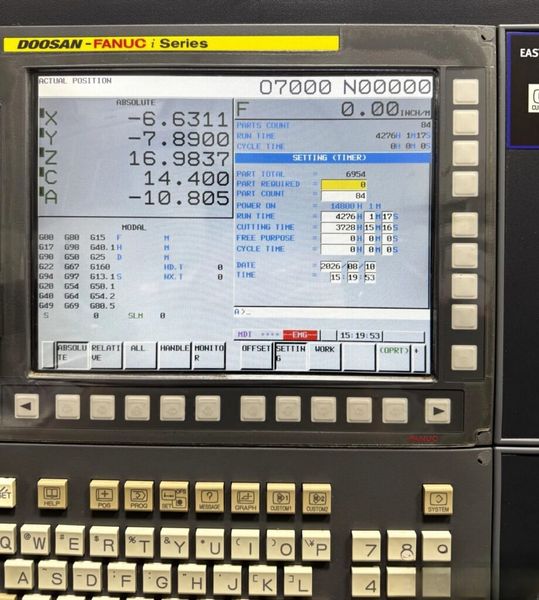

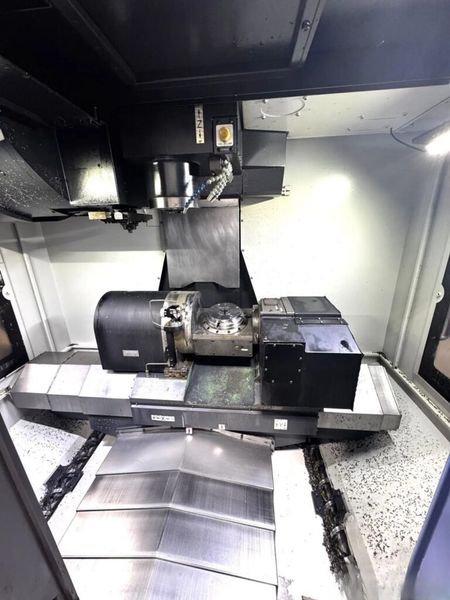

Doosan-Fanuc I Series CNC Control, Built-In 5Th Axis Trunnion Rotary Table (3+2), Through Spindle Coolant (230 PSI), Renishaw Work Probe, Tool Setter, & Rmi, 12,000 RPM Spindle, 40 Position Automatic Tool Changer, Chip Conveyor, Coolant Tank, Oil Skimmer

Additional Info

Under 4,000 Hours. This machine is under power and can be inspected upon request.
