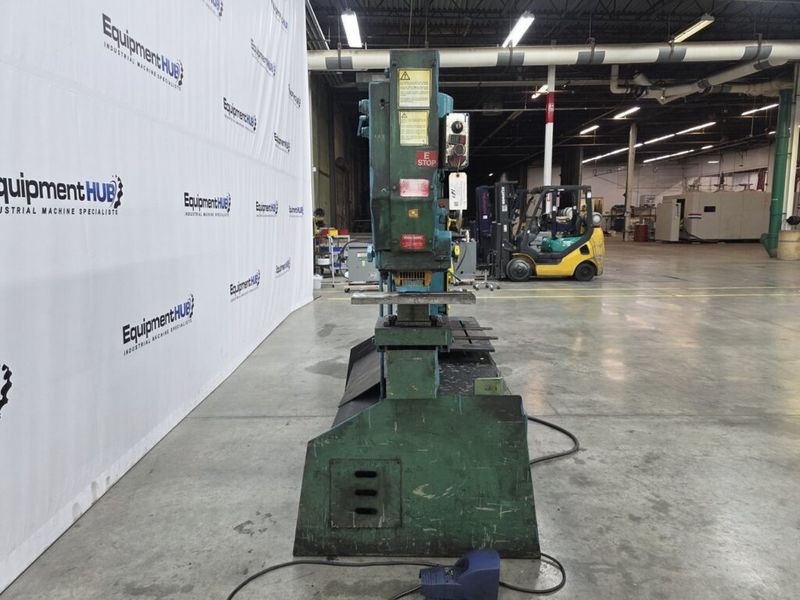

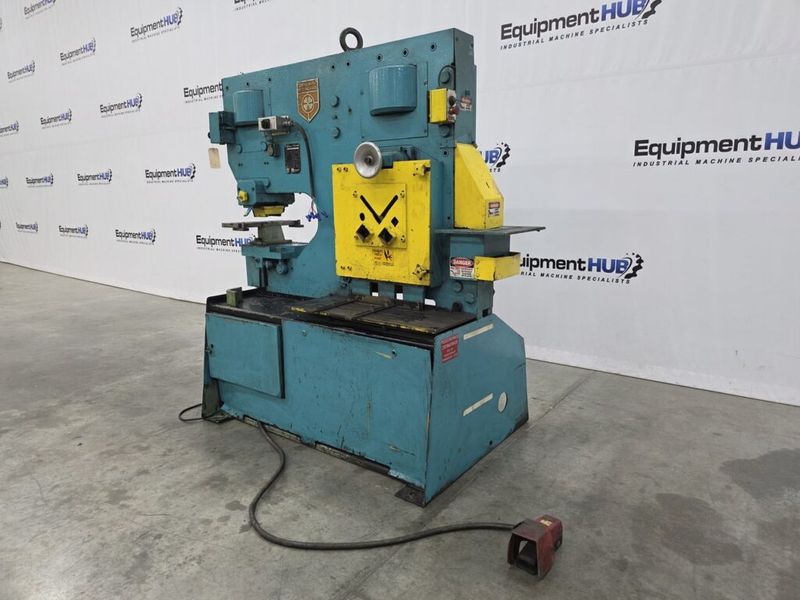

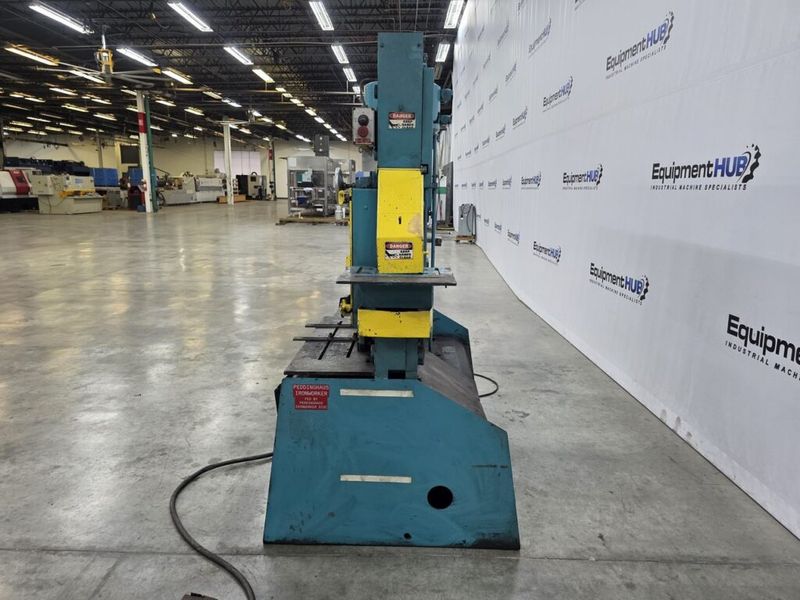

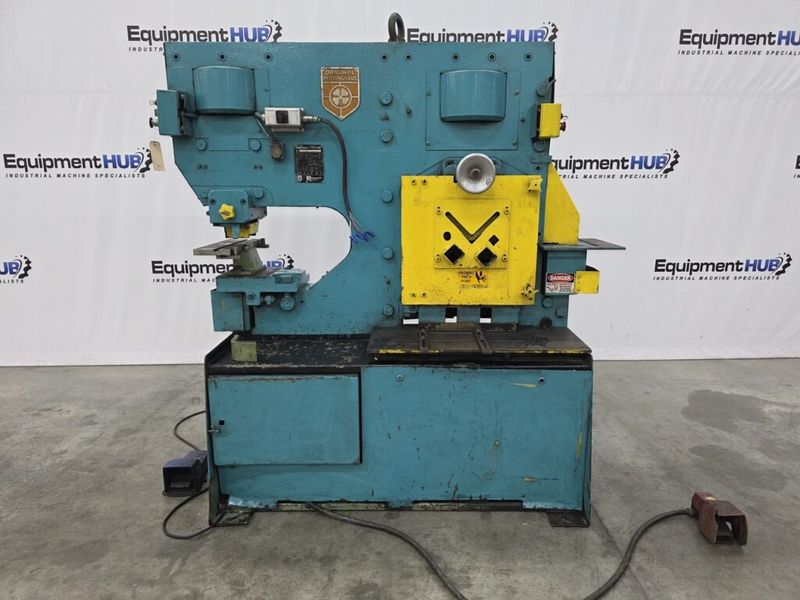

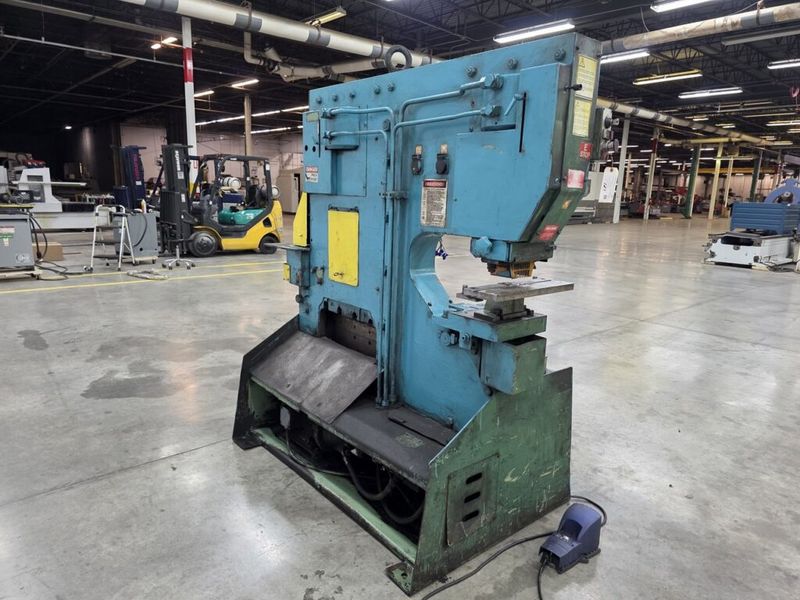

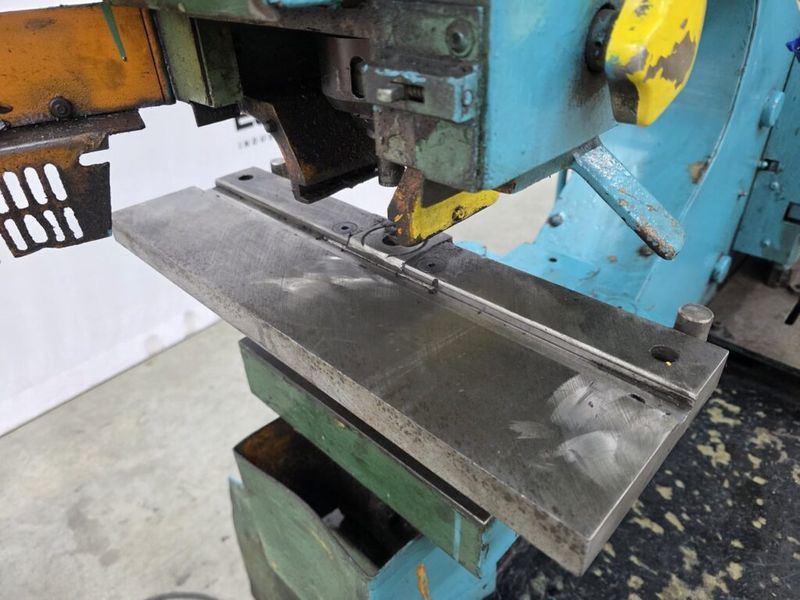

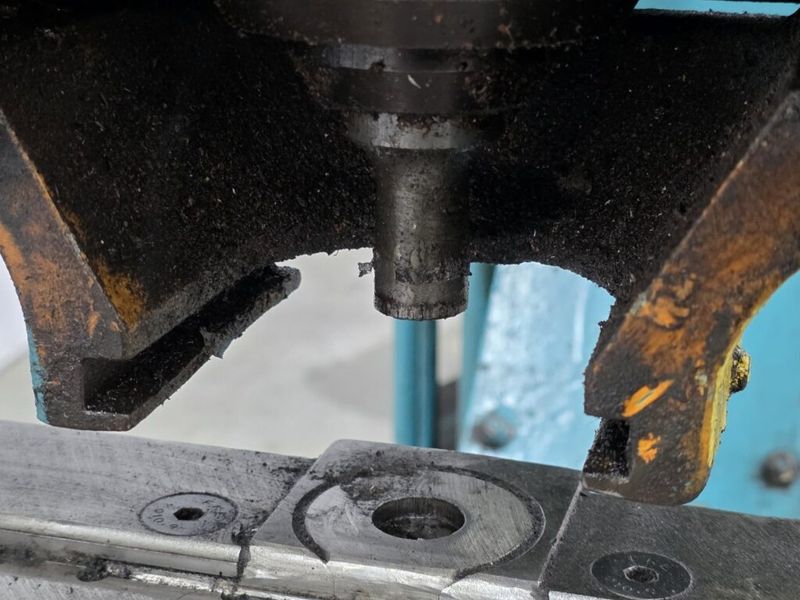

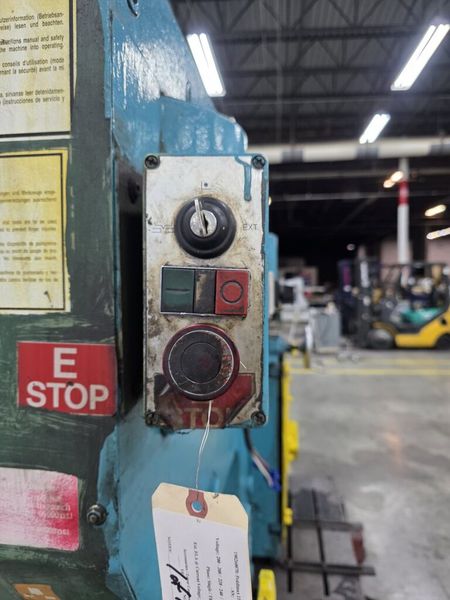

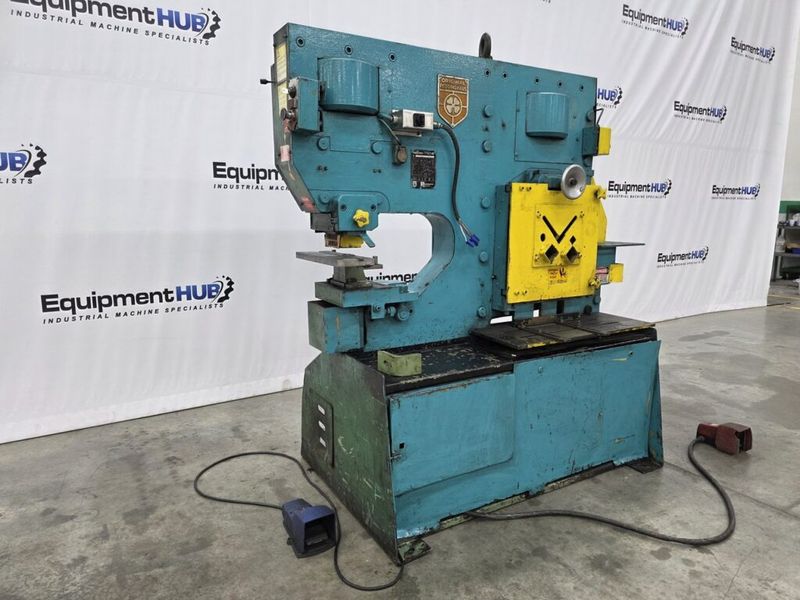

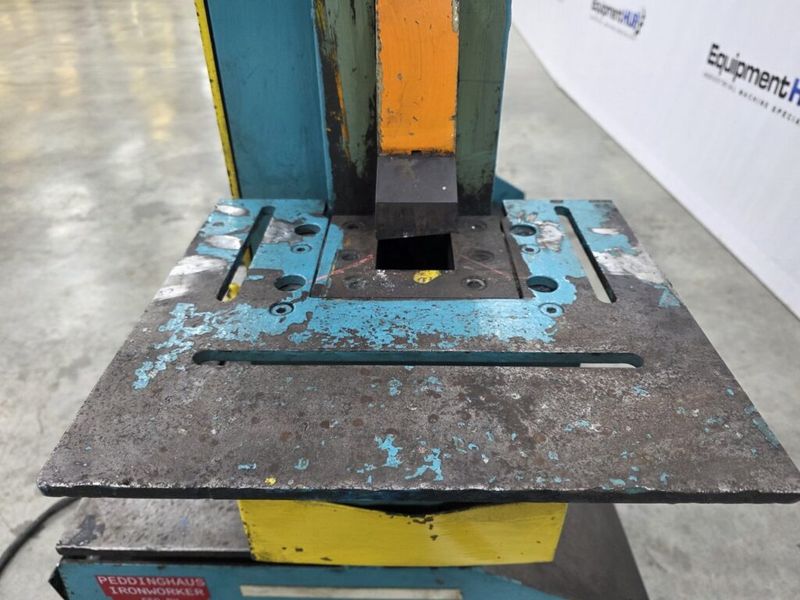

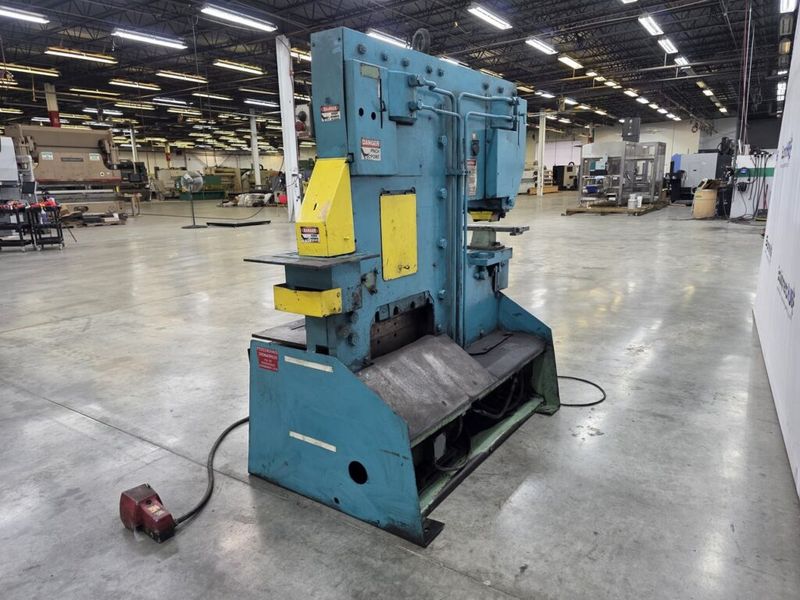

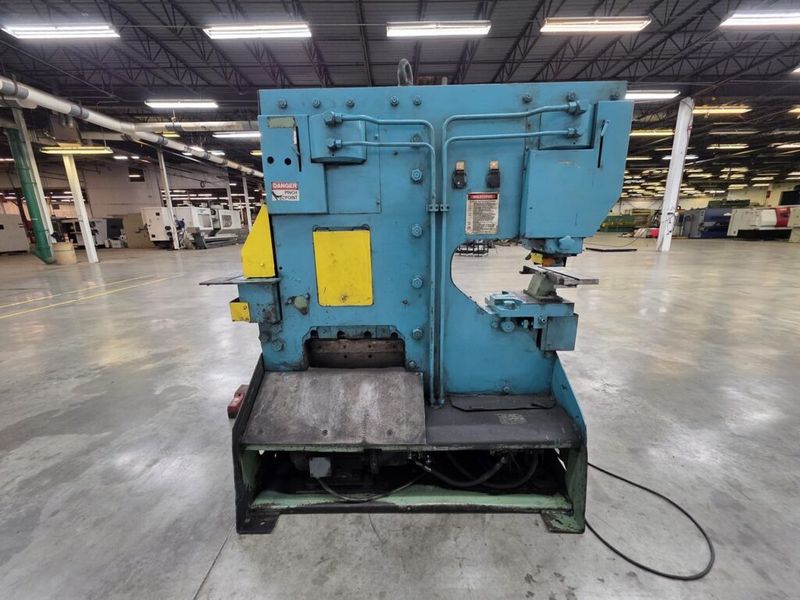

Peddinghaus Peddimax 110/140 110 Ton Ironworker

Manufacturer

Peddinghaus

Category

Punches

Type

IRONWORKERS

Stock

190260070

Model

Peddimax 110/140

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 190260070
  • Location: Stone Mountain, GA
  • Brand: Peddinghaus
  • Model: Peddimax 110/140
  • Approx. Shipping Weight: 6,500 Lbs.
  • Approx. Shipping Dimensions: 7’ x 4’ x 7’

Specifications

  • Punch Tonnage: 110 Ton
  • Shear Tonnage: 140 Ton
  • Punch Stroke: 3/8" – 2"
  • Punch Capacity: 1.25" x 1"
  • Punch Throat Depth: 20"
  • Punch Strokes Per Minute: 22
  • Flat Bar Shear Capacity: 20" x 5/8"; 16" x 3/4"; 12" x 1"
  • Flat Bar Shear Length: 20-1/4"
  • Flat Bar Shear Working Height: 28-3/8"
  • Angle Shear Capacity, 90 Degree: 6" x 6 " x 1/2"
  • Angle Shear Capacity, 45 Degree: 4" x 4" x 1/2"
  • Round Bar Capacity: 2" and 1"
  • Square Bar Capacity: 2" and 1-3/16"

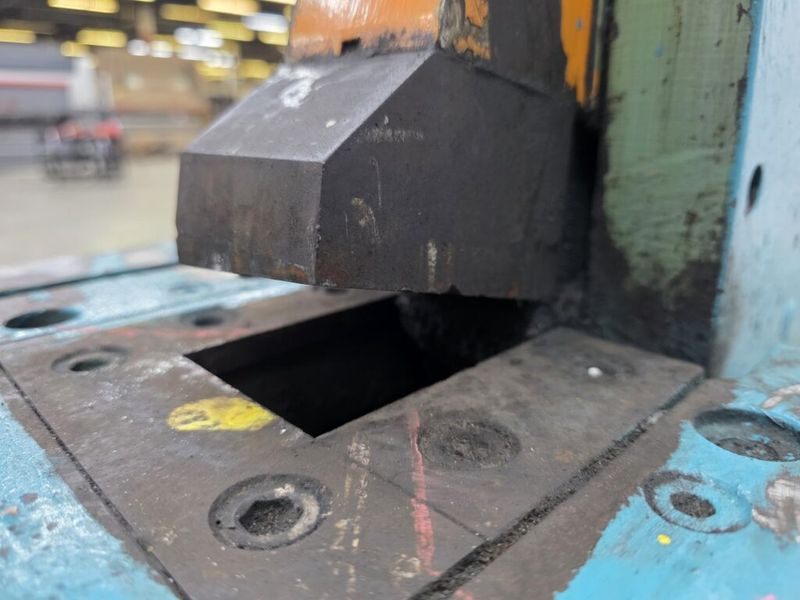

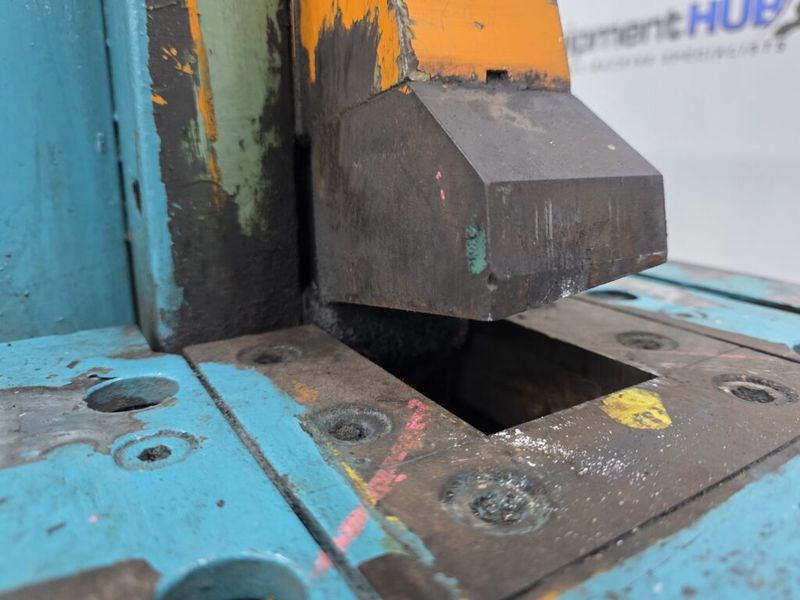

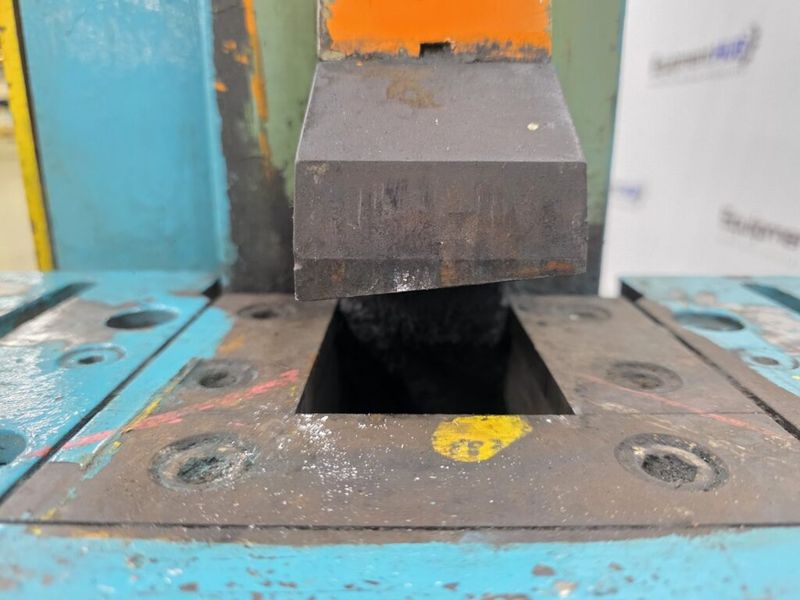

  • Notcher Capacity, Plate: 1/2" square, 1/2" triangular
  • Notcher Capacity, Angle: 3" x 3/8" square, 3" x 3/8" triangular
  • Notch Width: 2-9/16" square
  • Notch Depth: 3-5/16" square, 2-9/16" triangular
  • Notch Station Working Height: 45-1/2" to center of blades
  • I-Beams: 6" H x 12.5 lbs
  • Flanges: 7" H x 14.75 lbs
  • Oil Capacity: 28 gallons
  • Motor: 10 HP (7.5 KW)
  • Volts: 230 / 460 (Wired at 230)
  • Max Amperage: 30.8 / 15.4

Equipped With

Two Foot Pedals

Additional Info

View the video to see the machine under power. Machine can be demoed upon request.
