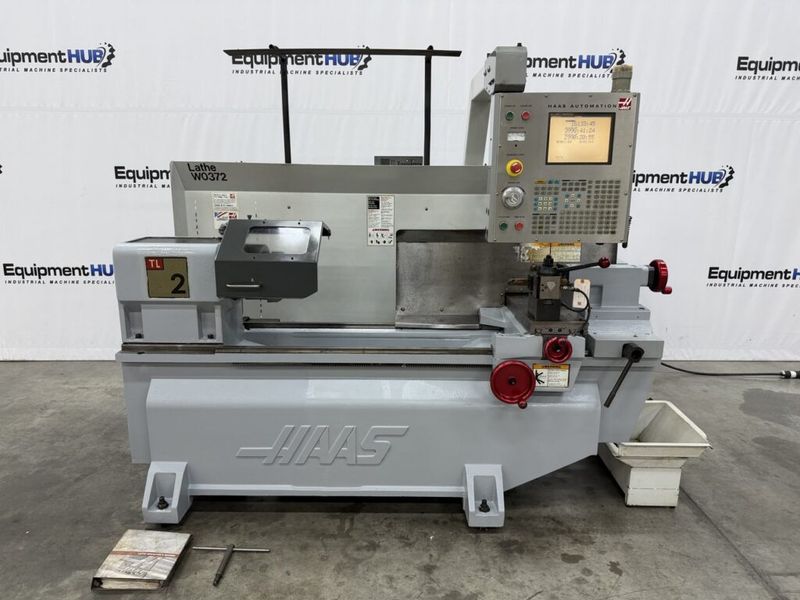

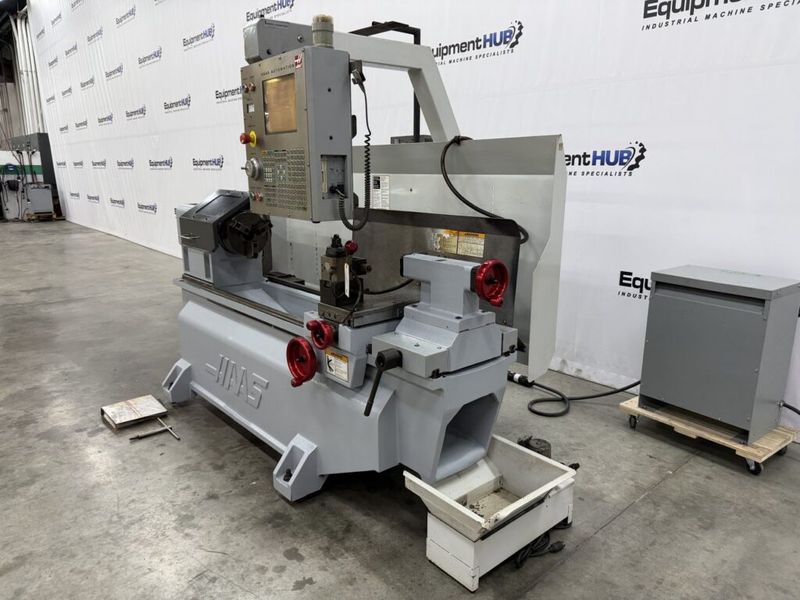

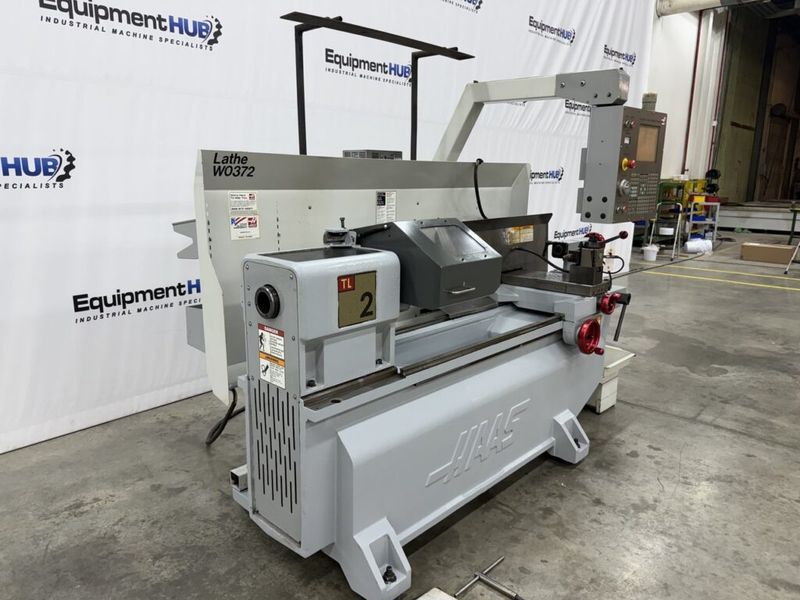

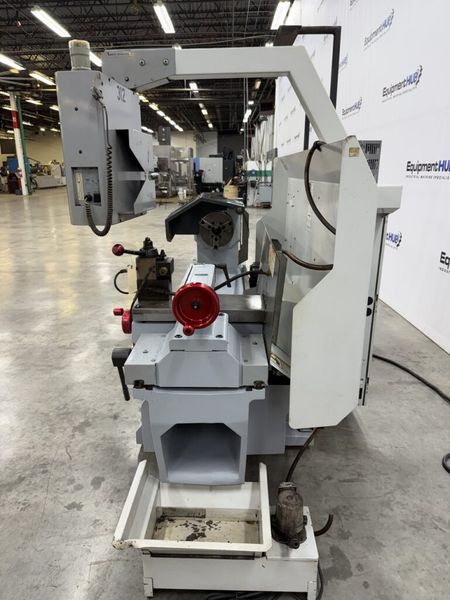

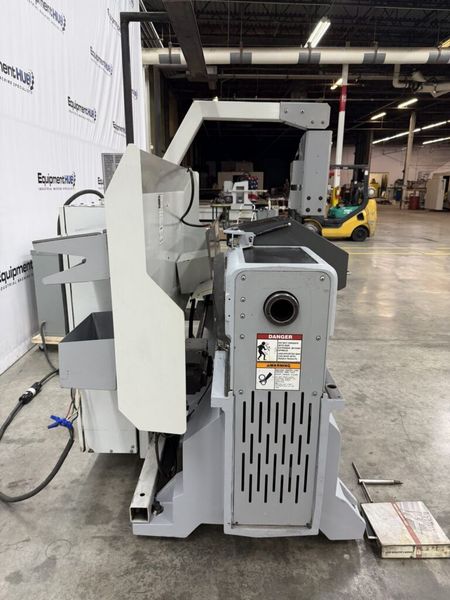

HAAS TL-2 CNC Toolroom Lathe

Manufacturer

Haas

Category

Lathes

Type

LATHES, CNC

Stock

150260024

Model

TL-2

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 150260024
  • Location: Decatur, GA
  • Brand: Haas
  • Model: TL-2
  • Serial Number: 3082975
  • Year: 2006
  • Approx. Shipping Weight: 6,000 Lbs.
  • Approx. Shipping Dimensions: 10’L x 6’W x 8’H

Specifications

  • Max Swing Over Bed: 20"
  • Max Swing Over Cross Slide: 11"
  • Max Cutting Diameter: 16"
  • Distance Between Centers: 48"
  • X-Axis Travel: 8"
  • Z-Axis Travel: 48"
  • Rapid Traverse (X&Z): 450 IPM
  • Spindle Nose: A2-6
  • Spindle Bore: 3.0" (Big Bore)
  • Spindle Speeds: 0 – 2000 RPM
  • Spindle Motor: 10 HP
  • Max Bar Capacity: 3"
  • Electrical: 230V/3PH

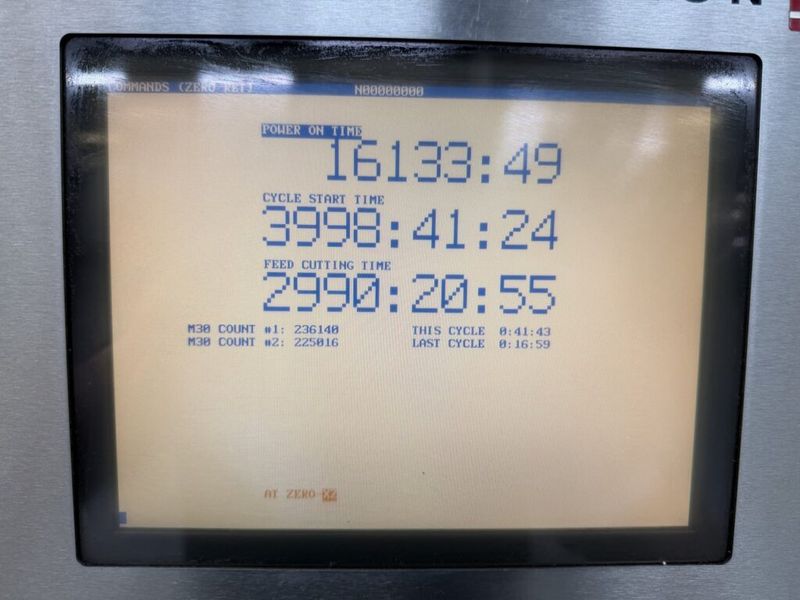

  • Power On Time: 16,133
  • Cycle Start Time: 3,998
  • Feed Cutting Time: 2,990

Equipped With

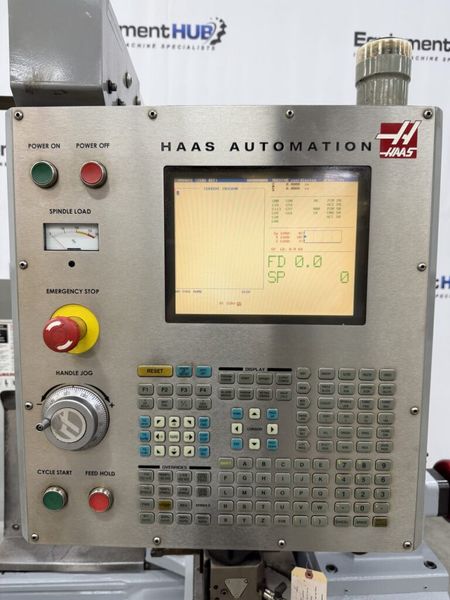

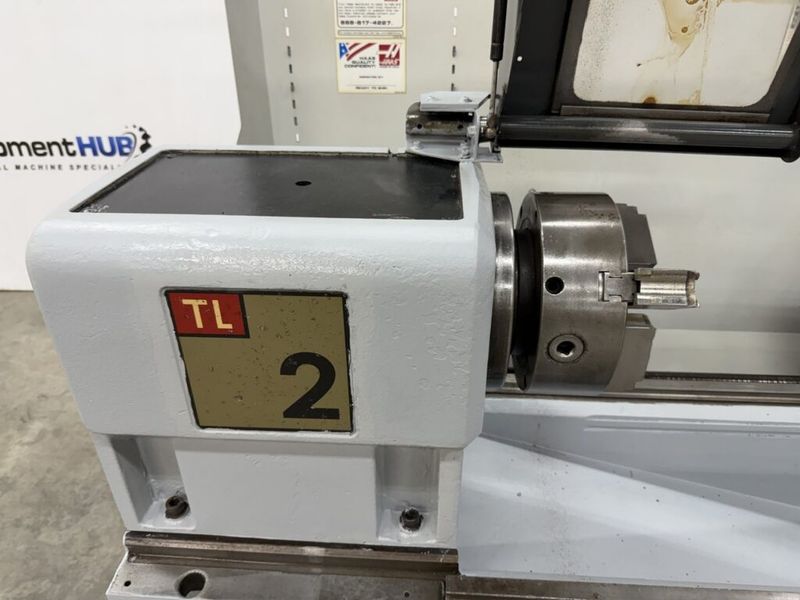

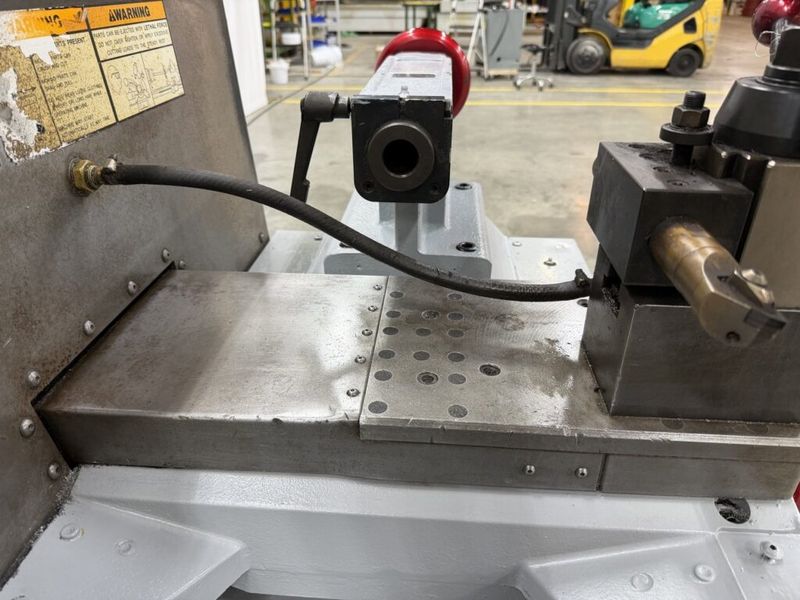

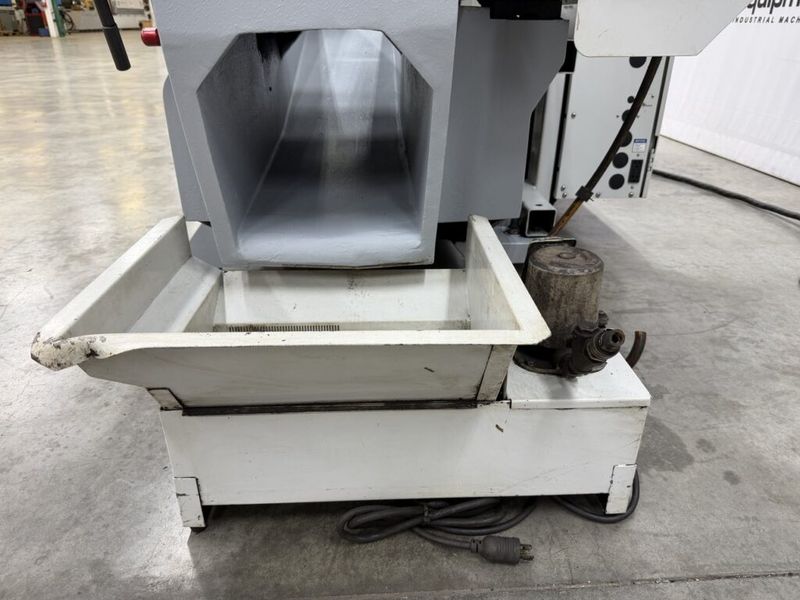

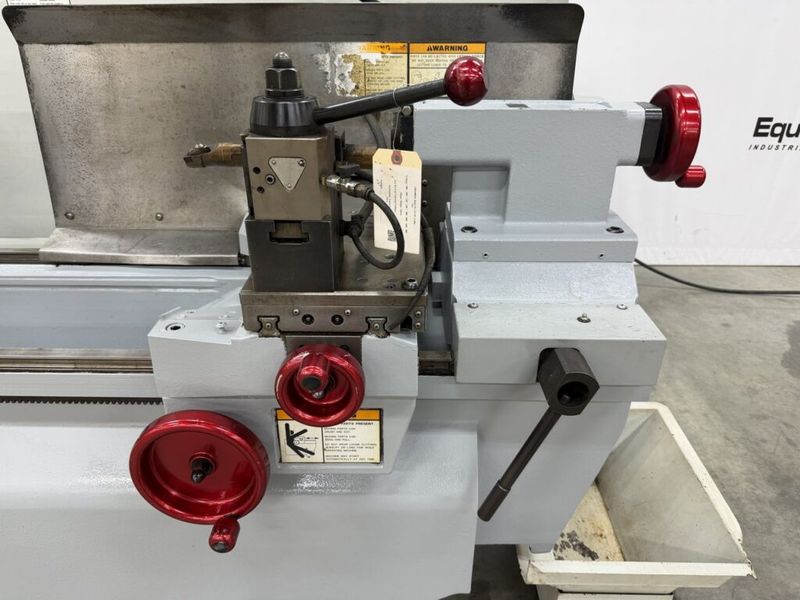

Haas CNC Control With Color LCD Display, 3-Jaw 10" Scroll Chuck, Quick-Change Tool Post (Cxa Size), Multiple Cxa Tool Holders, Tailstock, Rigid Tapping, Coolant System, USB Port, Rs-232 Port, Leveling Pads

Additional Info

The Haas Lathe can be demoed upon request, check out the video on the listing to see it in operation.
