FASSLER HMX-400 - Gear Shavers & Hone

Manufacturer

FASSLER

Category

Gear Machines

Type

GEAR HONERS

Stock

25947

Model

HMX-400

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Siemens 840D Control
  • Gantry Loader
  • Load Table
  • Safety Gate

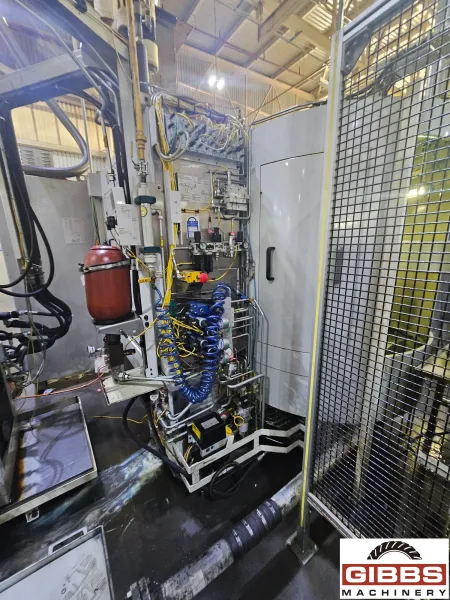

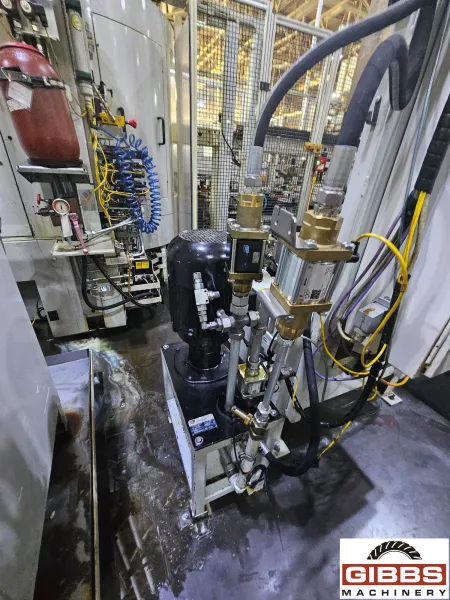

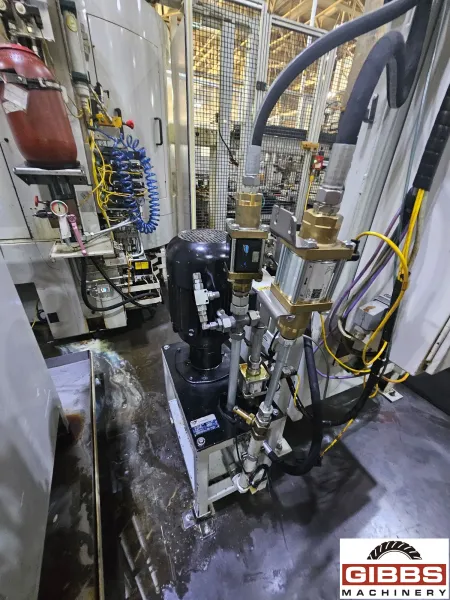

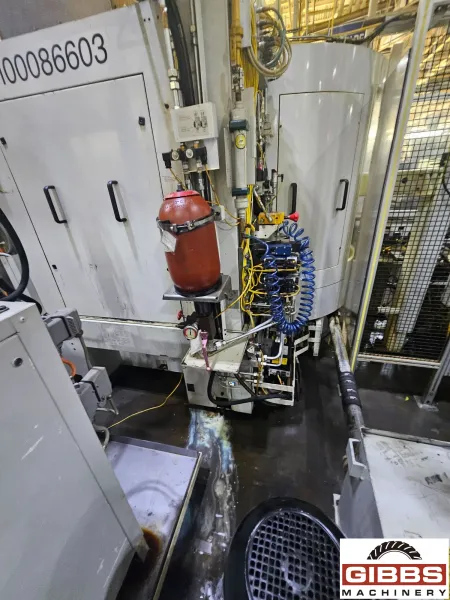

  • Hydraulic System
  • Chiller
  • Mist Collector

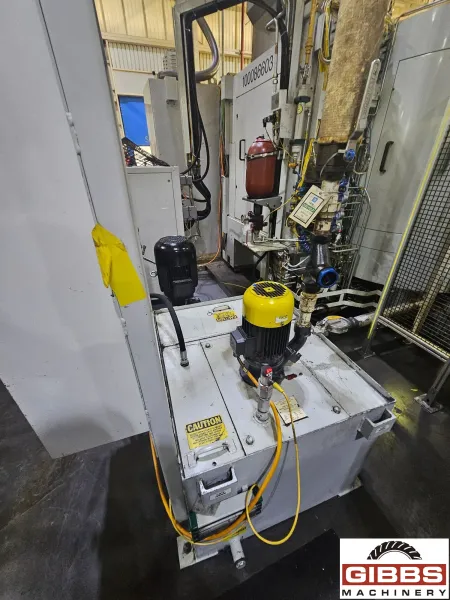

  • Filtra Coolant Tank & Pump
  • Stack Light
,

Machine Specifications :

  • Year 2008
  • Manufacturer FASSLER
  • Maximum Workpiece Diiameter 13.8"
  • Maximum Workpiece Length 15.7"
  • Control Manufacturer Siemens
,

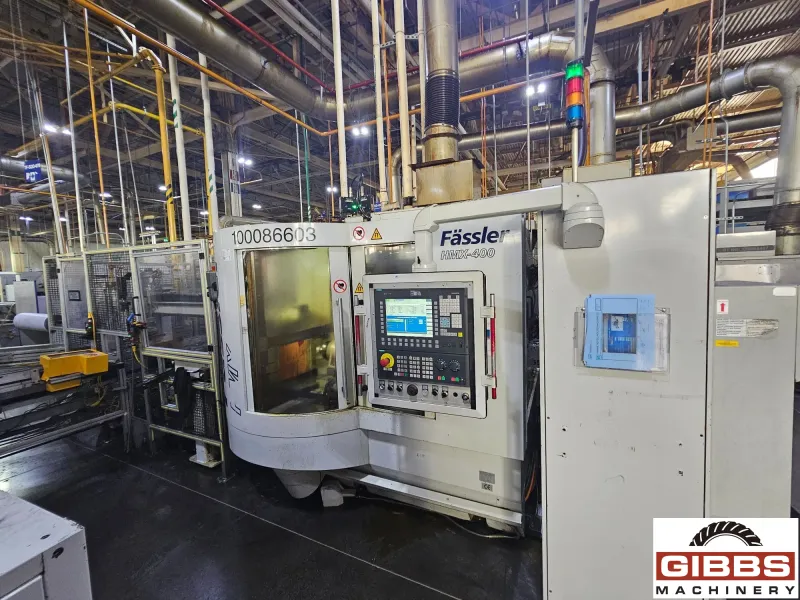

Fssler HMX 400 is an advanced CNC gear honing machine designed for the high-precision fine machining of hard and soft tooth flanks on external and internal gears.

    Specifications:

  • Workpiece (c2-and c3-Axis) RPM, Stepless: 0-9000 1/min
  • Machinable Workpiece Diameter (External Honing): 20-320 mm
  • Machinable Workpiece Diameter (Internal Honing): 50-350 mm
  • Maximum Workpiece-Shaft Length: 400 mm
  • Maximum Speed, Honing Stone Drive: 1500 1/min
  • Maximum Honing Force (Max. Process Load): 1000 n
  • Honing-Stone Diameter: 400 mm
  • Swivel Drive (A-Axis) Speed: 0-112 Degree/S
  • Swivel Range A-Axis" +/- 45 Degrees
  • Swivel Drive (B1-Axis) Speed: 0-12 Degrees/s
  • Slewing Range B-Axis: +/- 10 Degrees
  • Cross Slide (X-Axis) Infeed Travel: -180/+5 mm
  • Cross Slide (X-Axis) Speed: 0-7500 mm/min
  • Longitudinal Slide (Z1-Axis) Travel: -400/+100 mm
  • Longitudinal Slide (Z1-Axis) Speed: 0-8000 mm/min
  • Longitudinal Slide (Z2-Axis) Travel: -627/-87 mm
  • Longitudinal Slide (Z2-Axis) Speed: 0-50000 mm/min
