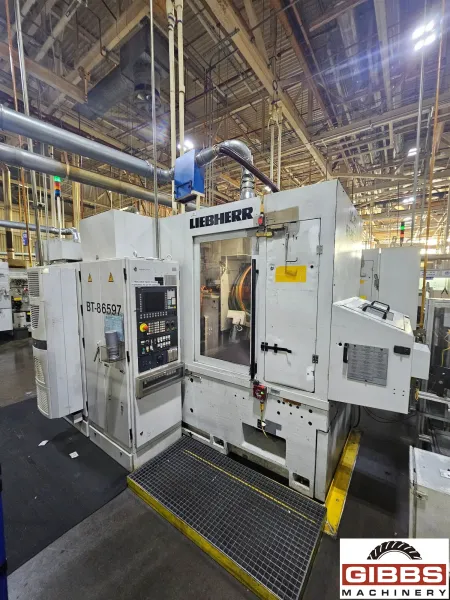

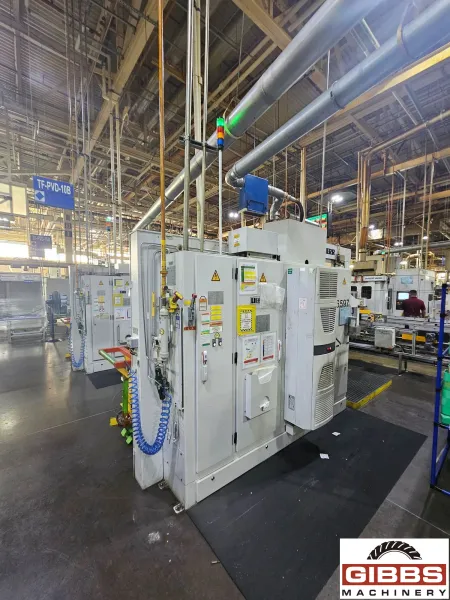

LIEBHERR LC-80 - Gear Hobber

Manufacturer

LIEBHERR

Category

Gear Machines

Type

GEAR HOBBERS, CNC

Stock

25949

Model

LC-80

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

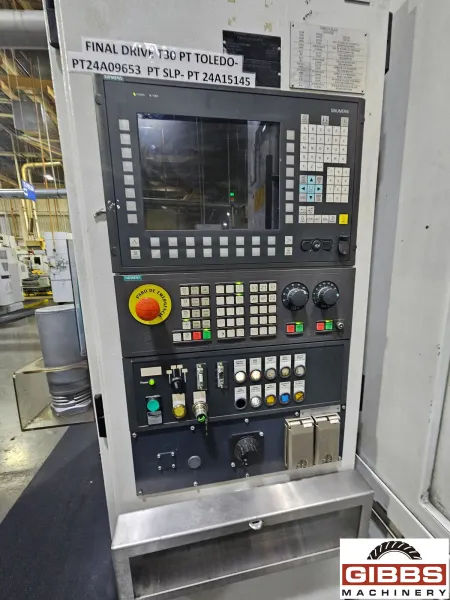

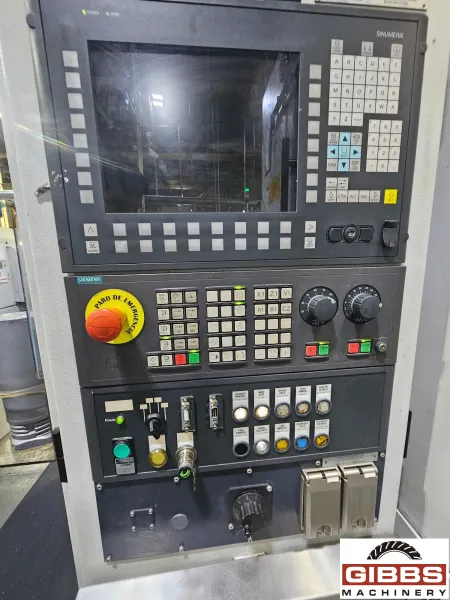

  • Siemens 840D Control
  • Hydraulic Work Clamping
  • Auto Load
  • 120 Degree Ring Loader
  • Deburr Tool
  • Tailstock
  • Chip Conveyor
  • Dry Cutting

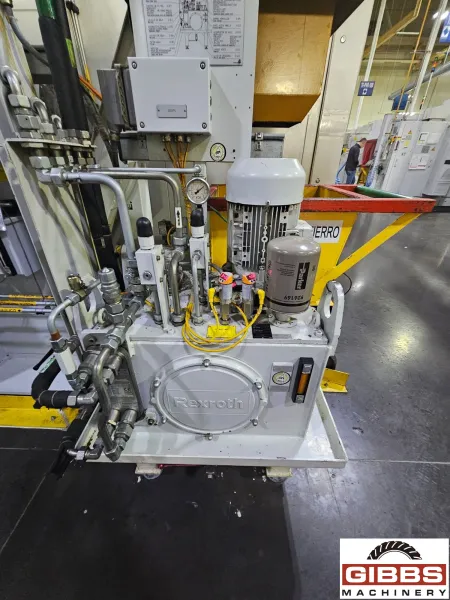

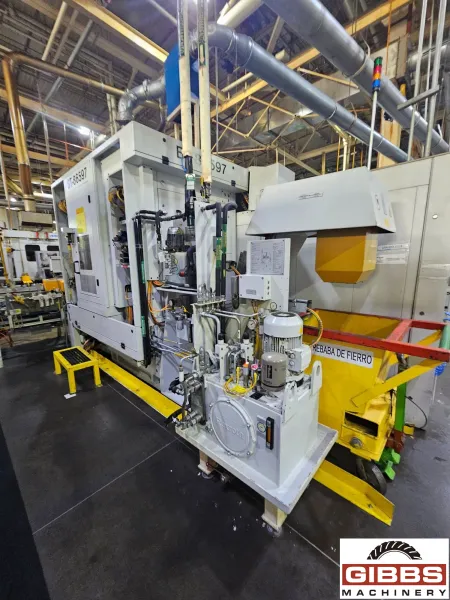

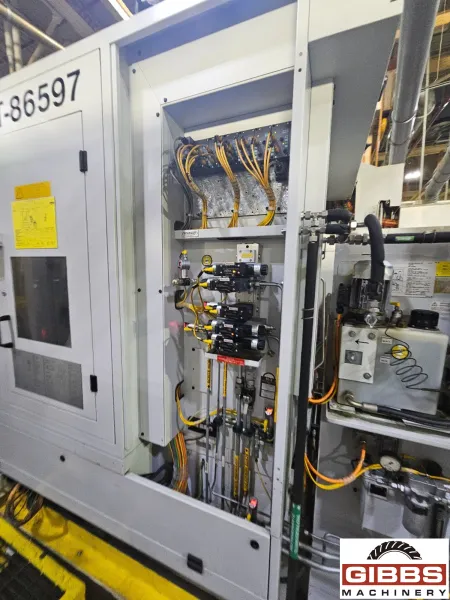

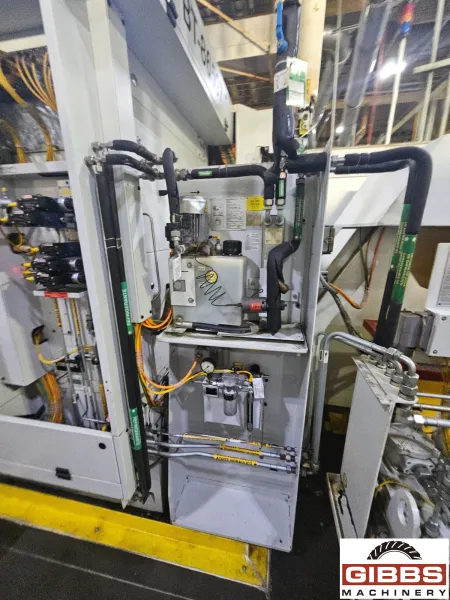

  • Hydraulic System
  • Vogel Lube
  • Panel AC
  • 480/3/60 Electrics
  • CE Mark
,

Machine Specifications :

  • Year 2008
  • Manufacturer LIEBHERR
  • Horz/Vert Vert
  • Maximum Workpiece Diameter 4.7"
  • Maximum Diametral Pitch 8.0
  • Module 3.0
  • Axial Travel 9.8"
  • Maximum Hob Diameter 3.5"
  • Hob Speed 6,000 RPM
  • Table Diameter 5.7"
  • Control Manufacturer Siemens
,

LIEBHERR LC-80 CNC Gear Hobber available. Max workpiece dia. 80 (*120) mm, module 3, axial travel 250 mm, hob speed up to 6,000 RPM. Equipped with Siemens 840D, hydraulic clamping, and more. Ideal for precision gear manufacturing.

    Specifications:

  • Maximum Workpiece Diameter: 80 (*120) mm
  • Maximum Nominal Module: 3(5)
  • Workpiece Weight: 15 kg
  • Maximum Workpiece Length (Manual Loading): -50mm,+450
  • Maximum Hob Slide Travel: 250/400 mm
  • Table Diameter: 145 mm
  • Table Speed: 150/250/800 Min-1
  • Center Distance Hob/Work Table: 10-200 Min-Max
  • Hob Head Swivel Angle: +/-45 Degrees
  • Maximum Shift Travel: 180 mm
  • Maximum Hob Diameter: 90 mm
  • Maximum Hob Length: 220 mm
  • Maximum Hob Speeds: 1,000-6,000 RPM
  • Driving Power Hob Spindle: 15/23 kW
  • Total Connected Load: 25-35 ca. kVA
  • Weight of Machine W/Tailstock Column: 10,000 ca. kg
