SICMAT RASO 200 - Gear Shavers & Hone

Manufacturer

SICMAT

Category

Gear Machines

Type

GEAR SHAVERS (Including CNC)

Stock

25957

Model

RASO 200

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

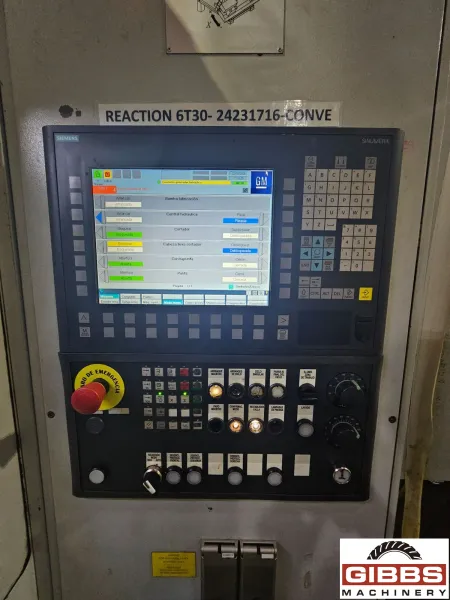

  • Siemens 840D Control
  • Headstock
  • Tailstock
  • Cutter Head
  • Coolant Tank
  • Magnetic Separator

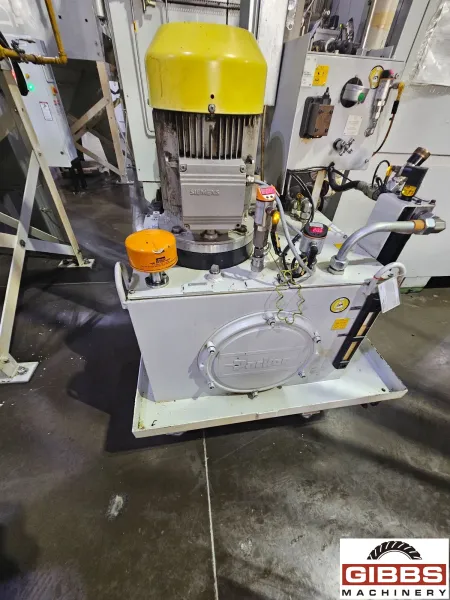

  • Hydraulic System
  • Panel AC
  • Auto Load
  • 460/3/60 Electrics
,

Machine Specifications :

  • Year 2008
  • Manufacturer SICMAT
  • Maximum Workpiece Diameter 7.9"
  • Diametral Pitch 5.0
  • Module 5.0
  • Minimum/Maximum Diameter Shaving Cutter 9.6"
  • Minimum/Maximum Width of Shaving Cutter 2"
  • Shaving Cutter Bore Diameter 2.5"
  • Control Manufcaturer Siemens
,

The RASO 200 shaving machine is the ideal match for transmission gears, motorcycle gears, pump gears. Speed and flexibility are unsurpassed...inspect one today.

    Specifications:

  • Maximum Workpiece Diameter: 200 mm
  • Maximum Workpiece Length: 100 mm
  • Maximum Outside Diameter: 200 mm
  • Maximum Face Width: 100 mm (42)
  • Minimum/Maximum Module: 0.5 - 5.0 mm
  • Minimum/Maximum Distance Between Shaving Cutter & Work piece Axis
  • (Standard Tailstock Height): 110-202 mm
  • Minimum/Maximum Diameter Of Shaving Cutter: 178-245 mm
  • Shaving Cutter Bore Diameter: 63.5 (100)
  • Minimum/Maximum Shaving Cutter Width (Standard): 19-50.8
  • Table Oscillation: +/- 1.7 degrees
  • Shaving Cutter Spindle Speed: 400 RPM
