GLEASON SIGMA V3 - Gear Tester

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR TESTERS

Stock

25972

Model

SIGMA V3

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Calibrated 4/8/2026

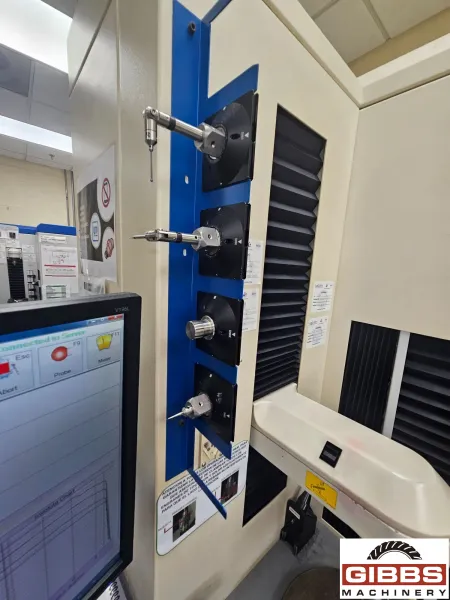

  • Probe Rack
  • Probes
  • Gage Ball Base
  • Tailstock W/Center

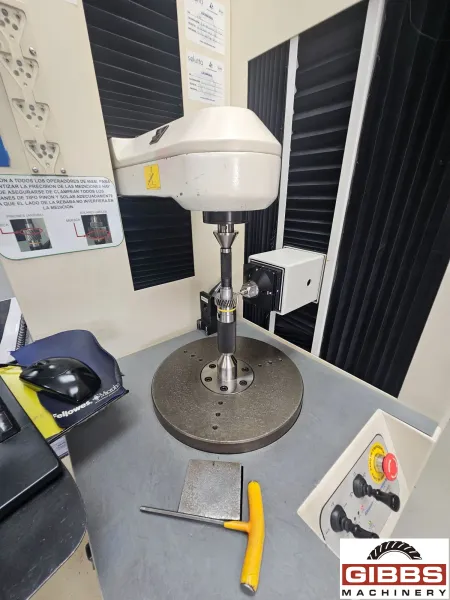

  • Rotary Table W/Center

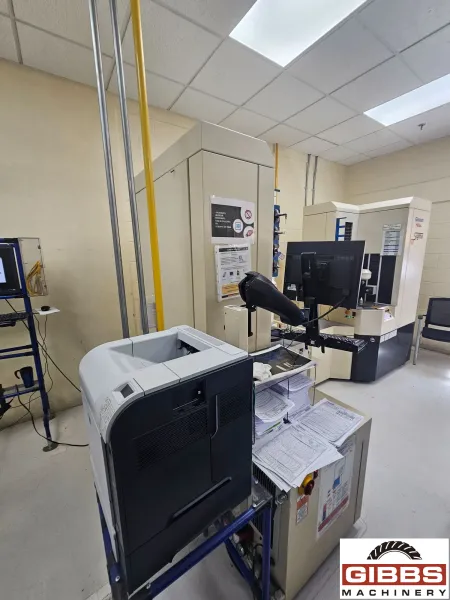

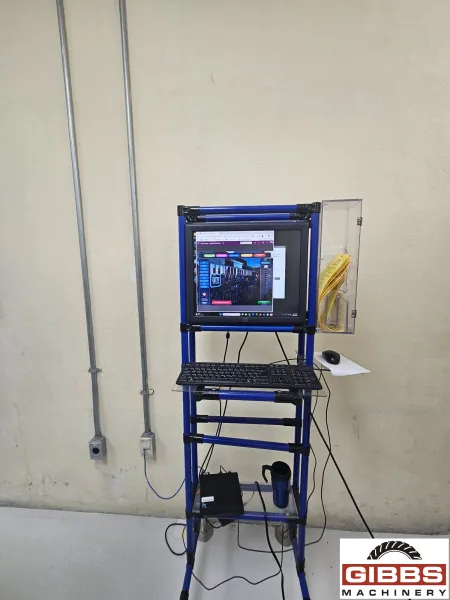

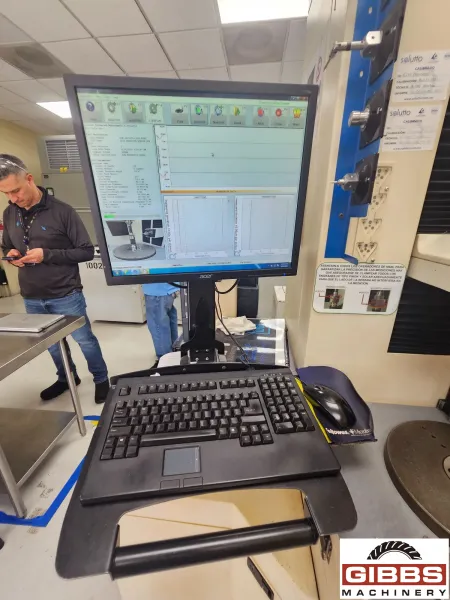

  • Computer
  • Display
  • Printer
,

Machine Specifications :

  • Year
  • Manufacturer GLEASON
  • Type Gear Tester
  • Maximum Workpiece Diameter 14.0"
  • Maximum Workpiece Length 26.5"
  • Axial Travel 18.5"
  • Tailstock Travel 0.71"
  • Control Manufacturer Other
,

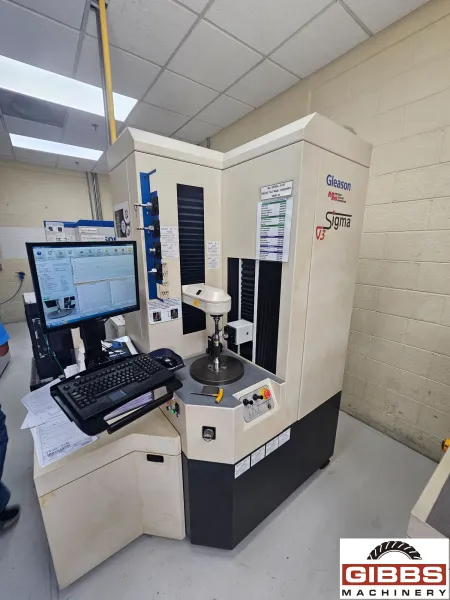

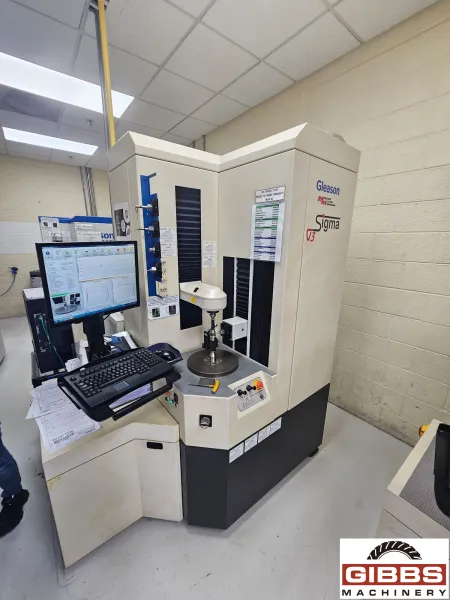

The GLEASON SIGMA V3 (also known as Sigma 3) is a Precision CNC gear testing machine that uses a granite base, 3 linear motor-driven axes (X, Y, Z), and a rotary C-axis to inspect gears. It is designed for production and laboratory use. It can handle gears up to 12" in diameter. The machine features a 3D scanning probe, often a Renishaw SP80H, which provides high-speed and high-accuracy measurements.

    Specifications:

  • Maximum Gear Diameter: 14"
  • A-axis, 360 Degrees of Travel, Table Diameter: 11.8"
  • X-axis, Right to Left Travel of the Measuring Slide: 7.25"
  • Y-axis, Front to Back Travel of the Measuring Slide: 19.75"
  • Z-axis, Up and Down Travel of the Measuring Slide: 18.5"
  • Maximum Length Part Between Centers: 26.5"
  • Maximum Weight of Part to be Checked: 400 lb
  • Power Requirements: 110 VAC/220 VAC, 10/5 Amps
  • Dimensions: 70" X 43" X 84"
  • Weight 6,500 kg
