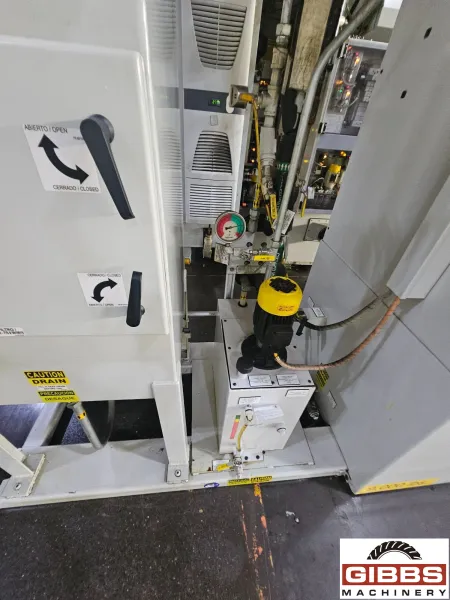

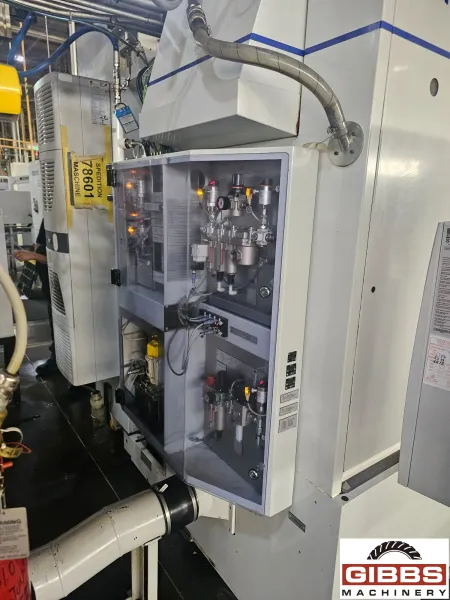

REISHAUER RZ60 - Gear Grinder

Manufacturer

REISHAUER

Category

Gear Machines

Type

GEAR GRINDERS

Stock

25939

Model

RZ60

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Auto Loader

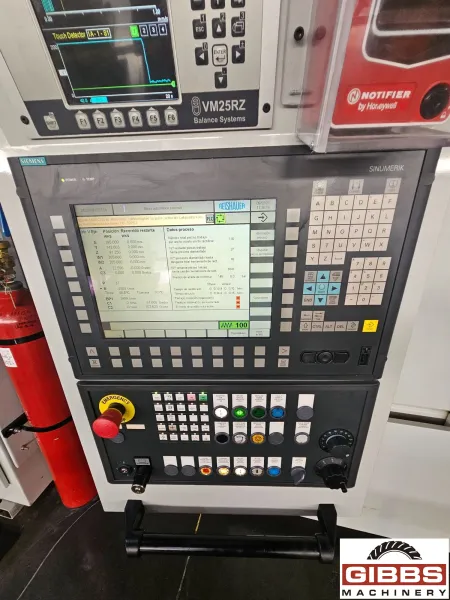

  • Siemens 840D CNC Control
  • Mist Collector
  • Exchangeable Tooling

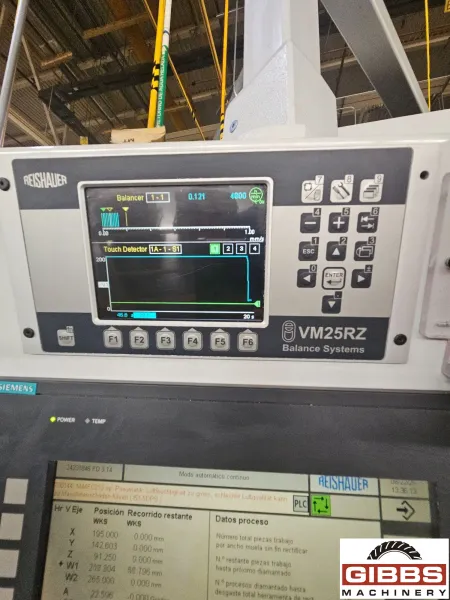

  • Automatic Balancing
  • Adaptive Control
  • Two-WorkSpindle Design
  • Two Meshing Sensors
  • Extra Wide Grinding Wheels
  • Rotary Dresser
  • CNC Tailstocks (W1 & W2 Axis)
  • Fire Suppression
  • Filtra Skid Boost Filter
,

Machine Specifications :

  • Year 2015
  • Manufacturer REISHAUER
  • Maximum Workpiece Diameter 3.7"
  • Grinding Stroke 7.1"
  • Axial Travel 7.9"
  • Diametral Pitch 6.0
  • Module 4.0
  • Maximum Workpiece Length 19.3"
  • Grinding Spindle Speed 3,000 RPM
  • Grinding Wheel Diameter 10.8"
  • Control Manufacturer Siemens
,

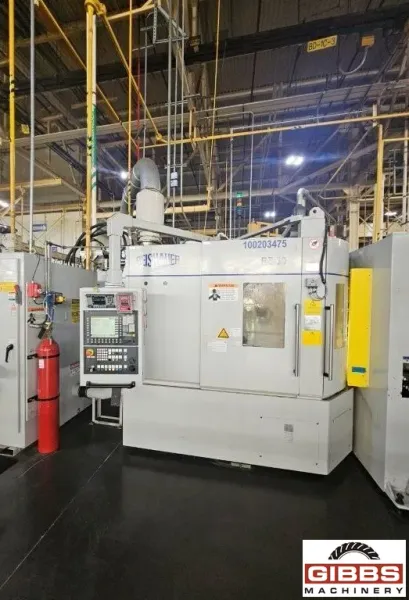

The Reishauer RZ 60 is a high-speed, high-precision continuous generating gear grinding machine. It is explicitly designed for the mass production of small gears and planetary pinions. The machine features a two-workspindle design to eliminate non-productive loading times and maximize throughput. Accuracy, Volume; profitability!

    Specifications:

  • Gear Outside Diameter: 0 – 94 mm
  • Module: 1 – 4 mm
  • Swivel Angle (grinding head): +/– 48°
  • Maximum Grinding Stroke: 180 mm
  • Maximum Shaft Length: 490 mm
  • Maximum Work Spindle Speed: 3000 min-1
  • Maximum Workpiece Weight (incl. fixture): 30 kg
  • Maximum Grinding Speed: 100 m/s
  • Maximum Grinding Wheel Outside Diameter: 275 mm
  • Maximum Face Width of Grinding Wheel: 125 / 160 mm
  • Diameter of Dressing Tool: 123 / 140 mm
