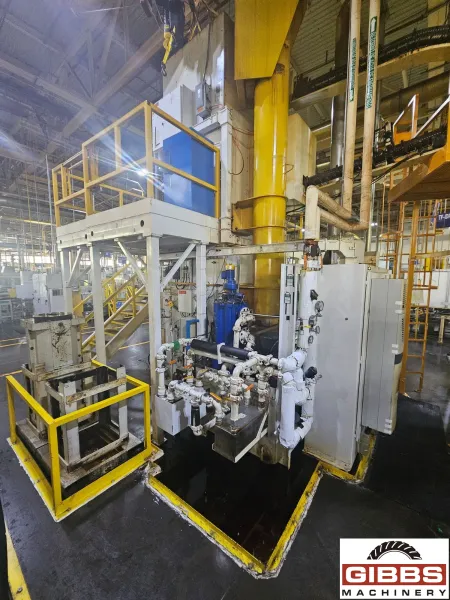

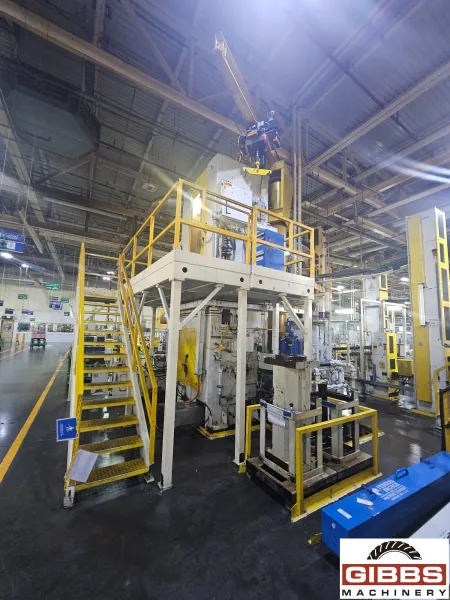

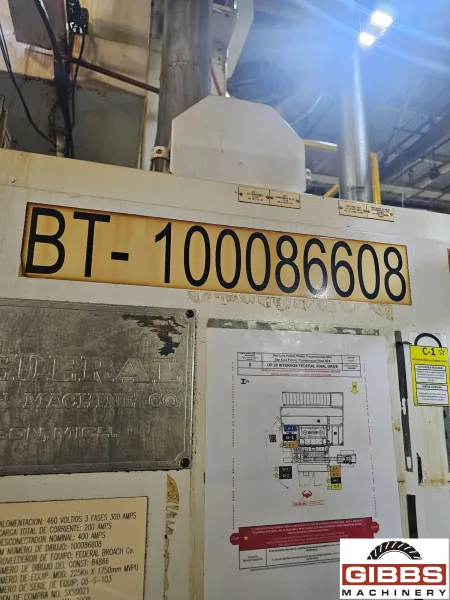

FEDERAL MVPU - Broache

Manufacturer

FEDERAL

Category

Broaches

Type

BROACHES, VERTICAL, TABLE UP

Stock

25984

Model

MVPU

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

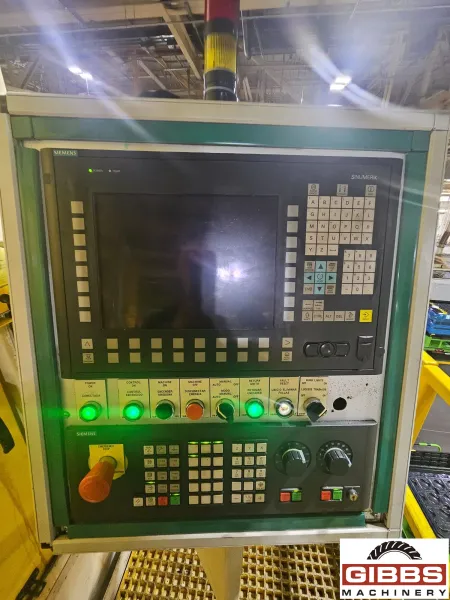

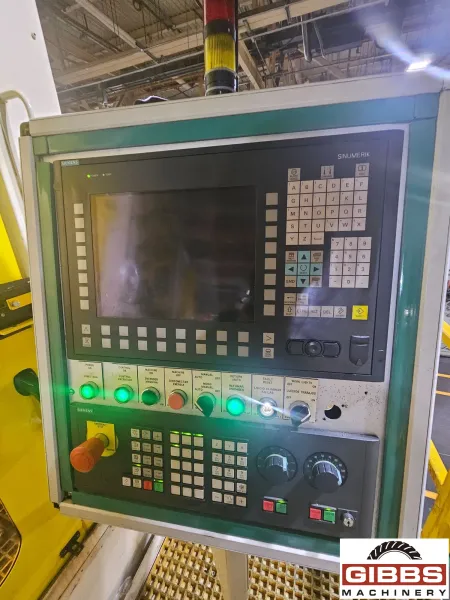

  • Siemens Control
  • Rittal
  • Jib
  • Elevator
  • Automation
  • Chiller

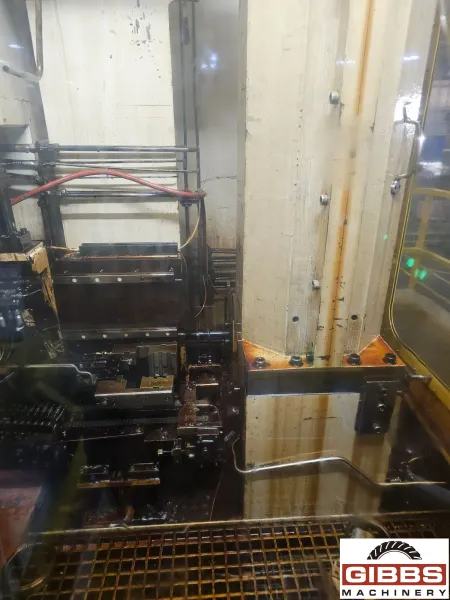

  • Mechanical Operated Main Ram
  • Broach Tool Design - Multi-Piece Array, Customized for Number of External Splines

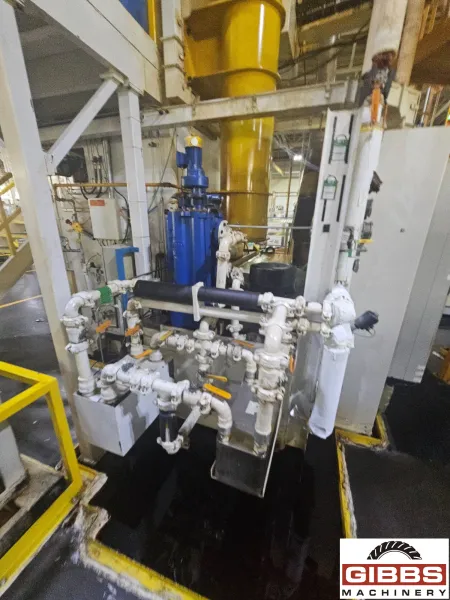

  • Coolant System Integrated to Pump Back or Central System

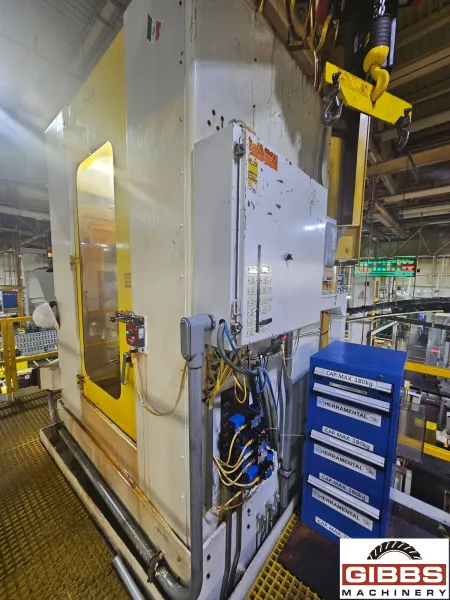

  • Siemens Electrical System

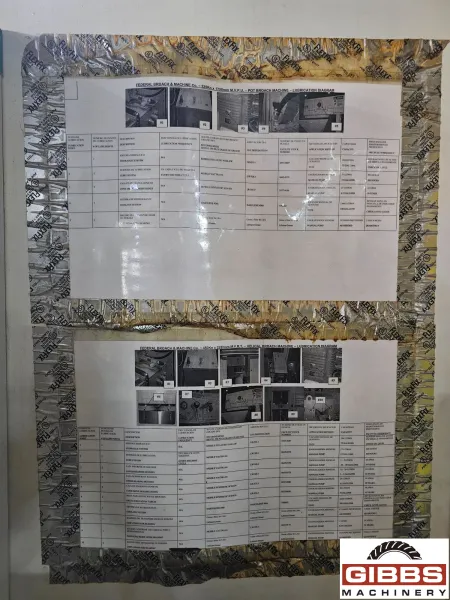

  • Lubrication System
  • Hydraulic System
  • Heavy, Welded Steel Frame, Thermally Normalized Prior to Machining
  • Shed Plates to Direct Chips and Coolant Into Chip Conveyor and/or Coolant System
  • Coolant Manifold With Ball Valves and Nozzles
  • Automated Part Handling System
  • Crane and Hoist System
  • Integrated Chip Conveyor
,

Machine Specifications :

  • Year 2008
  • Manufacturer FEDERAL
  • Tonnage 25.0
  • Stroke 68.0"
,

Electro-Mechanical Pot Broaching Machine can produce various external profiles such as parallel-sided, involute splines or cam forms and various other shapes. This Broach has 25 Ton and 68" capacity.

    Specifications:

  • Machine Stroke: 68"
  • Cutting Tool Assembly Length: 76"
  • Broach Force: 25 Tons
  • Cycle Time: 12 - 30 Seconds
  • Cutting Speed: 30 Feet/Min.
  • Return Speed: 60 Feet/Min.
  • Pneumatic System: 60 P.S.I. (if required)
  • Amp Disconnect (Mechanical): Up to 400 Amp
  • Machine Weight: 20,000 - 50,000 #
  • Machine Height: 12' - 20' (not including hoist)
  • Floor Space Requirements: 20'x 20' (400 Square Ft)
