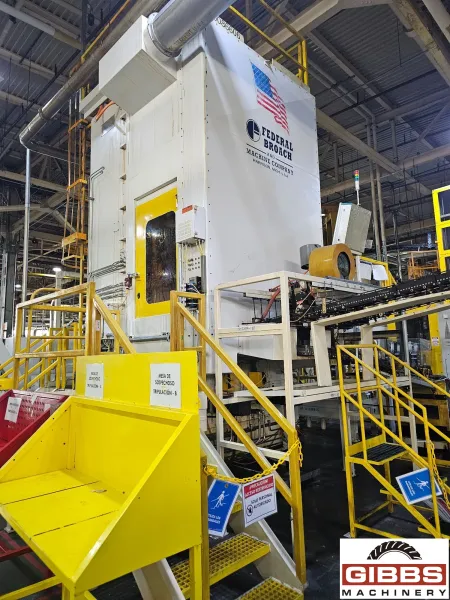

FEDERAL MVRT - Broache

Manufacturer

FEDERAL

Category

Broaches

Type

BROACHES, VERTICAL, TABLE UP

Stock

25940

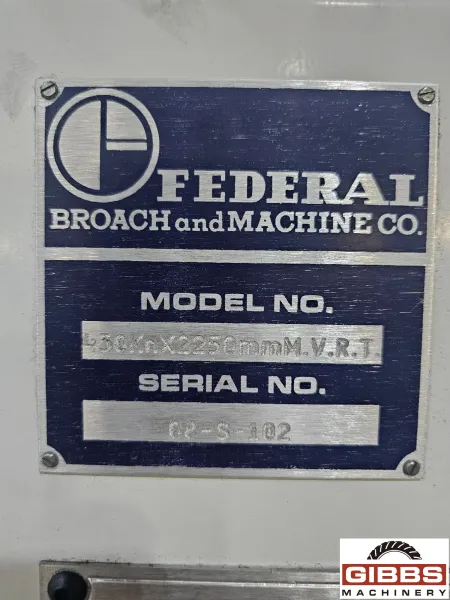

Model

MVRT

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Auto Load

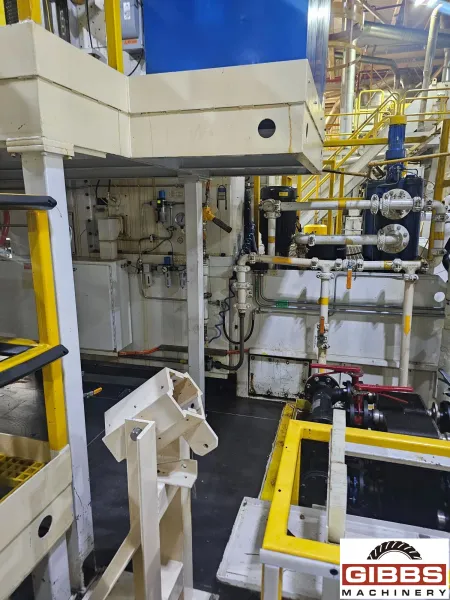

  • Hydraulic System
  • Vickers
  • (2) Tools
  • Jib
  • Stairs

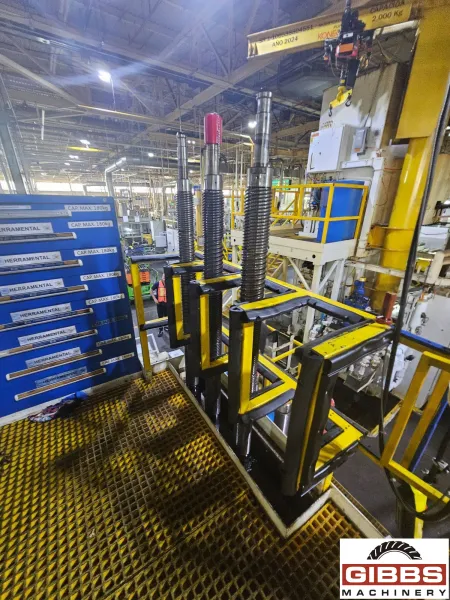

  • Tool Rack
  • Elevator
  • Chiller
  • Helical Broaching

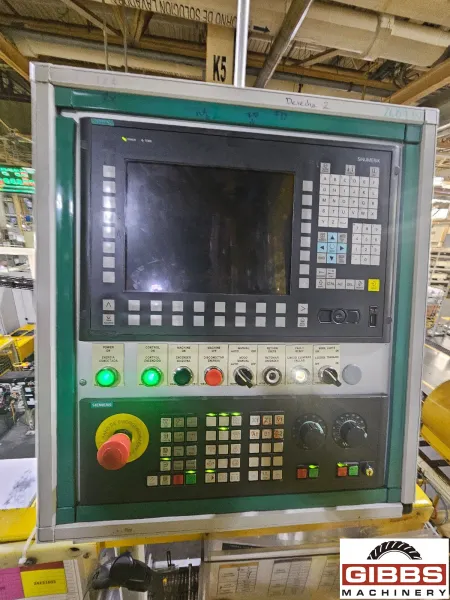

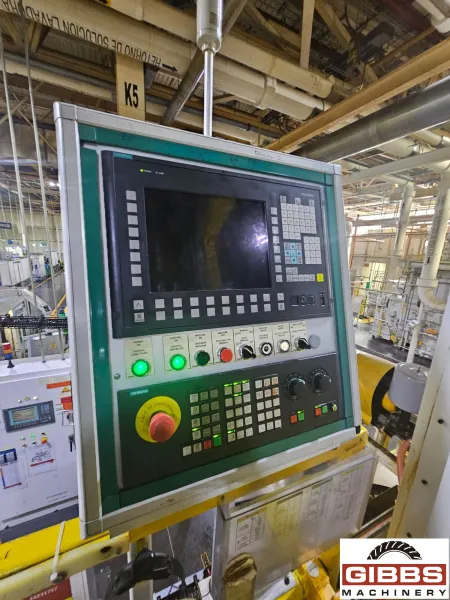

  • Siemens CNC Control
  • Shuttle Table
  • Chip Conveyor
  • Temperature Control System
  • Hardened and Ground Steel Main and Handling Slide Ways
  • Cast Iron Handling and Main Ram Slide
  • Ball Screw Handling Slide Drive
  • Twin Roller Screw Main Puller Bracket Drive
  • Positive Puller and Retriever Locking w/Electronic Feed Back
  • Mist Collector
,

Machine Specifications :

  • Year 2009
  • Manufacturer FEDERAL
  • Tonnage 50.0
  • Stroke 88.0"
,

Federal Broach's vertical rising table machines are versatile enough to handle any internal ring gear in production today -- whether it has a helical or straight profile. With robust 50-75 ton broaching force capabilities and a wide range of 60-109 inch tool length capacities, their vertical rising table offers the versatility to accommodate virtually any precision broaching application. Equipped with flexible fixture designs and full turnkey automation capabilities, these machines are truly an asset to your production line

    SPECIFICATIONS:

  • Stroke: 88"
  • Broach Force: 50 ton
  • Cycle Time: 44 sec.
  • Broach Tool Length: 60" min. - 99" max.
  • Cutting Speed Up to: 20' min.
  • Return Speed Up to: 60' min.
  • Hydraulic System: 50 U.S. gal.
  • Coolant System Self Contained: 700 gal.
  • Pneumatic System: 60 p.s.i.
  • Electrical System: 400 amp
  • Automatic Lubrication System: 200 hour cap.
  • Approx. Dimensions: 23' x 26' x 23'H
  • Approx. Weight: 90,000 lbs
