2025 DN Solutions BVM 5700 CNC Vertical Machining Center

Manufacturer

DOOSAN

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

7612571

Model

BVM5700

Dealer Location

Kentucky

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
Vertical Machining Centers
Manufacturer:
DOOSAN
Model:
BVM5700
Year:
2025
Stock #:
7612571
Status:
For Sale
Serial #:
MV0156-000250

Description

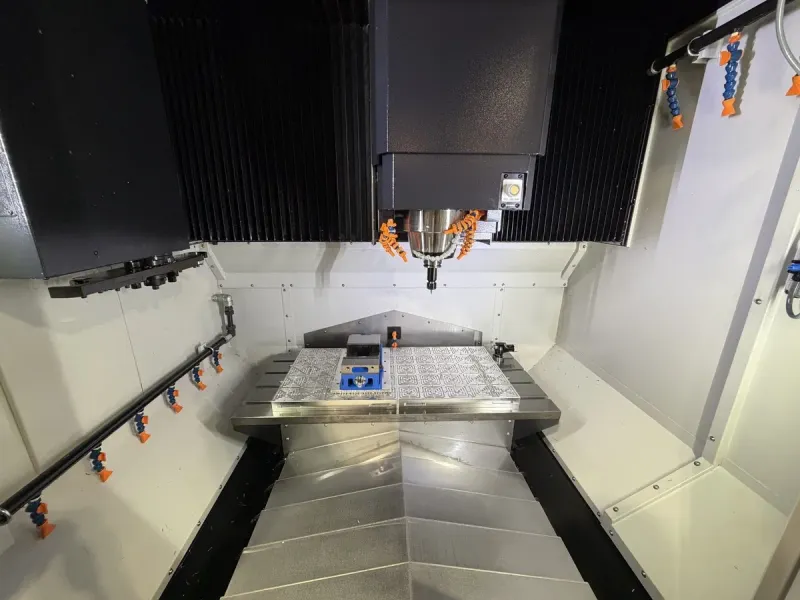

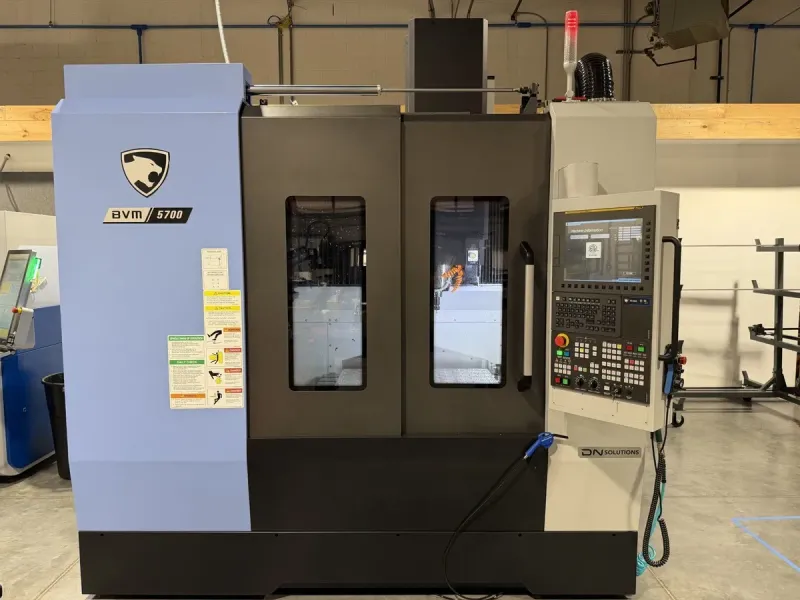

2025 DN Solutions (Doosan) BVM 5700 bridge-type CNC vertical machining center with FANUC 0i-Plus control, 20,000 RPM HSK-63A spindle upgrade and 40-position automatic tool changer. Equipped with Renishaw probing, X/Y/Z glass scales, an LNS chip conveyor and mist collector, automatic door and coolant/air accessories.

20,000 RPM HSK-63A spindle upgrade
40-position automatic tool changer

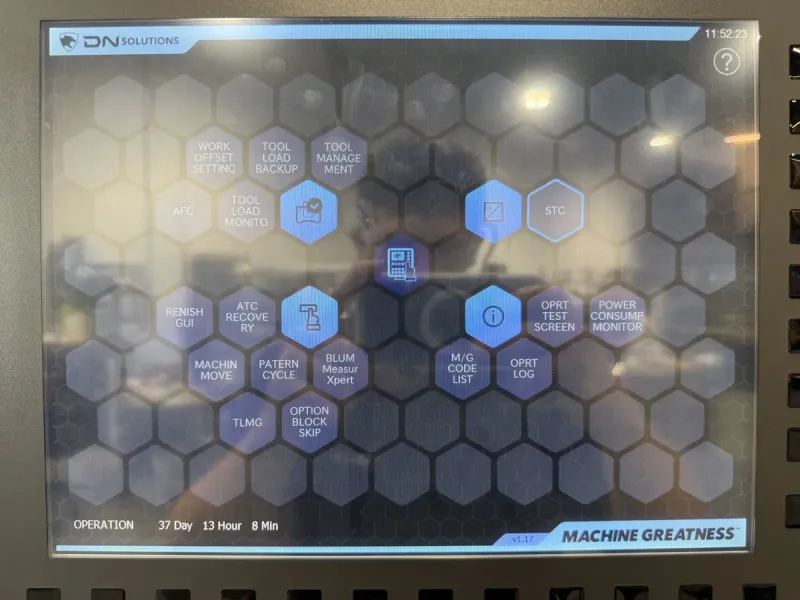

FANUC 0i-Plus CNC control

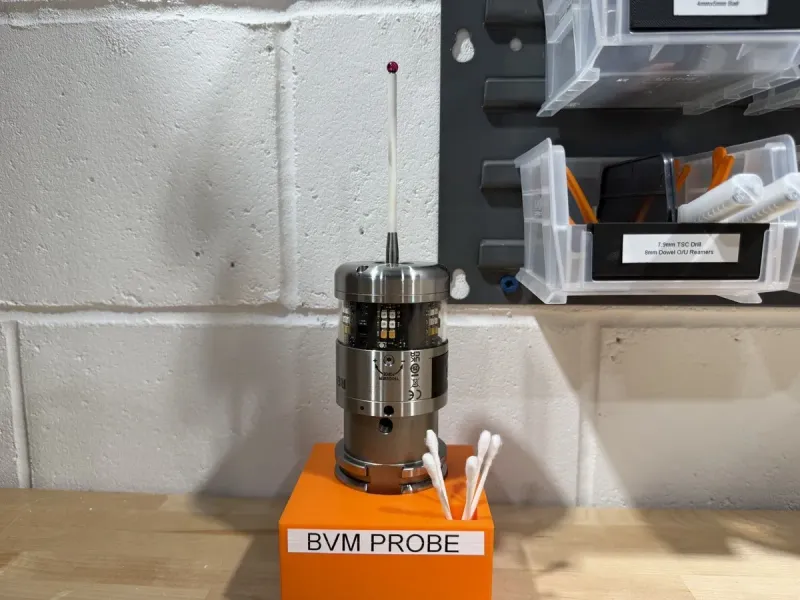

Renishaw OMP60 spindle probe with HSK63A shank and 100 mm stylus
Renishaw OTS-AA tool setter
HSK63A calibration master and 2-inch spindle probe calibration ring

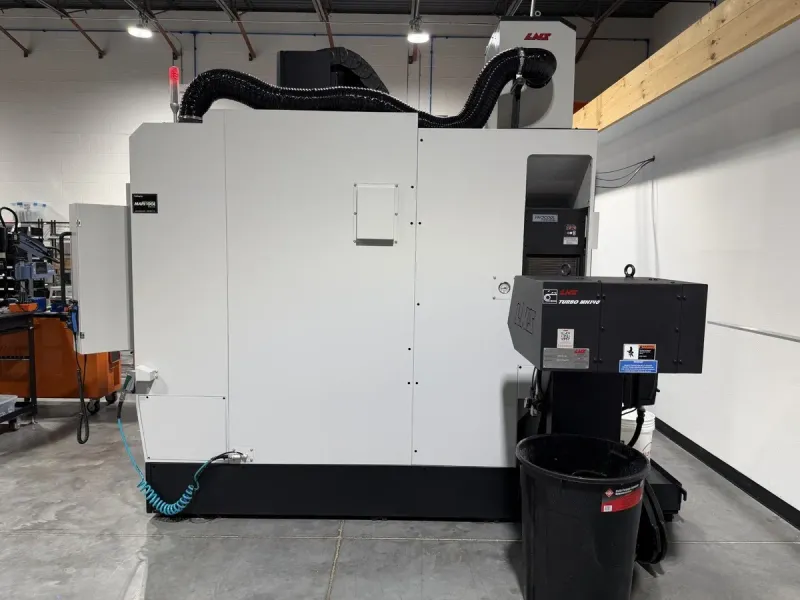

LNS/Turbo MH filtering chip conveyor, right-hand discharge, variable speed and M-code control
LNS FOX WS2-700 mist collector, 700 CFM, 3-stage filtration with M-code interface
Automatic door with safety edge

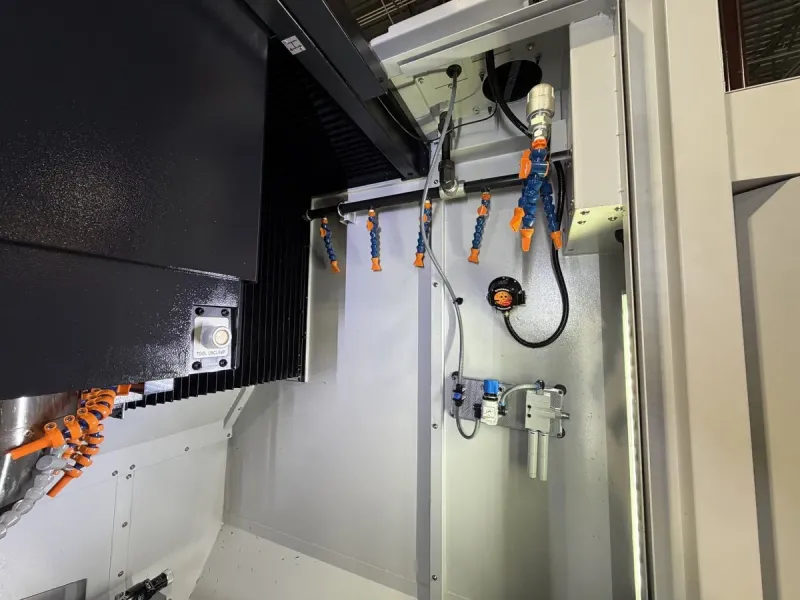

Coolant gun, external air blow and shower coolant
X/Y/Z glass scales

X41.3"1,049 mm
Y22.4"568.96 mm
Z18.1"459.74 mm
RPM20,000 RPM20,000 RPM
# ATC4040
TaperHSK-63AHSK-63A
Table-W22.4"568.96 mm
Table-L51.2"1,300.5 mm
# Axis33
ControlCNC (Fanuc 0i-Plus)CNC (Fanuc 0i-Plus)
Dimensions121.3 x 100.8 x 113.8 in (machine only; accessories excluded)121.3 x 100.8 x 113.8 in (machine only; accessories excluded)
Weight16,535 lb (7,500 kg)16,535 lb (7,500 kg)

Travels (X / Y / Z): 41.3 / 22.4 / 18.1 in (1050 / 570 / 460 mm)
Table: 51.2 x 22.4 in (1300 x 570 mm)
Maximum table load: 2,205 lb (1,000 kg)
Spindle: 20,000 RPM; HSK-63A
Automatic tool changer: 40 positions
Control: FANUC 0i-Plus

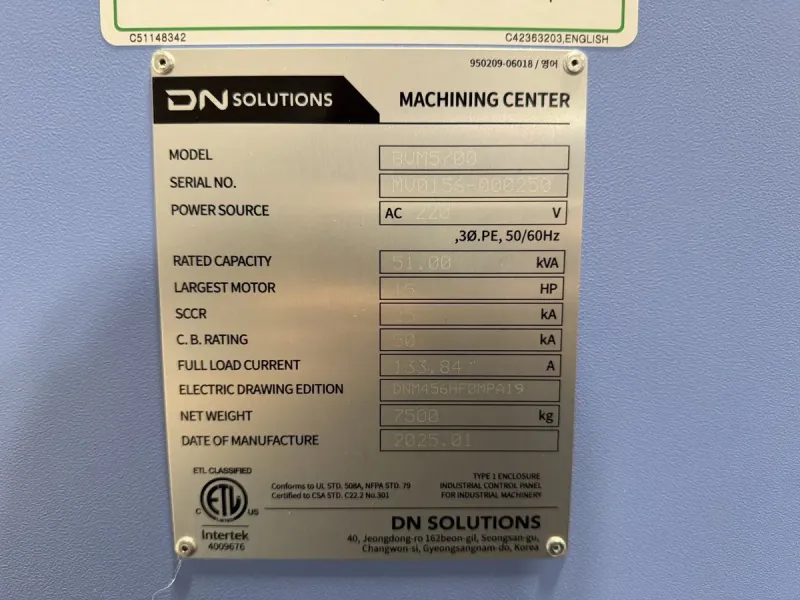

Electrical nameplate: AC 220 V, 3 phase, 50/60 Hz, 51 kVA
Net machine weight: 7,500 kg (approximately 16,535 lb)
Manufactured: January 2025
Serial: MV0156-000250

- Specifications are believed to be accurate and are to be verified by the buyer.
