Used 2007 DOOSAN PUMA 300C

Manufacturer

DOOSAN

Category

Lathes

Stock

7612573

Model

PUMA 300C

Dealer Location

Kentucky

Spec Sheet

Overview

Type:
CNC Lathes
Manufacturer:
DOOSAN
Model:
PUMA 300C
Year:
2007
Stock #:
7612573
Status:
For Sale
Country:
United States

Description

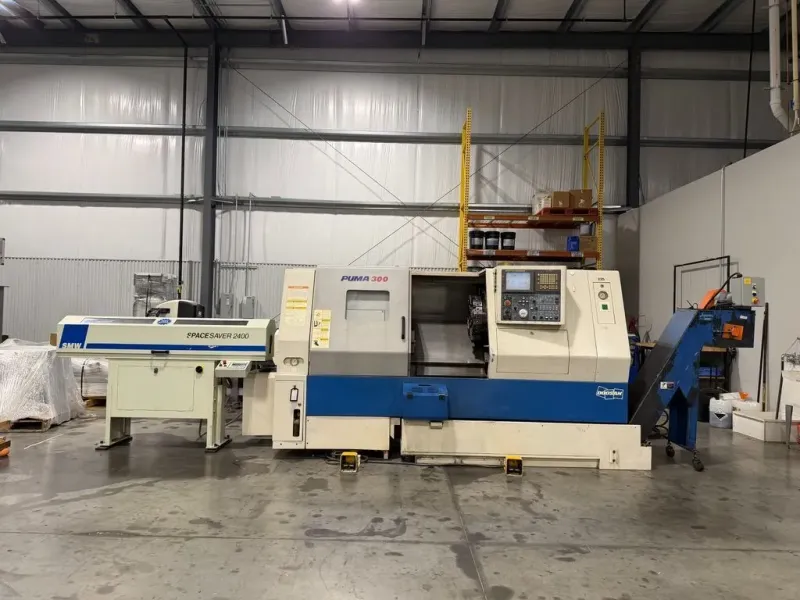

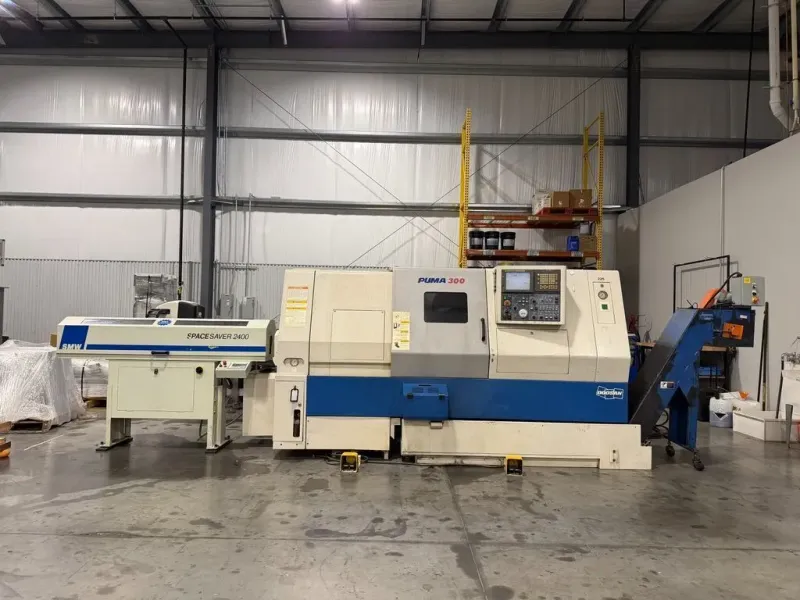

2007 DOOSAN PUMA 300C CNC TURNING CENTER

Heavy-duty Doosan Puma 300C CNC turning center equipped with a Fanuc Series 21i-TB CNC control and a large-bore turning configuration. This machine is set up for production turning and includes a hydraulic 3-jaw chuck, automatic turret, tailstock, tool presetter, coolant equipment, chip handling, and bar-feed capability.

MACHINE SPECS:

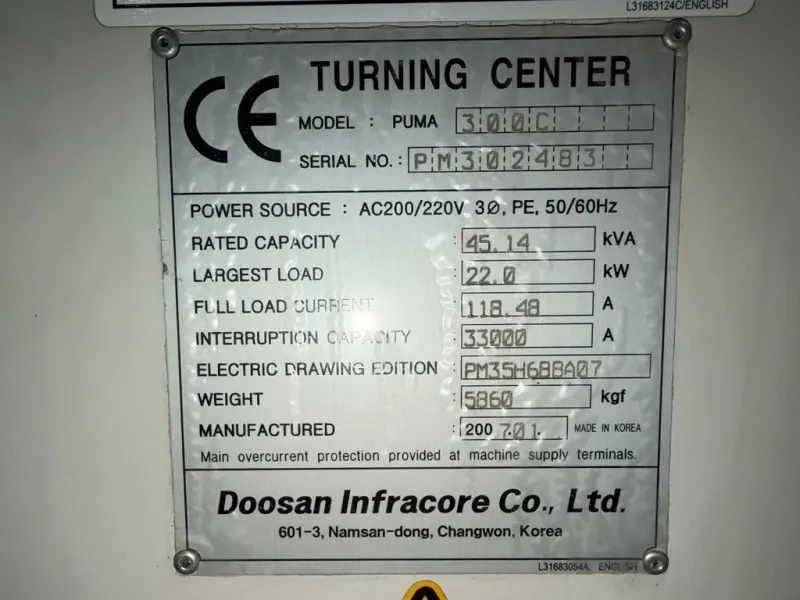

Manufacturer: Doosan Infracore Co., Ltd.
Model: Puma 300C
Serial Number: PM302483
Power Source: AC 200/220V
Phase: 3 Phase
Frequency: 50/60 Hz
Rated Capacity: 45.14 kVA
Largest Load: 22.0 kW
Full Load Current: 118.49 A
Machine Weight: Approx. 5,668 kg / 12,496 lb

PUBLISHED PUMA 300C MODEL SPECIFICATIONS:

Maximum Turning Diameter: Approx. 15.7"

Maximum Turning Length: Approx. 24.8"

Maximum Bar Capacity: Approx. 4.05"

Swing Over Bed: Approx. 22.4"

Swing Over Carriage: Approx. 17.7"

X-Axis Travel: Approx. 11.1"

Z-Axis Travel: Approx. 26.8"

Spindle Nose: A2-11

Spindle Bore: Approx. 4.5"

Maximum Spindle Speed: Approx. 2,800 RPM

Spindle Motor: Approx. 35 HP

Tailstock Taper: MT-4

Published specifications for other Puma 300C machines consistently show this general configuration, but specifications and options should be verified on this individual machine prior to purchase.

This machine includes the SMW Spacesaver 2400 bar feeder, Sorensen chip conveyor, and ChipBlaster coolant equipment shown in the photos. The machine presents as a complete production turning package suitable for a variety of turning, facing, boring and threading applications.

EQUIPPED WITH:

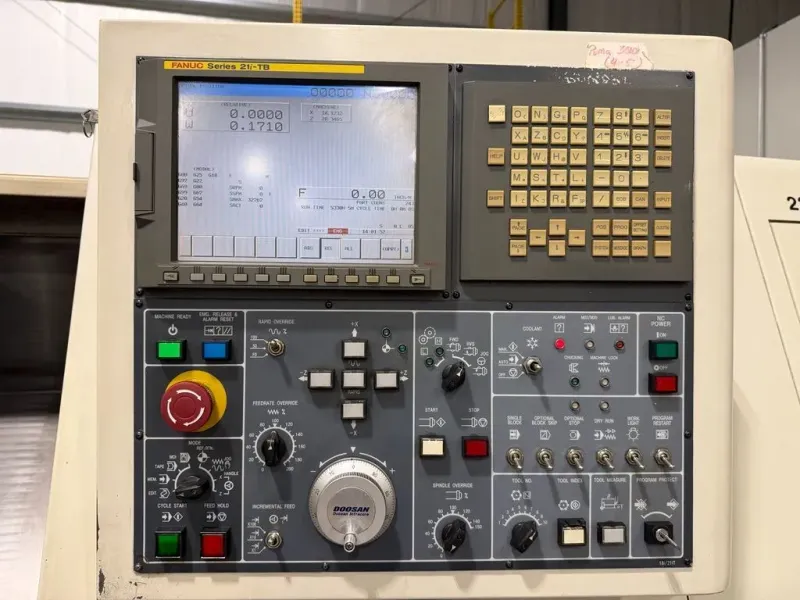

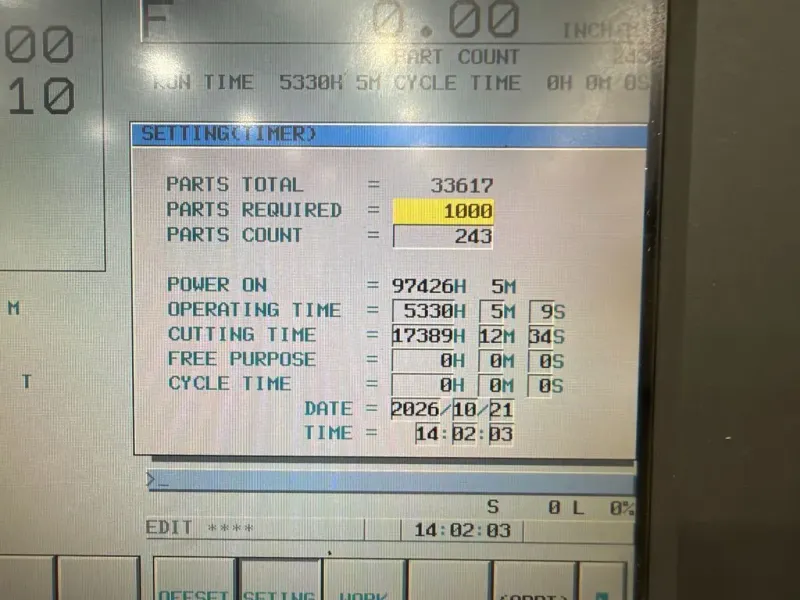

Fanuc Series 21i-TB CNC Control

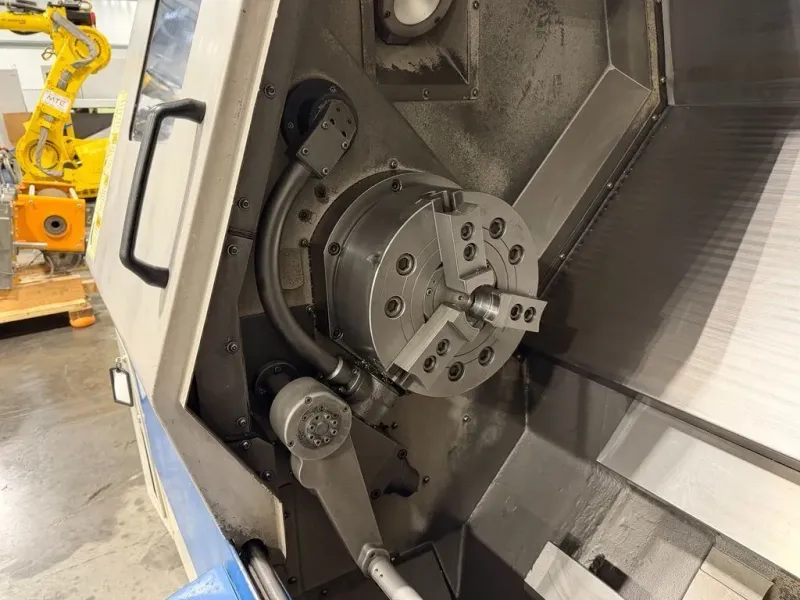

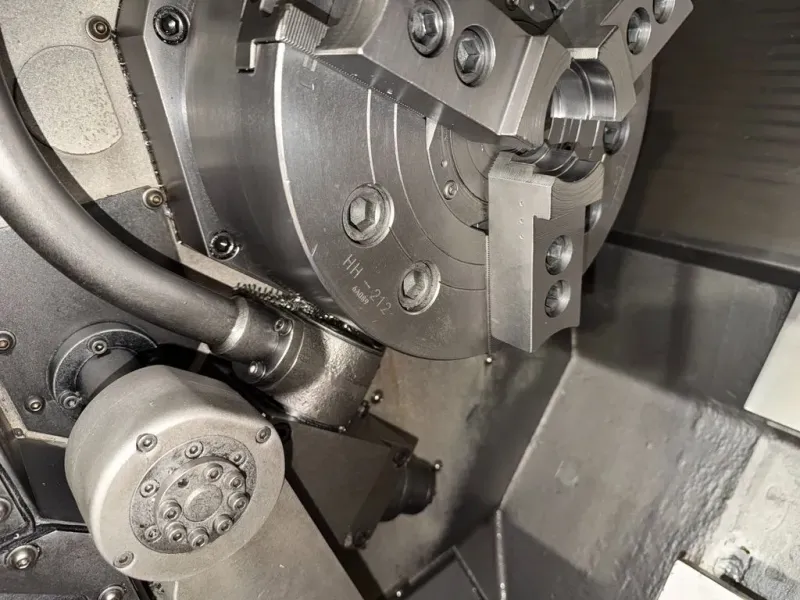

Hydraulic 3-Jaw Chuck

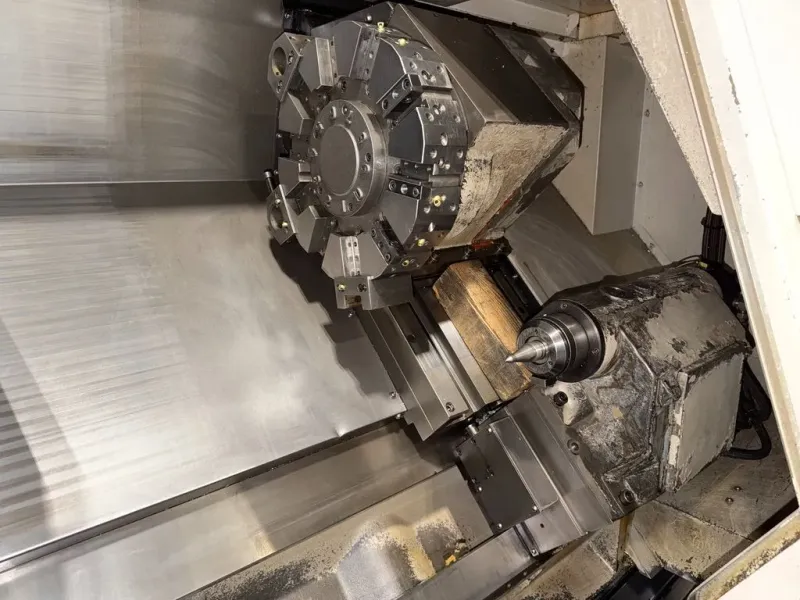

Automatic Tool Turret

Programmable/Hydraulic Tailstock

Tool Presetter

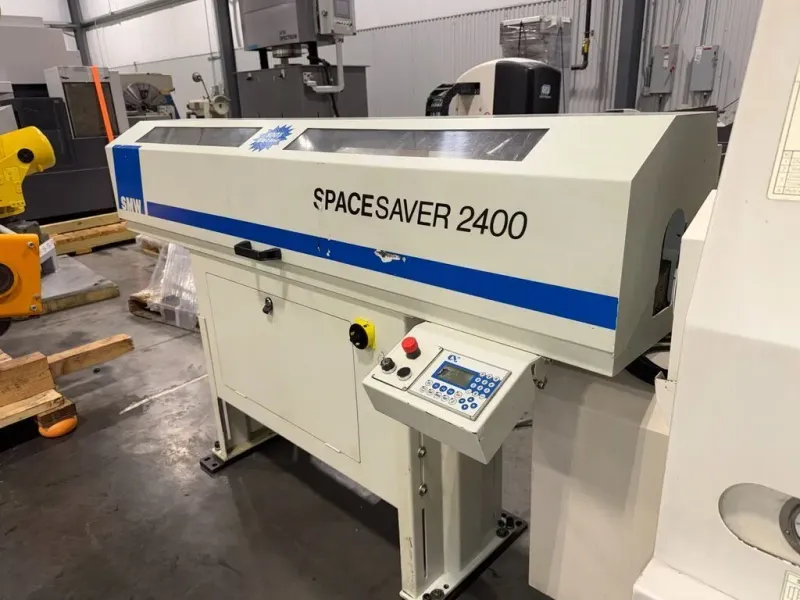

SMW Spacesaver 2400 Bar Feeder

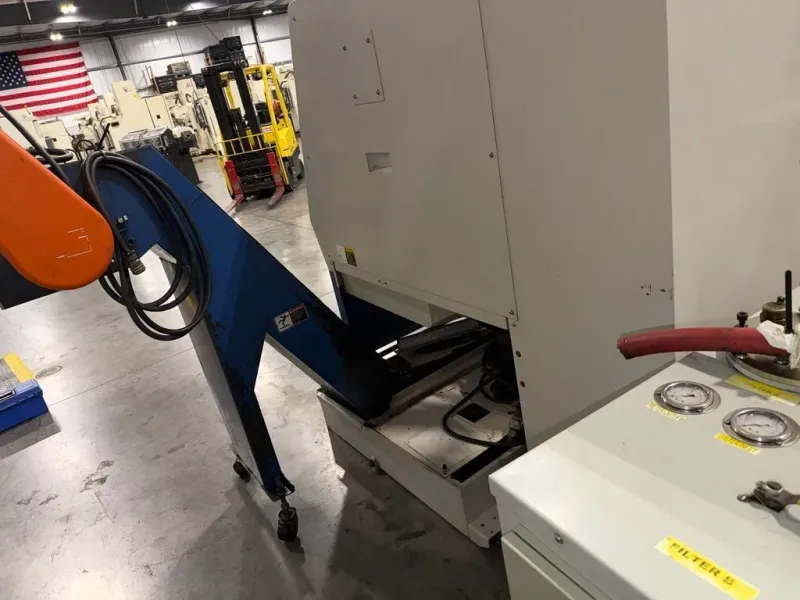

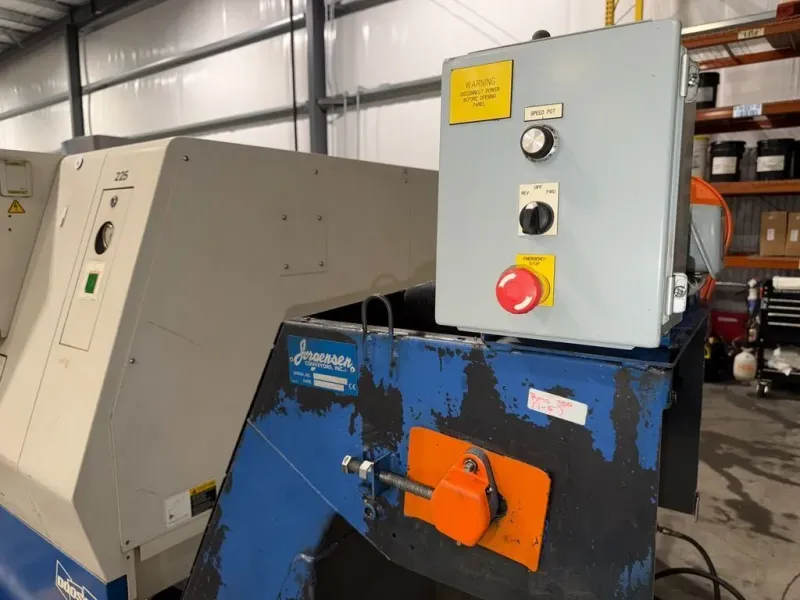

Sorensen Chip Conveyor

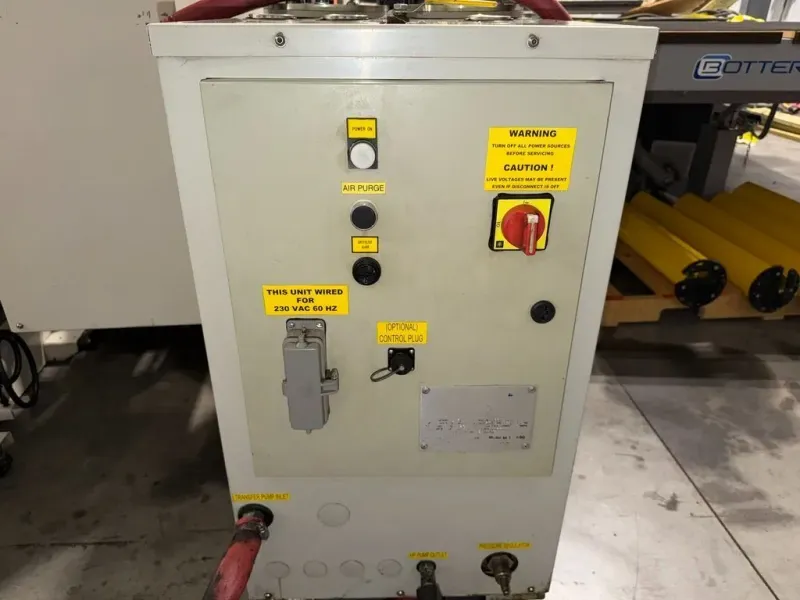

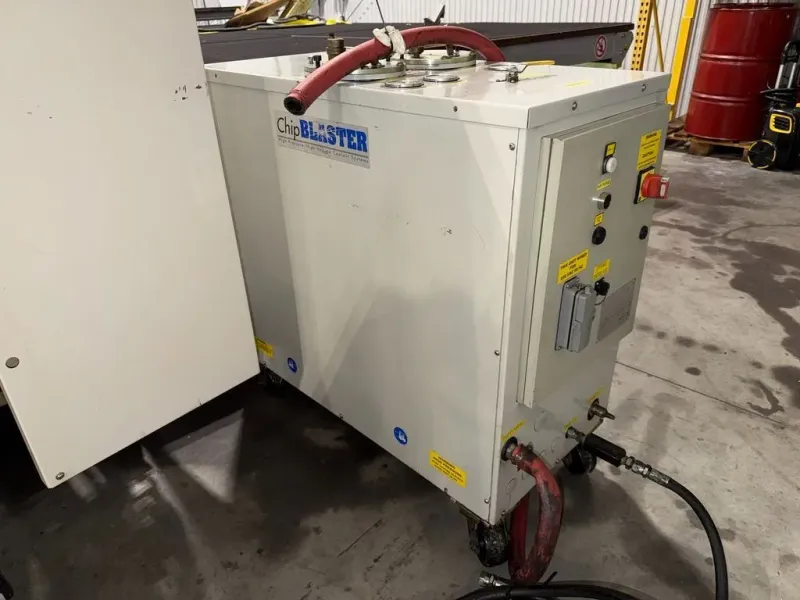

ChipBlaster Coolant System

Coolant System

Bar-Feed Interface

Enclosed Work Area

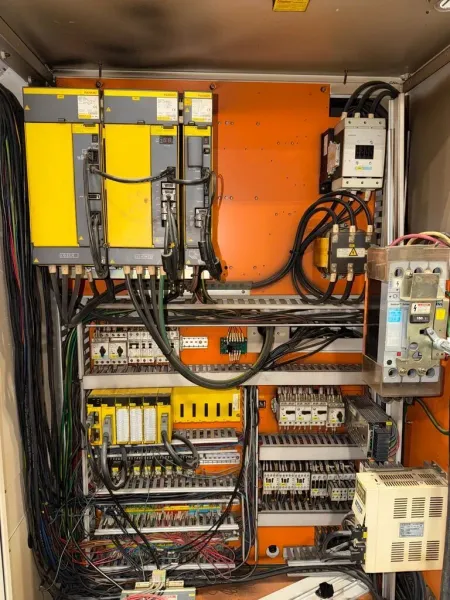

Electrical Cabinet and Machine Controls

Swing22"558.8 mm
Machining Length25"635 mm
Chuck Size12"304.8 mm
Bar Capacity4"101.6 mm
Power0 hp22 W
Max RPM2,800 RPM2,800 RPM
Turning Dia15.7"398.78 mm
TailstockNoNo
ControlCNCCNC
