ESAB Suprarex HD 5500 Plasma and Oxy-Fuel Cutting and Marking System ( 2021 )

Manufacturer

Esab

Category

Fabricating Machines

Type

PLASMA CUTTERS

Stock

151260021

Model

Suprarex HD 5500

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 151260021
  • Location: Southeast
  • Brand: Esab
  • Model: Suprarex HD 5500
  • Year: 2021

Specifications

  • Track Width: 18′
  • Track Length : 115′
  • Workpiece Height : 28"
  • Working Width: 10′
  • Working Length: 98′
  • Max Plate Width: 10′
  • Max Plate Length: 98′
  • Torch Heads : 2

Equipped With

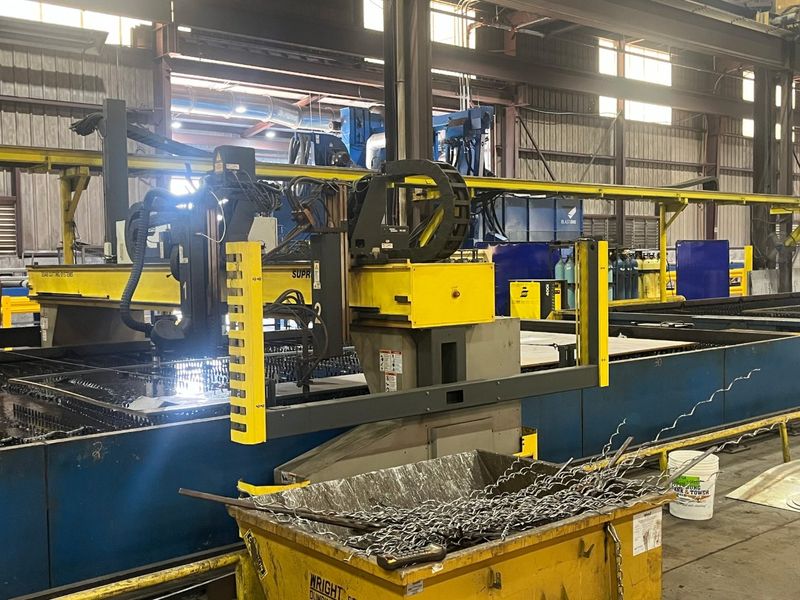

High Performance Gantry Design For Low Mounted Rail System. The Main Beam Design Incorporates Two Reinforced Square Tubes With Front
Mounted Transverse Guide Ways And Two Side Carriages In A Welded Box Construction With Integrated/Swiveable Drive Systems. Fixed/Adjustable
Track Side Rollers On The Main Side Carriage Guarantee Precise Alignment On The Machine Rail.

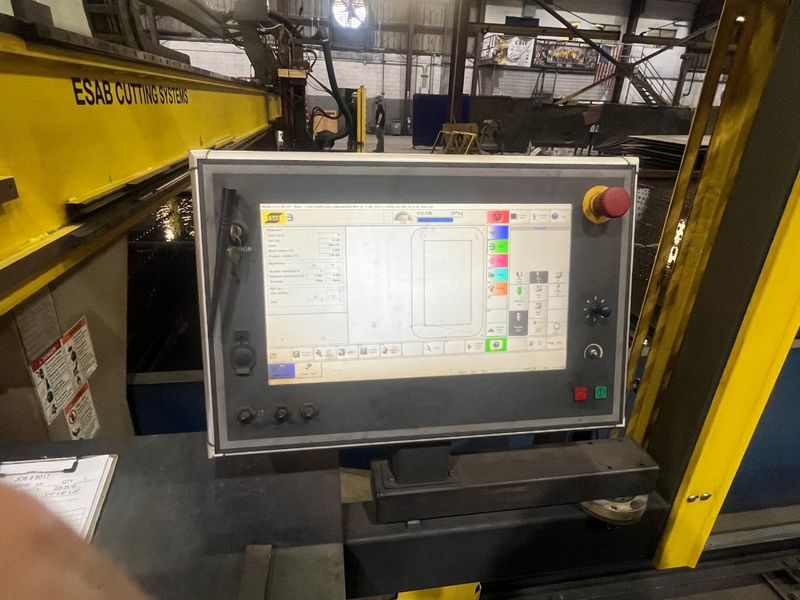

– Dual Side Longitudinal Drive Systems With Powerful AC Motors, Precision Gear-Boxes And Gantry Control Through The Vision CNC.
– Transverse Drive System With Motorized Carriage, Precision Rack & Pinion, AC Motor, And Precision Gearbox.
– Axis Limit Switches, Gantry Reference And Gantry Control, And Safety Protection Switches For The Machine Rail.

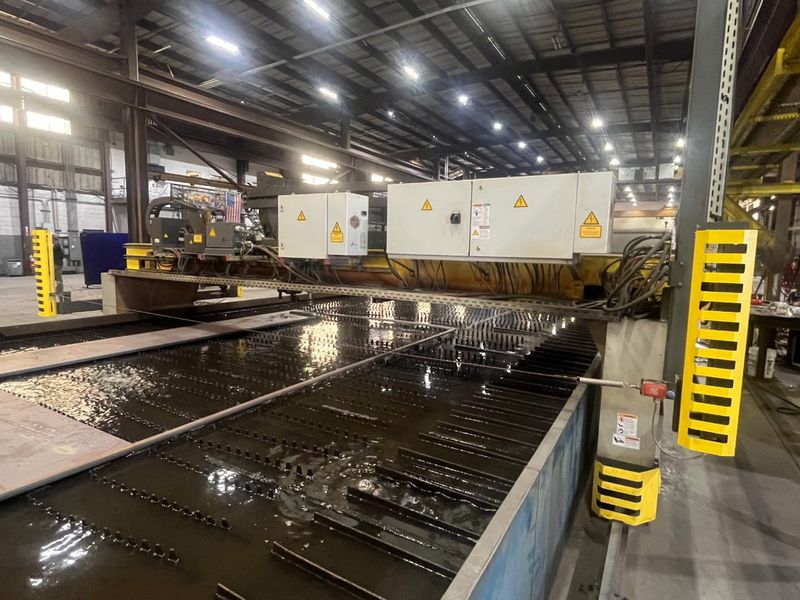

– Dust-Tight Electrical Cabinet For Drive System And Power Distribution Circuits.
