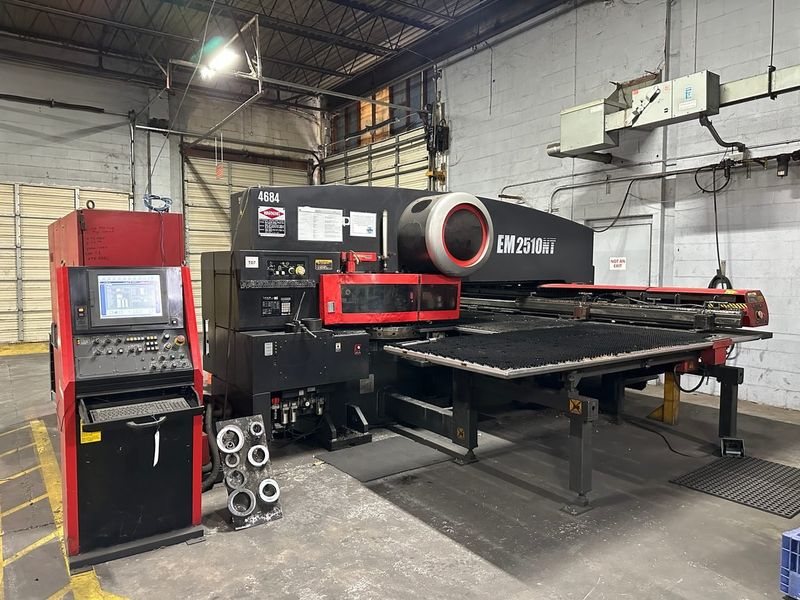

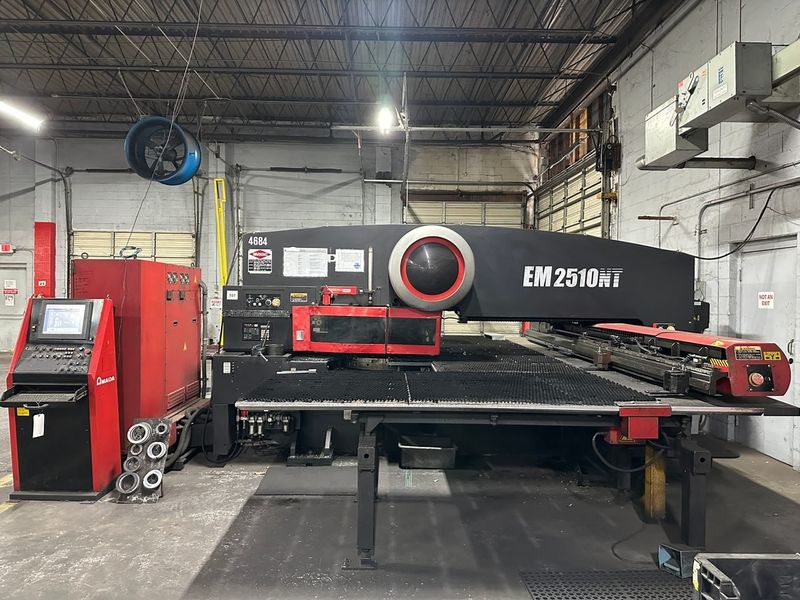

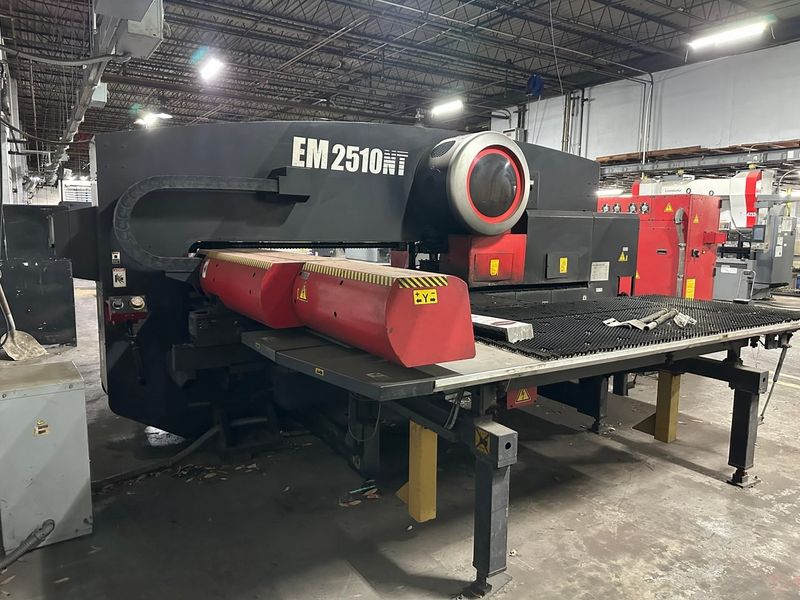

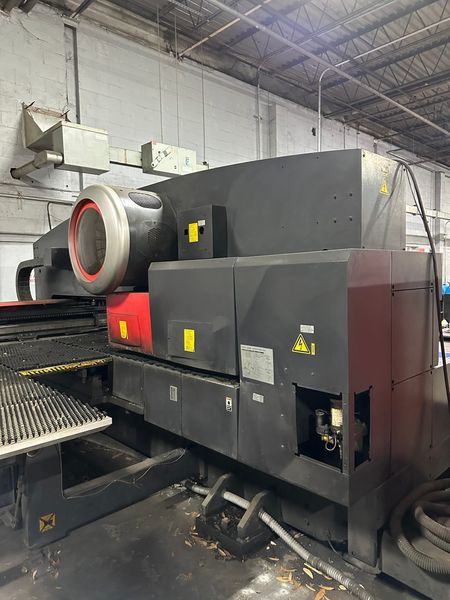

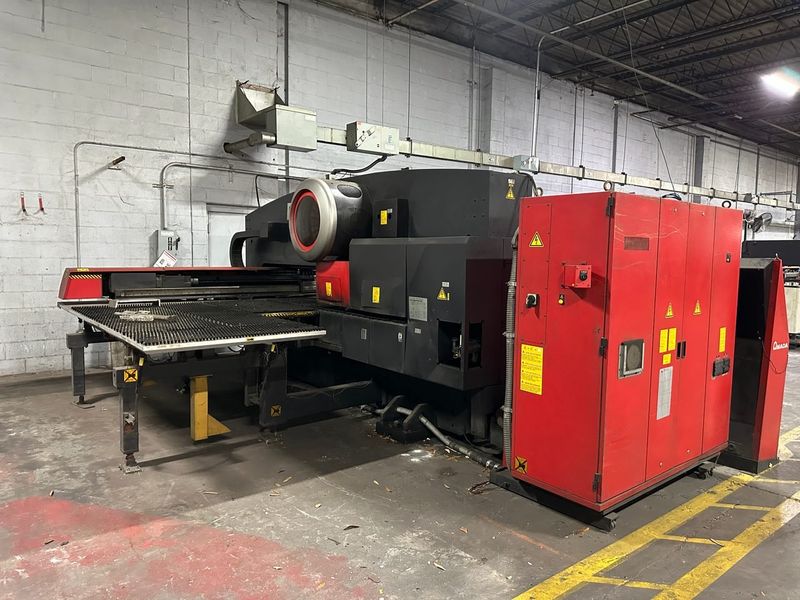

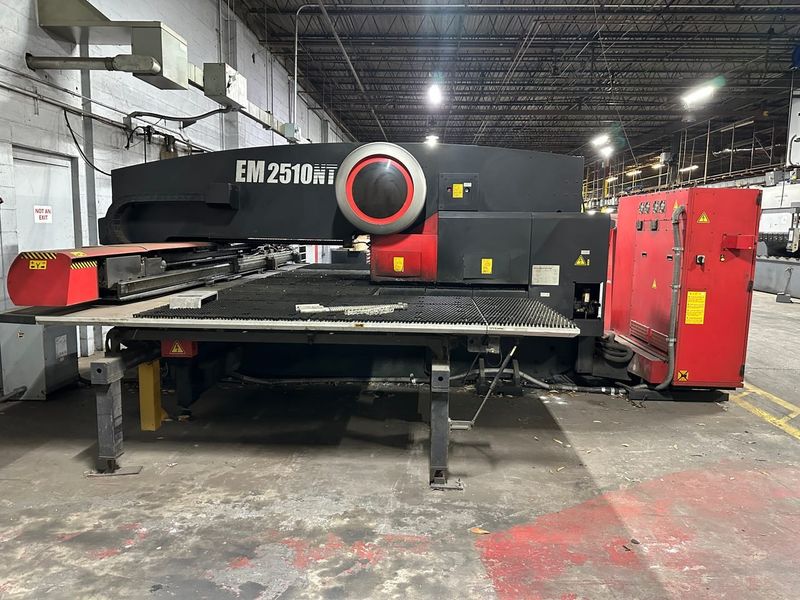

Amada EM 2510NT 22 Ton CNC Turret Punch

Manufacturer

Amada

Category

Punches

Stock

122260014

Model

EM 2510NT

Dealer Location

Georgia

Spec Sheet

  • Stock #: 122260014
  • Location: SC
  • Brand: Amada
  • Model: EM 2510NT
  • Year: 2004
  • Approx. Shipping Weight: 39,683 lbs (18,000 kg)
  • Approx. Shipping Dimensions: 218″ x 202″ x 92″H (125″H with mirror installed)

Specifications

  • Press Capacity: 22 US Tons (200 kN)
  • Max Sheet Size: 50″ x 98.4″ (1270 mm x 2500 mm)
  • Max Sheet Thickness: 0.126″ (3.2 mm)
  • Max Sheet Mass: 110 lbs (50 kg) / 330 lbs (150 kg) on F4
  • X-Axis Travel: 98.4″ (2500 mm)
  • Y-Axis Travel: 50″ (1270 mm)
  • Punching Accuracy: ±0.002″ (±0.07 mm)
  • Max Press Stroke Length: 1.456″ (37 mm)
  • Max Feed Speed (X-Axis): 328 ft/min (100 m/min)
  • Max Feed Speed (Y-Axis): 262 ft/min (80 m/min)

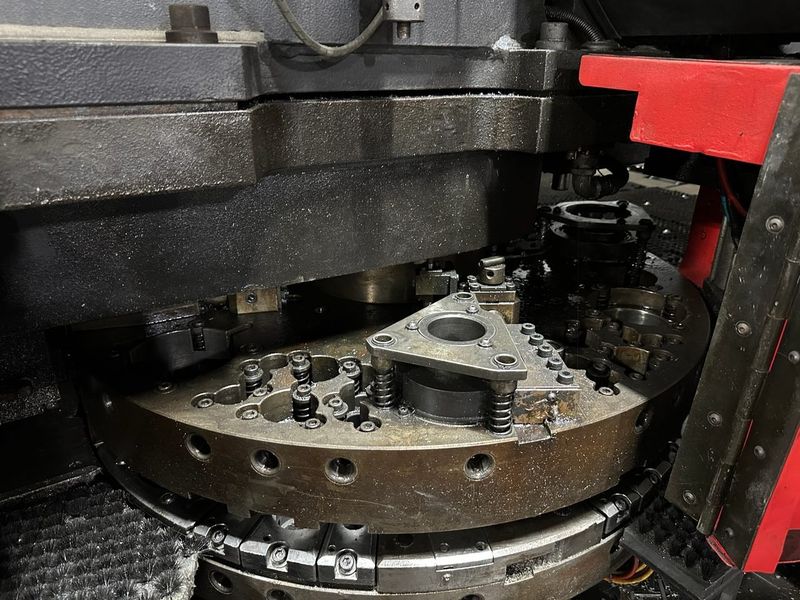

  • Turret Speed: 30 RPM
  • Power Supply: 27 kVA

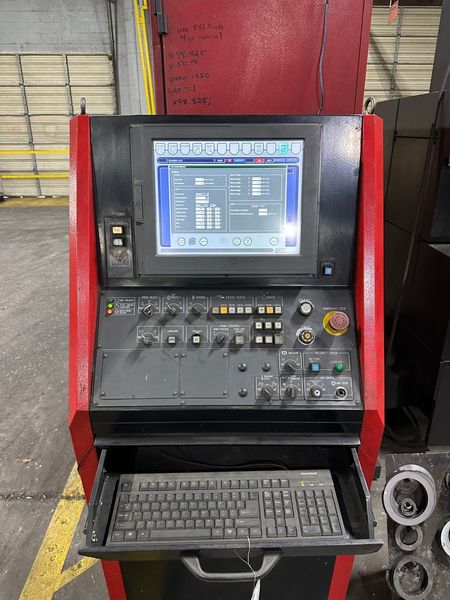

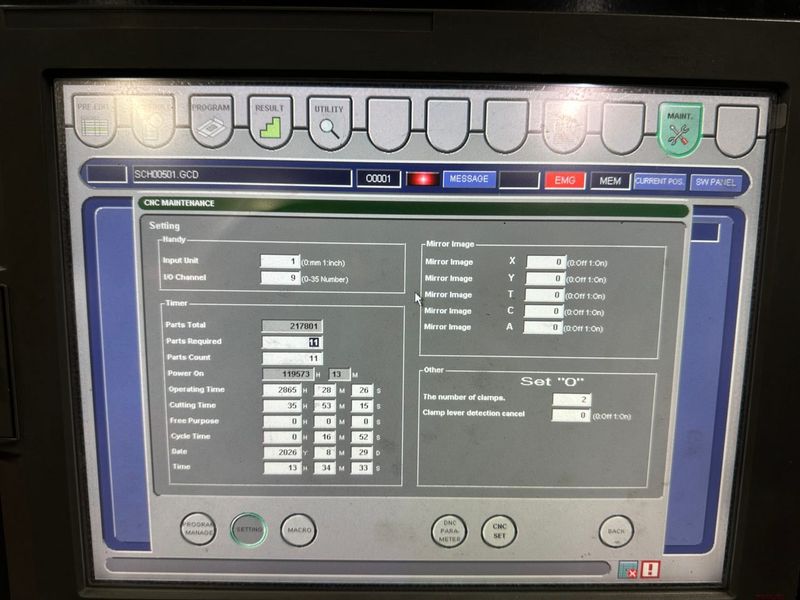

  • Control: AMNC-F (FANUC 180iPB)

Equipped With

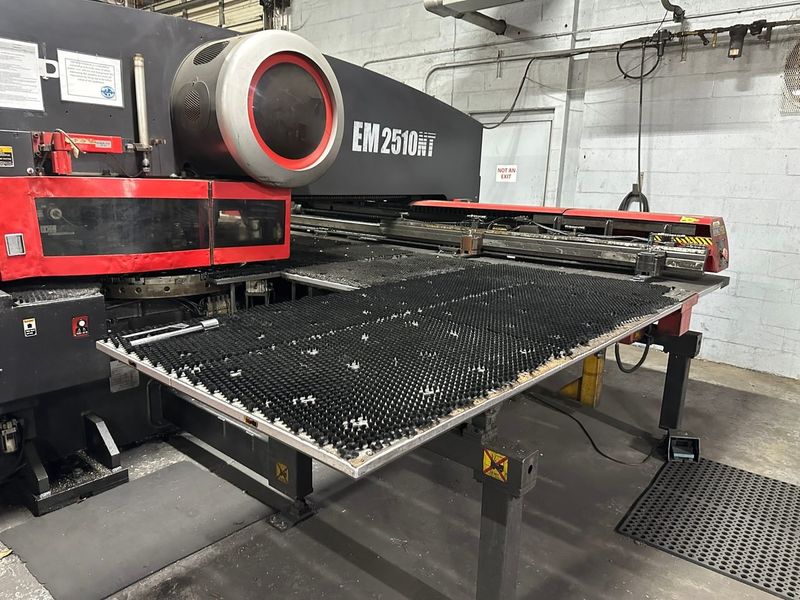

Amada Control, Manuals, Brush Table

Additional Info

Can be inspected upon request
