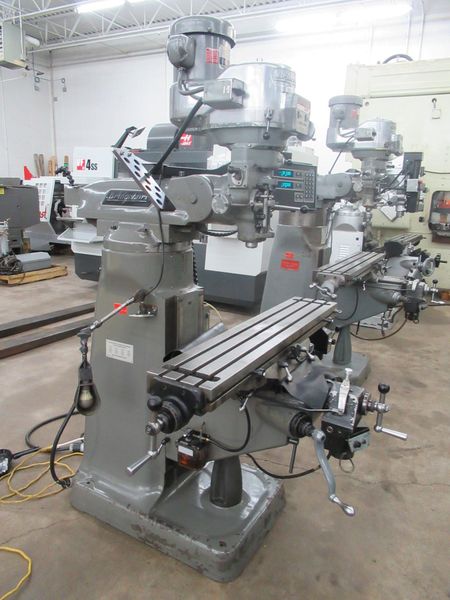

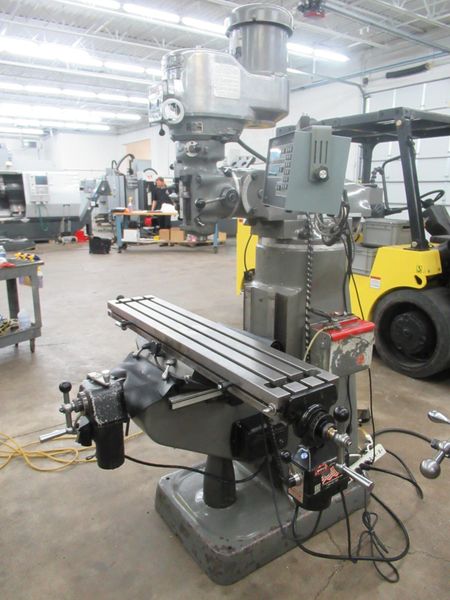

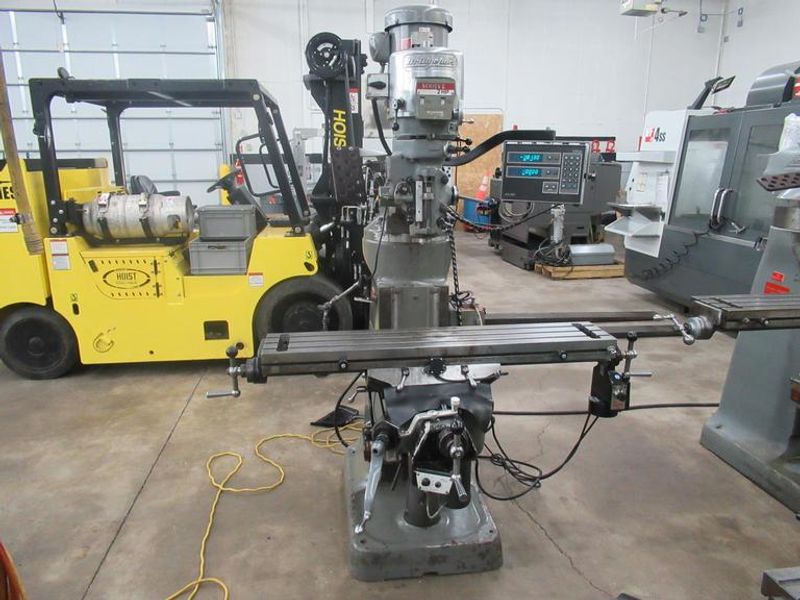

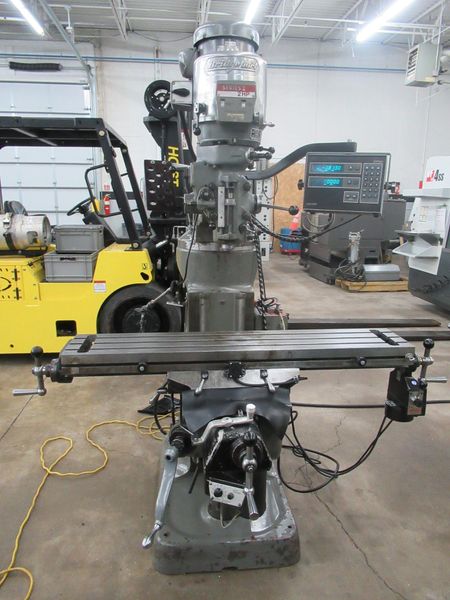

Bridgeport Series I-2HP Vertical Knee Mill, 2-Axis DRO, 9" x 48" Table, X & Y-Axis Power Feeds

Manufacturer

Bridgeport

Category

Milling Machines

Type

MILLERS, KNEE, CNC

Stock

7437

Model

Series I

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

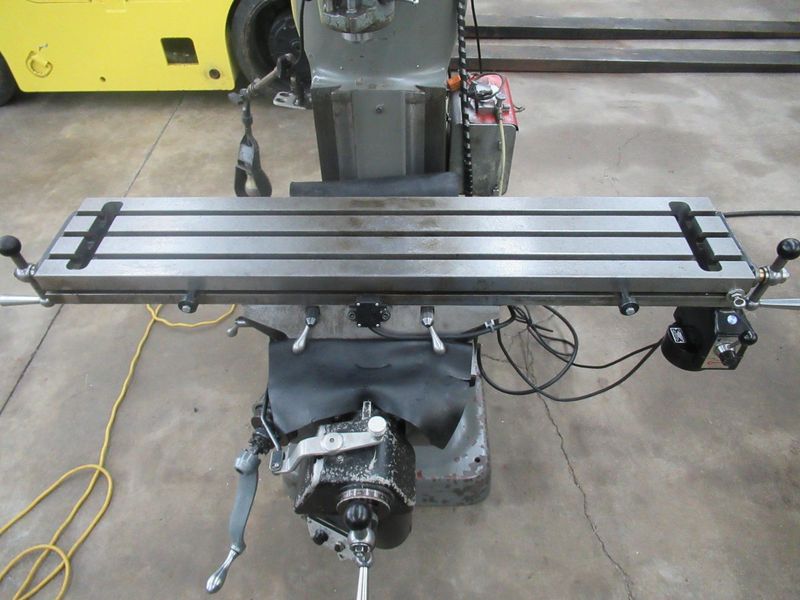

Table Size: 9" x 48"

Max Table Load: 750 Lbs.

Longitudinal Travel: 36" for 48" Table

Cross Travel: 12"

Quill Travel: 5" Hand or Power Feed

Knee Travel: 16"

Power Quill Feeds: (3) .0015 / .003 / .006 IPR

Spindle Taper: R-8

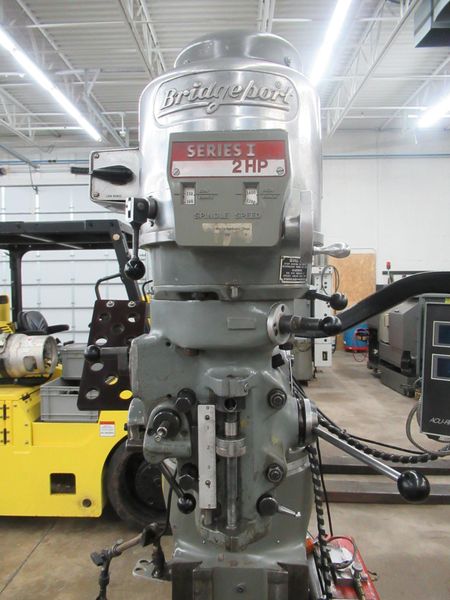

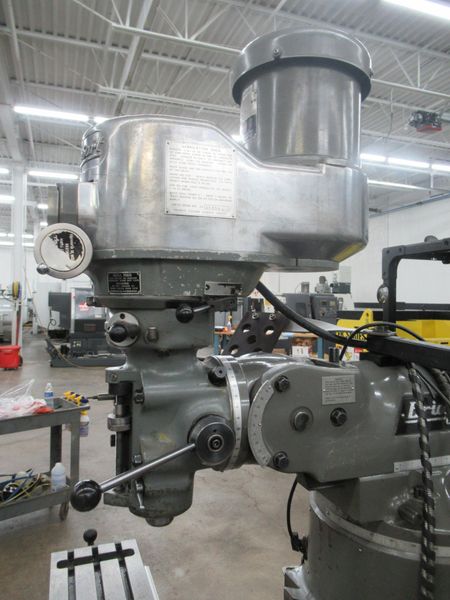

Spindle Speeds: 60-4200 RPM Variable

Spindle Nose to Table Min-Max: 2.5" - 18.75"

Spindle Center to Column Distance: 6.75" - 18.75"

Head Swivel Left to Right: +/- 90 Degrees

Head Tilt Front to Back: +/- 45 Degrees

Overarm Ram Adjustment: 12" Manual Adjustment

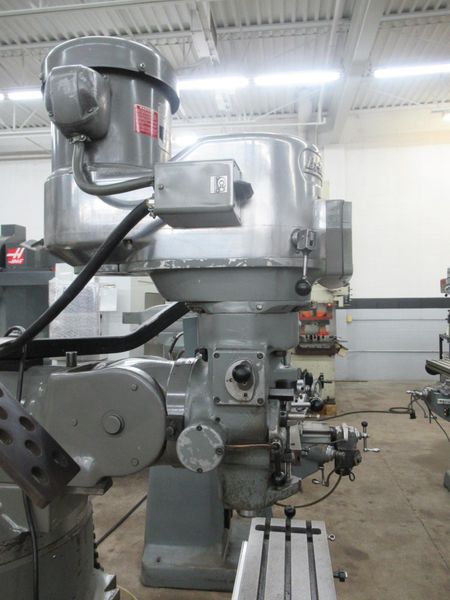

Spindle Drive: 2 HP

Description:

The Bridgeport Series I Knee Mill is one of the most iconic manual milling machines ever produced. Renowned for its versatility, durability, and precision, the Series I has been the backbone of toolrooms and maintenance departments for generations. Its variable-speed head, rigid knee design, and wide selection of available tooling make it suitable for drilling, boring, slotting, and light production milling operations.

Used Bridgeport Series I knee mills remain in high demand due to their long service life, ease of operation, and adaptability across industries ranging from aerospace and defense to education and general manufacturing. MachinesUsed.com regularly buys, sells, and consigns Bridgeport Series I mills in a variety of configurations and conditions.

Equipped With:

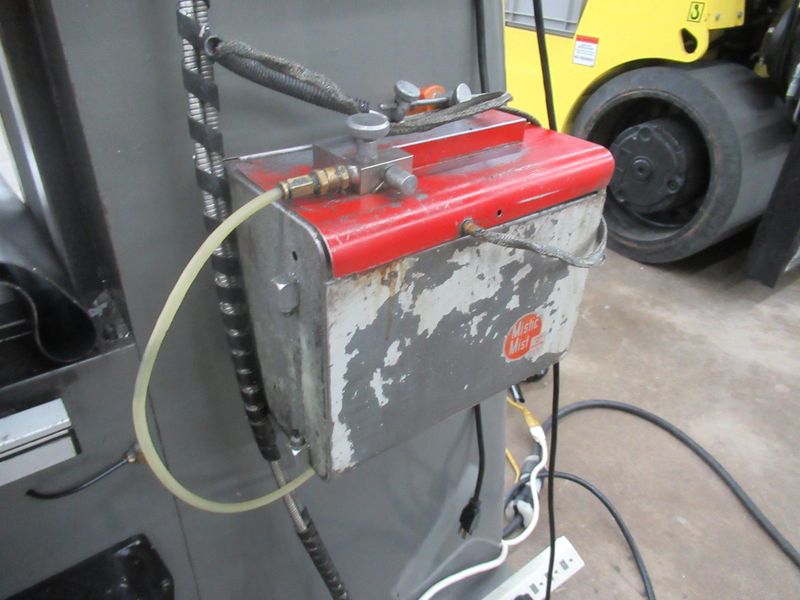

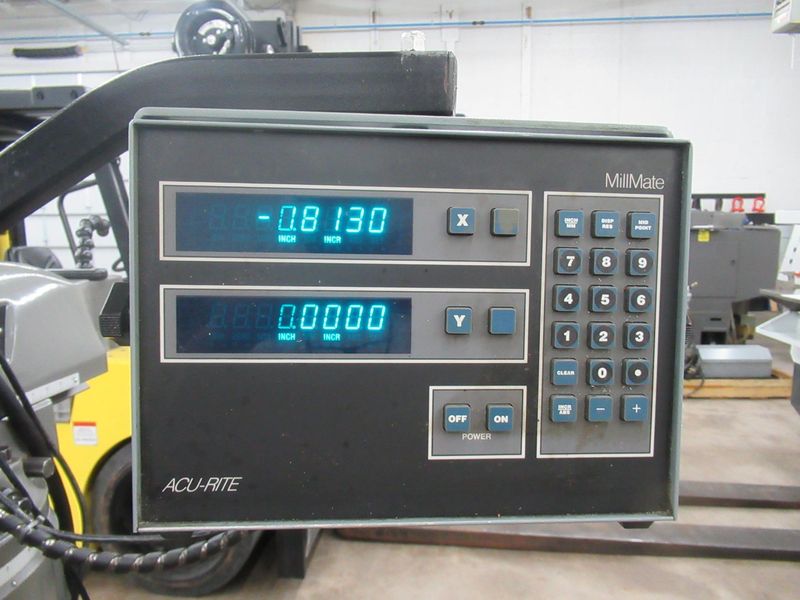

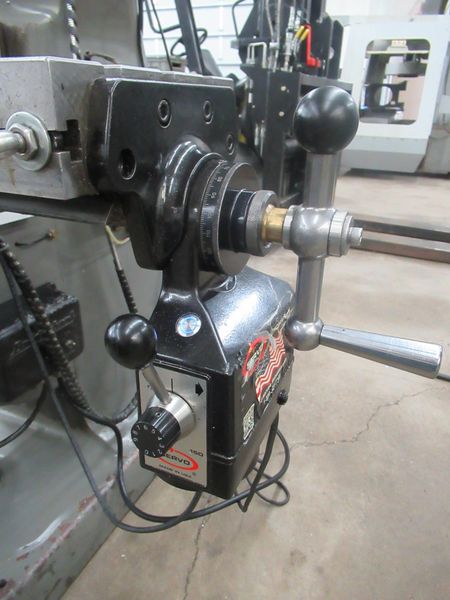

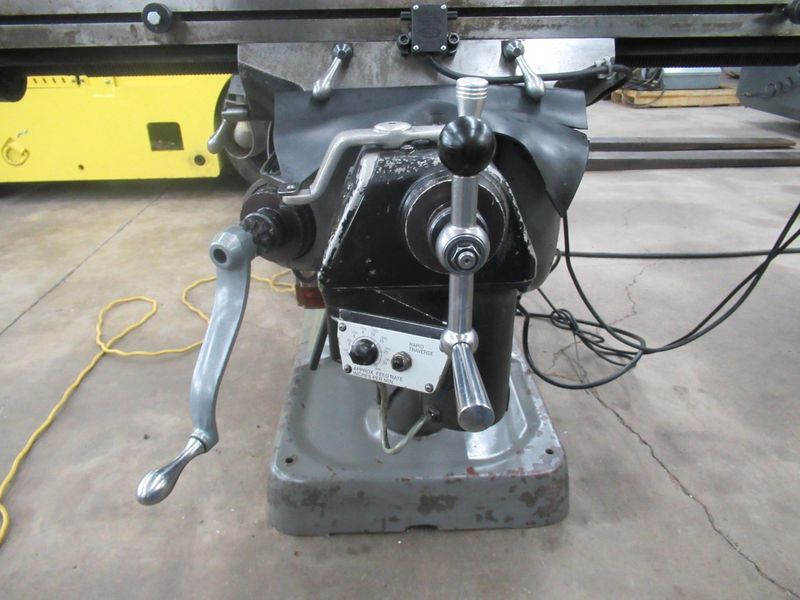

9" x 48" Table, Variable Speed Spindle in 2 Ranges: 60-4,200 RPM, R-8 Spindle Taper, Acu-Rite MillMate 2-Axis Digital Readouts, Servo 150 X-Axis Variable Speed Power Table Feed, Bridgeport Variable Speed Y-Axis Cross Power Feed, Microdrop Oil Mister, Chrome Ways, Bijur 1-Shot Lubrication, 2 HP Drive Motor

Electrics:

220/230/440/460 Volt, 3 Phase (Currently Wired 220 Volt)
