Haas UMC-1000SS CNC 5-Axis Vertical Machining Center, 40"x25"x25", 12K RPM, Chip Con, 30 ATC, Probing, TS Coolant, Air-Vise

Manufacturer

Haas

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

7413

Model

UMC-1000SS

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

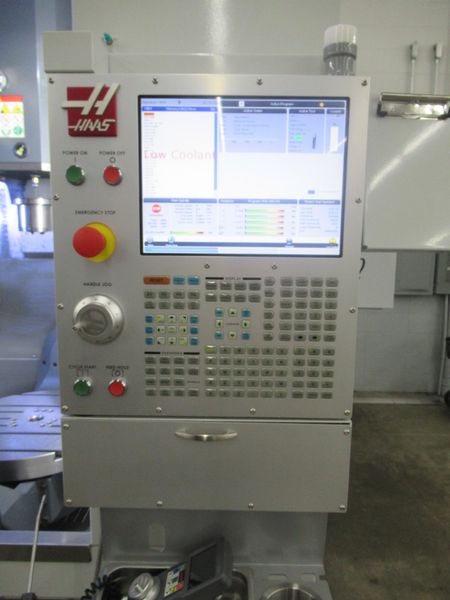

Control: Haas Next Generation CNC Control

Machine Travels X/Y/Z: 40" x 25" x 25"

Distance Spindle Nose to Platter: 4"-29"

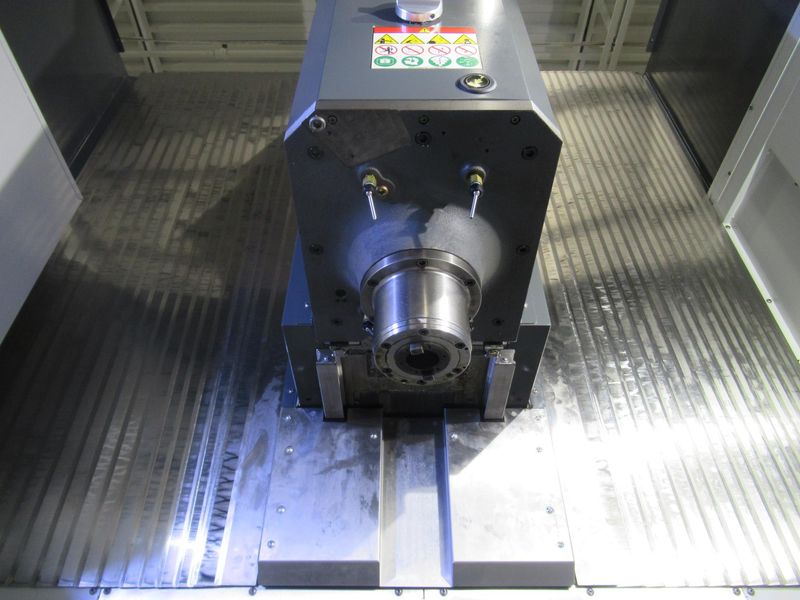

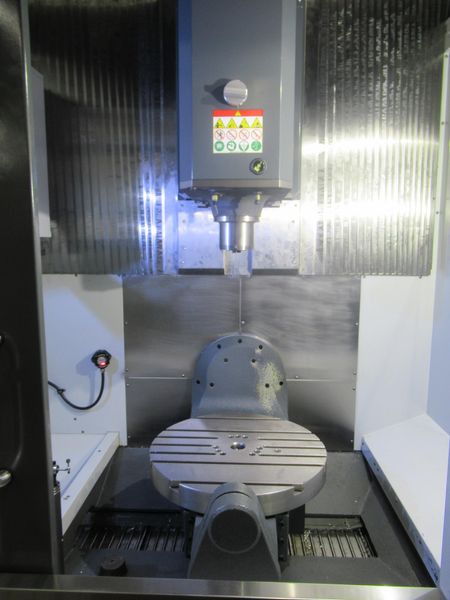

5-Axis Table Style: Built-in Trunnion Table

5th Axis Swivel (Tilt) Range: 120 Degrees to -35 Degrees

C-Axis Rotation Travel: 360 Degrees

C-Axis Max Speed: 179 Degrees / Second

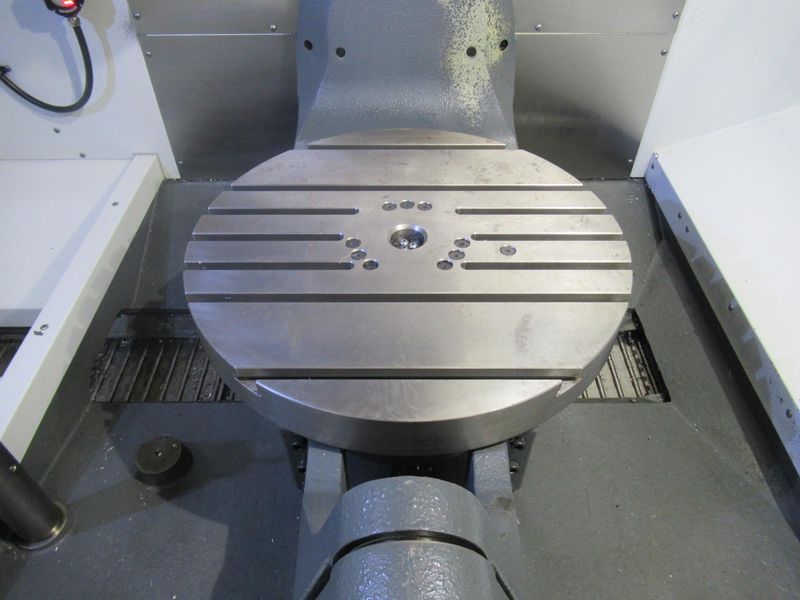

Table Size: 25" Diameter

Max Part Swing: 34"

Max Weight on Platter: 1,000 Lbs.

Rapid Traverse X/Y/Z: 1,200 IPM

Max Cutting Feedrate: 833 IPM

Spindle Speeds: 12,000 RPM Max Spindle Speed

Spindle Taper: CT40 Spindle Taper

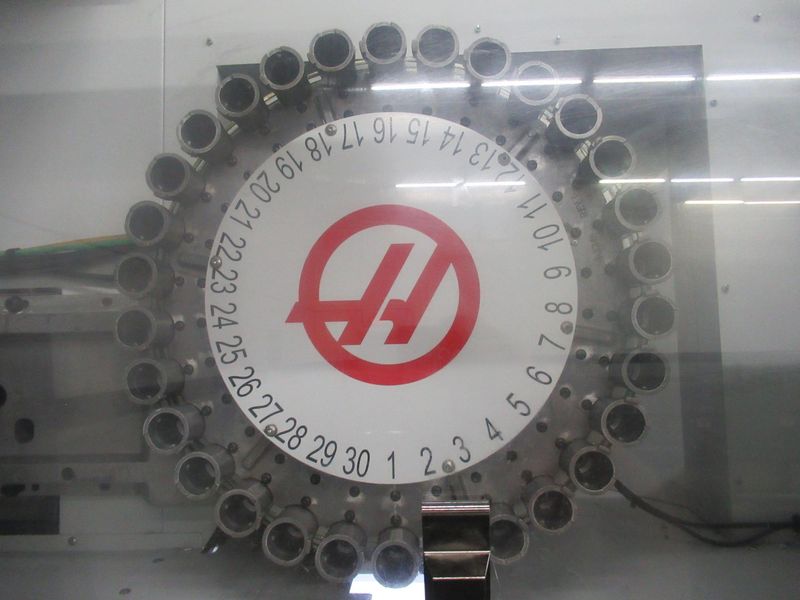

Tool Changer Capacity: 30+1 Stations

Tool Change Time: 1.8 S Tool-to-Tool / 2.4 S Chip-to-Chip

Max Tool Length: 12" (from Gage Line)

Max Tool Diameter Full / Adjacent Empty: 2.5" / 5.0"

Max Tool Weight: 12 Lbs.

Spindle Drive System: Inline Direct-Drive

Spindle Drive: 30 HP Vector Spindle Drive

Coolant Capacity: 55 Gallons

Description:

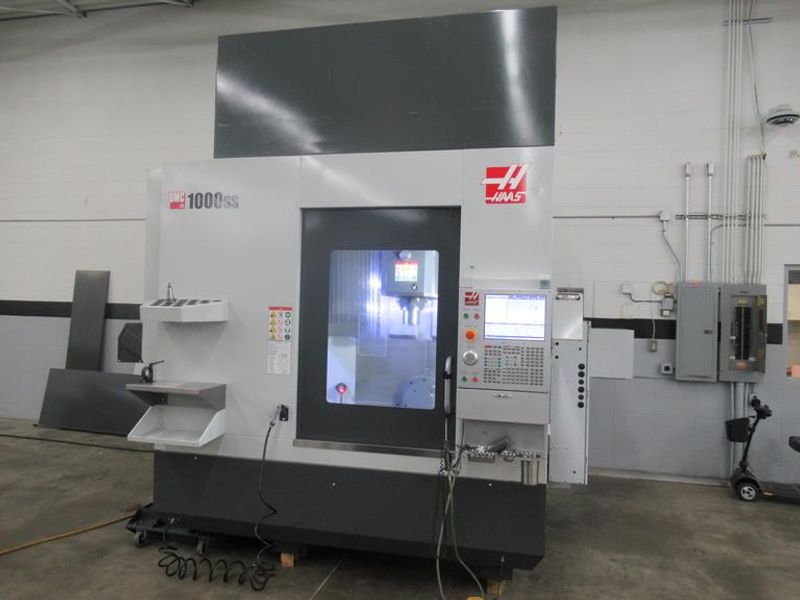

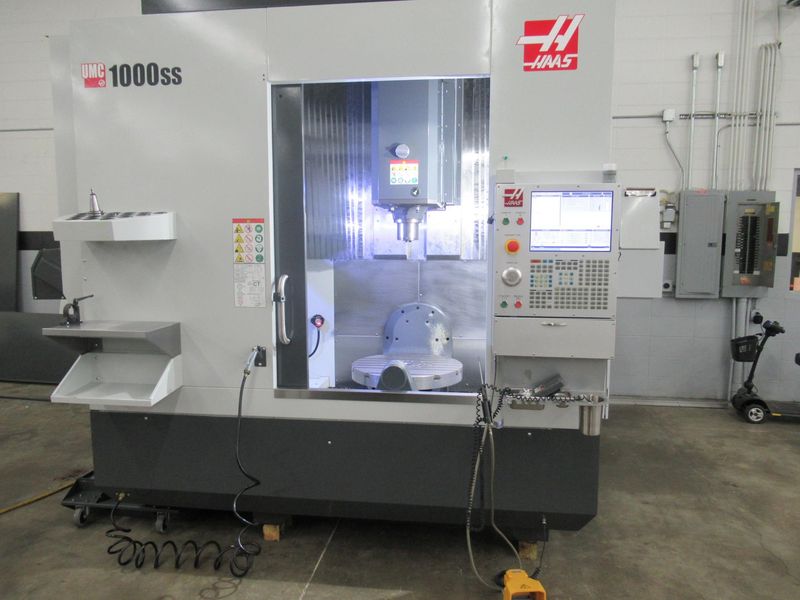

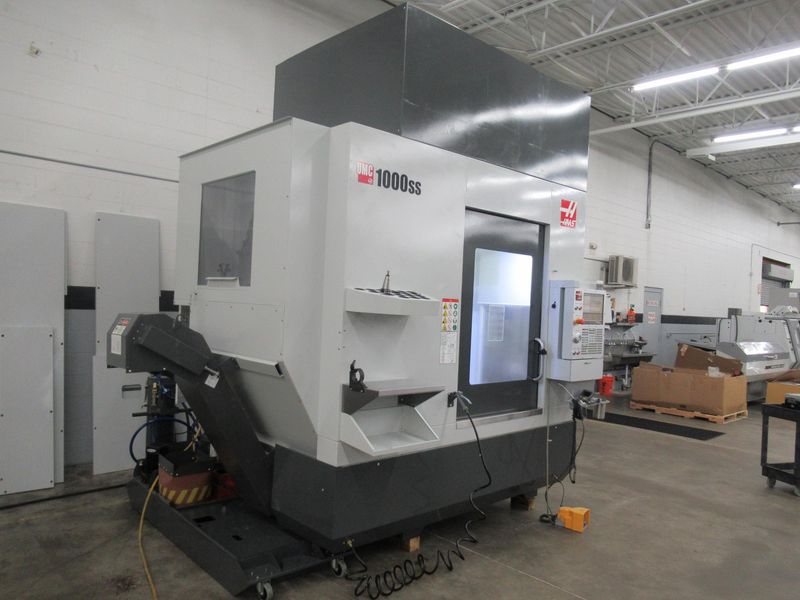

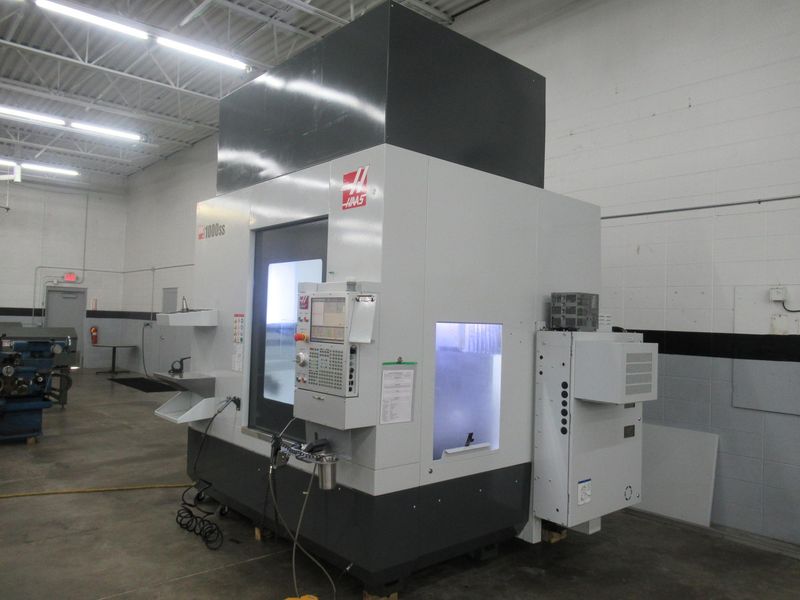

Used Haas UMC-1000SS Super Speed 5-axis CNC universal machining center featuring 40" x 25" x 25" travels. With 25" Diameter work table. Designed for simultaneous 5-axis machining and 3+2, the UMC-1000SS combines a large work envelope with a high-speed spindle, fast trunnion and side-mount automatic tool changer for efficient machining of complex parts.
Equipped With:

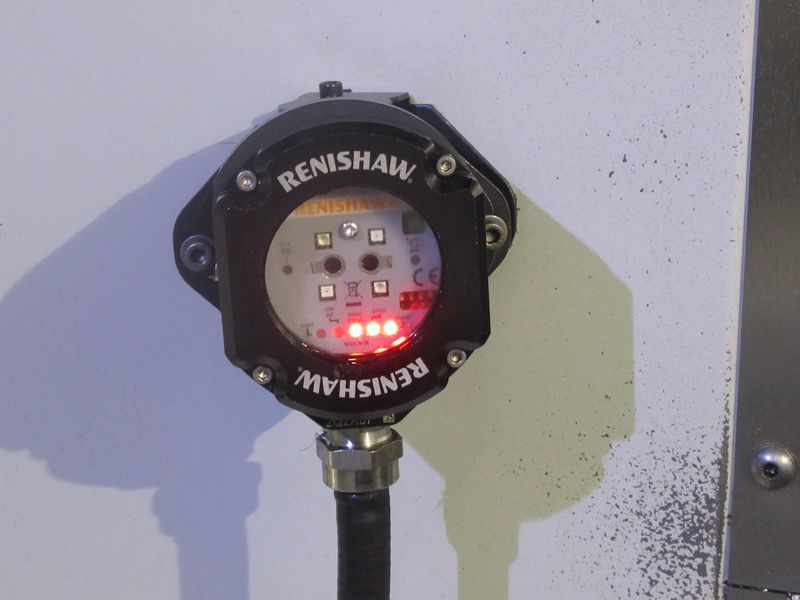

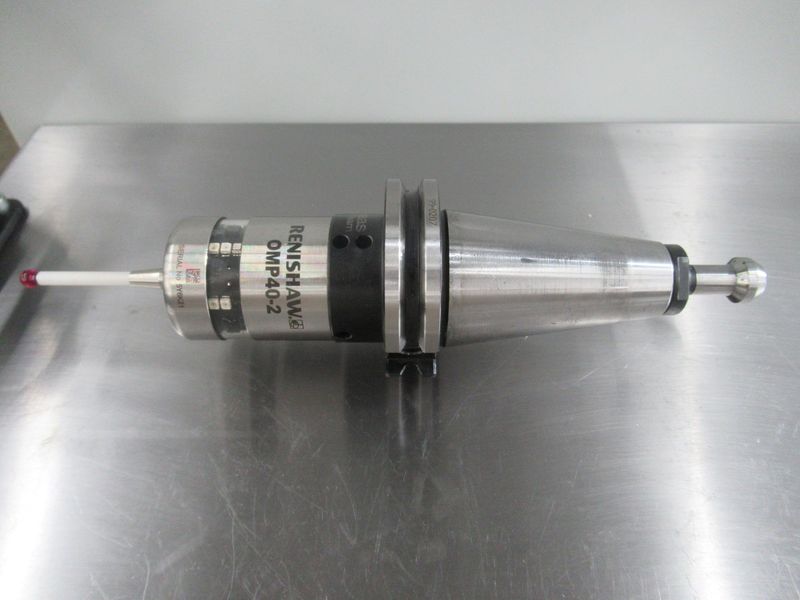

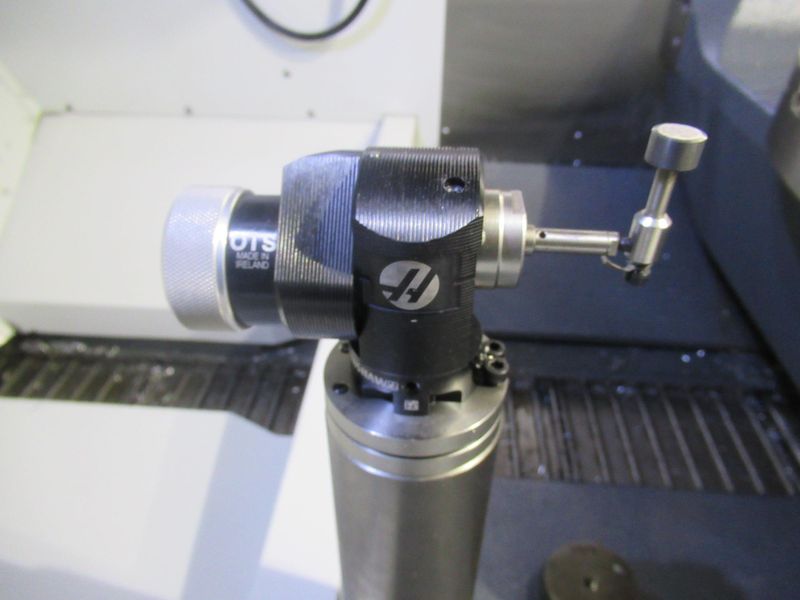

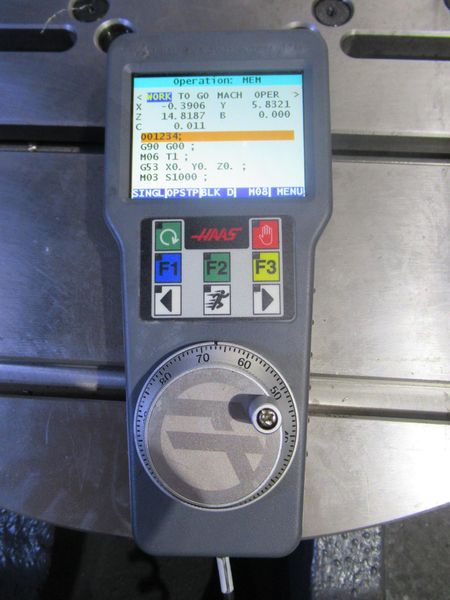

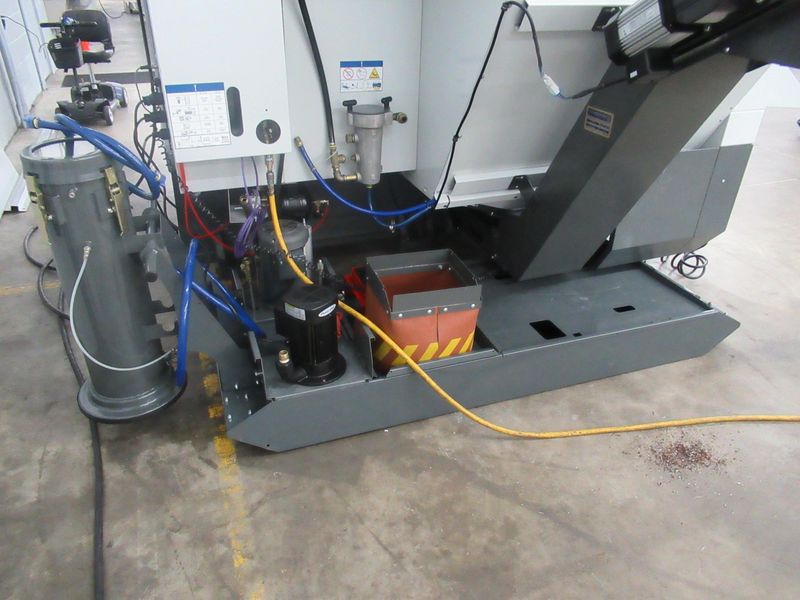

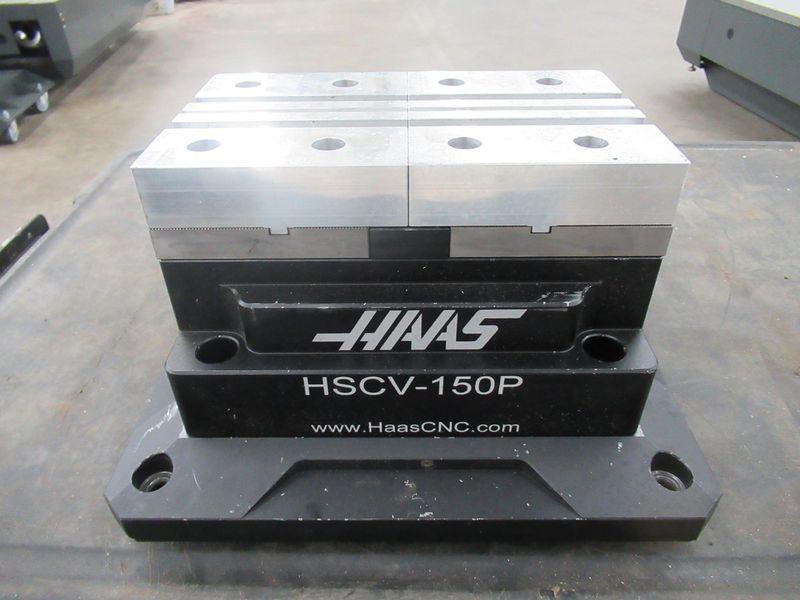

Haas Next Generation CNC Control, CT 40 Spindle Taper, 12,000 RPM Max Spindle Speed, 30 Station Twin-Arm Automatic Tool Changer, Dynamic Work Offset and Tool Point Center Software, High Speed Machining, Haas Probing System with Renishaw Tool and Parts Probes, 300 PSI Thru-Spindle Coolant, Chip Conveyor, Remote Jog Handwheel, Coolant Pump and Tank, Pneumatic Work Clamping System with Haas HSCV-150P Air Vise

Electrics:

195-250 Volt, 3 Phase
