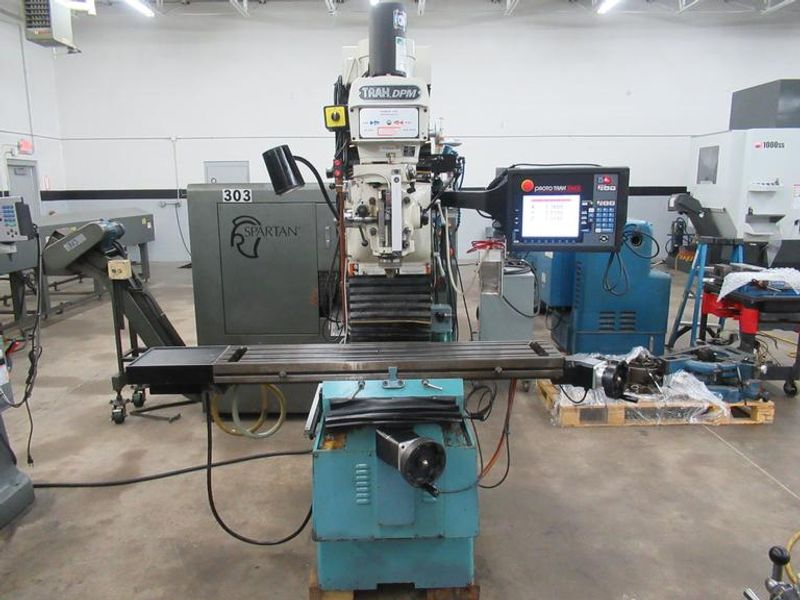

Trak DPM CNC Vertical Mill, Proto Trak SMX 3-Axis Control, Kurt Power Draw Bar, Glass Scales - Updated 2016

Manufacturer

Southwestern Industries - Trak Machine Tools

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC, (W/Milling Spindle & ATC)

Stock

7423

Model

DPM

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

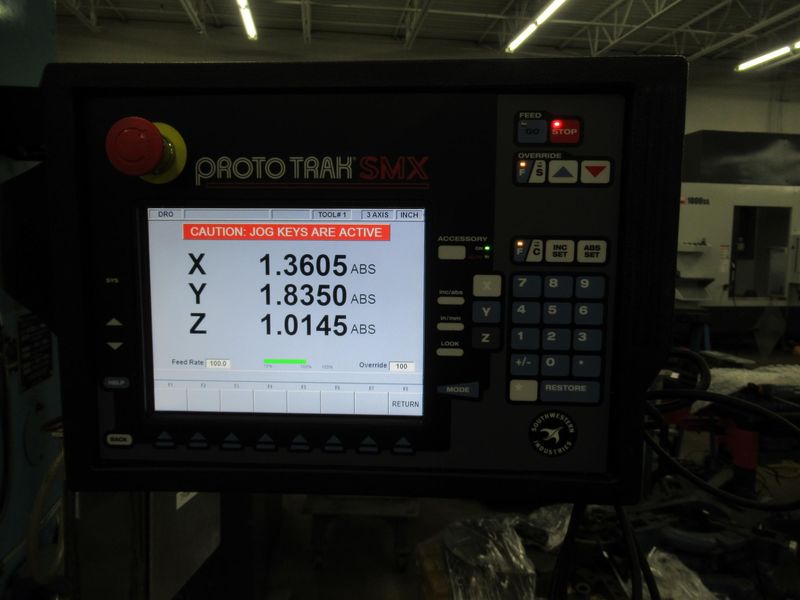

Control: Proto Trak SMX

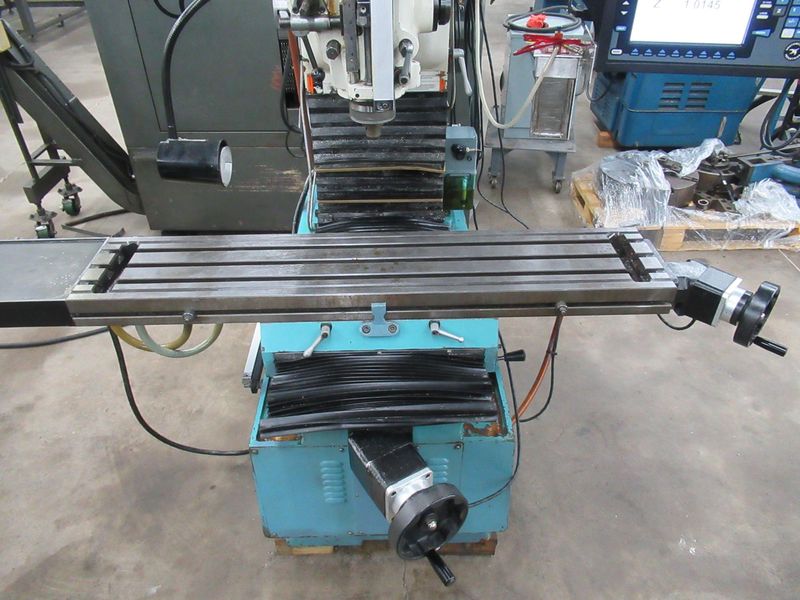

Table Size: 50" X 10"

Table Load: 1,320 Lbs.

X-Axis Travel: 31"

Y-Axis Travel: 17"

Z-Axis Travel: 25" (Vertical Programmable Head Travel)

Power Quill Travel: 5" Hand or Power Feed

Power Quill Feeds: (3) .002 | .004 | .006 IPR

Centerline Spindle-To-Column Distance: 17.5"

Distance Spindle Nose to Table: Approximately 0"-25"

Spindle Taper: NTMB 40 or 40 Taper

Spindle Speeds: 70-4,200 Variable Speed in 2 Ranges

Head Swivel / Tilt: Swivel +/- 90 Degrees Left-To-Right

Spindle Drive: 3 HP

Description:

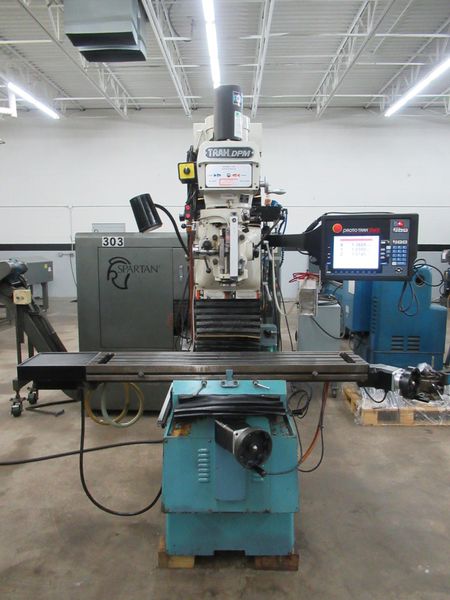

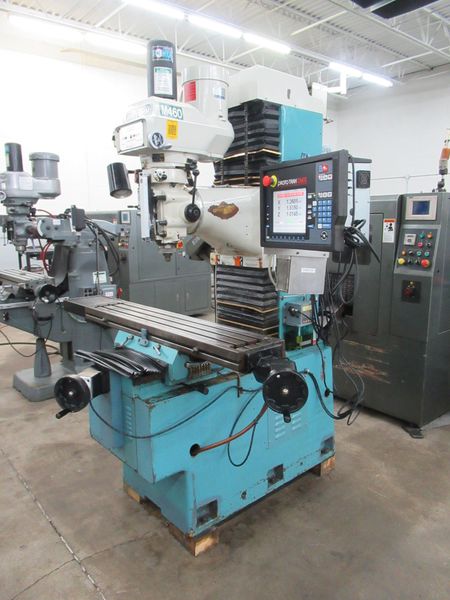

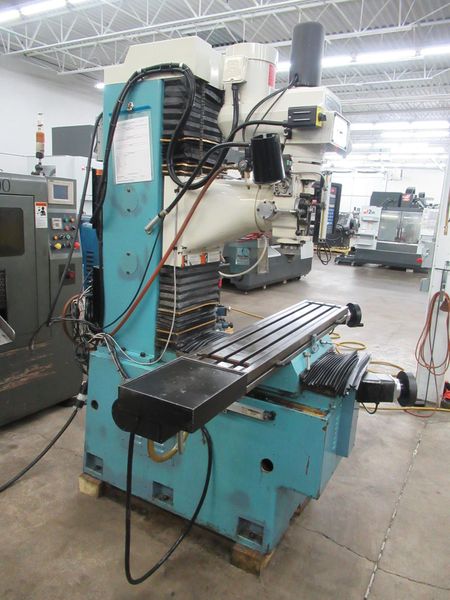

Southwestern Industries TRAK DPM CNC vertical bed mill equipped with a ProtoTRAK SMX3 3-axis CNC control. The TRAK DPM series combines manual machining capability with conversational CNC operation, making it well suited for toolroom, prototype, repair, and short-run production work.
Equipped With:

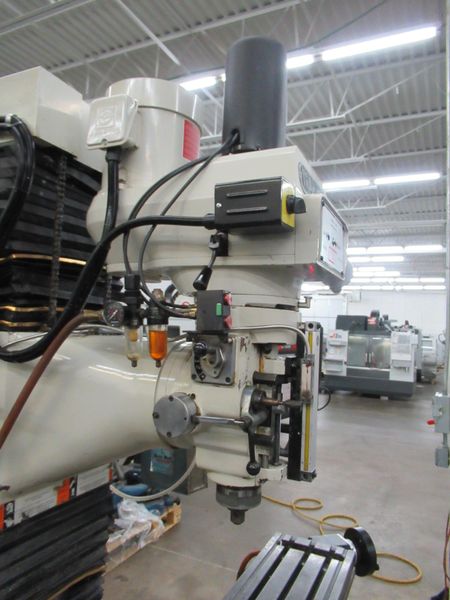

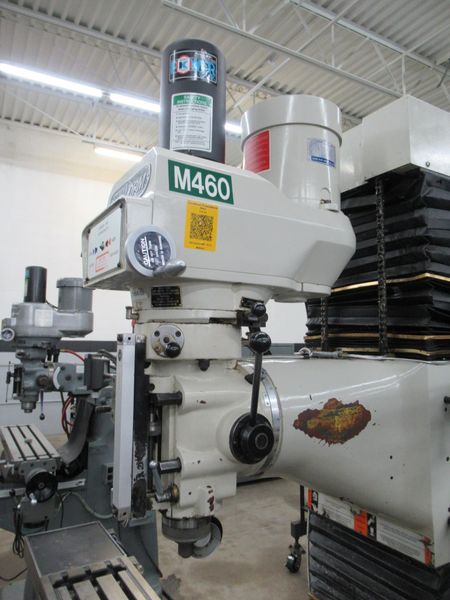

Proto Trak SMX CNC Control 3-Axis (Upgraded in 2016), Z-Axis Programmable Via Head Travel, Manual and Power 5" Quill Travel, Variable Speed Spindle in 2 Ranges: 70-500 | 60-2,200 RPM, 40 Taper Spindle, Kurt Power Draw Bar, Work Light, Glass Scales, Automatic Lubrication, Kool Mist Mister, 3 HP Spindle Drive Motor, Manual Quill Handle, X&Y Axes Manual Table Handles

Electrics:

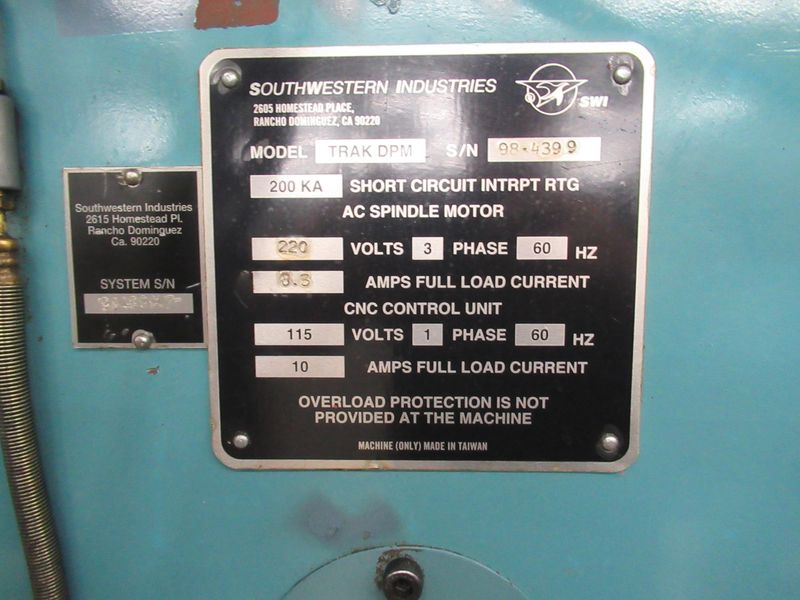

220 Volt, 3 Phase
