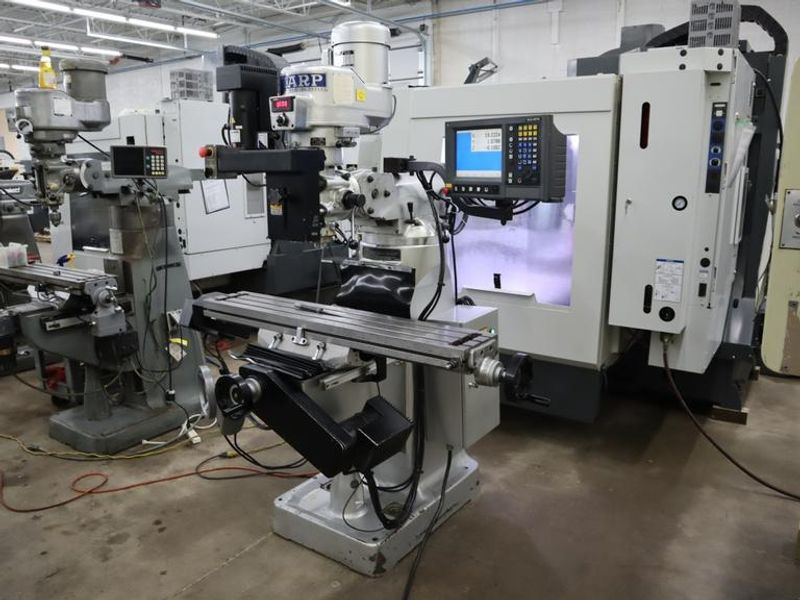

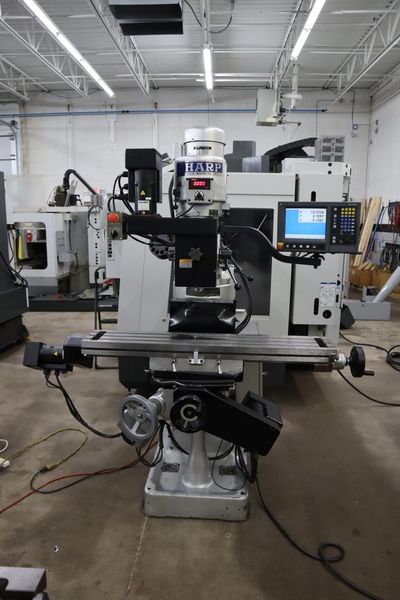

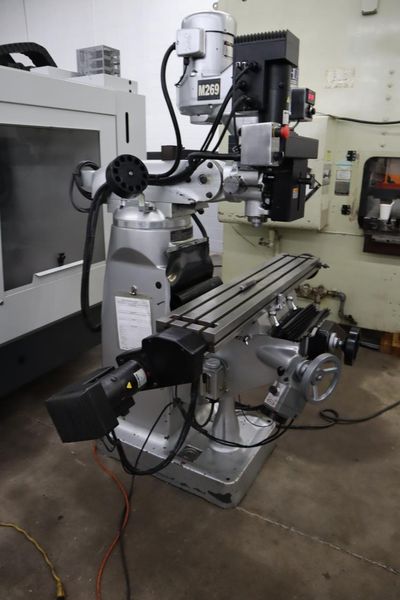

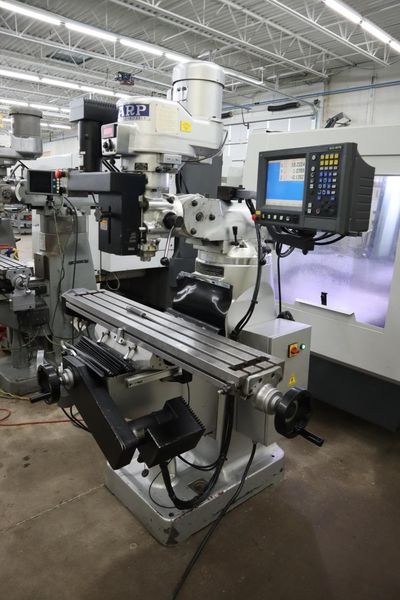

Sharp LMV-50/DVS 3-Axis CNC Vertical Knee Mill, Acu-Rite MILLPWR CNC Control, Electronic Variable Speed Drive

Manufacturer

Sharp

Category

Milling Machines

Type

MILLERS, KNEE, CNC

Stock

7433

Model

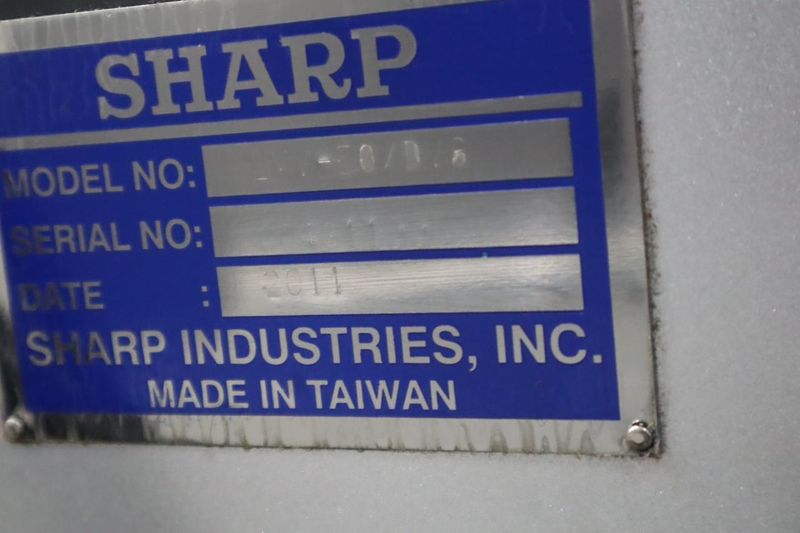

Sharp LMV-50.DVS - Millpwr

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

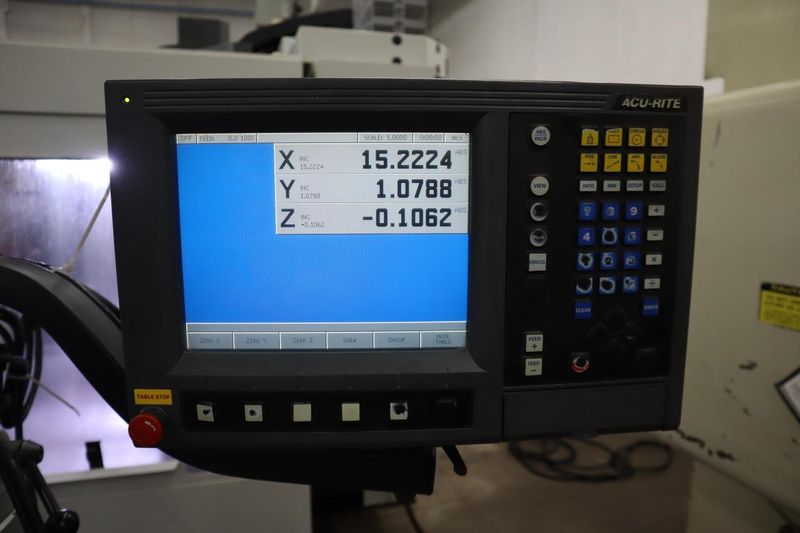

Control: Acu-Rite Millpwr 3-Axis CNC

Table Size: 10" x 50"

Machine Travels (X/Y): 32" x 11" Programmable or Manual Travels

Programmable Z-Axis Travel: 5"

Quill Travel: 5" Programmable or Manual

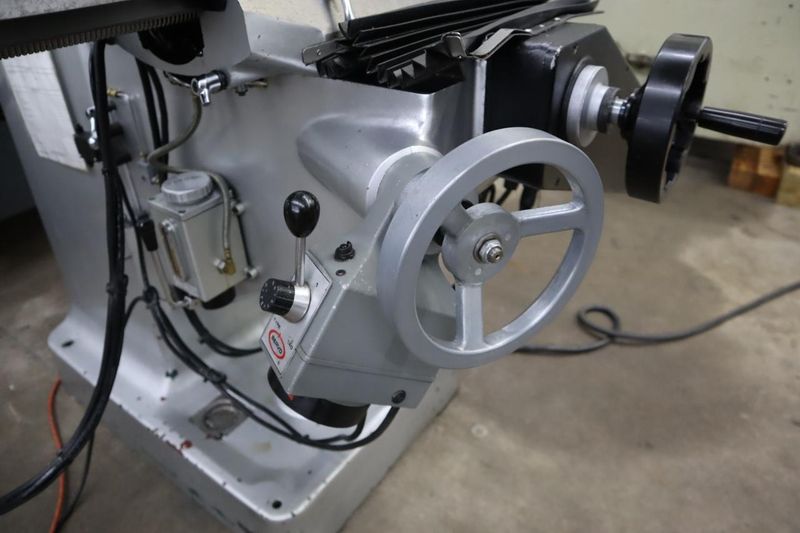

Knee Travel: 16" (Manual)

Overarm Ram Adjustment: 12"

Spindle Center to Column: 6.75" - 18.5"

Spindle To Table Distance: 2.125" - 18"

Spindle Taper: R-8

Head Swivel Right to Left: +/- 90 Degrees

Head Tilt Front to Back: +/- 45 Degrees

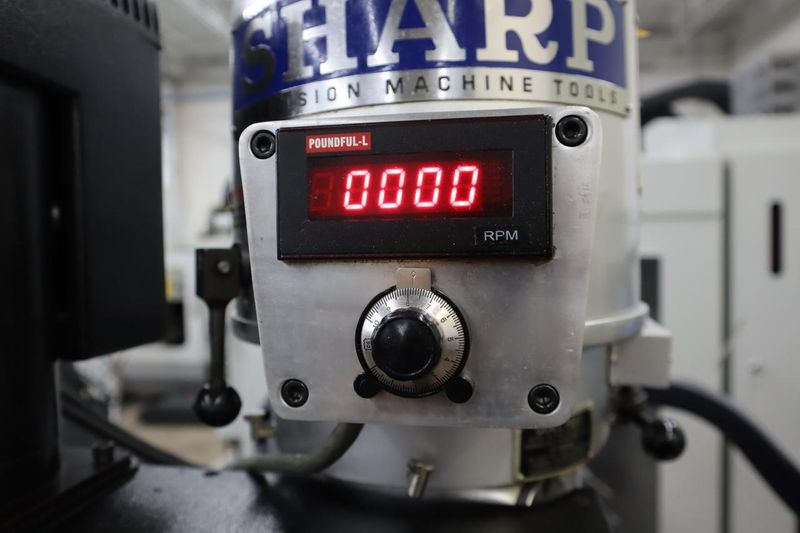

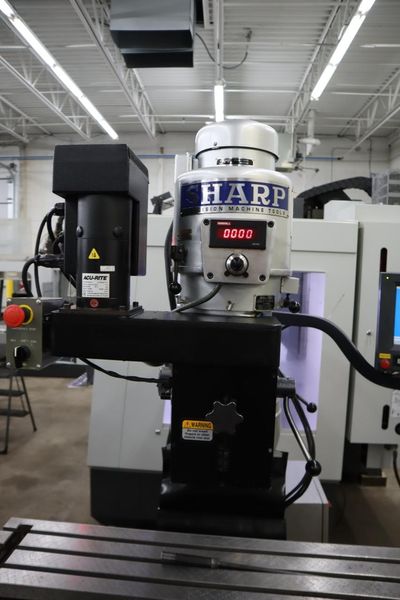

Spindle Speeds: 60 - 4,500 RPM Electronic Digital Variable Speeds

Spindle Drive: 3 HP

Description:
The Sharp LMV-50/DVS is a versatile vertical knee mill equipped with an Acu-Rite MillPWR 3-axis CNC control system, combining the flexibility of manual machining with the productivity of conversational CNC programming. Popular in toolrooms, maintenance departments, prototype shops, and job shops, the LMV-50/DVS offers precision machining capabilities without the complexity of a full machining center.
Equipped With:

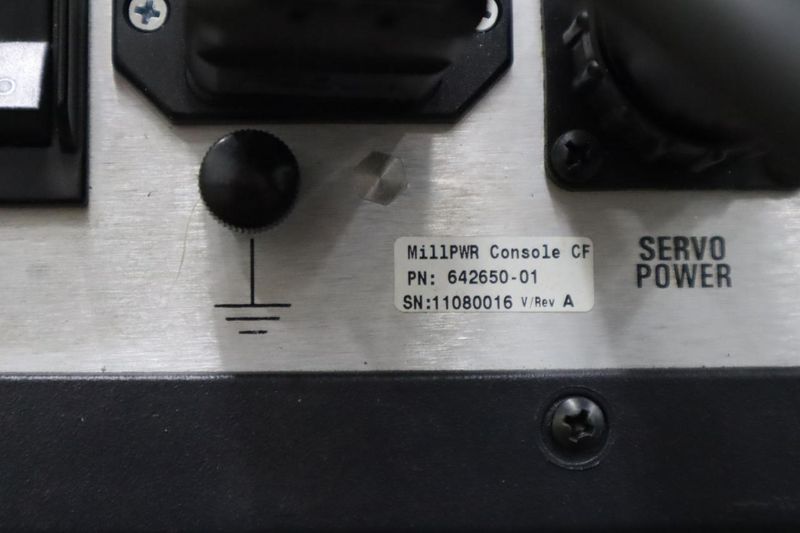

Acu-Rite MILLPWR 3-Axis CNC Control, Electronic Variable Speed Drive with LED Display, Programmable or Hand Quill Feed, Servo 140 Power Knee Feed, Draw Bar, Quill Handle

Electrics:

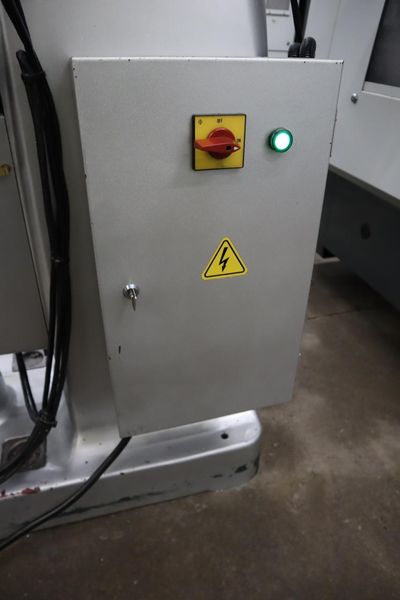

220/440 Volt, 3 Phase (Currently Wired 220 Volt)
