Minster Press For Sale - 400 ton Capacity Hevi-Stamper E2-400-96-48 Straight Side Mechanical Sta

Manufacturer

MINSTER

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

3046

Model

E2-400-96-48 Hevi-Stamper

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Tonnage - 400
Stroke - 12 inches
Shut Height - 32 inches
Adjustment - 6 inches
Bed Size - 96" LR x 48" FB
Ram Area - 96" LR x 48" FB
SPM - 0-70 VSPM

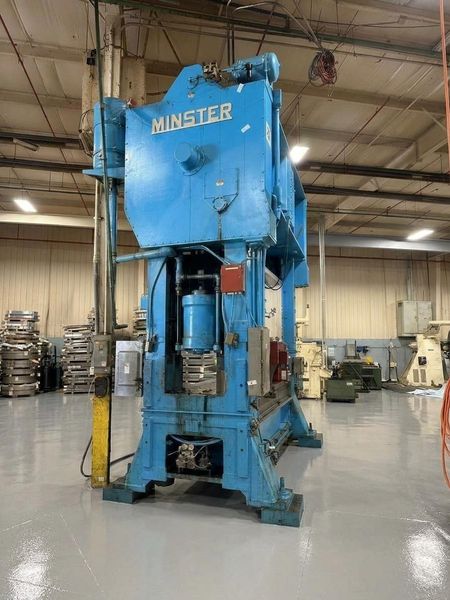

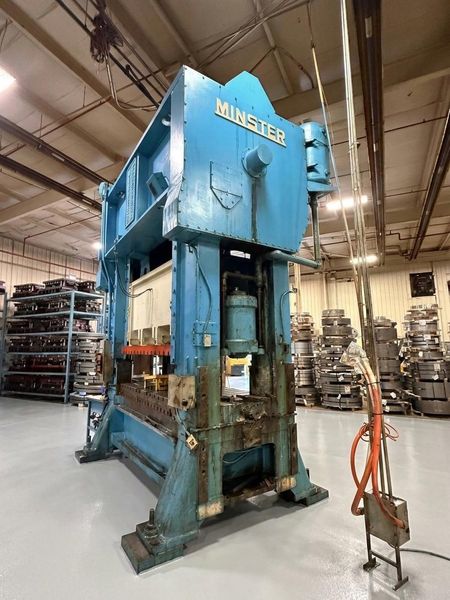

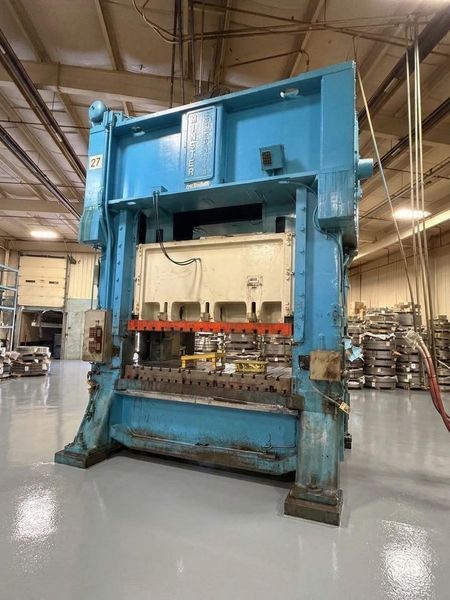

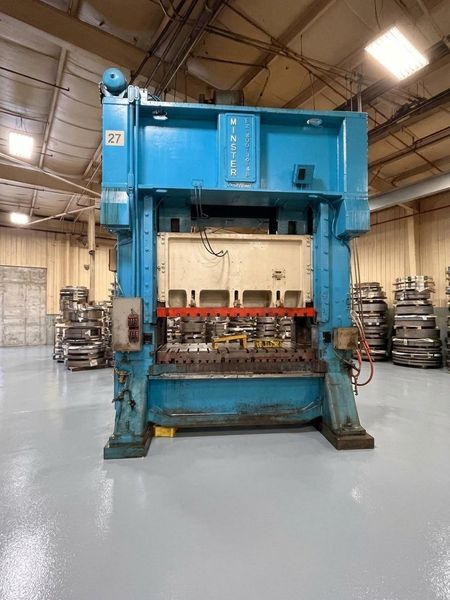

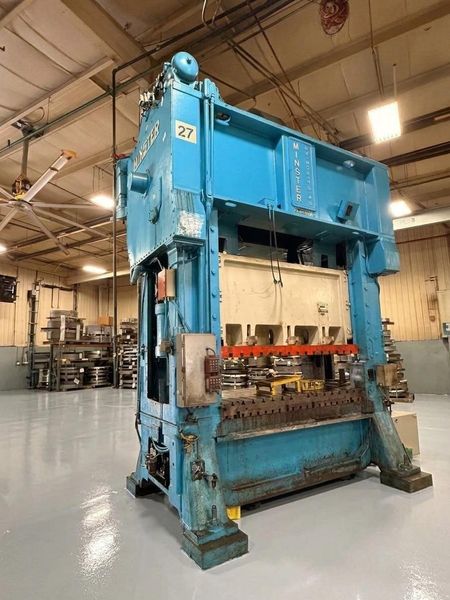

Minster Stamping Press - 400 ton Capacity

High Speed - Straight Side - Progressive Die Press

Model E2-400-96-48 Hevi-Stamper

Year 1985 - Under Power!

400-ton Capacity
12" Stroke
32" Shut Height on Bed
6" Motorized Slide Adjustment
96" LR x 48" FB Bed Area
96" LR x 48" Slide Area
0-70 Variable Strokes Per Minute

Equipment and Features
Minster Pneumatic Clutch and Brake
Air Counterbalances
Minster Monitor Flow Lubrication System
Dual Ross Air Valve
T-Slotted Ram and Bolster
Updated Press Controls Consisting of:
* Wintriss SmartPac Pro
* Wintriss AutoSetPac
* Wintriss DSI 2 - 16 inputs
* Banner Light Curtains
32" Wide Windows
Knockouts in Slide
Variable Speed Drive
Vibro-Dynamic Floor Pads
Motors and Controls
Floor Standing

Available for immediate inspection under power in the S&G Press warehouse. Reach out to your salesperson to schedule your visit!

This 1985 Minster E2-400-96-48 Hevi-Stamper delivers precision, high-speed performance for demanding progressive die stamping operations. Built with a 400-ton capacity, generous 96" x 48" bed and slide areas, a 12" stroke, and a 32" shut height, this straight-side press offers the heavy-duty stability needed for high-tonnage production. Running at 0–70 variable strokes per minute, it comes fully upgraded with modern controls including a Wintriss SmartPAC Pro, AutoSetPac, a 16-input DSI 2 interface, and Banner light curtains for maximum setup efficiency and die protection. Features like Minster’s trusted pneumatic clutch/brake, air counterbalances, monitor flow lubrication, and 32" side windows make this floor-standing press a complete turnkey asset for any stamp shop.

Why Buy From S&G Press & Machinery Sales?

Buying pre-owned machinery requires complete confidence in quality, and S&G Press delivers uncompromised reliability:

  • Inspected Under Power: This Minster E2-400 is currently installed, wired, and ready for hands-on, under-power inspection at our warehouse. You can run the slide, cycle the controls, and verify mechanical sound before making a commitment.

  • In-House Rebuilding & Machining: Backed by decades of heavy press engineering expertise, our on-site rebuild shop and machine capabilities ensure every press sold meets rigorous industrial standards.

  • Direct Dealership Value: As stocking machinery dealers—not unvetted brokers—we own, stock, and guarantee our equipment, giving you straightforward commercial transparency and complete post-sale support.
