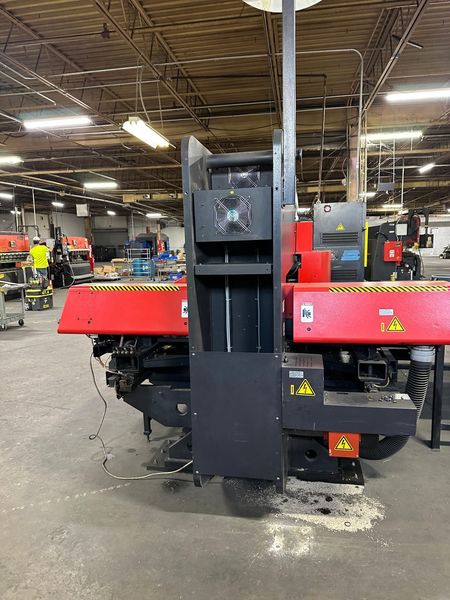

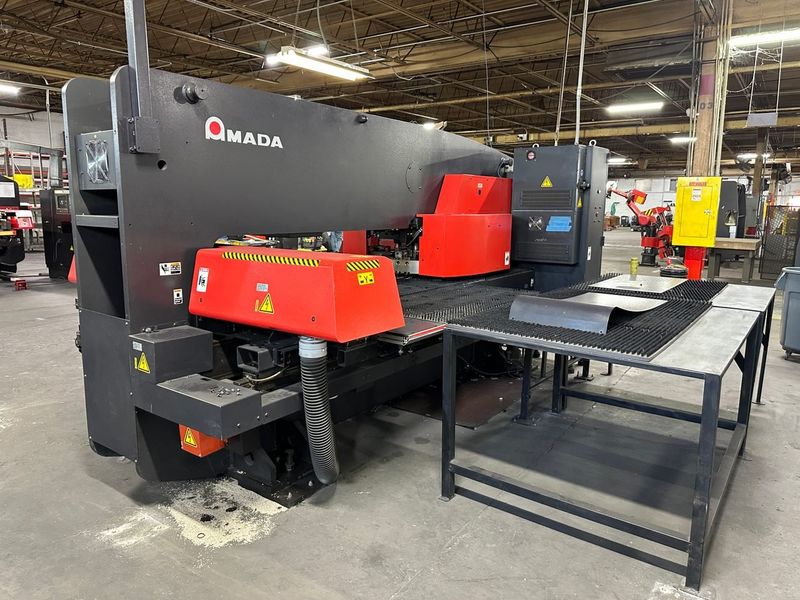

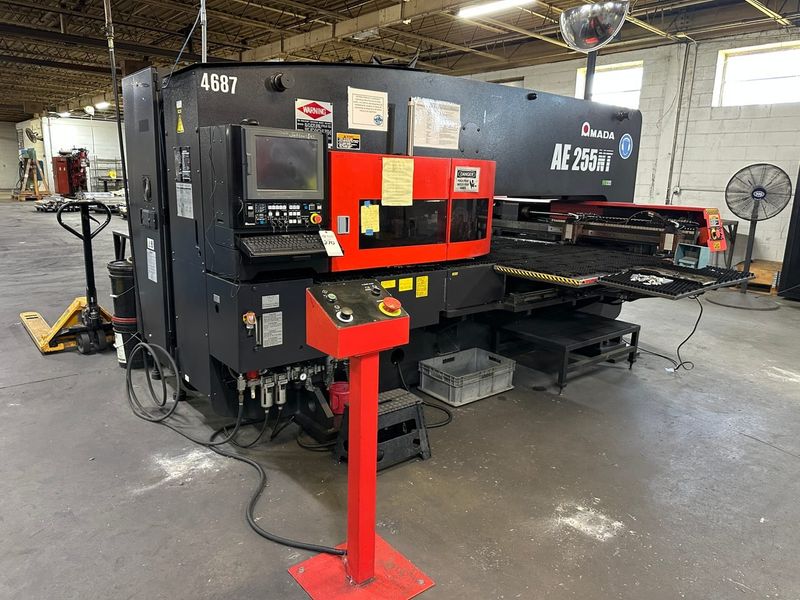

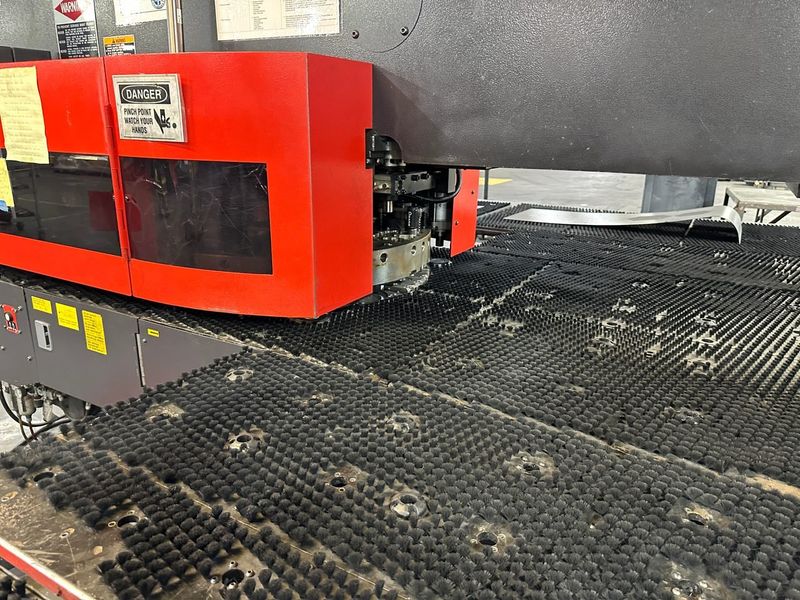

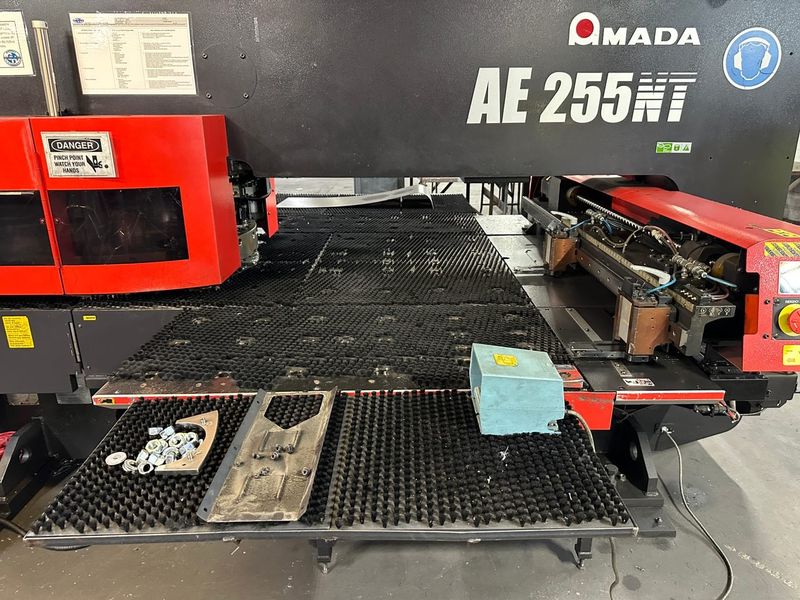

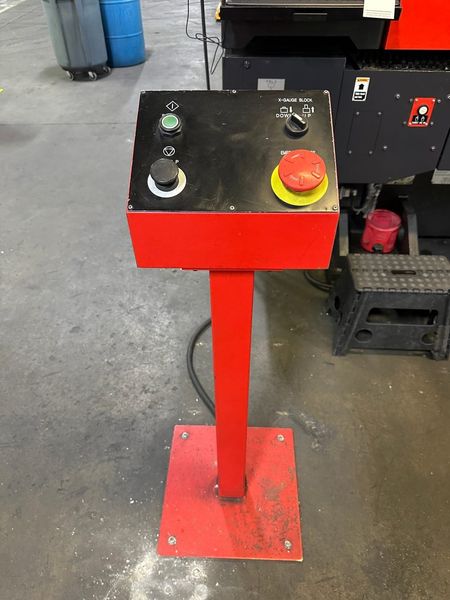

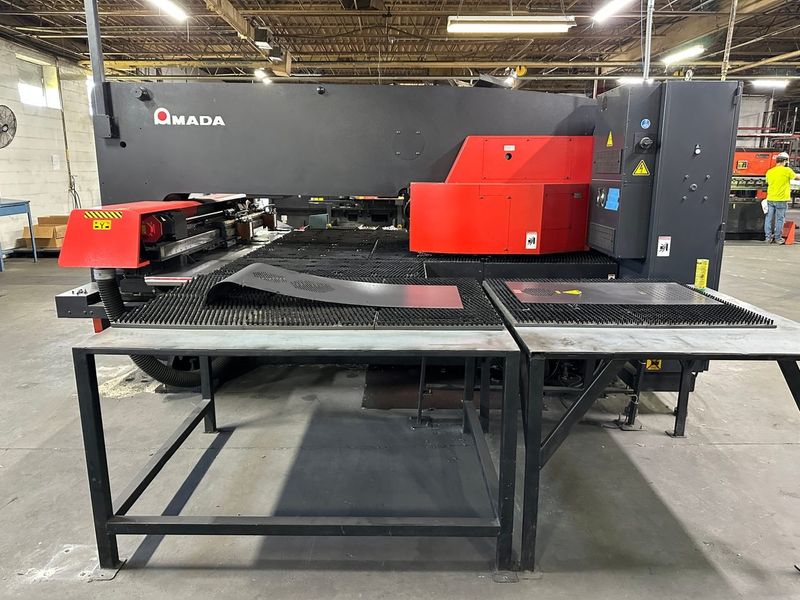

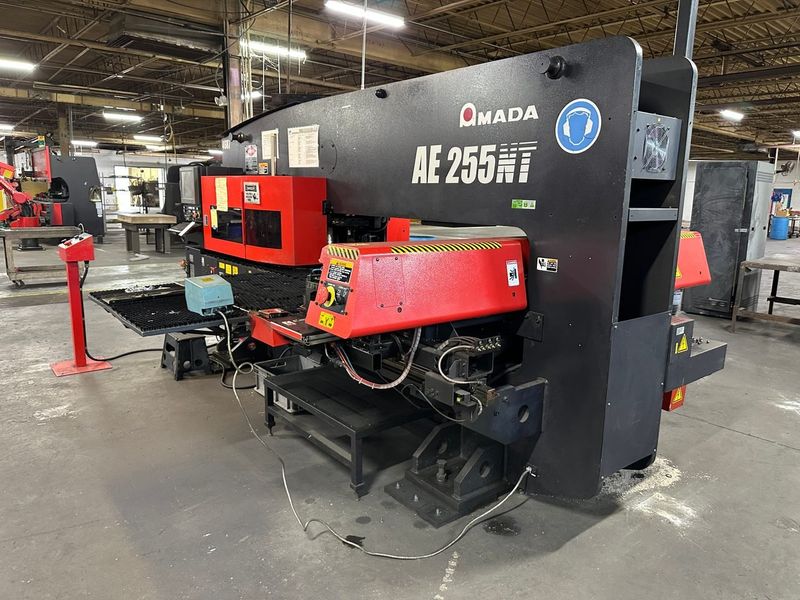

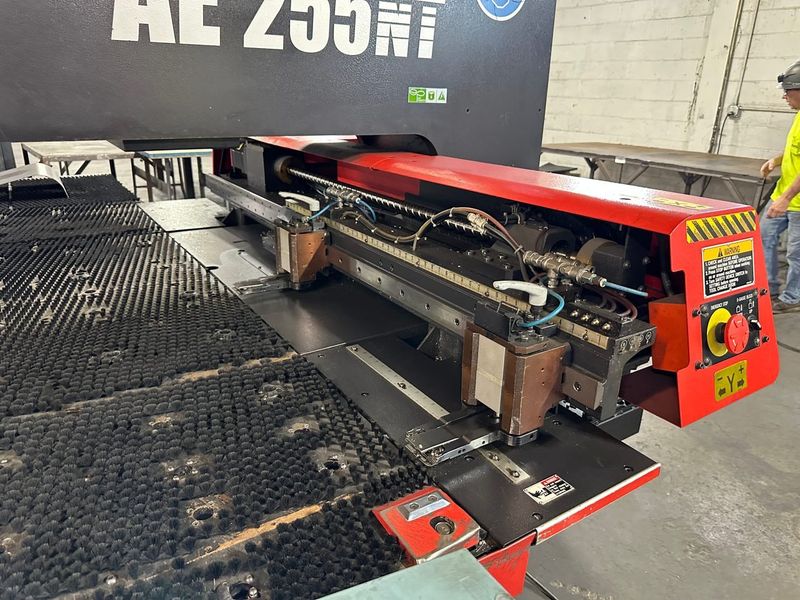

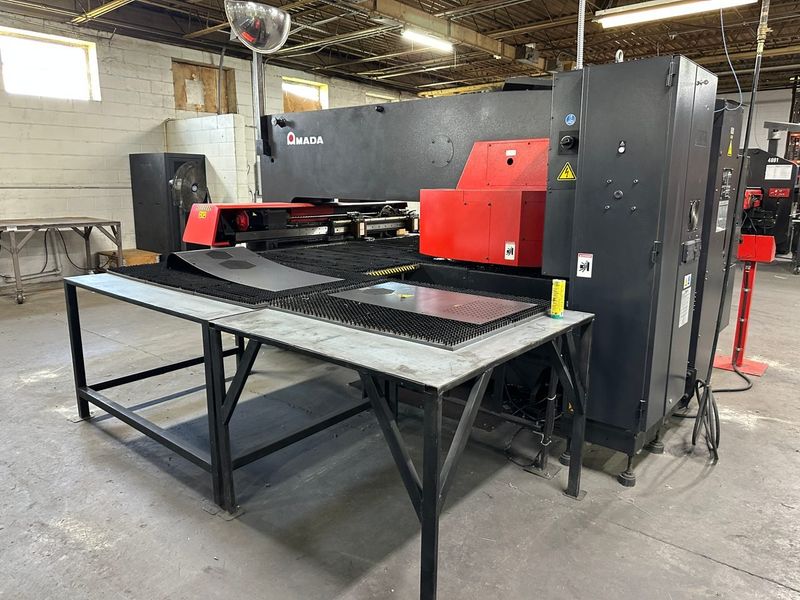

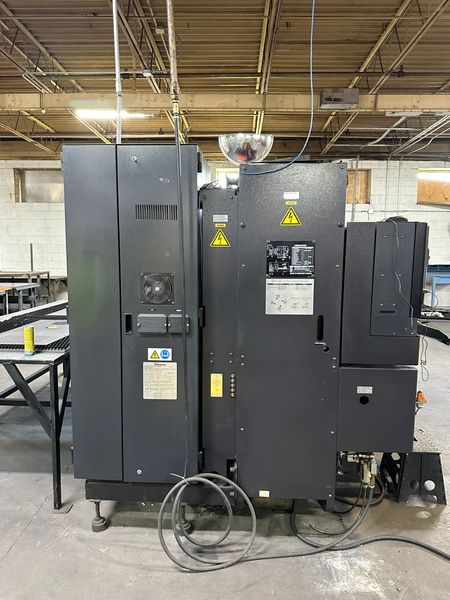

Amada AE 225NT 22 Ton CNC Turret Punch (2014)

Manufacturer

Amada

Category

Punches

Type

PUNCHES, TURRET

Stock

122260016

Model

AE 225NT

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 122260016
  • Location: Upon Request
  • Brand: Amada
  • Model: AE 225NT
  • Year: 2014

Specifications

  • Press Capacity: 22 US Tons (200 kN)
  • Max Sheet Size: 50″ x 98.425″ (1270 mm x 2500 mm)
  • Max Sheet Thickness: 0.126″ (3.2 mm) / 0.252″ (6.4 mm)
  • Max Sheet Mass: 110 lbs (50 kg) at F1 / 330 lbs (150 kg) at F4
  • X-Axis Travel: 50″ (1270 mm)
  • Y-Axis Travel: 50″ (1270 mm)
  • Punching Accuracy: ±0.004″ (±0.1 mm) / FA Mode: 0.003″ (0.07 mm)
  • Max Press Stroke Length: 1.654″ (42 mm)
  • Max Feed Speed (X-Axis): 262 ft/min (80 m/min)
  • Max Feed Speed (Y-Axis): 197 ft/min (60 m/min)
  • Turret Speed: 30 RPM
  • Turret Stations: 45 Stations
  • Power Supply: 19 kVA, 3-Phase, 200V, 60/50 Hz
  • Air Supply: 26.49 ft³/min (750 L/min), 72 PSI (0.5 MPa)
  • Weight: 26,455 lbs (12,000 kg)
  • Dimensions: 161.4″ x 100.8″ x 82.0″H (119.2″H with option mirror installed)
  • Control: AMNC-F (FANUC 180-PB)

Equipped With

Air Blow System Type V-Ex, Operator’s Manuals & Documentation

Additional Info

This Amada AE-255NT CNC Turret Punch can be inspected upon request.
