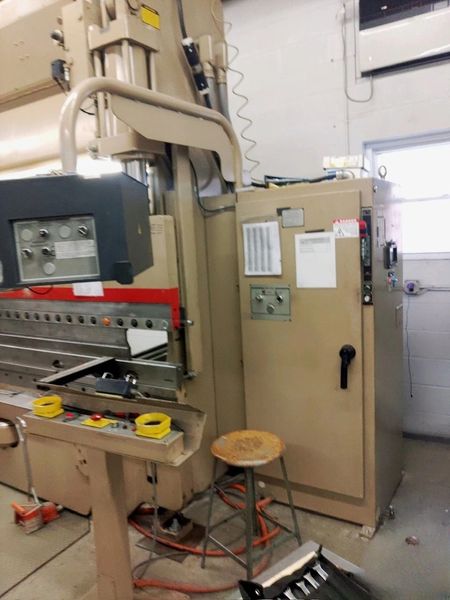

Cincinnati 90AFX8FT 90 Ton x 10′ CNC Hydraulic Press Brake

Manufacturer

Cincinnati

Category

Brakes (including Press Brakes)

Type

PRESS BRAKES

Stock

223260021

Model

90AFX8FT

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 223260021
  • Brand: Cincinnati
  • Model: 90AFX8FT

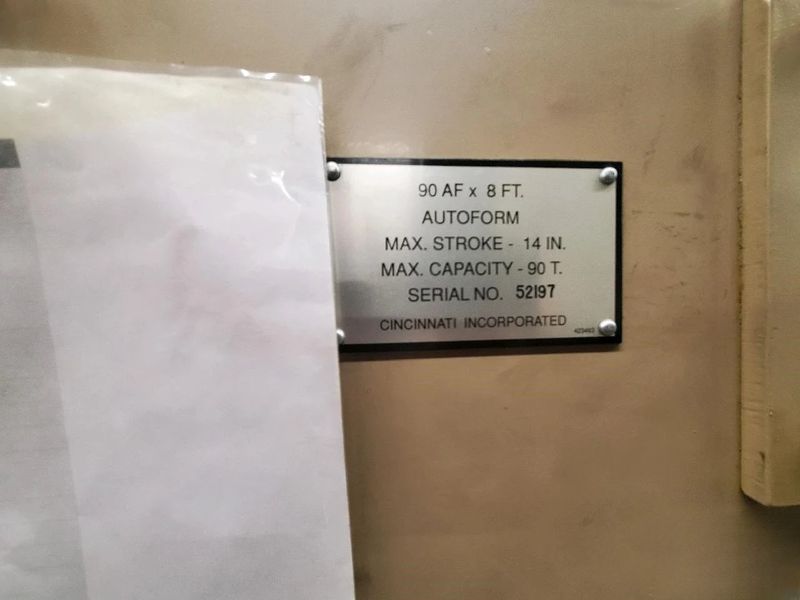

  • Serial #: 52197
  • Weight, Approximately: 17500 LBS

Specifications

  • Tonnage Capacity, Maximum: 90 TON
  • Tonnage Capacity, Full Forming Speed: 70 TON
  • Overall Length Of Bed And Ram: 10′
  • Distance Between Housings: 102.5"
  • Bending Capacity: 9′ x 10 GA
  • Bending Capacity: 6’10" x 3/16"
  • Bending Capacity: 5′ x 1/4"
  • Stroke Length: 14"
  • Open Height: 21"
  • Closed Height: 7"
  • Throat Depth: 7"
  • Ram Speed Full Tonnage, Maximum: 94 IPM
  • Ram Speed, High Approach: 380 IPM
  • Ram Speed, Variable Forming: 1 to 120 IPM
  • Ram Speed, Variable Return: 1 to 405 IPM
  • Hydraulic Motor, Horsepower: 25 HP

Equipped With

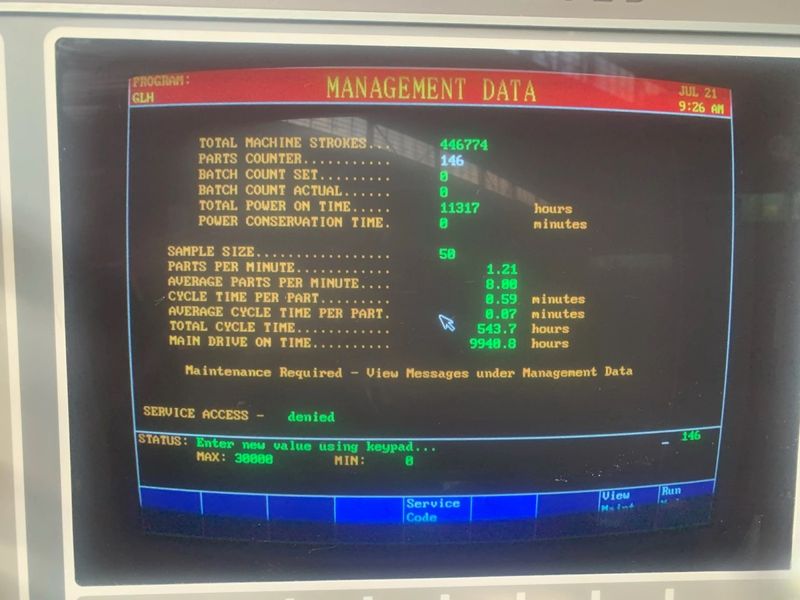

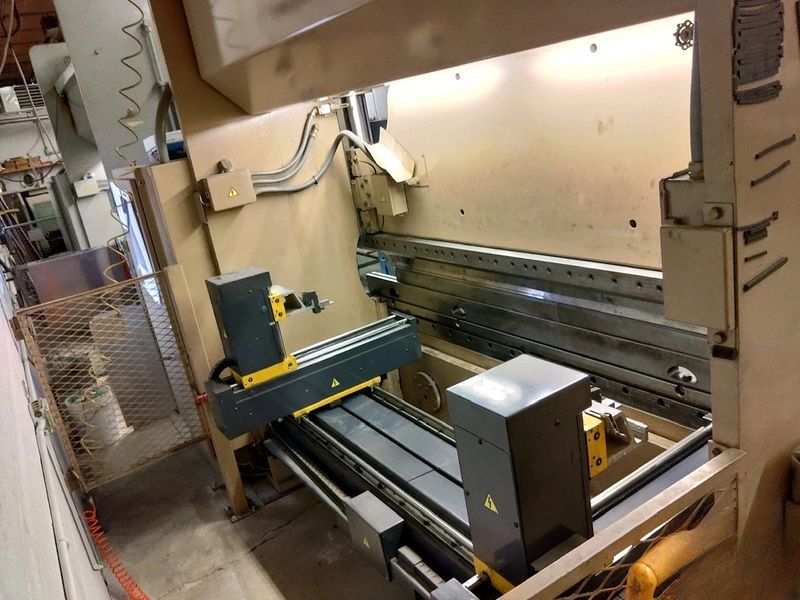

Cincinnati-Inc Adaptive Autoform CNC Controls W/6-Axis Back Gauge, Upper Ram Hydraulic Clamping, Auto Crowning Capabilities, 14" Extra Long Stroke, Floppy Disc & USB Expanded Memory
