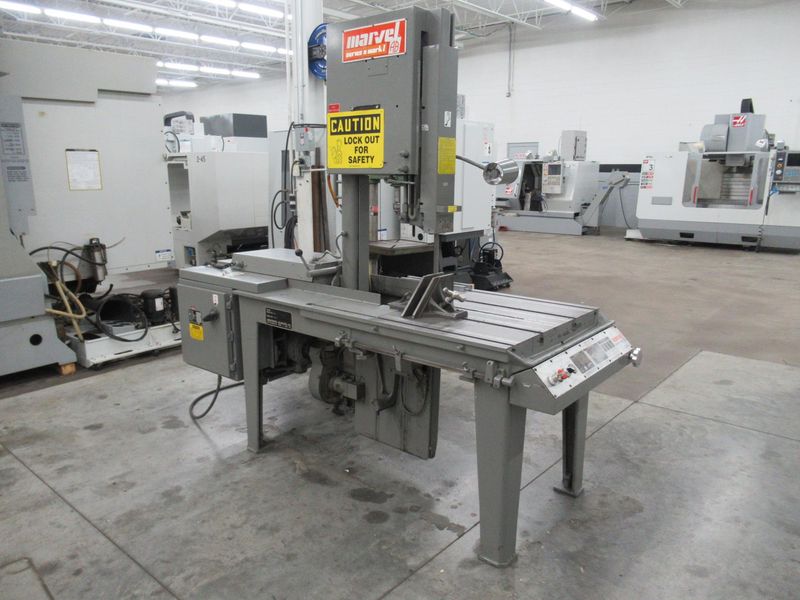

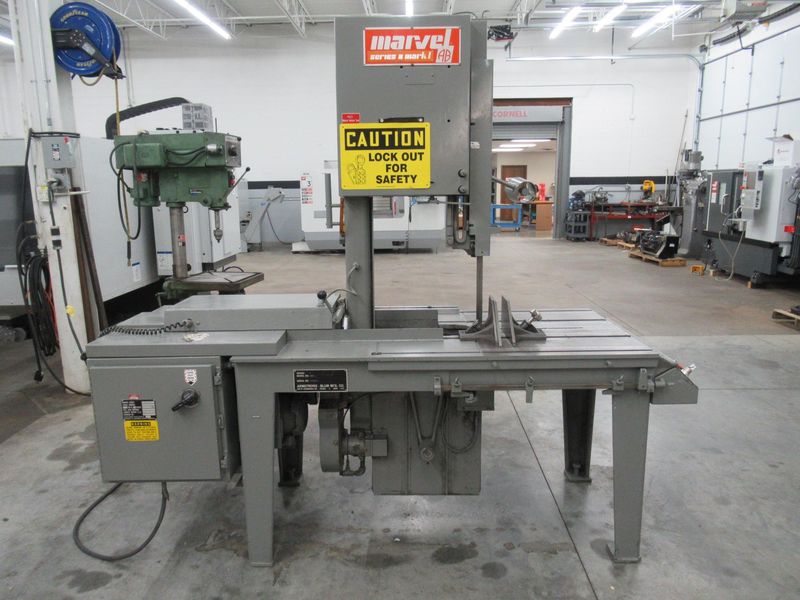

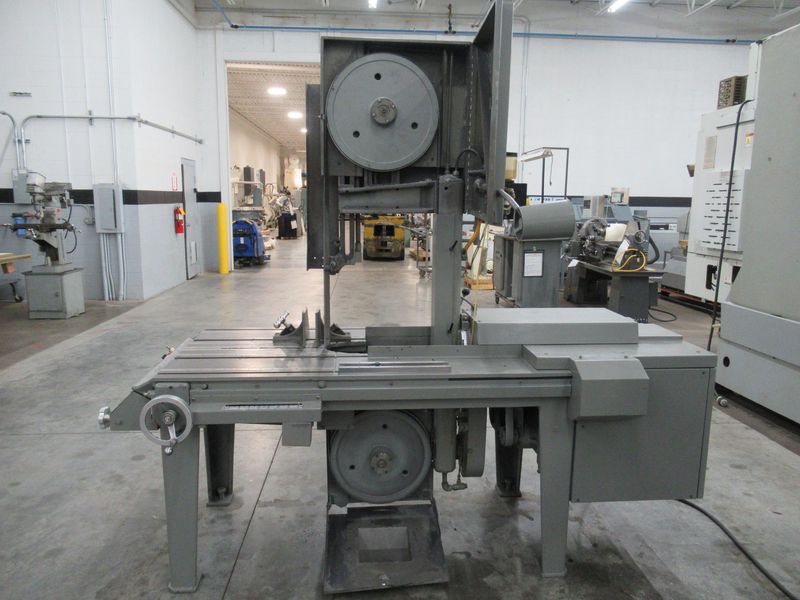

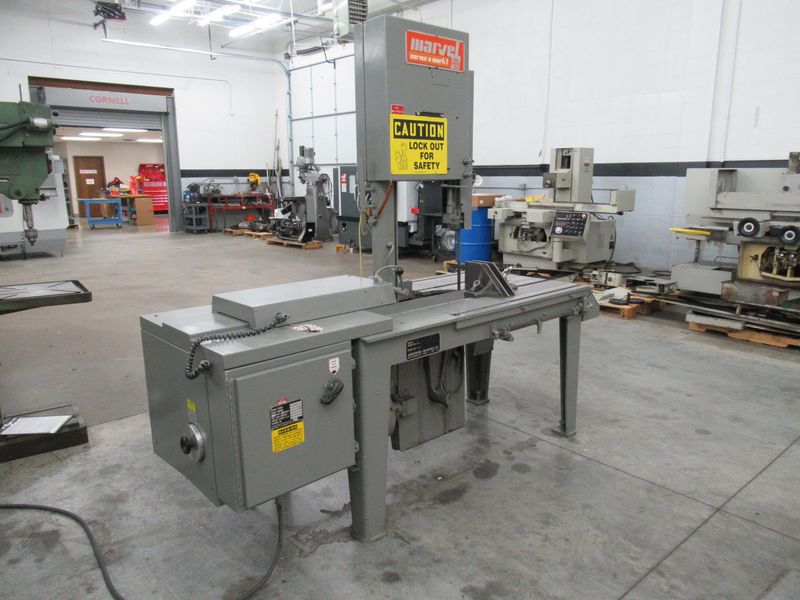

Marvel Series 8-Mark I Vertical Band Saw, Tilting, 18" x 22" Capacity, 1" Blade, Variable Speed

Manufacturer

Marvel Saws

Category

Saws

Type

SAWS, BAND, VERTICAL

Stock

7443

Model

Series 8 Mark1

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Capacity at 90 Degrees: 18" Horizontal x 22" Vertical

Capacity at 45 Degrees: 18" Horizontal x 12" Vertical

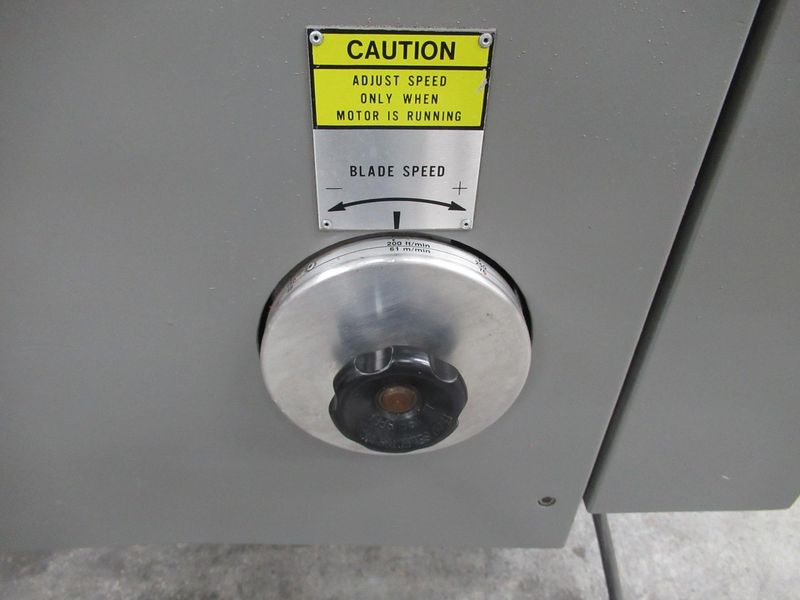

Blade Speeds: Variable 50-450 FPM

Blade Tilt: 45 Degrees Left or Right

Blade Size: 14'6" x 1" x .035"

Table Work Surface: 24.5" x 33" Tee Slotted

Main Drive Motor: 2 HP

Description:
The Marvel Series 8 Mark I Tilting Vertical Bandsaw is a heavy-duty industrial metal-cutting saw designed for straight and miter cutting of a variety of materials, including solids, structural shapes and tubing. The tilting saw head allows the blade to be positioned for miter cuts without repositioning the workpiece. Series 8 Mark I specifications include approximately 18" x 20" nominal cutting capacity, 50–450 FPM infinitely variable blade speeds, 1" wide x 176" long blade, and variable power feed pressure. The machine is equipped with a large T-slotted work table and is capable of miter cutting up to 45° left or right, making it well suited for fabrication shops, structural steel operations and general industrial metalworking applications.
Equipped With:

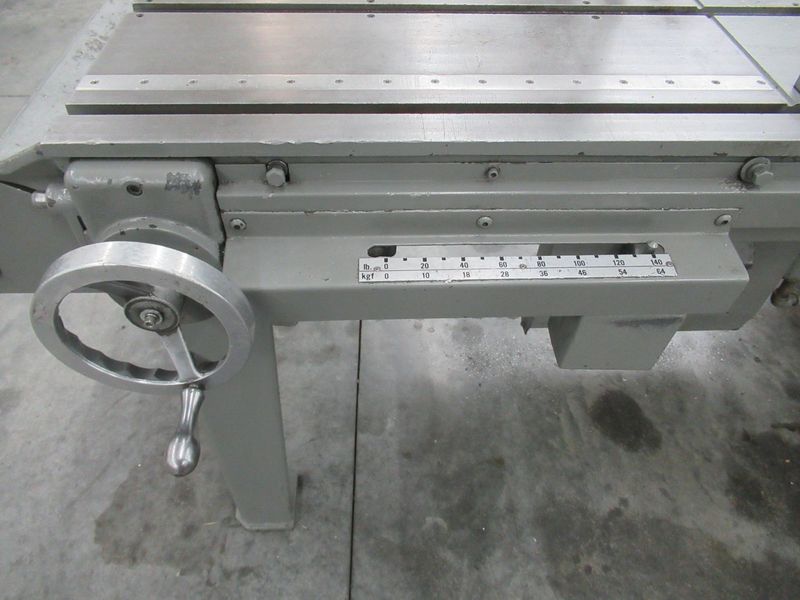

Power Head Feed, Manual Tilt, Variable Band Speeds, Manual Vise, Extra Blades

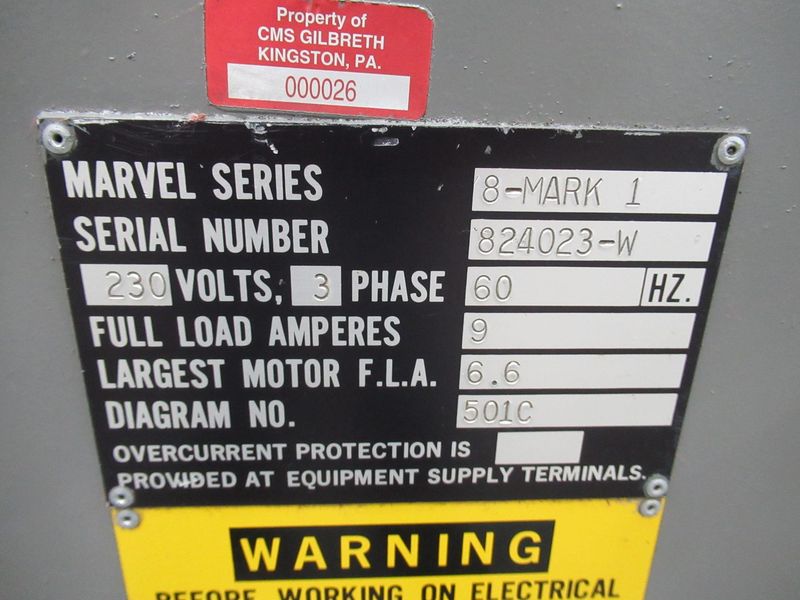

Electrics:

230 Volt, 3 Phase
