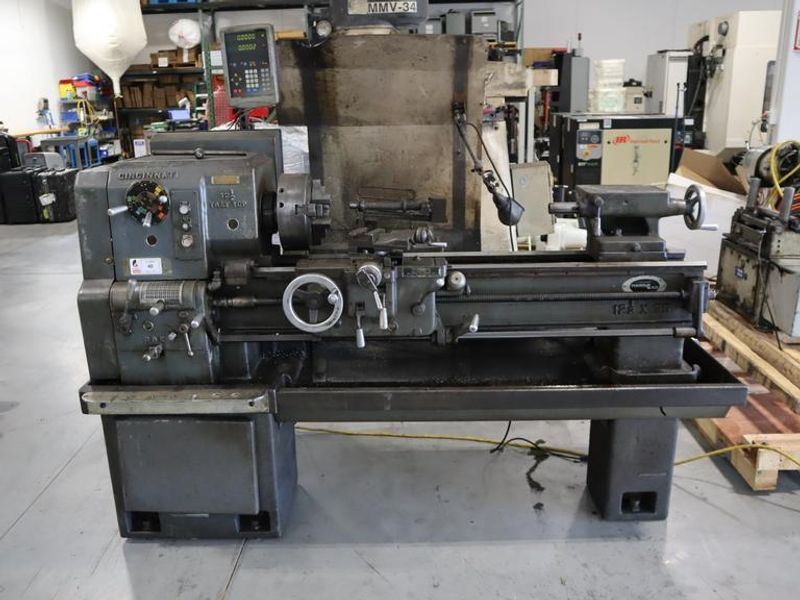

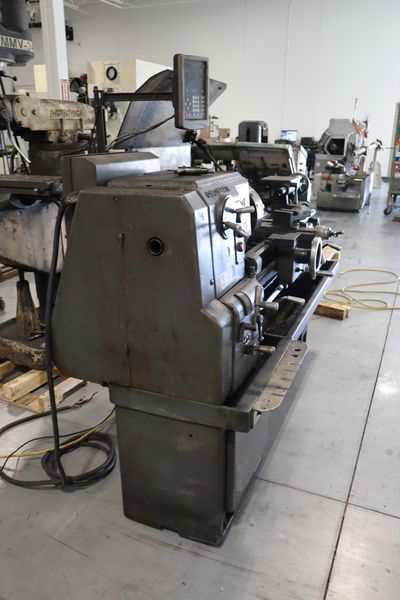

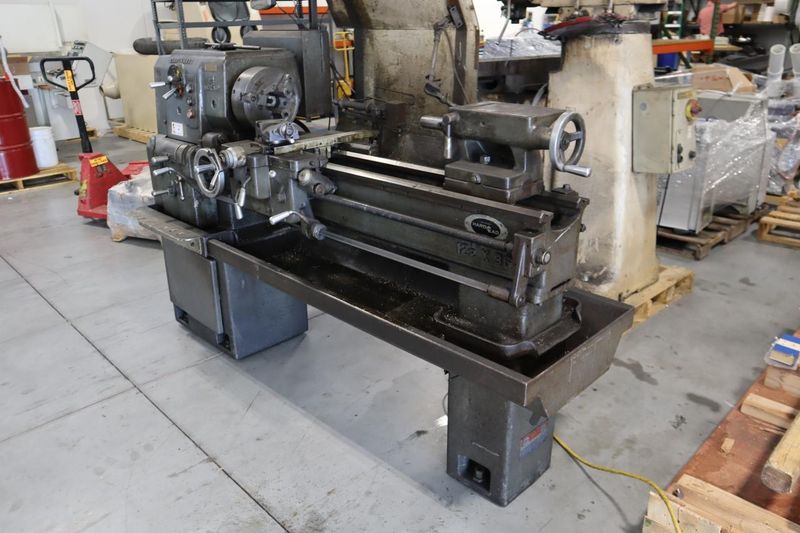

Lot 40: Cincinnati Tray Top 12-12" x 36" Engine Lathe, Geared Head, 1,800 RPM, 2 Axis DRO
Equipped With:

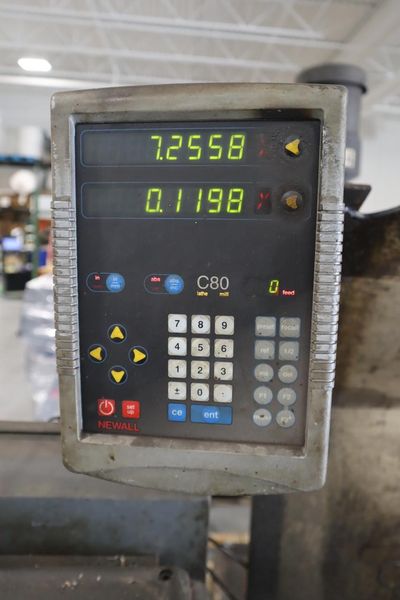

10" 3-Jaw Chuck, Newall C80 2-Axis Digital Readouts (.0002 Resolution), 12 Speed Geared Head, Inch Trheading, Tailstock

Description:

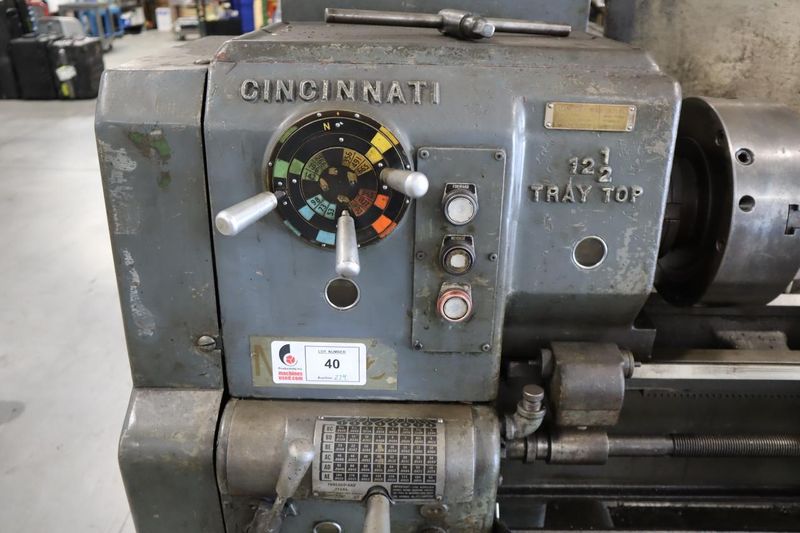

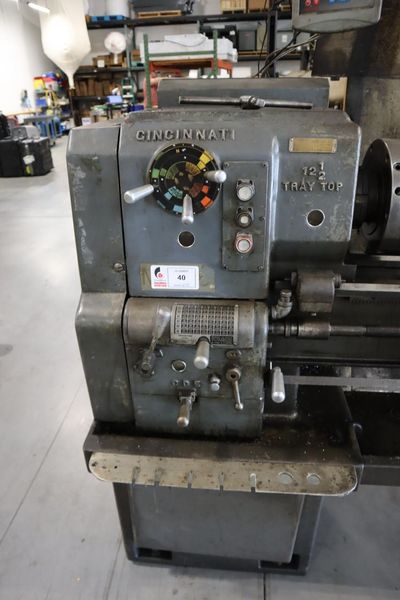

The Cincinnati Tray-Top 12-1/2" x 36" Engine Lathe is a heavy-duty American-built manual lathe designed for general machining, turning and toolroom applications. This model features a 12-1/2" swing over the bed, 36" distance between centers and geared headstock. Cincinnati's Tray-Top design was known for its robust construction and distinctive flat headstock and tailstock surfaces that gave the series its name.
Electrics:

220/440 Volt 3 Phase 2HP Drive Motor

Manufacturer: Cincinnati Milacron Model: Tray Top 12-1/2 Serial Number: H141C
Main Unit Approx Weight: 2500.00 lbs
Main Unit Dimensions (in inches): Length: 84.00"  Width: 34.00"  Height: 55.00"
Specs:
Max Swing Over Ways: 12.75"
Max Swing Over Cross Slide: 8.75"
Swing In Gap: NA
Max Center Distance: 36"
Hole Thru Spindle: 1-9/16"
Spindle Mount: L00 Threaded Nose
Max Cross Slide Travel: 8"
Max Compound Travel: 2.5"
Spindle Speeds: (12) Geared 53-1,800 RPM
Feed Rates: (48) .0020 - .1224 IPR
Rapid Feed Rates: NA

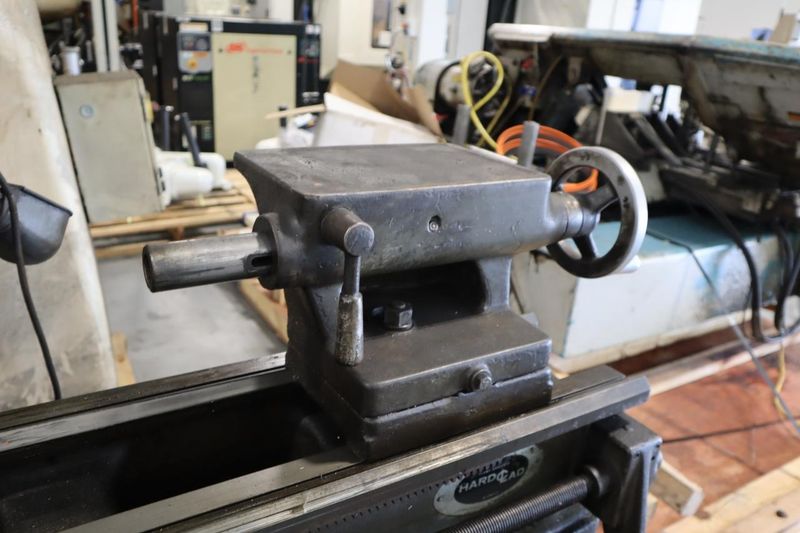

Tailstock Quill Travel: 5.5"
Tailstock Quill Taper: #3MT
Threading Capacities: (48) 3-184 TPI
Drive Motor: 2 HP
Seller Company: BTD Manufacturing - Lakeville
Seller Contact: Machinesused.com November Auction Phone: (763) 745-1166
Item Location: Machinesused.com, 2410 Niagara Lane N, Plymouth, MN 55447
Location Contact: Machinesused.com Auction Phone: (763) 745-1166
Inspection Date & Time: By Appointment Normal Business Hours Monday-Friday
Dock Door: 162" x 216"
Loading Dock: Ground Level, Paved Lot
Removal Dates and Times: This item must be removed between Tuesday, November 17, 2026 and Friday, December 4, 2026
