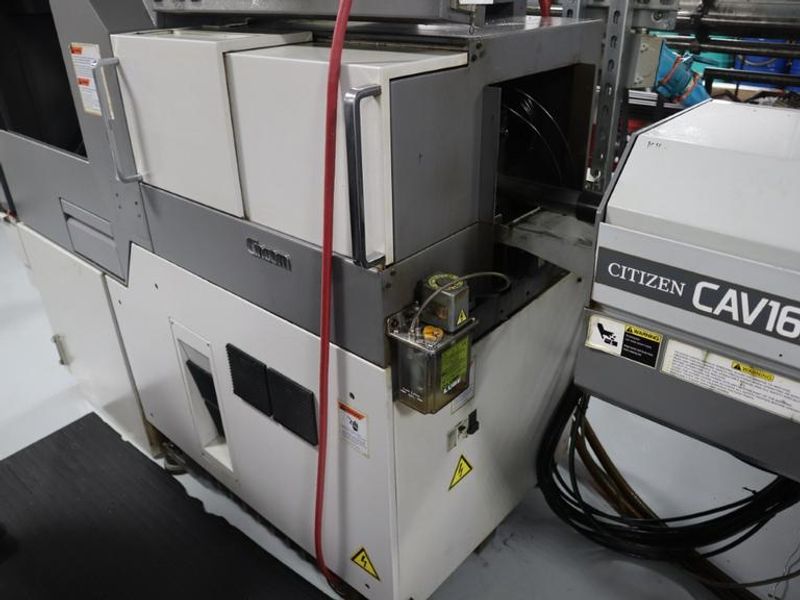

Citizen K16E Type VIIP CNC Swiss Machine, CAV16KE-IS Bar Feed, LNS Chip Conveyor, Coolblaster CB510 Coolant System, Parts Conveyor- Auction Item

Manufacturer

Citizen

Category

Automatic Screw Machines

Type

AUTOMATIC SCREW MACHINES, SWISS TYPE, CNC

Stock

Lot No.: 150

Model

K16 Type VIIP

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

View Auction Item at: https://www.machinesused.com/lots/52366" shenjian-bridge-node-id="sjb-1793193148587-845232">,

  • Special Instructions

  • Payment Info

  • Additional Fees

  • Terms

Lot 150: Citizen K16E Type VIIP CNC Swiss Machine, CAV16KE-IS Bar Feed, LNS Chip Conveyor, Coolblaster CB510 Coolant System, Parts Conveyor
Equipped With:

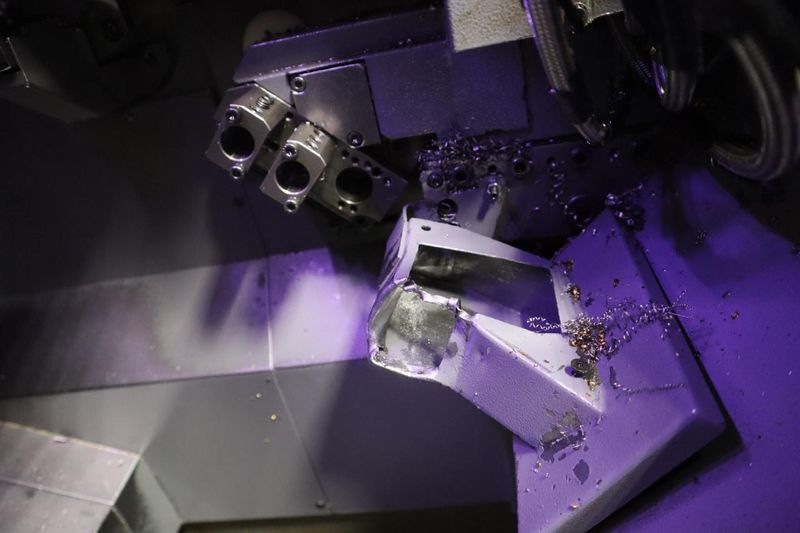

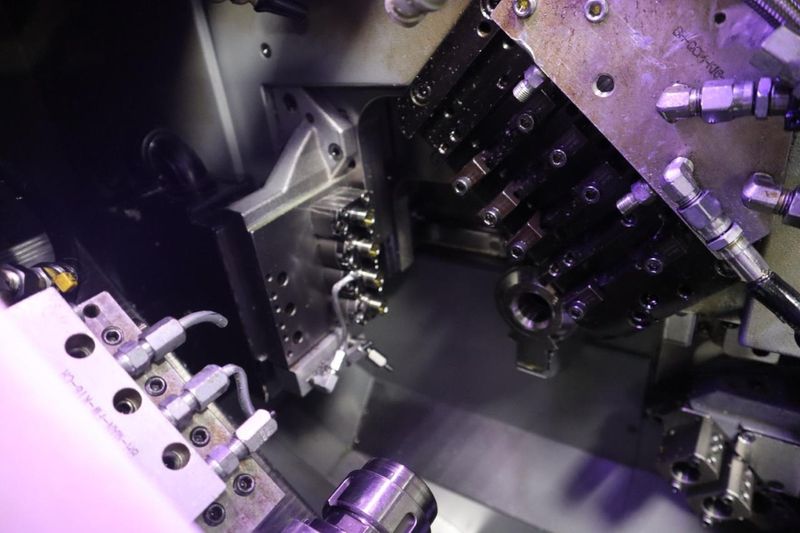

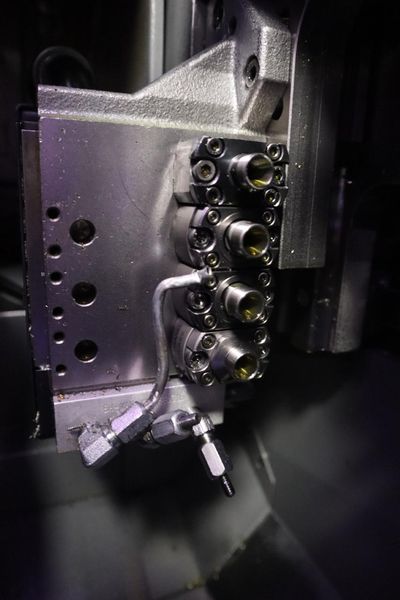

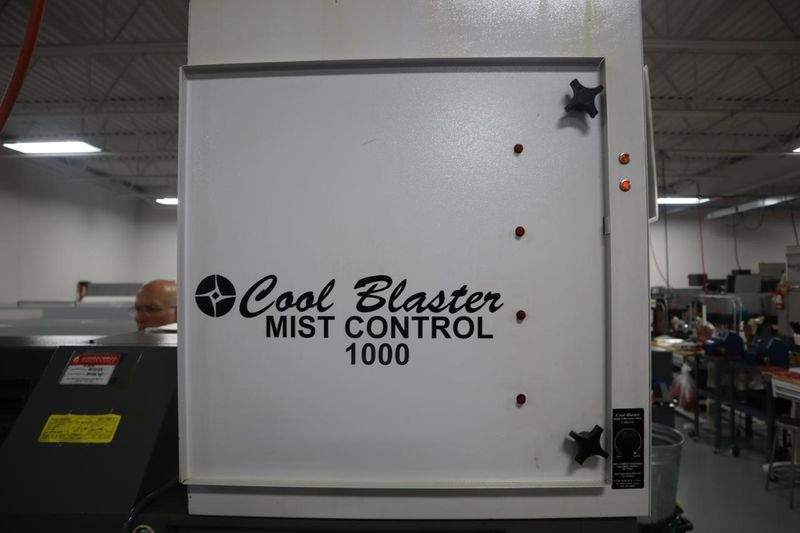

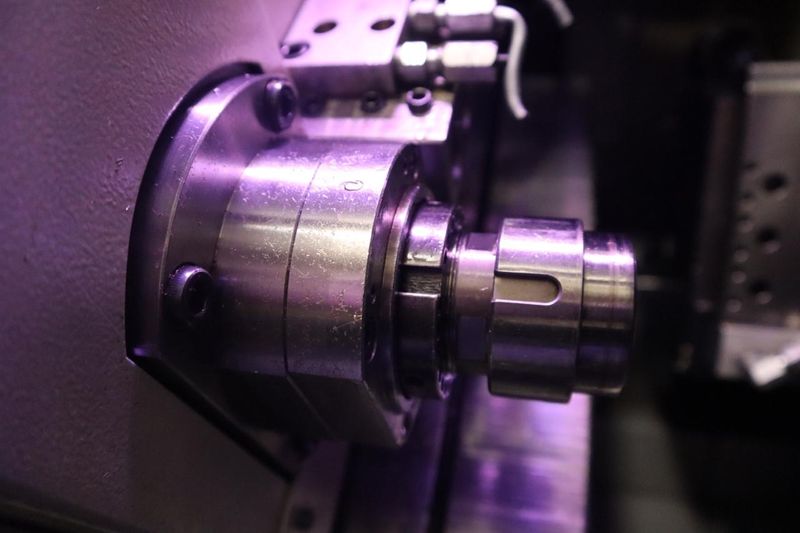

Citizen (Fanuc) CNC Control, CAV16KE-1S Magazine Barfeed, CoolBlaster CB-510 10 Line High Pressure Coolant System, CoolBlaster 1000 Mist Collector,, Chip Conveyor, Full C-Axis on Main & Sub Spindles, Synchronous Rotary Guide Bushing, (6) Static Tool Stations and (4) Live Tool Stations on Main Slide, (4) Station Endworking Block on Sub Spindle, (4) Station Back Working Block, Parts Catcher/Conveyor, Keys, Manuals and Documentation

Electrics:

200 Volt, 3 Phase

Manufacturer: Citizen (Marubeni Citizen-Cincom) Model: K16 Type VIIP Year: 2013 Serial Number: KE5200
Main Unit Approx Weight: 4850.00 lbs
Main Unit Dimensions (in inches): Length: 80.00"  Width: 46.00"  Height: 88.00"
Components:

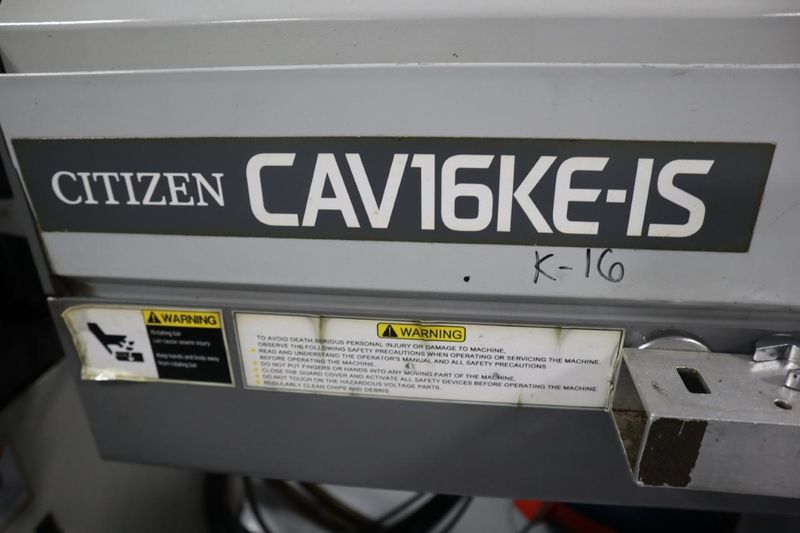

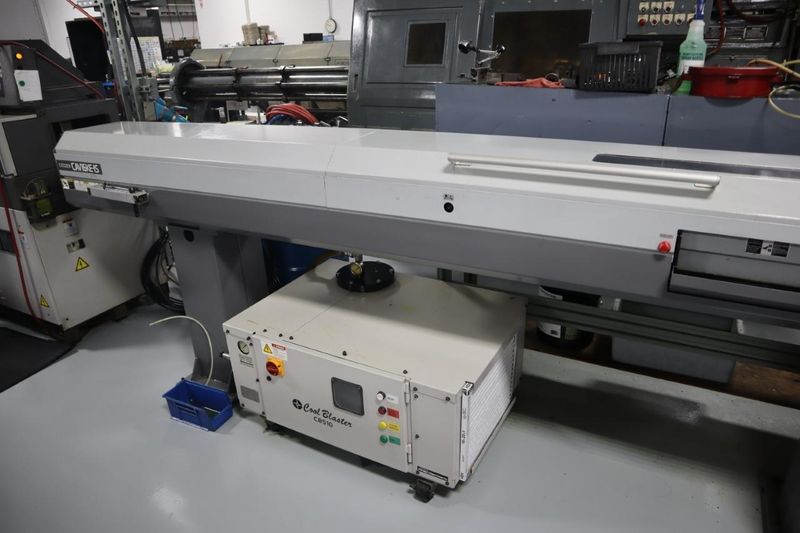

CAV16KE-IS Barfeed: Length: 200.00"  Width: 27.00"  Height: 51.00"

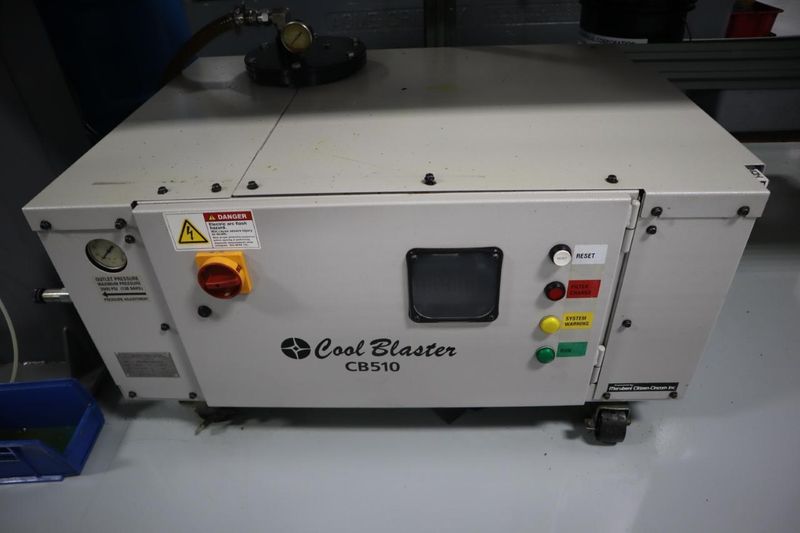

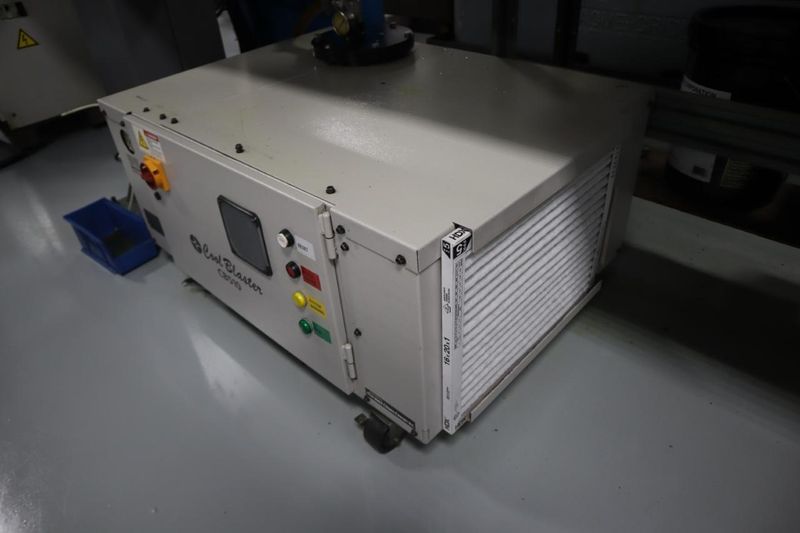

Coolblaster Coolant System: Length: 42.00"  Width: 30.00"  Height: 24.00"

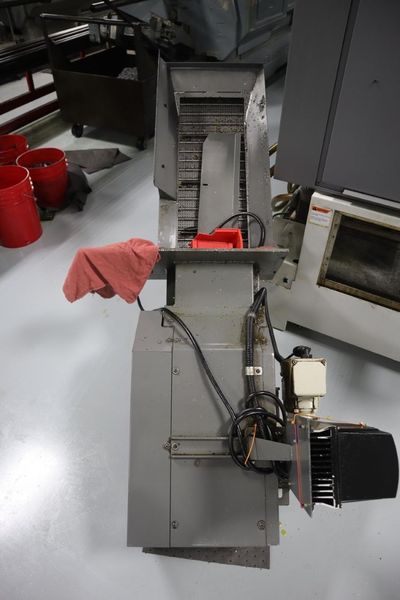

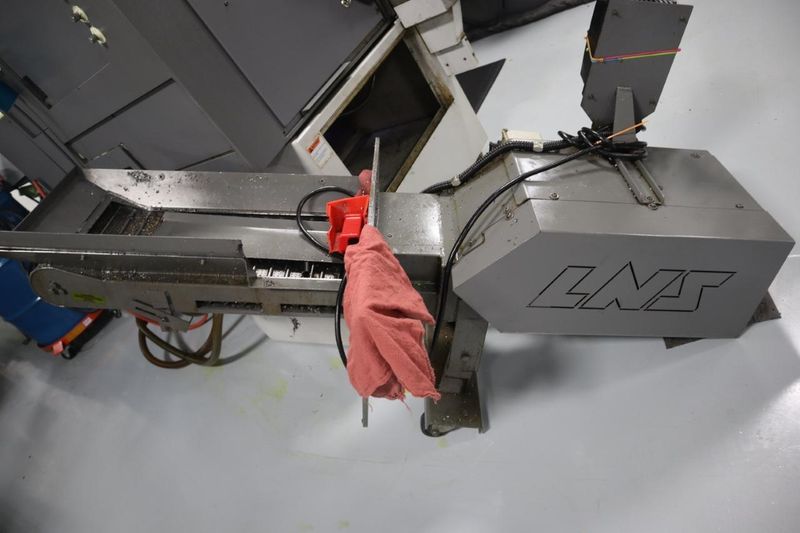

Chip Conveyor: Length: 66.00"  Width: 23.00"  Height: 42.00"
Specs:
Maximum Machining Diameter: 16mm
Control: Citizen CNC Control (Fanuc)
Maximum Machining Length: 200mm
Main Spindle Speeds: 15000 RPM
Back Spindle Speeds: 10000 RPM
Rotary Tool Speeds: 6000 RPM
Back Spindle Max Chucking Diameter: 16mm

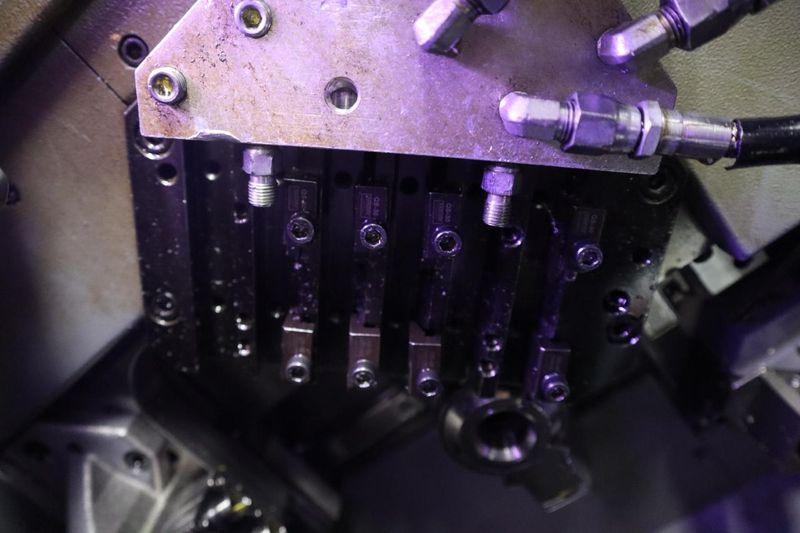

Turning Tools: 6
Front Endworking Tools: 4
Rotary (Live) Tools: 4
Rapid Traverse (X/Y/Z): (34 m/min X1, Y1) (32 m/min Z1, X2, Z2)
Back Endworking Tools: 4
Main Spindle Drive: 3.7KW
Back Spindle Drive: 1.1KW
Rotary Tool Drive: .25KW
Main Spindle Indexing: C-Axis
Seller Company: Graham Research
Seller Contact: Machinesused.com November Auctions Phone: (763) 745-1166
Item Location: Graham Research, 2410 Niagara Lane North, Plymouth, MN 55447
Location Contact: Machinesused.com Auctions Phone: (763) 745-1166
Inspection Date & Time: By Appointment Normal Business Hours Monday-Friday
Dock Door: 20'W x 16'H Ground / 9' x 10' Truck Door
Loading Dock: Ground & Truck Level Doors, Concrete Lot
Removal Dates and Times: This item must be removed between Tuesday, November 17, 2026 and Friday, December 4, 2026
