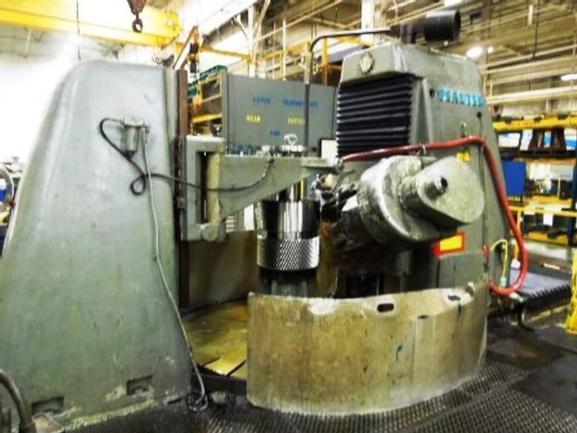

No. P3000B Pfauter Vertical Gear Hobber, Max Workpiece Diameter 120"

Manufacturer

PFAUTER

Category

Gear Machines

Stock

#1810

Model

P3000B

Dealer Location

North Carolina

Spec Sheet

#1810 Pfauter Model P3000B Vertical Gear Hobber

Model: P3000B

Specifications:
Maximum Workpiece Diameter: 120”
Maximum DP: 1
Minimum Number of Teeth Cut: 16
Maximum Axial Travel: 41.3”
Center Distance Between Workpiece and Hob:
Maximum: 65”
Minimum: 11.8”
Diameter of Work Table: 75”
Diameter of Work Table Bore: 20”
Maximum Hob Dimensions:
Diameter: 11.4”
Length: 13”
Maximum Hob Shift: 12”
Hob Speed (infinitely variable): 12 to 150 RPM
Feeds (infinitely variable)
Axial Feed: .014 to .283 i.p.r.
Radial: .003 to .059 i.p.r.
Tangential
Main Motor: 20 HP
Total Power Requirements: 42 kVA
Machine Net Weight (approximate): 68,000 lbs.
Floor Space Required: 260”L x 159”W x 151”H

Equipped With:
Universal Hob Head with Automatic Hob-Shift*Outboard Support Column with Clamshell Type*Differential Mechanism*Hydraulic Table Relief*Fully Automatic Work Cycles*Chip Conveyor*Change Gears

Machine Condition: Very Good
Machine Location: Texas
