Toshiba MPC-2665B 5-Face, 180 ATC, X-295", Y-133", 102" BC, 3K RPM, F 15M, '05 #26258

Stock

26258

Model

None listed

Dealer Location

New York

Spec Sheet

Reference #26258

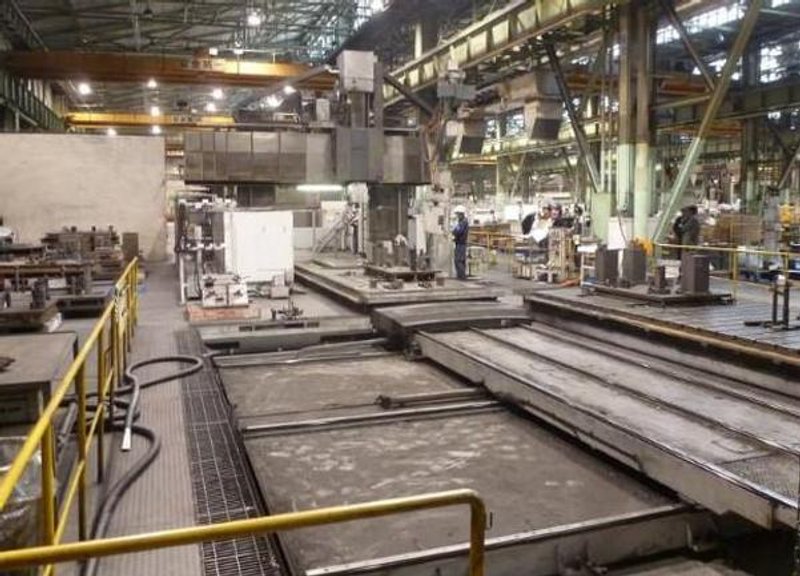

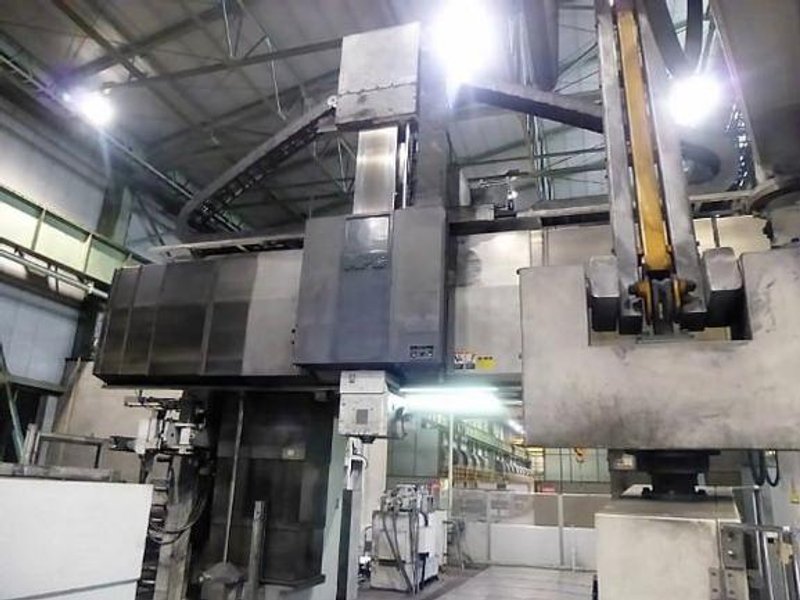

TOSHIBA MPC-2665B Twin Pallet 5-Face CNC Bridge Mill
Age: 2005
Model MPC-2665B

FEATURES:

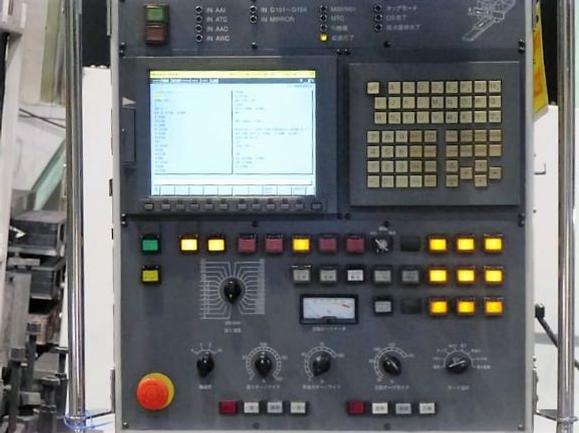

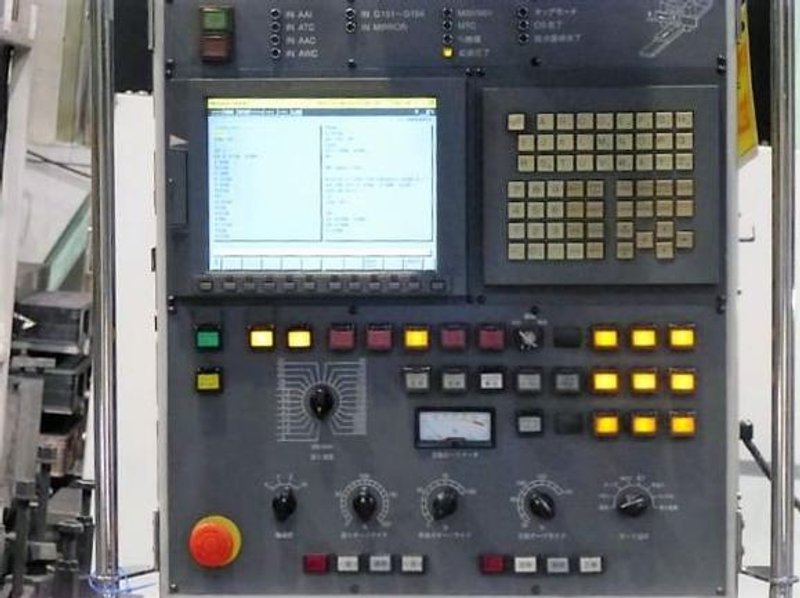

Fanuc 15i-MB CNC Control
180-Station Automatic Tool Changer
88,000 Lb Pallet Weight Capacity
5-Face Machining

CAPACITY:
X-Axis, Table Travel .................. 295.27"
Y-Axis, Spindle Head Cross Travel ..... 133.85"
Z-Axis, Ram Stroke .................... 35.43"
W-Axis, Crossrail Vertical Travel ..... 62.99"
Distance Between Columns .............. 102.36"
Distance, Right Ang. Head to Table .... 68.50"
Ram Cross Section ..................... 14.96" x 14.96"
Table Size ............................ 86.6" x 255.9"
Table Weight Capacity ................. 88,000 Lbs.
Spindle Speeds ........................ 5-3000 RPM
Rapid Feed (X, Y Axes) ................ 787.4 IPM
Rapid Feed (Z Axis) ................... 354.3 IPM
Rapid Feed (W Axis) ................... 393.7 IPM
Feedrates (X,Y,Z Axes) ................ .03-236.2 IPM
Feedrates (W Axis) .................... .03-118.1 IPM

EQUIPPED WITH:
Fanuc 15i-MB NC Control
180-Position Automatic Tool Changer

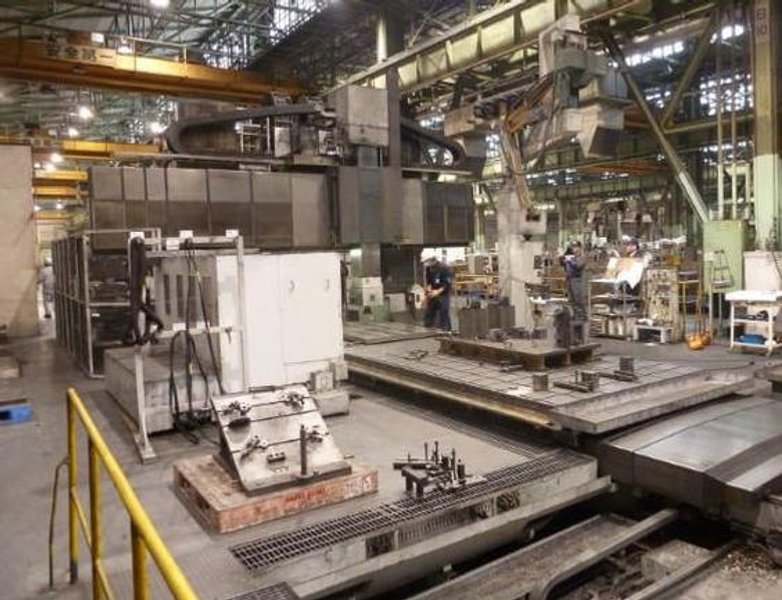

Pallet Shuttle with Twin Pallets
Automatic Attachment Changer

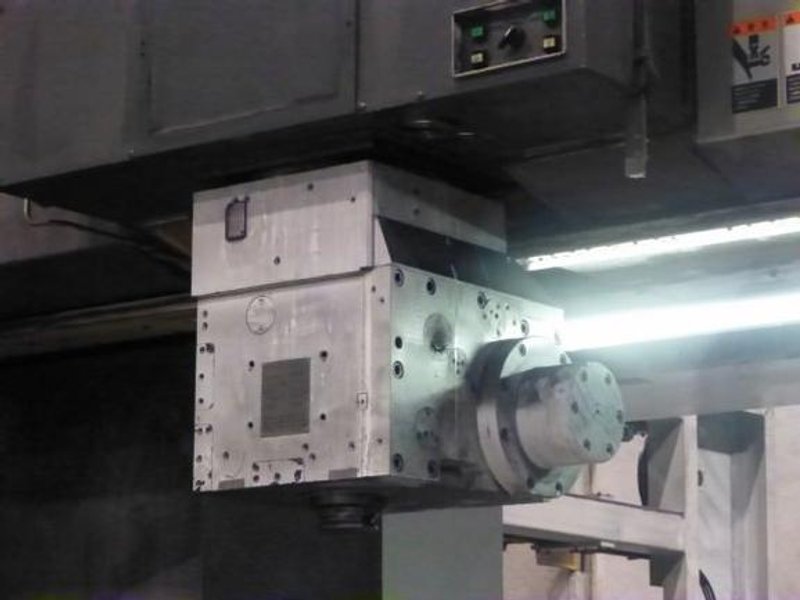

Right Angle Head with Auto Indexing
30 Degree Milling Attachment
Snout Extension Attachment
Chip Conveyor
Coolant System
40 HP / 30 HP Spindle Motor
