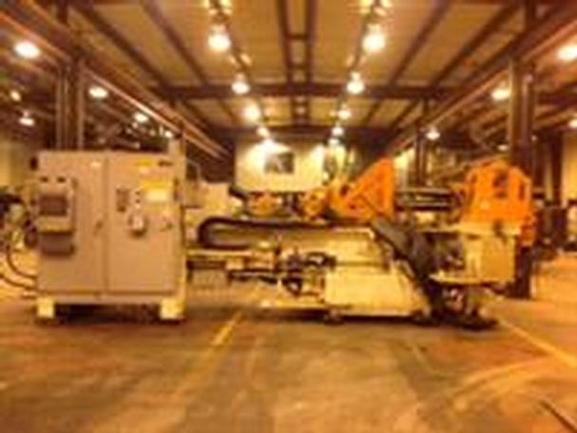

6" Eagle CNC Tube Bender

Manufacturer

EAGLE

Category

Benders

Type

BENDERS, PIPE, TUBE & BAR, CNC

Stock

5173

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

MODEL EPT 1500

DOUBLE STACKING TOOLS

6" MAX O.D.

.170" MAX WALL THICKNESS

6" MIN. CENTER LINE RADIUS

16" MAX. CENTER LINE RADIUS

120" MAX. TUBE LENGTH OVER MANDREL

110 " MAX. CARRIAGE TRAVEL

5 R.P.M. STANDARD BEND ARM SPEED

30 R.P.M. PLAN OF BEND SPEED

2400 I.P.M. MAX CARRIAGE SPEED

185 DEGREES (LIMITED TO 75)  MAX.BEND ANGLE

ACCURACY:

Y   /- 0.005" PLUS 0.005"/FOOT

B   /- 0.10 DEGREES

C  /- 0.10 DEGREES



REPEATABILITY:

Y  /- 0.005"

B  /- 0.05 DEGREES

C  /- 0.05 DEGREES



HYDRAULIC BENDING POWER

450 GAL HYD OIL CAPACITY

100HP /3/60

O.A.D. 28.4' L x 10.6'W x8.9'T

WEIGHT 64,000 LB
