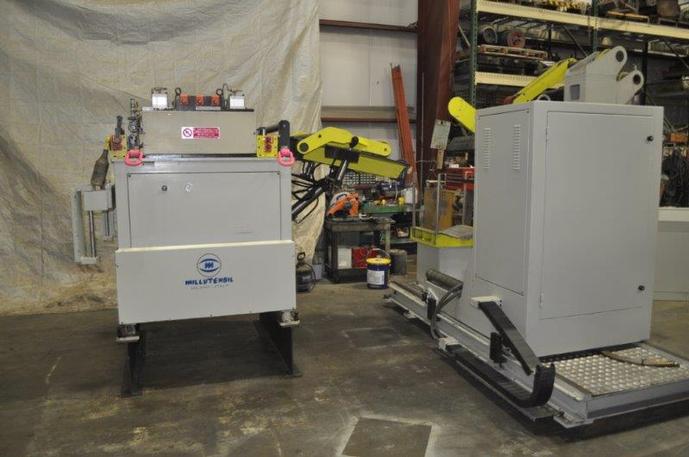

6600 Lb. X 31" X .118" Millutensil Compact Servo Feedline

Stock

7264

Model

None listed

Dealer Location

Ohio

Spec Sheet

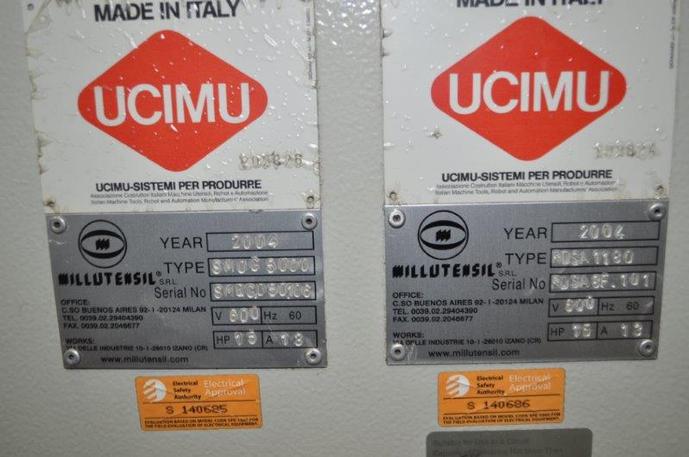

MODEL #:  SMOC 5000 / RDSA 1180

SERIAL #: SMOCO 50106 / ROSA8F - 101

UNCOILER :

6600 LB CAPACITY

16"-20" ID

72" OD

31" MANDREL

MOTORIZED TRAVELING HEAD UNCOILER

COIL LIFT

COIL HOLD DOWN ARM

HYDRAULIC EXPANSION

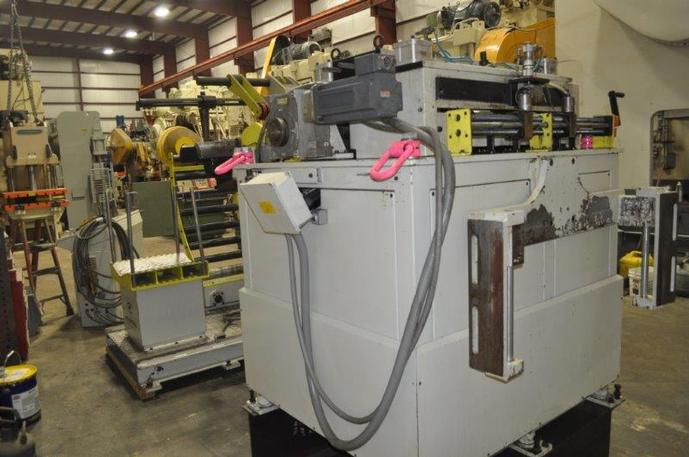

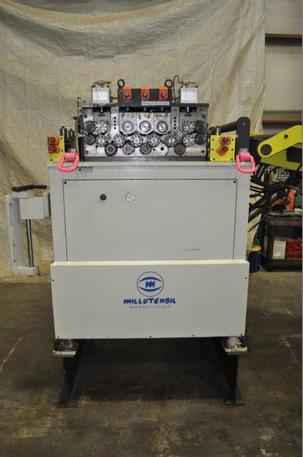

STRAIGHTENER SERVO FEEDER COMBO:

31" MAXIMUM MATERIAL WIDTH

.020" - 118" THICKNESS CAPACITY

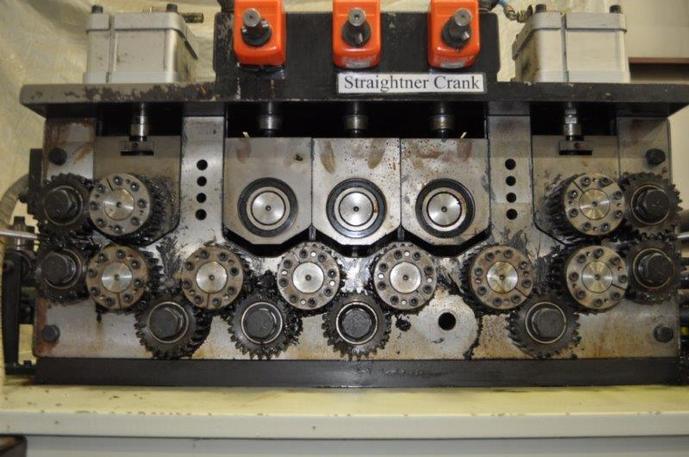

7 ROLL STRAIGHTENER

ENTRY AND EXIT PINCH ROLLS WITH AIR LIFT

PEELER TABLE

PILOT RELEASE

124" LR  x  76" FB  x 104" TALL UNCOILER DIMENSIONS

90" LR x 60" FB x 87" TALL STRAIGHTENER FEEDER DIMENSIONS

64" LR x 23" FB CONTROL

APPROXIMATE LINE WEIGHT 18,000 LBS

VERY GOOD CONDITION
