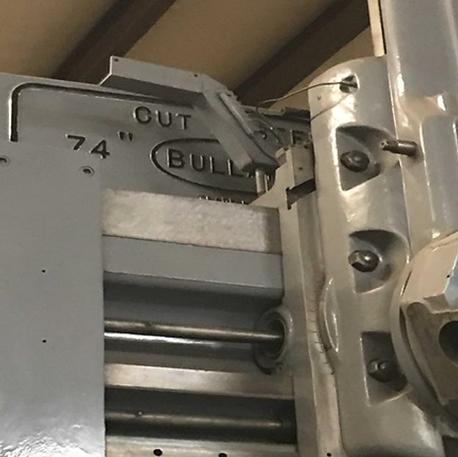

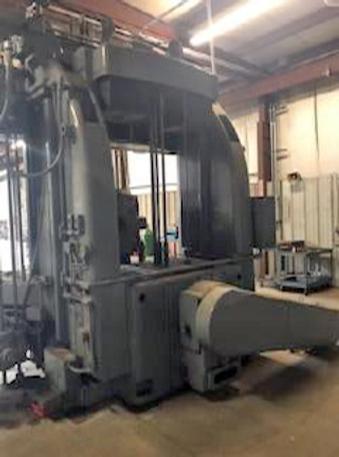

74" Bullard Cutmaster Vertical Turret Lathe

Manufacturer

BULLARD

Category

Boring Mills

Type

BORING MILLS, VERTICAL - (Including Vertical Turret Lathes)

Stock

18098

Model

CUTMASTER

Dealer Location

Texas

Request a Quote
View Contact Information

Spec Sheet

TABLE DIAMETER: 74" (4 BORING MILL JAWS)

SWING WITH SIDE HEAD WORKING: 78"

SWING WITH SIDE HEAD BELOW TABLE: 82"

HEIGHT UNDER RAIL: 60"

TABLE SPEEDS: 3.3 TO 120 RPM

FEEDS: 0.0026 TO 0.500 IPR

MOTOR: 40 HP

TURRET HEAD VERTICAL TRAVEL: 30-3/8"

TURRET HEAD HORIZONTAL TRAVEL: 42-7/8"

TURRET HEAD TRAVEL PAST CENTER: 7-1/2"

TURRET HEAD SWIVEL: 30 DEG.

SIDE HEAD VERTICAL TRAVEL: 62"

SIDE HEAD HORIZONTAL TRAVEL LEFT OF CENTER: 27"

OAD: 178" L-R X 132" F-B X 142" HIGH

APPROXIMATE WEIGHT: 65,000 LBS.

EQUIPPED WITH:

5 SIDED TURRET  HEAD

SIDE HEAD

PENDANT CONTROL

POWER RAPID TRAVERSE - ALL DIRECTIONS



MACHINE WAS CLEANED, PAINTED AND CYCLED. ALL FEED AND RAPID SHAFTS SEALS REPLACED. HAND WHEEL SEALS REPLACED. GEAR BOXES CLEANED AND CHECKED. HYDRAULICS AND MAIN MOTOR RECONDITIONED - 2014.

MACHINE CONDITION: EXCELLENT
