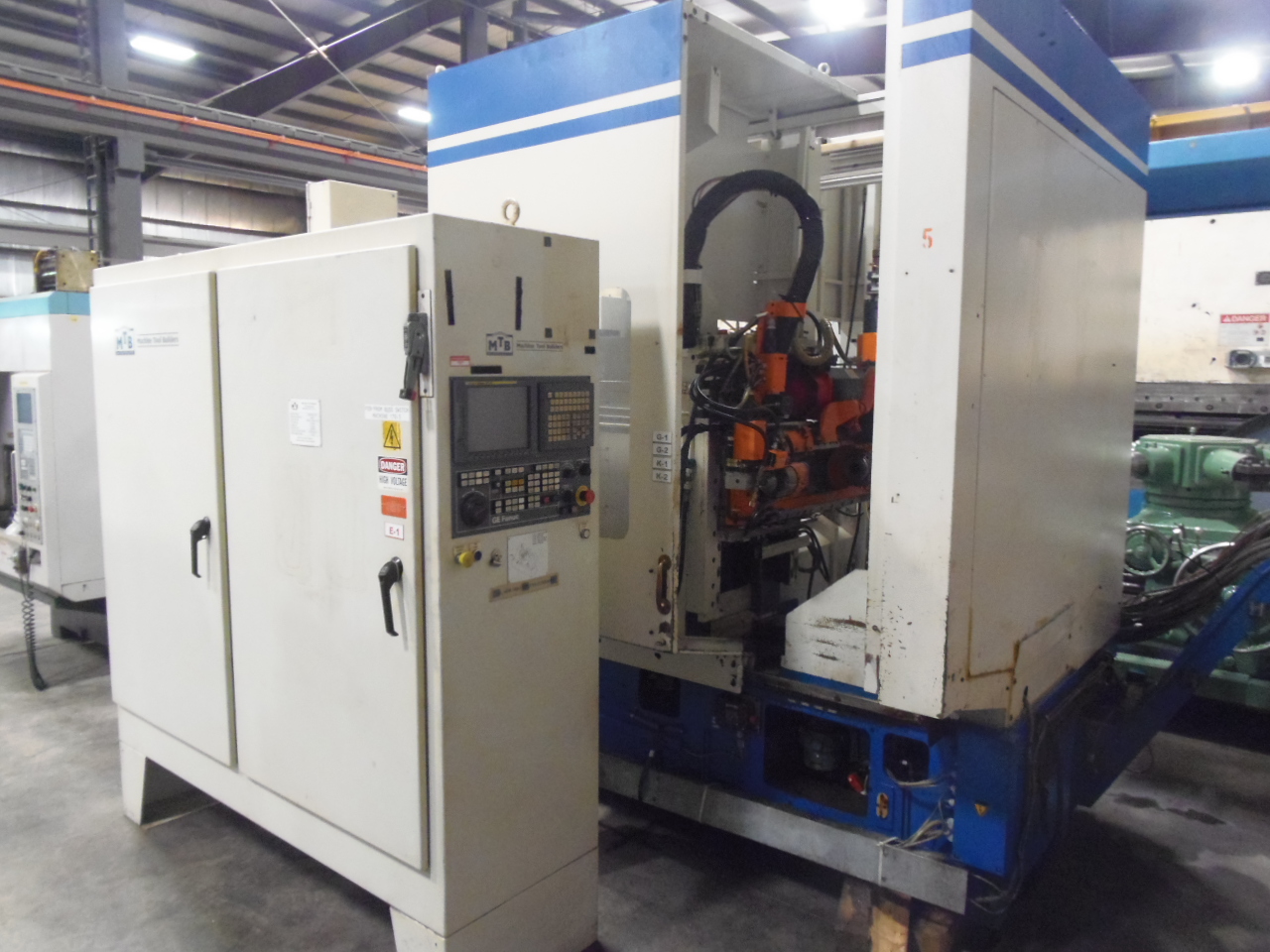

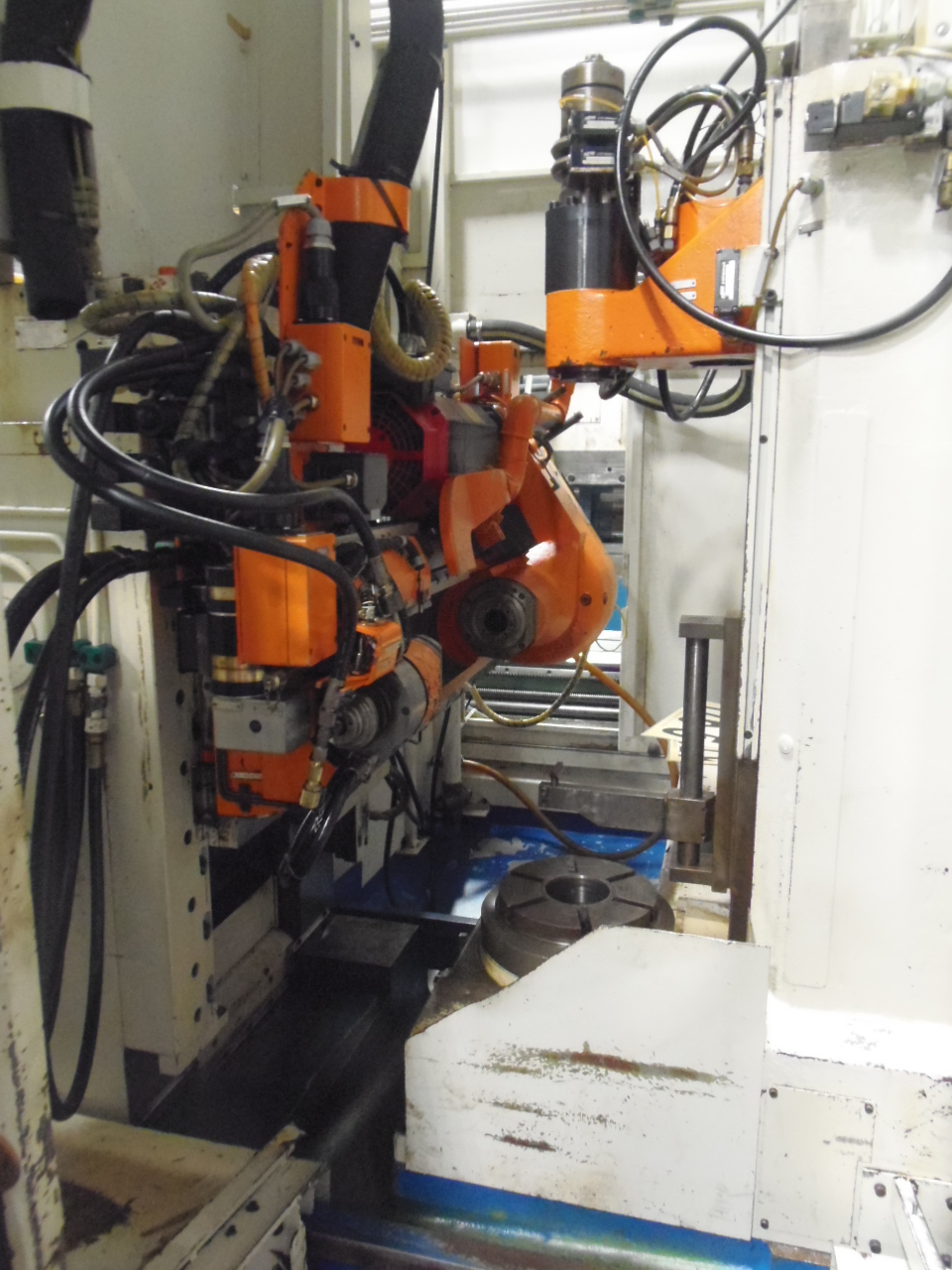

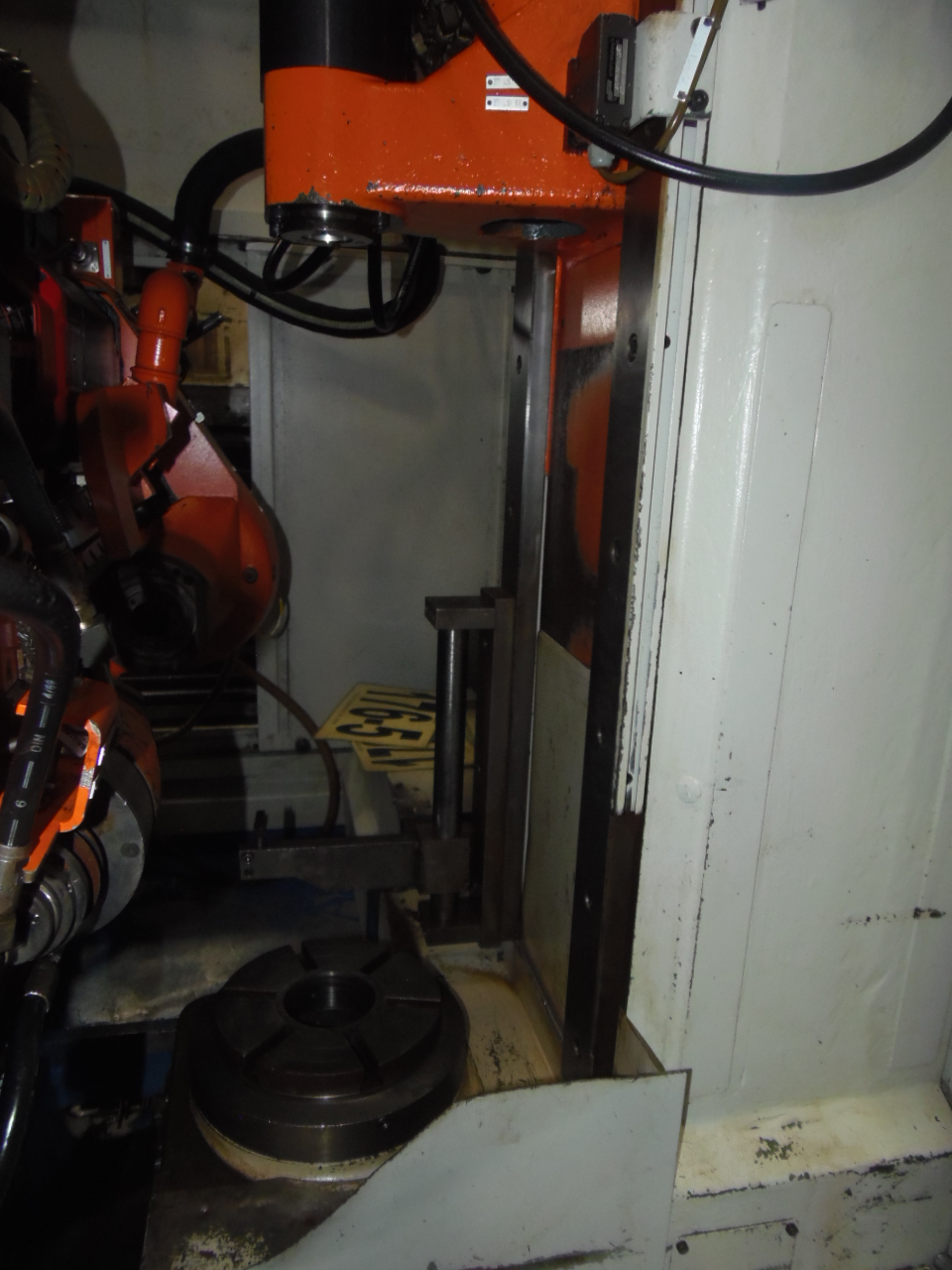

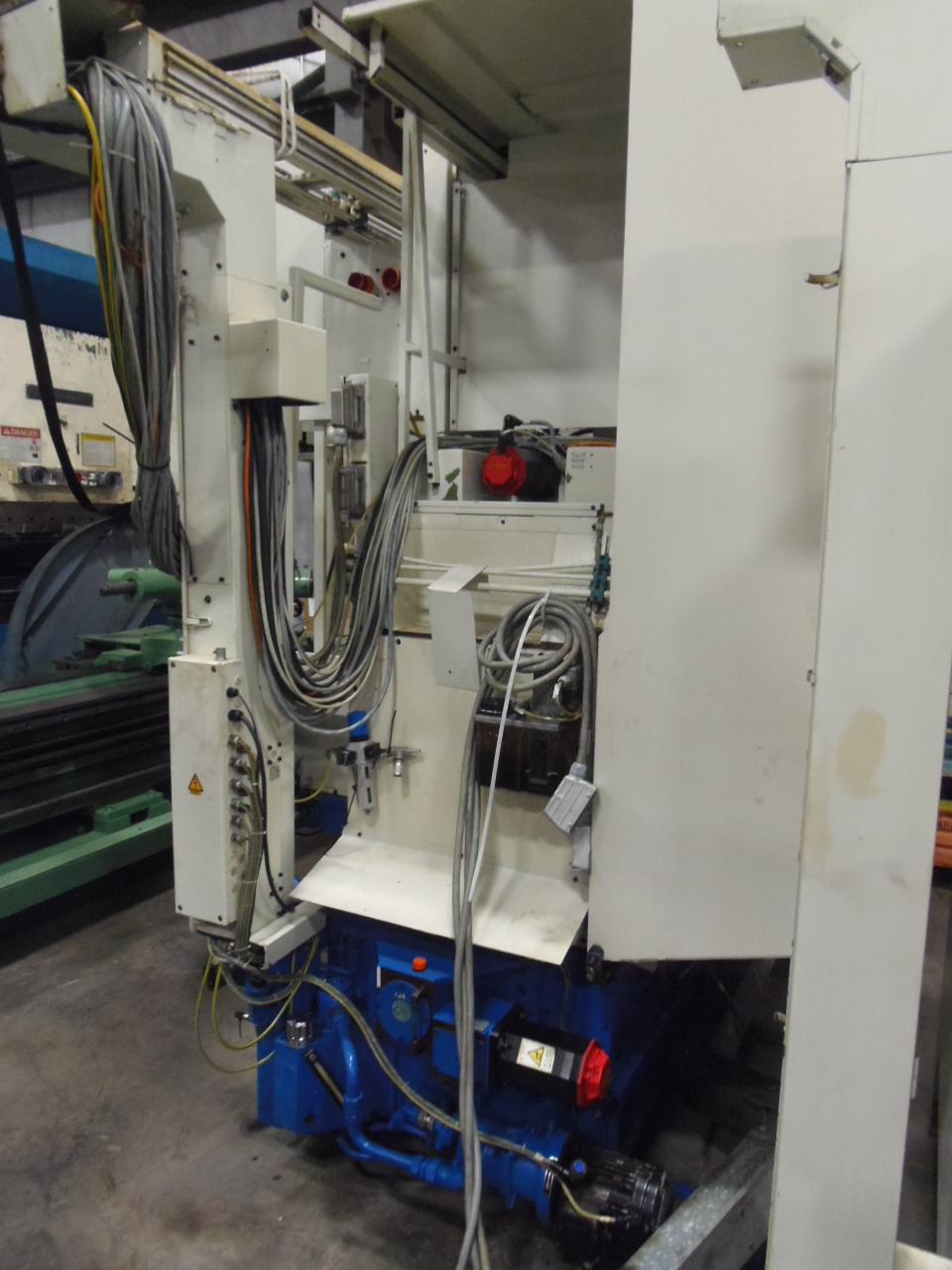

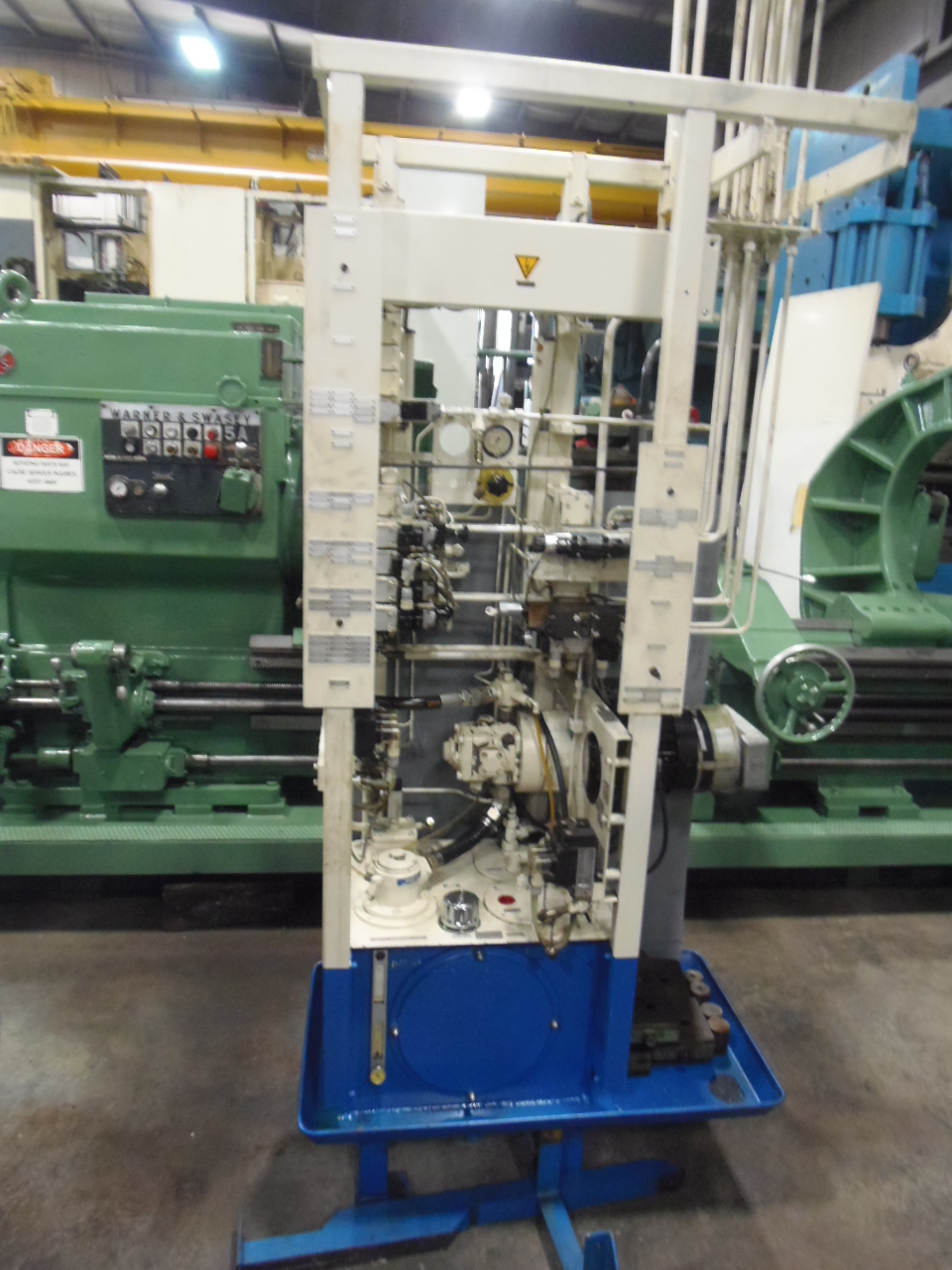

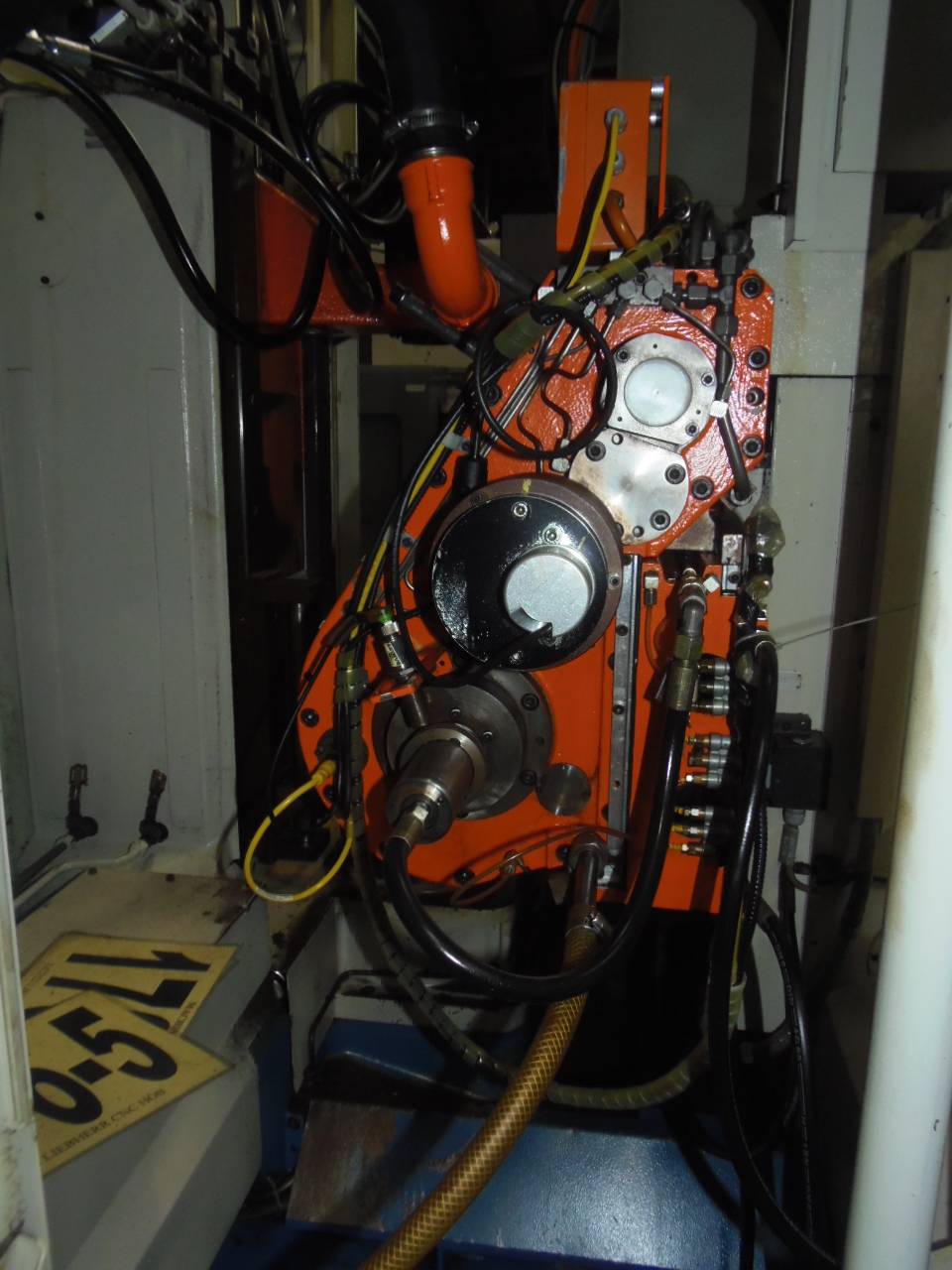

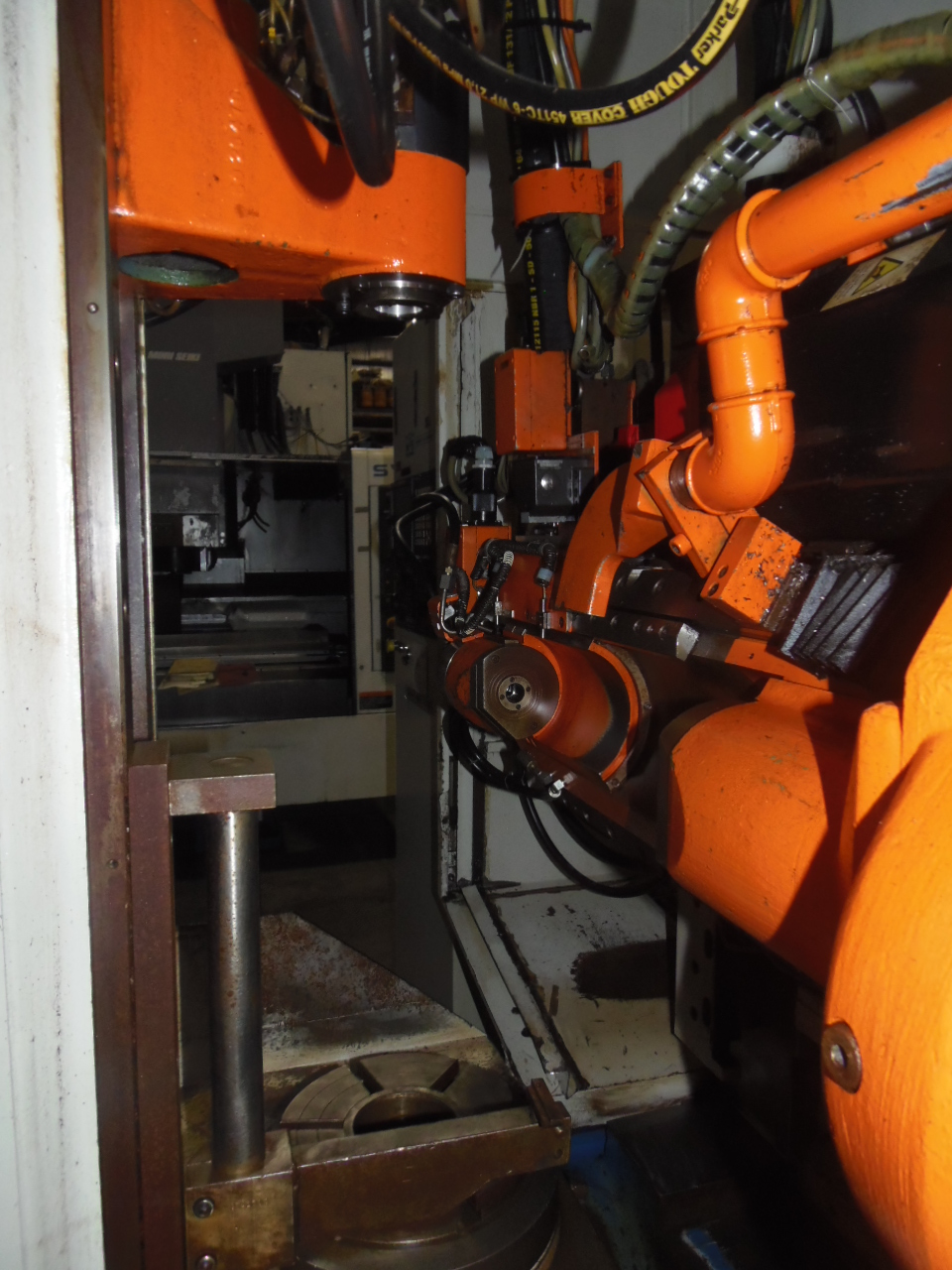

LIEBHERR 5 AXIS GEAR HOB, MODEL LC-255, FANUC 18i-MA, REBUILT/RETROFIT 2006,

Stock

10343

Model

0222/01

Dealer Location

Wisconsin

Spec Sheet

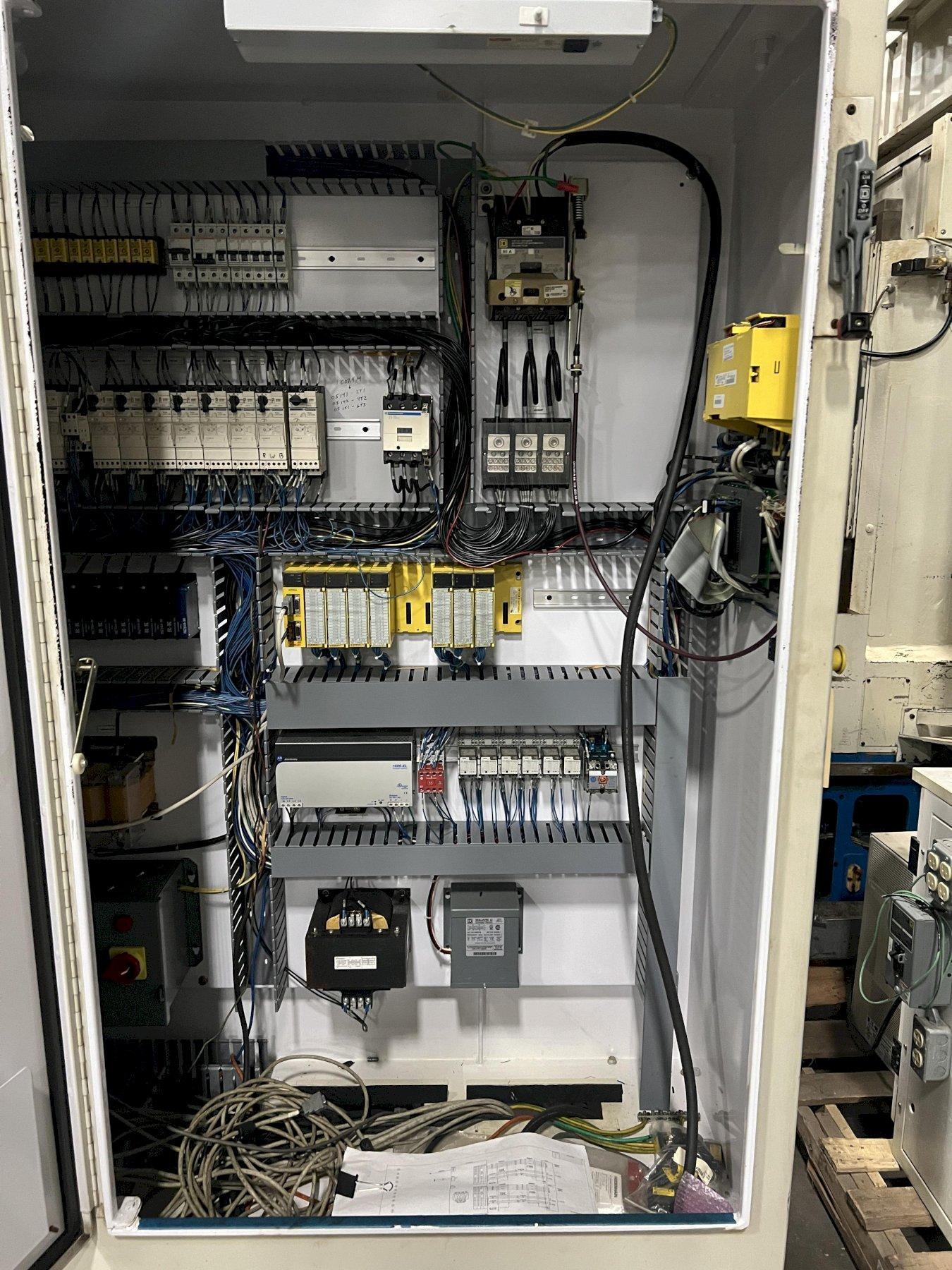

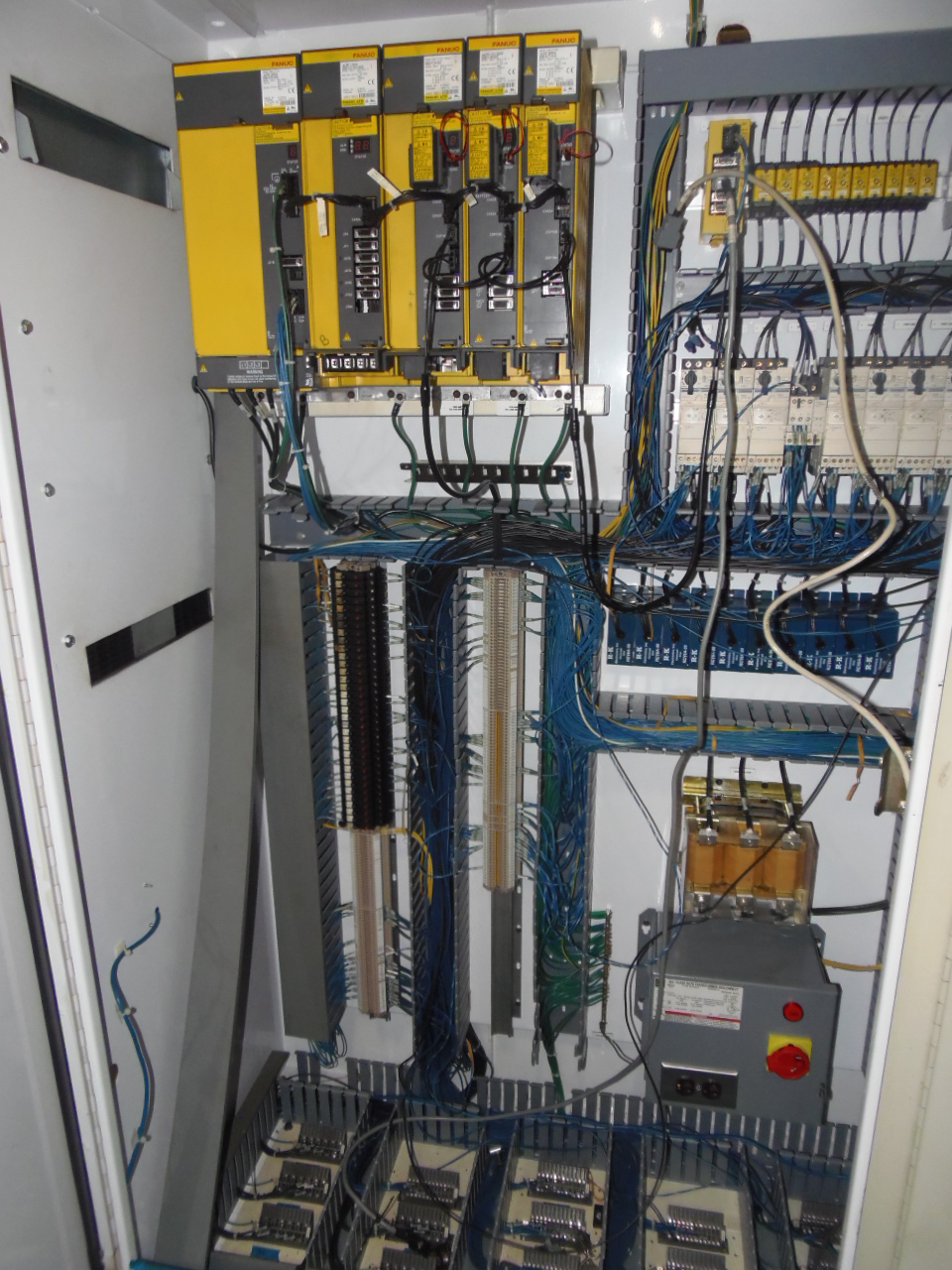

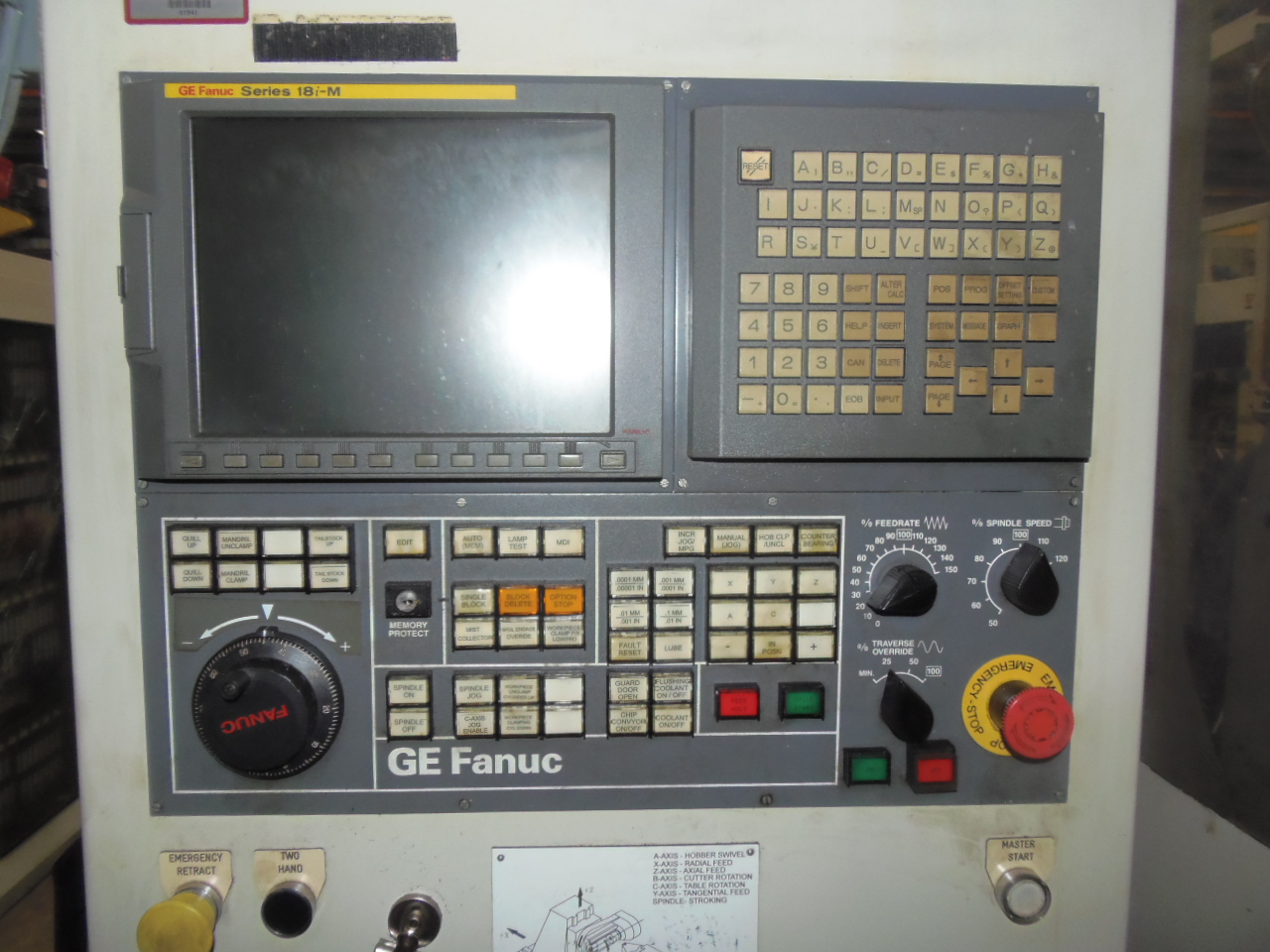

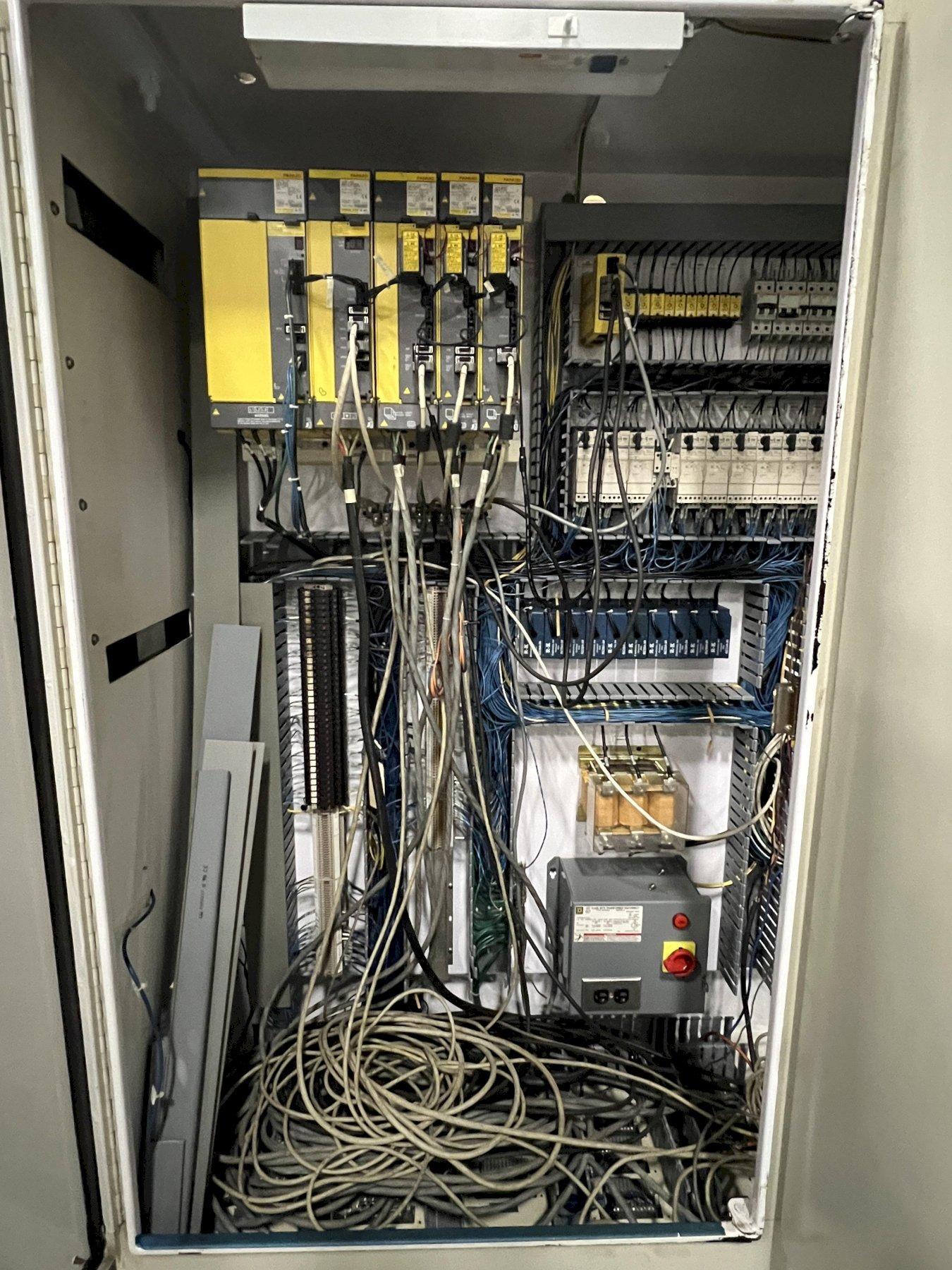

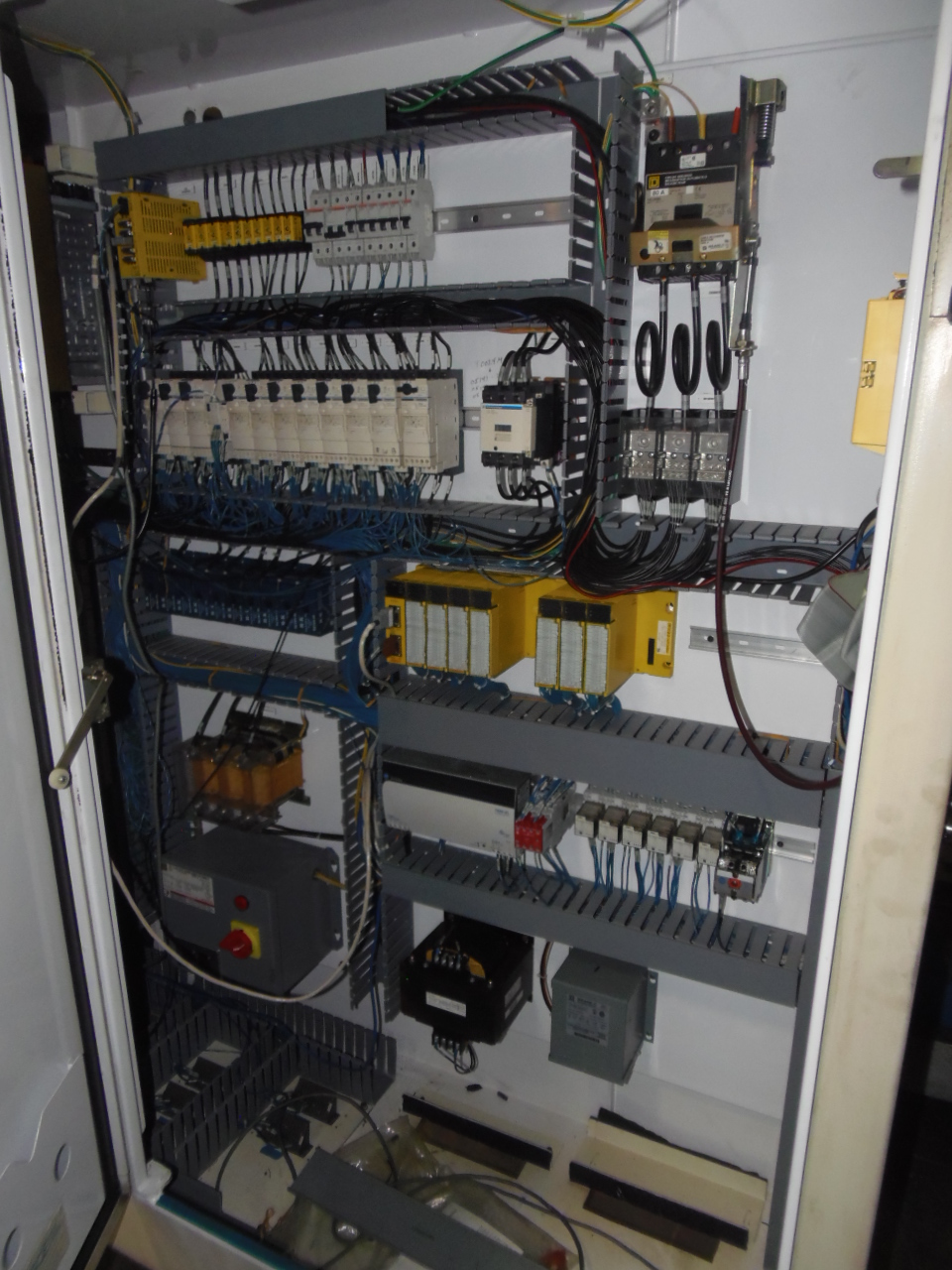

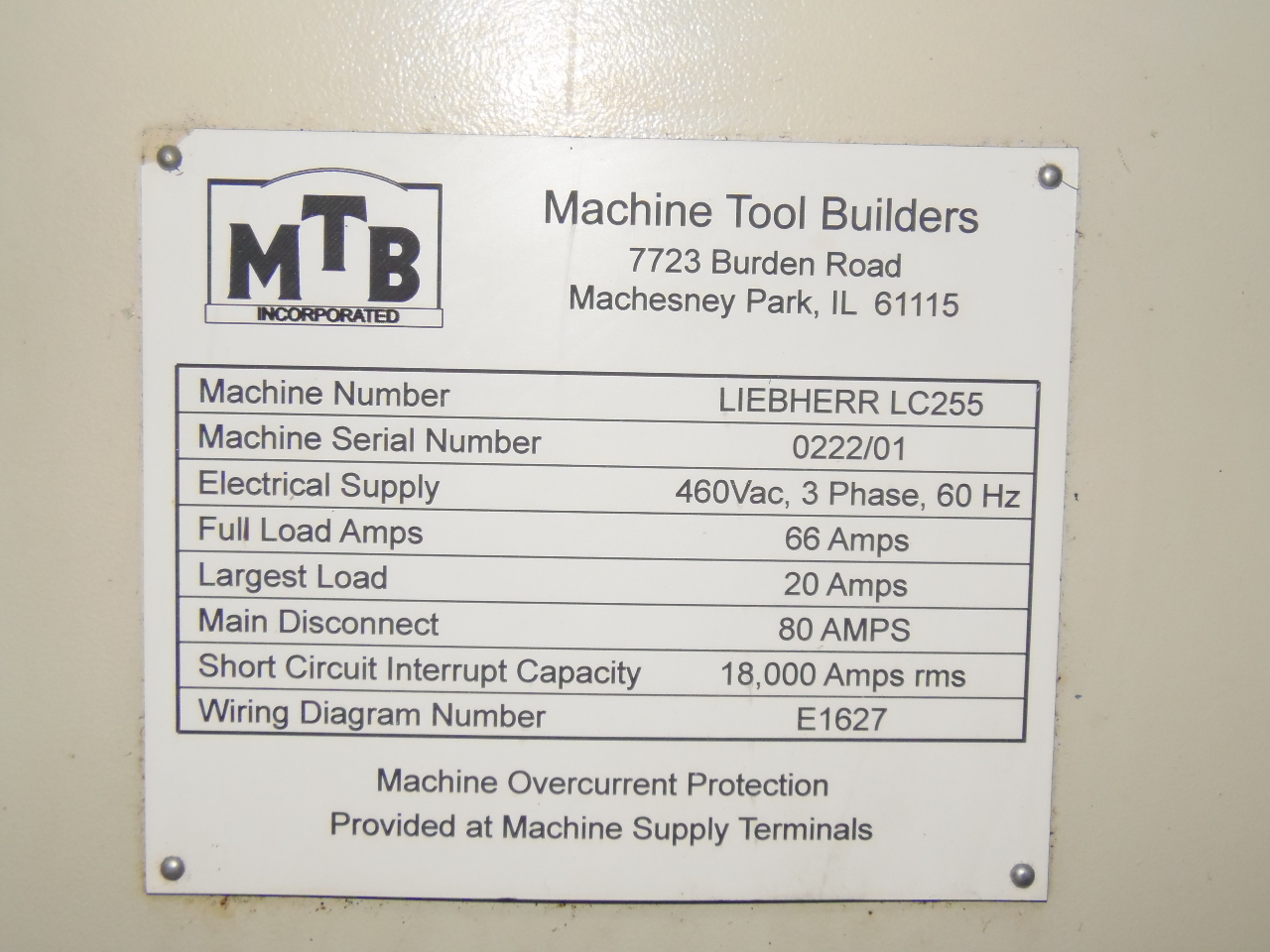

 This machine was recontrolled by Machine Tool Builders in 2006 with a Fanuc 18i-MA CNC and Fanuc Alpha series digital drives and motors.  An entire new electrical cabinet was installed along with all new equipment inside the electrical cabinet.  All support, service, parts and training are still available through Machine Tool Builders.  Machine upgrades, software additions or other machine modifications or tooling that might be required are also available through Machine Tool Builders.  The software in the machine is fully conversational based so the simple question and answer format allows quick and easy programming of all spur and helical gears within the machine size and DP rating.




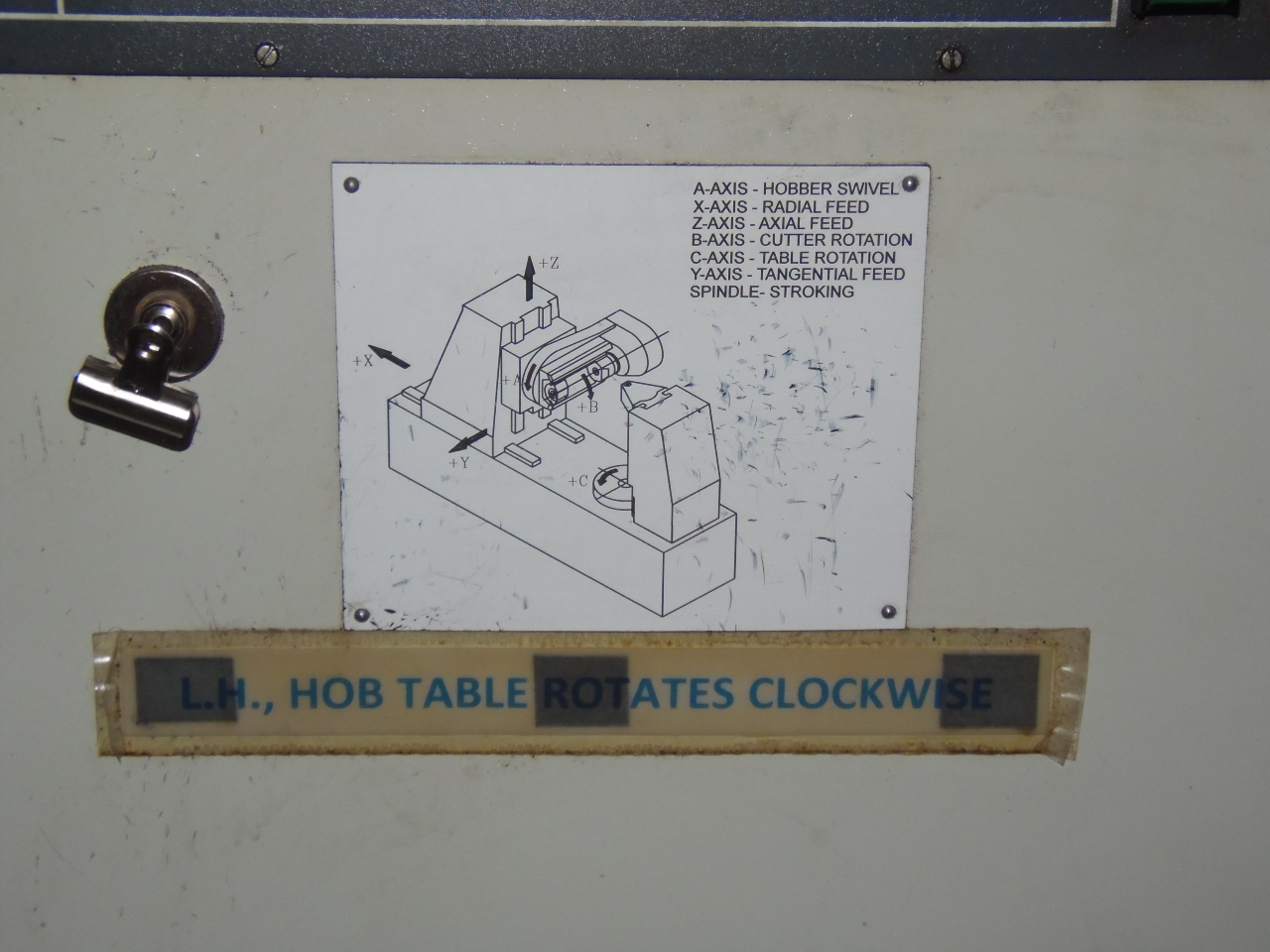

Number of CNC controlled axes

5









Number of CNC controlled spindles

1



Pitch rating

4.23

DP

6

Mod



Maximum workpiece diameter

9.843

in

250

mm



Maximum axial travel

9.843

in

250

mm

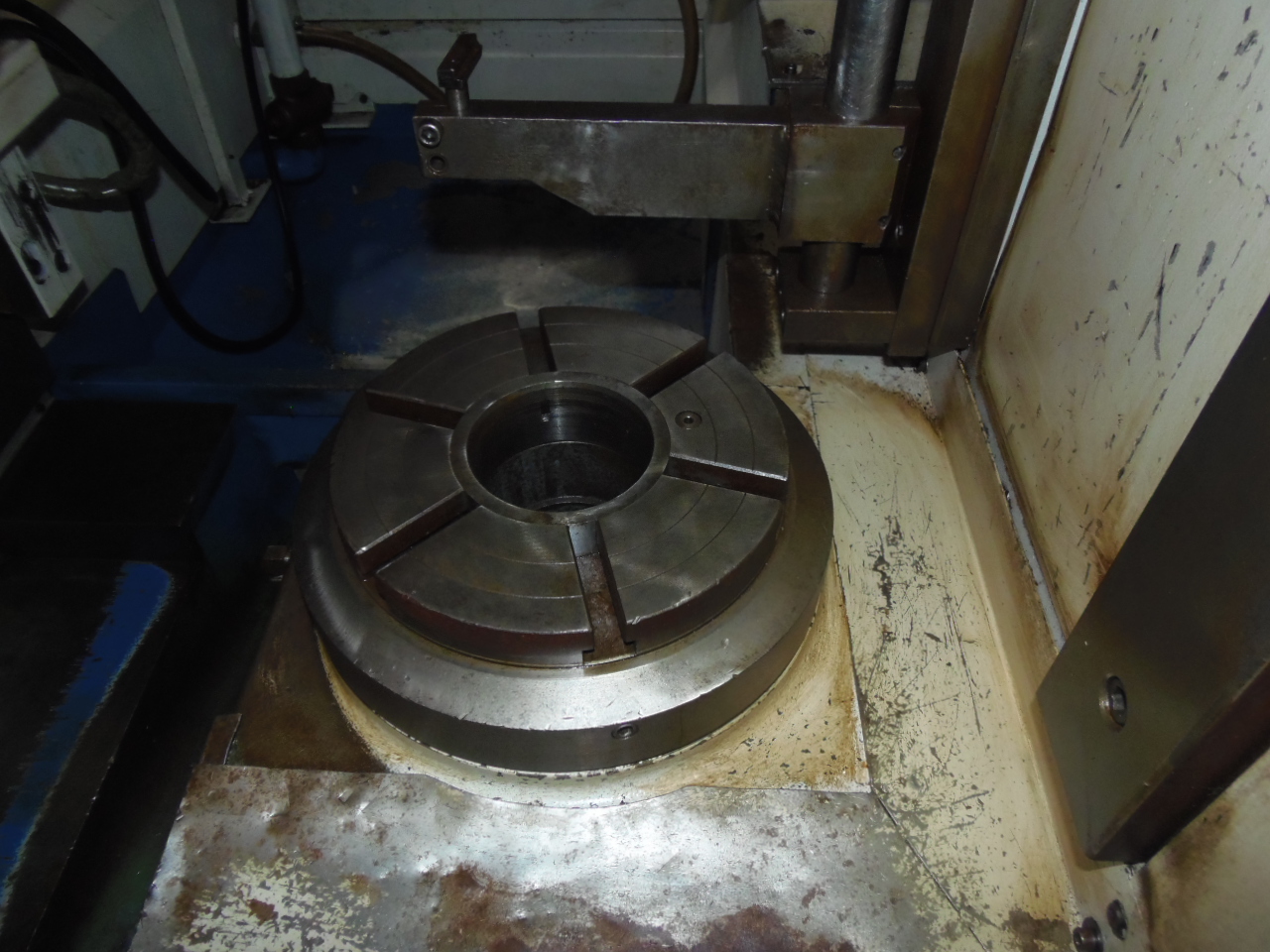

Worktable diameter

9.843

in

250

mm



Worktable Worm Diameter

11.220

in

285

mm



Table bore diameter

3.937

in

100

mm




Maximum radial center distance

8.071

in

205

mm



Minimum radial center distance

0.787

in

20

mm



Maximum axial height from tabletop

15.354

in

390

mm



Minimum axial height from tabletop

5.512

in

140

mm




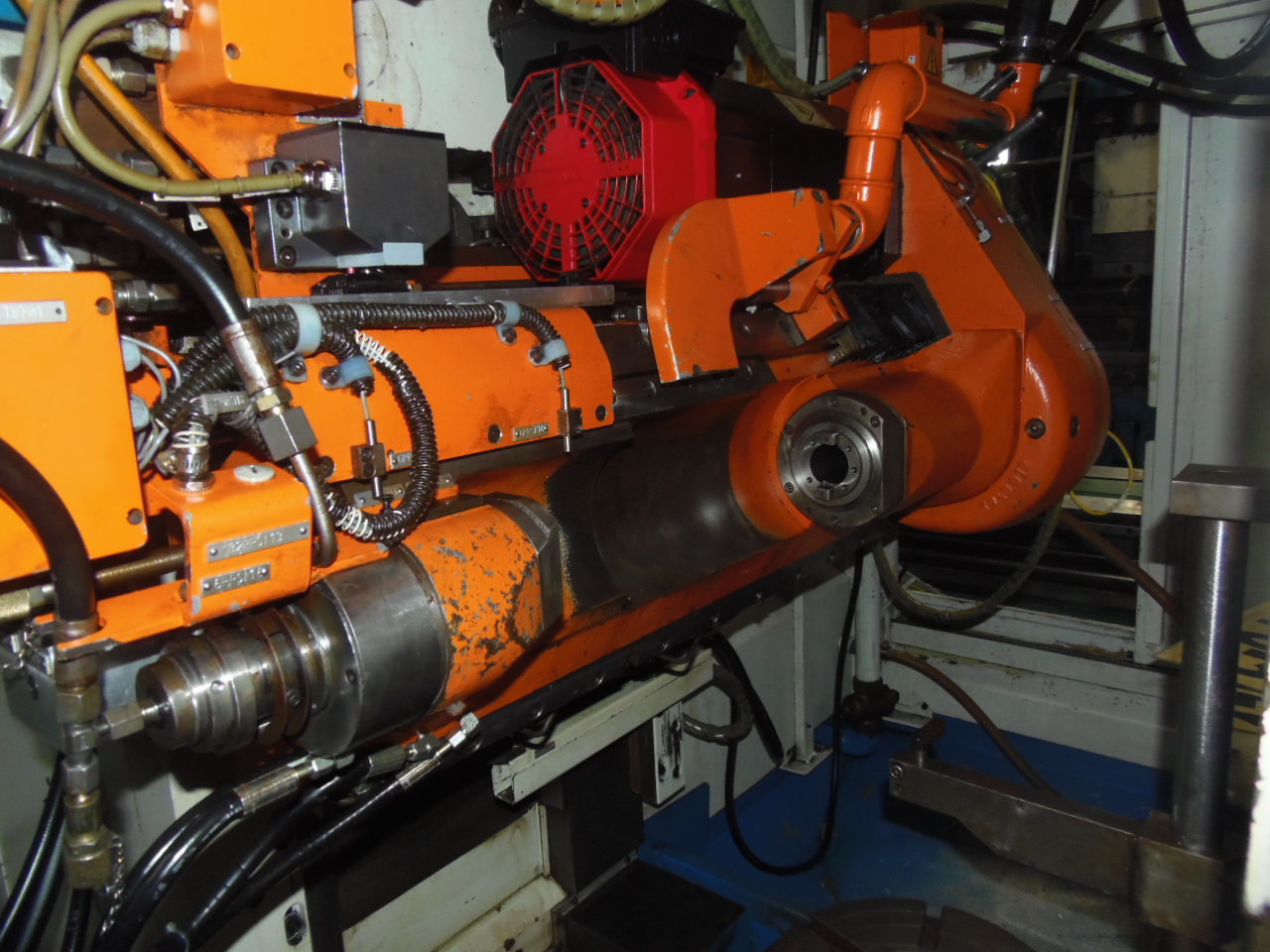

Maximum hob diameter

5.709

in

145

mm



Maximum hob length

9.055

in

230

mm



Maximum hob shift travel

6.693

in

170

mm




Maximum swivel angle

-45

deg

+45

deg



Hob speed range (Infinitely Variable)

48

to

480

RPM



Hob Spindle Power

10.7

HP

8

kW




Rapid traverse radial

118.110

in/min

3000

mm/min



Rapid traverse axial

78.740

in/min

2000

mm/min
