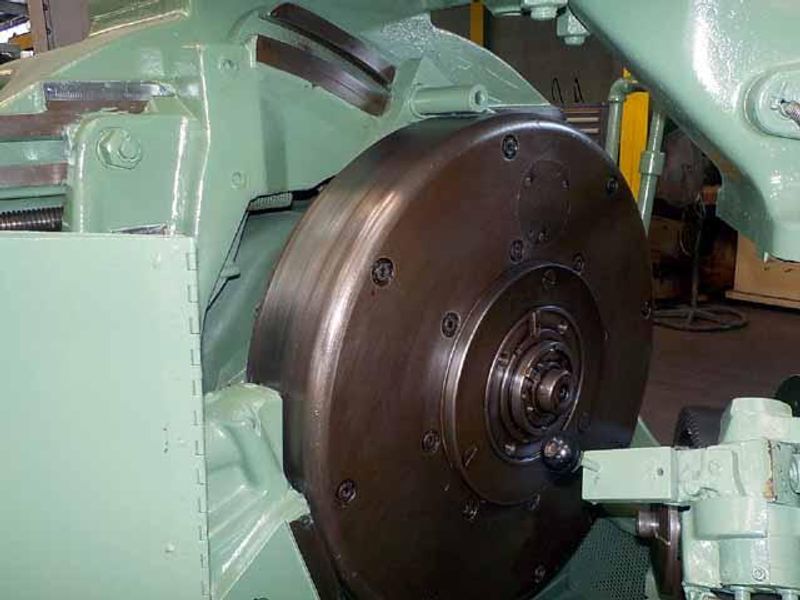

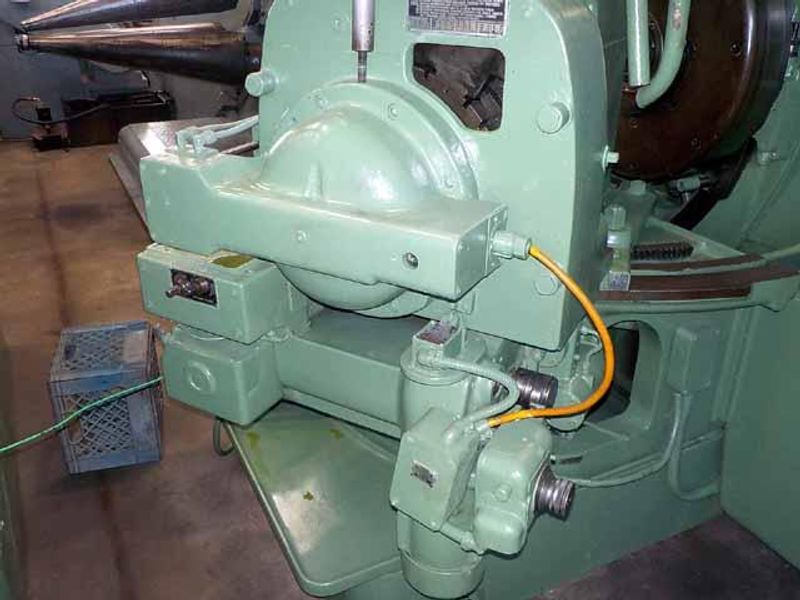

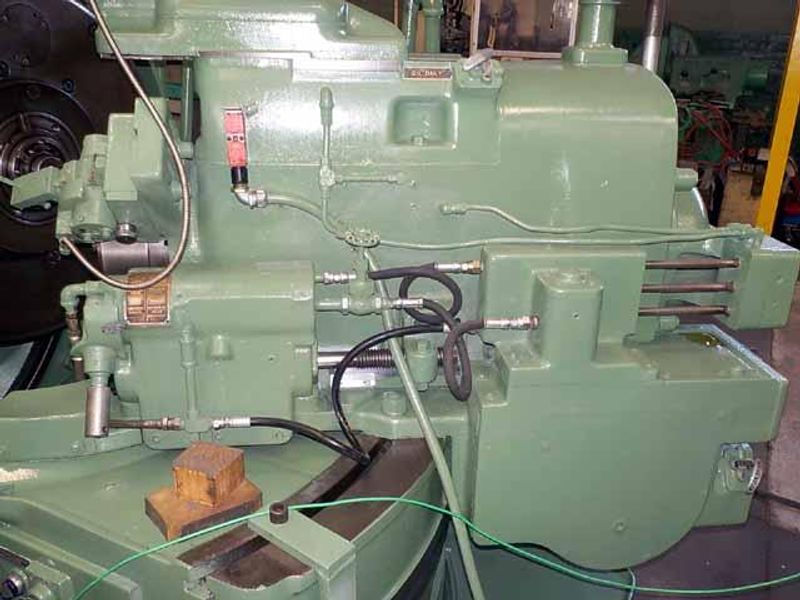

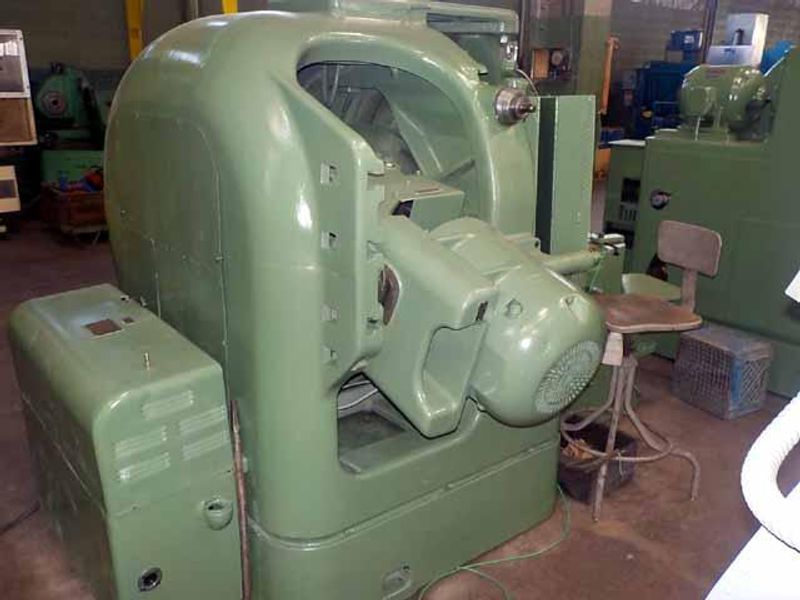

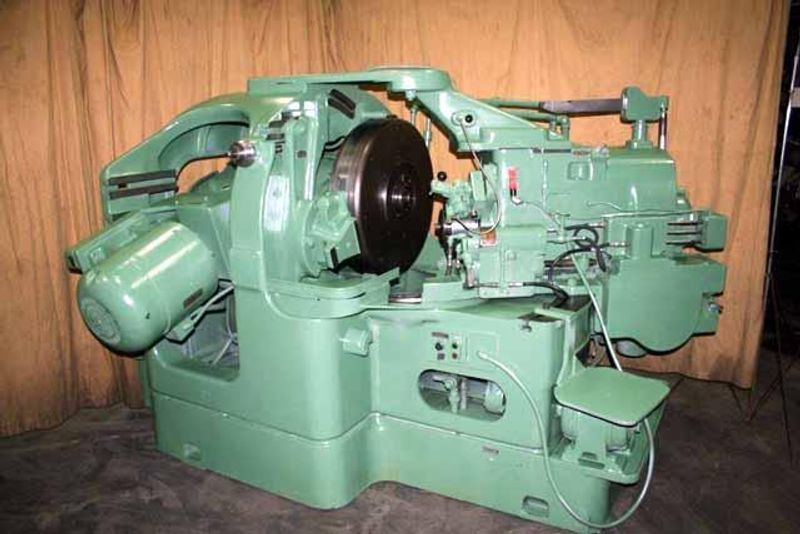

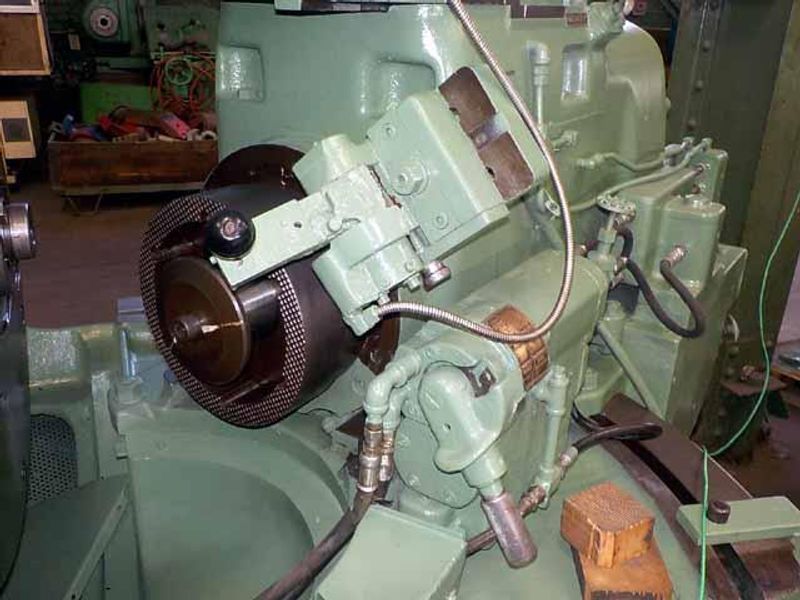

Gleason Model 22 Formate Hypoid Gear Rougher

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR ROUGHERS

Stock

gh983

Model

22A

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

Longest Cone Distance - 11"
Largest Pitch Angle - 90°
Smallest Pitch Angle (without chamfering or burring attachments) - 45°
Largest Pitch Diameter:-1 to 1 Ratio - 15.5"
Largest Pitch Diameter:-12 to 1 Ratio - 22"
Largest Pitch (diametral) - 1.5 DP
Maximum Face Width - 4"
Index Range(number of teeth) - 31-78
Feed (seconds per tooth) - 5-40
Diameter of Tapered Nose (large end) - 6-7/8"
Length of tapered nose - .75"
Taper Per Foot - .5"
Diameter of Hole Through - 2"
Spindle Nose to Center Line of Machine - 4.5"-8"
Cutter Diameter - 9", 12", 18"
Cutter Speeds - 100-150
Main Motor - 10 HP, 1800 RPM
Floor Space - 84" x 103"
Weight - 18,500 lbs.


Hydraulic Clamping. Stock Dividers. Change Gears.

This machine is being offered cleaned and cycled. It is being offered with a 30-Day Return Privilege and can be inspected at your convenience.
