Cincinnati 5-Axis 3-Spindle Travelling Gantry, x-912", Y-312", 160" x 1008" Tbl, 3600 rpm, Acramatic 950, #30672

Manufacturer

CINCINNATI

Category

Milling Machines

Type

PROFILERS, CNC - See Also M0185, M0120

Stock

30672

Model

5-Axis 3-Spindle

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #30672

Cincinnati 5-Axis 3-Spindle CNC Gantry Mill

FEATURES:

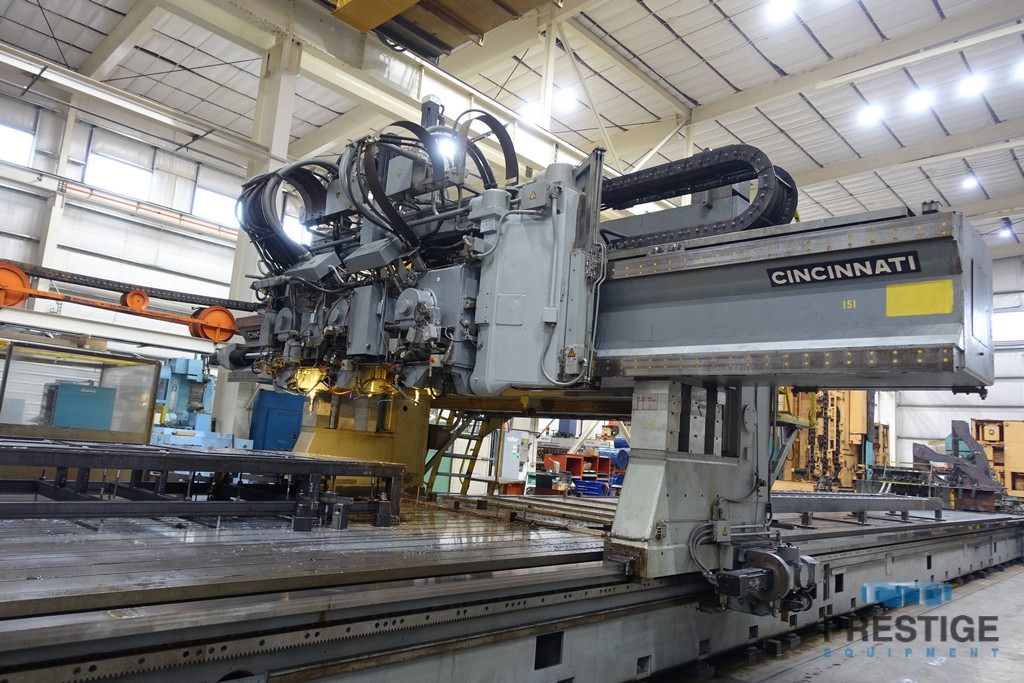

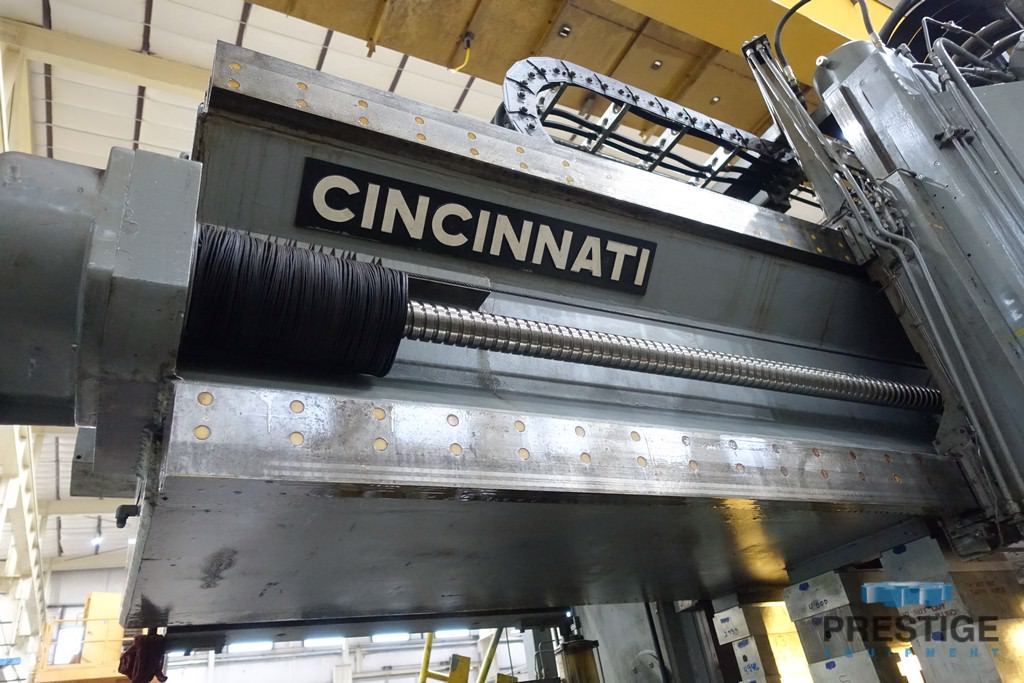

Traveling Gantry
Full 5-Axis Operation

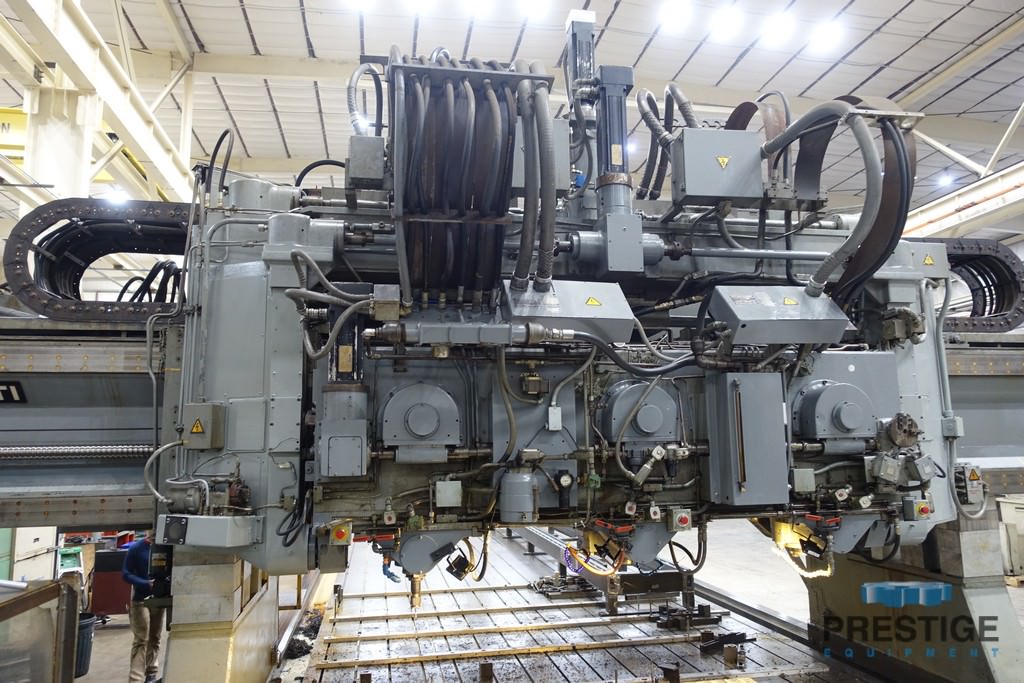

(3) 40 HP Spindles

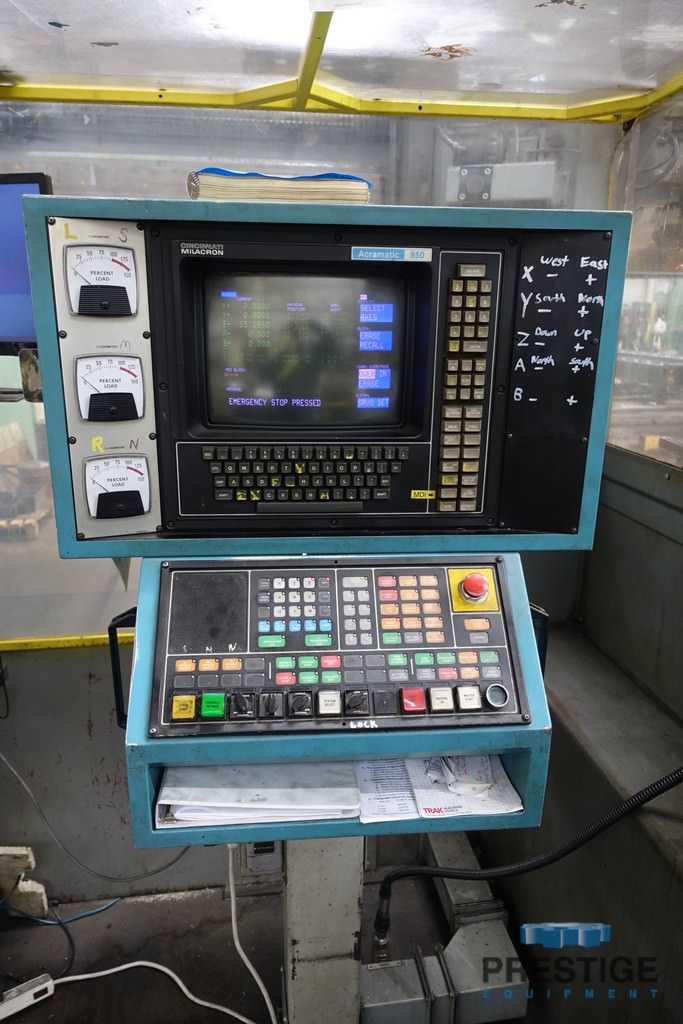

Acramatic 950 5-Axis CNC Control

CAPACITIES:
X-Axis Rail ........................... 1008"
X-Axis Longitudinal Travel ............ 912"
Y-Axis Transverse Travel .............. 312"
W-Axis ............................... 36"
Z-Axis Vertical Travel ................ 20"
A & B Axes Tilt Movement .............. +/- 20 Degrees

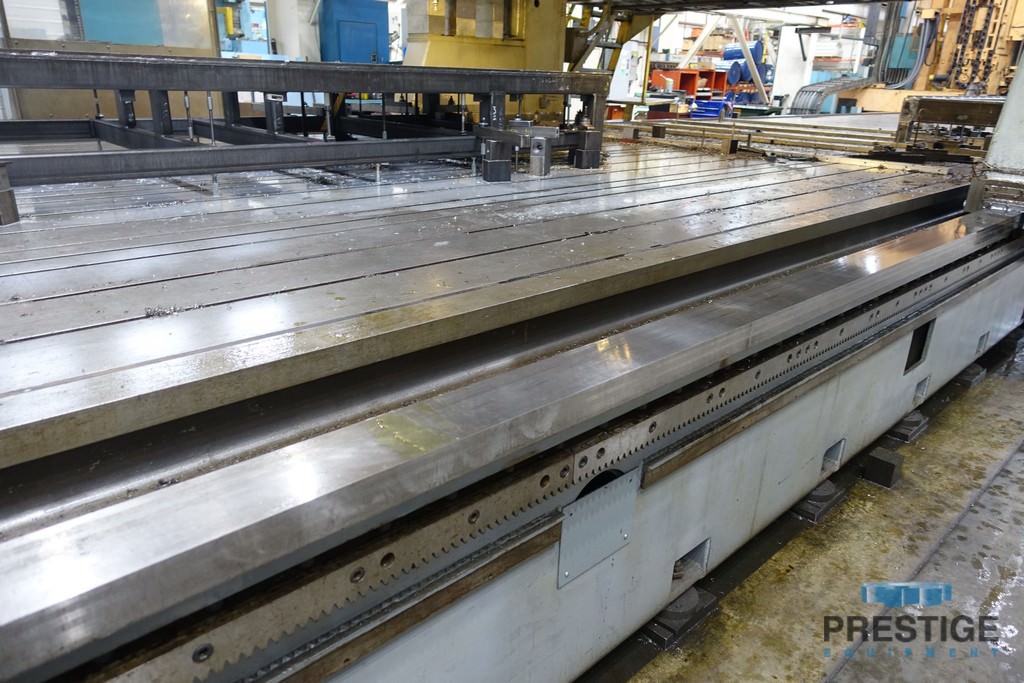

Table Mounting Surface ................ 1008" x 160"

SPINDLE:
Number of Spindles .................... 3
Distance Between Spindles .............
Spindle Speeds, Max ................... 3600 RPM
Spindle Taper .........................
Spindle Motor ......................... 40 HP

EQUIPPED WITH:

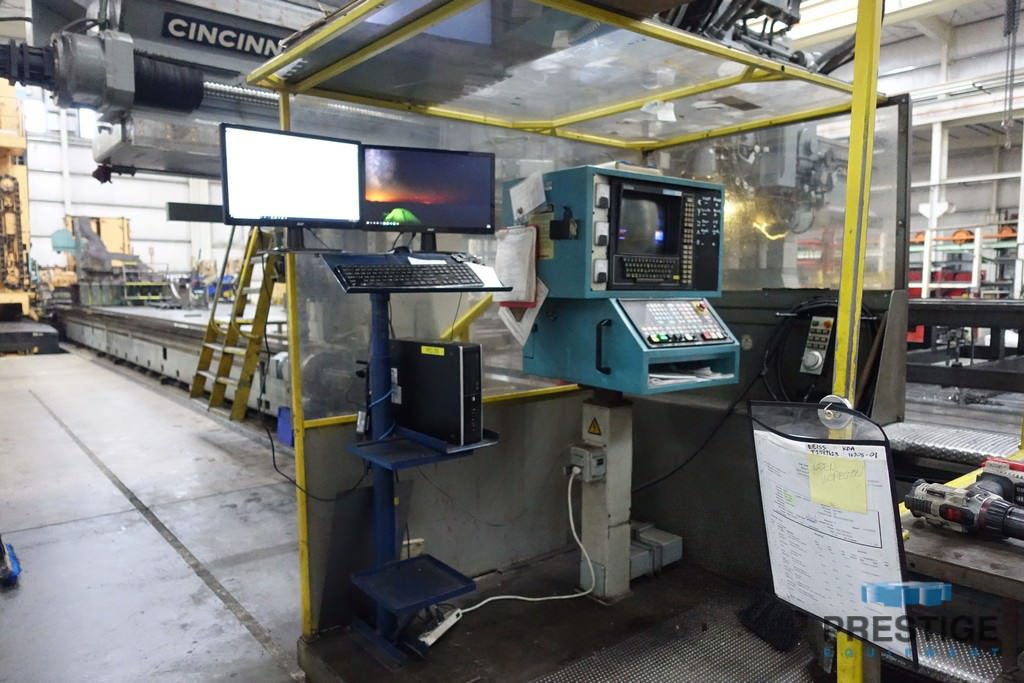

Acramatic 950 CNC Control
Full 5-Axis Operation
(3) 40 HP Spindles
Traveling Gantry

LOCATION:
Under In Plant Under Power!
