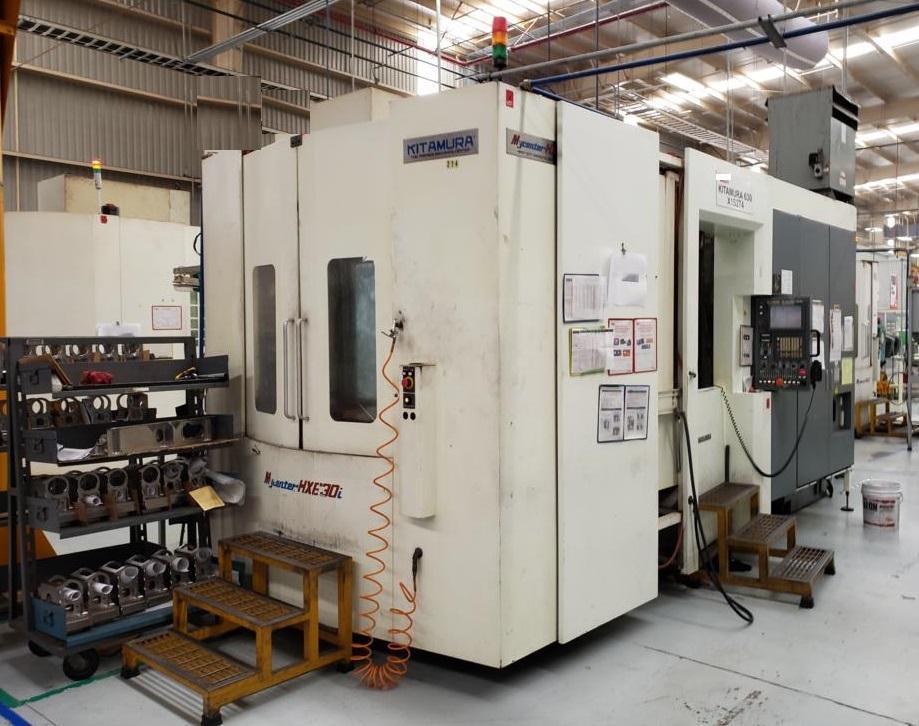

Kitamura MyCenter HX630i CNC Horizontal Machining Center

Stock

13463

Model

MyCenter HX630i

Dealer Location

Michigan

Spec Sheet

CNC Control - yes
Type of CNC Control - Fanuc 16i
# Axis - 5
Pallet Length - 24.8 inches
Pallet Width - 24.8 inches
Pallet Capacity - 3300 pounds
Pallet Indexing (B-Axis) - 0.001°
X-Axis Travel - 43.3 inches
Y-Axis Travel - 36.2 inches
Z-Axis Travel - 41.3 inches
Rapid Traverse Rate (X/Y/Z) - 2362 ipm
Spindle Taper - CAT 50
Spindle Speed - 5,000 rpm
Spindle Motor (HP) - 53 hp
Tool Changer Capacity - 50
Coolant Through Spindle - yes
Machine Dimensions - 227" x 161" x 139"
Machine Weight - 46200 pounds

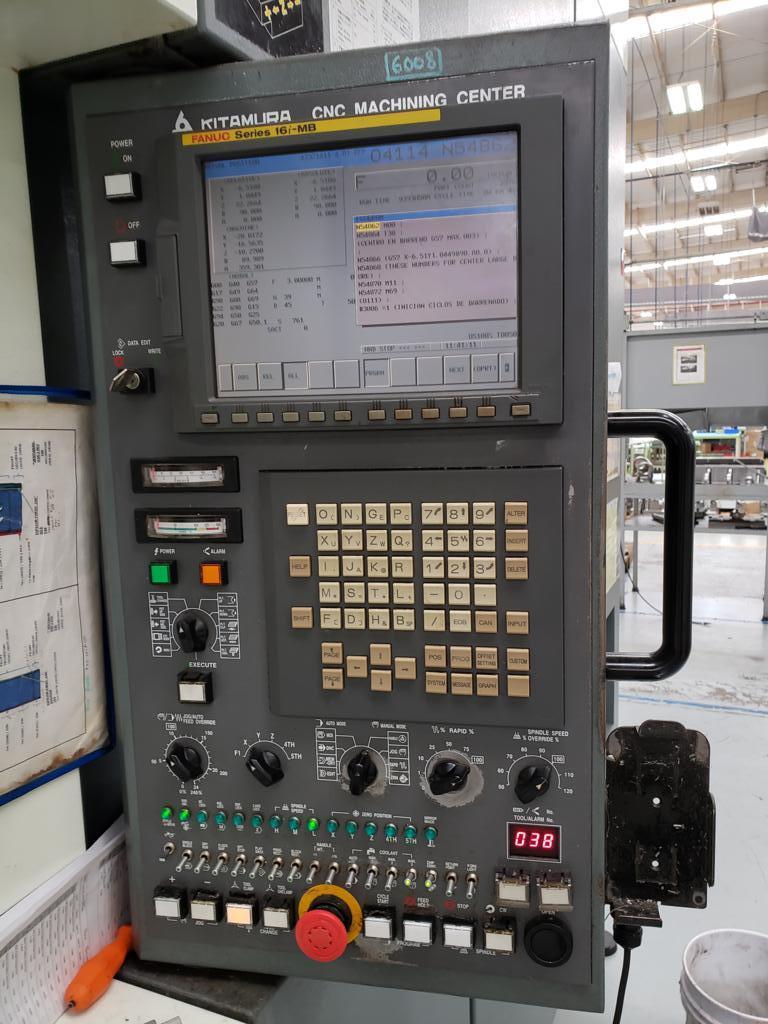

- Fanuc 16i-Model B Control

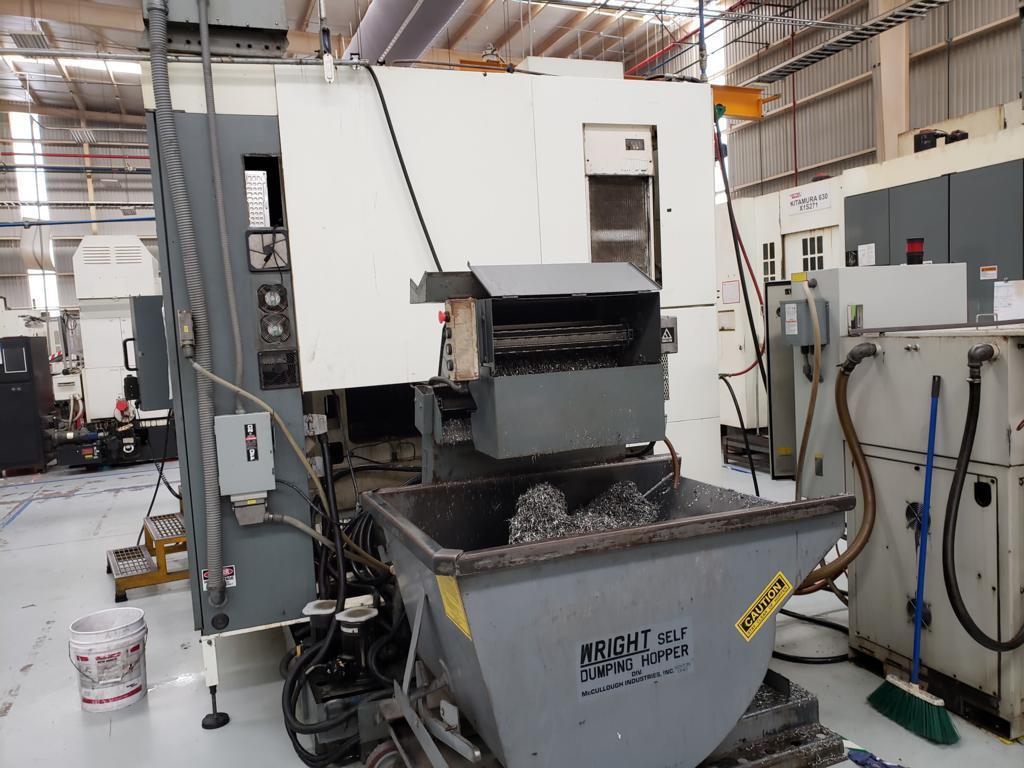

- Chip Conveyor
- Coolant Tank & Pumps
- Cooljet High Pressure Coolant Thru Spindle

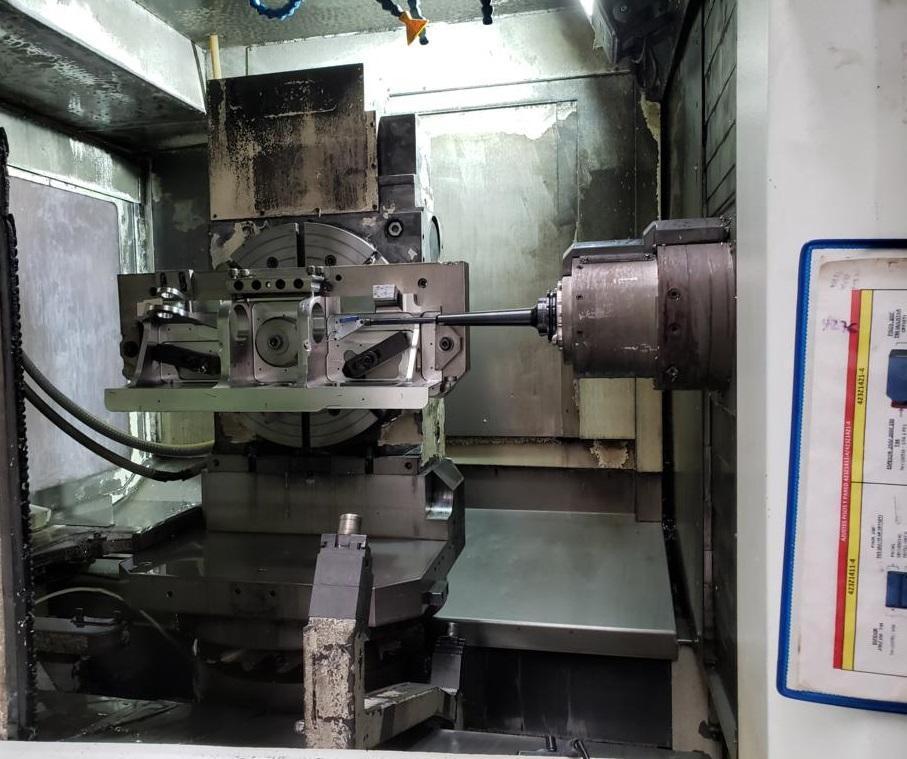

- Tsudakoma RB500K Rotary Table
- Renishaw Probing

No Video Available
