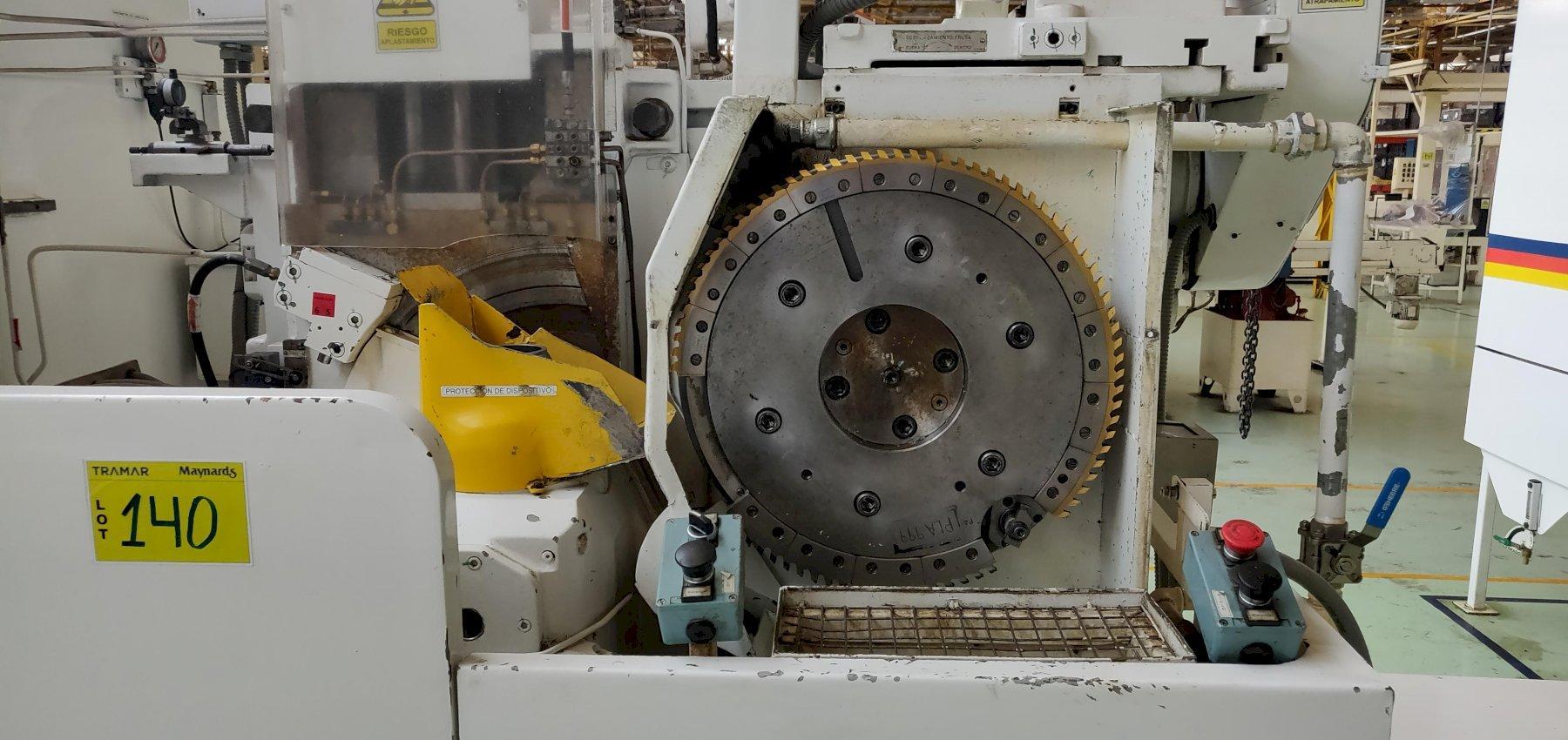

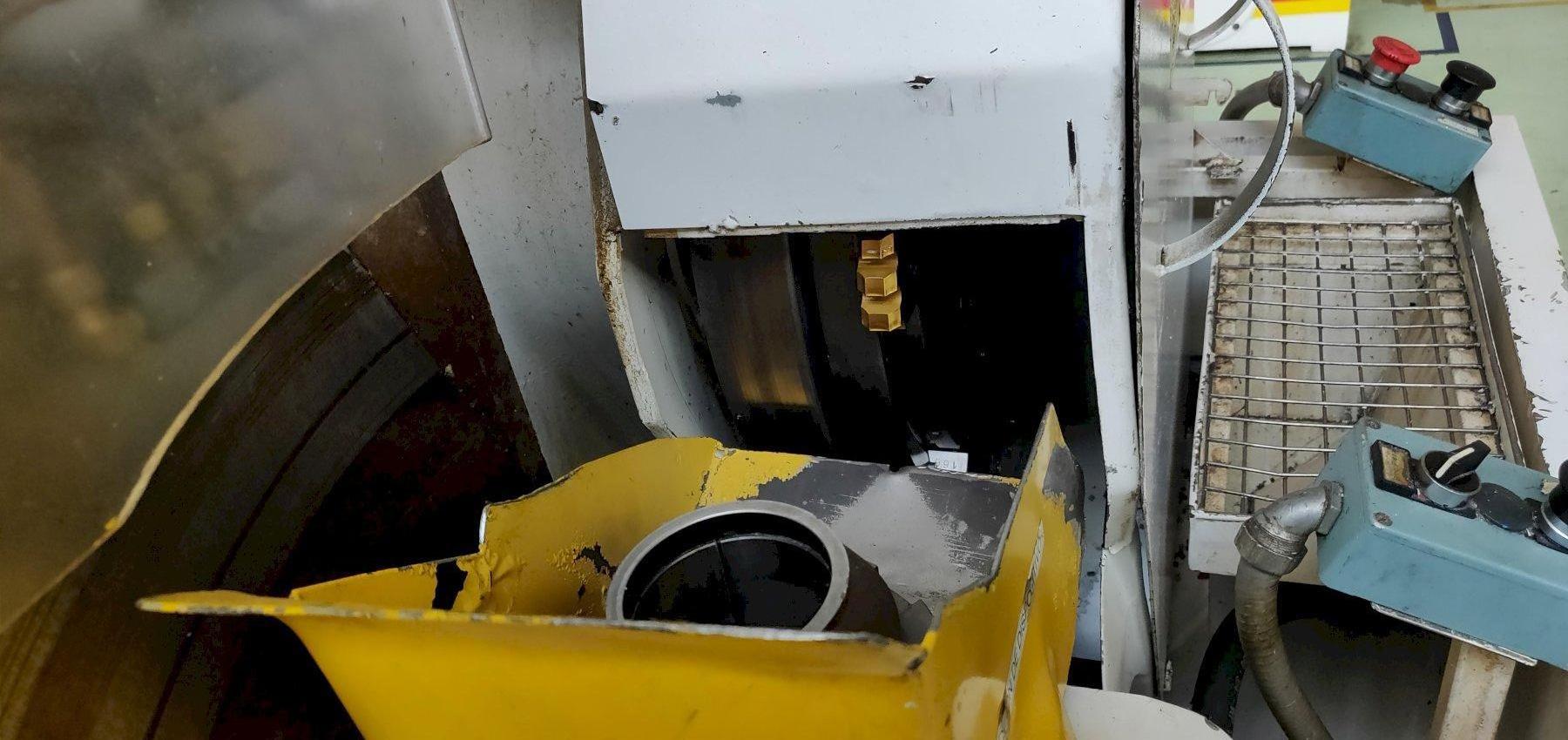

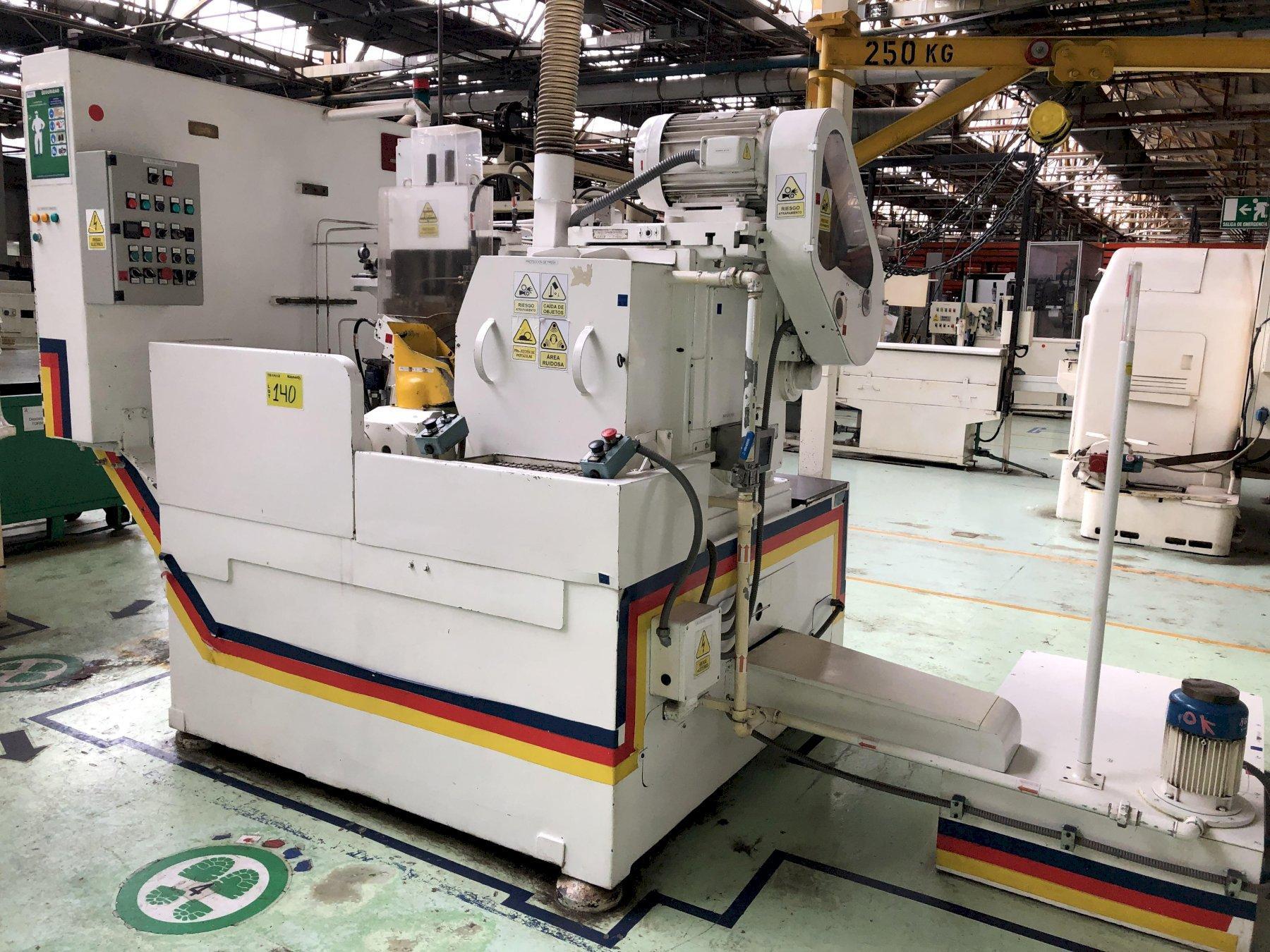

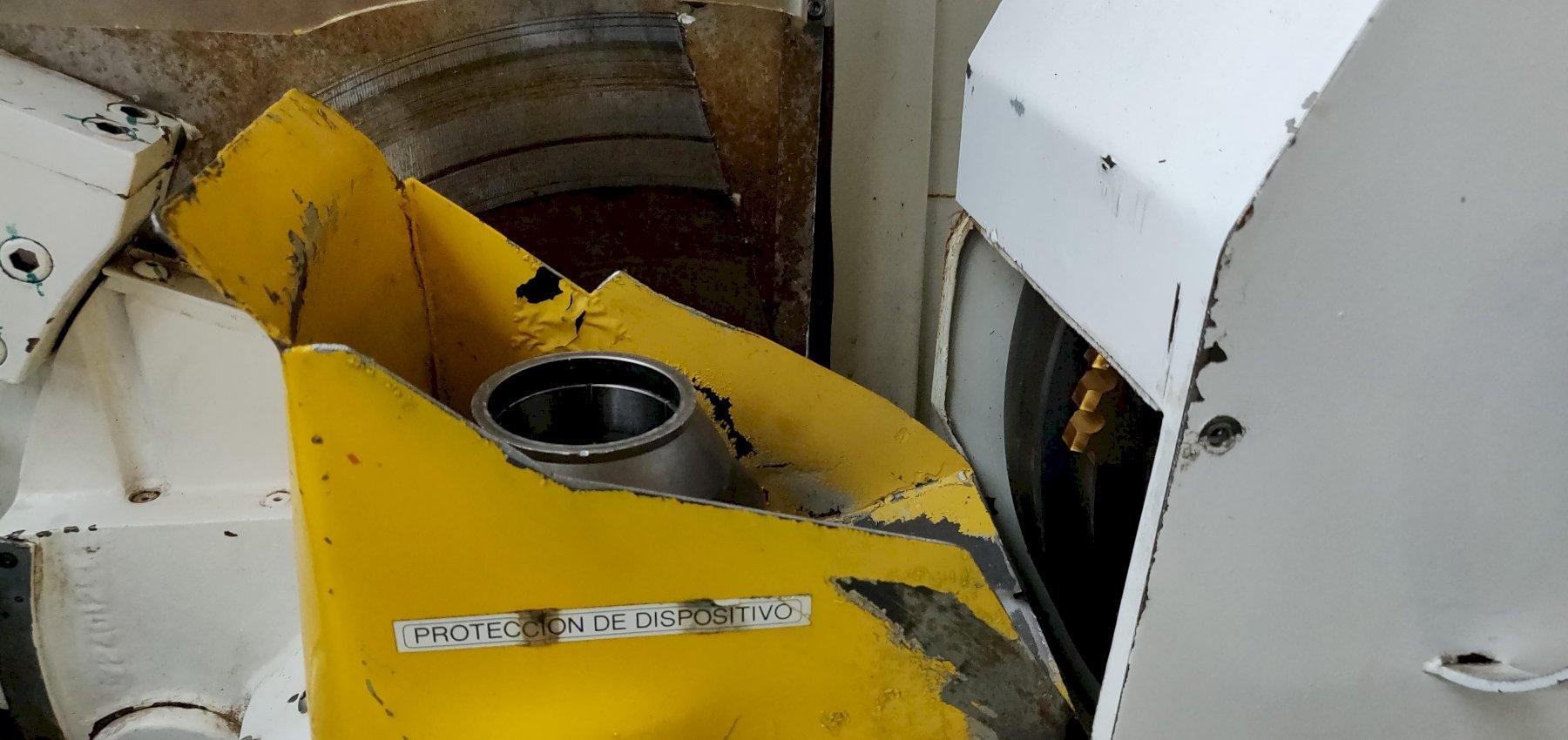

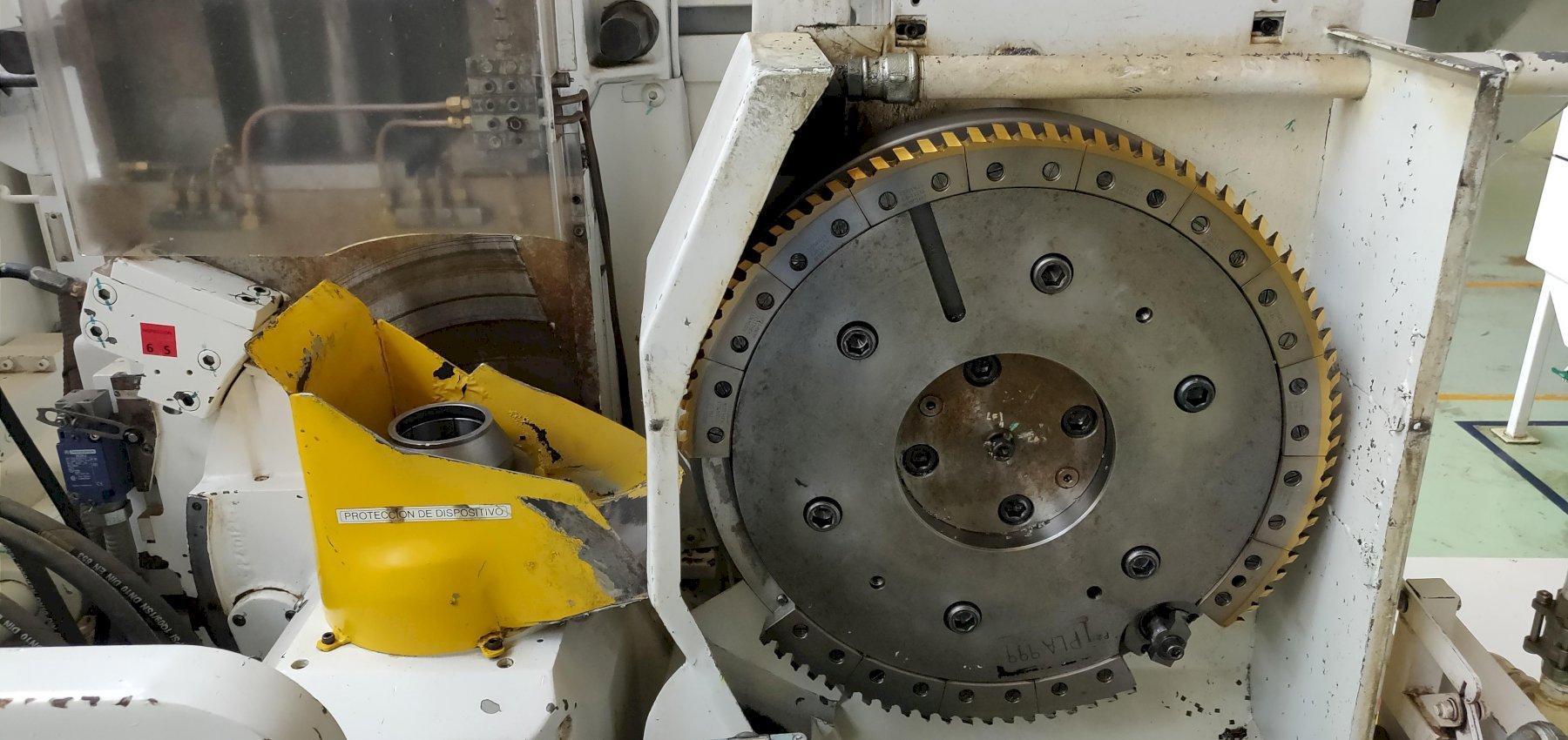

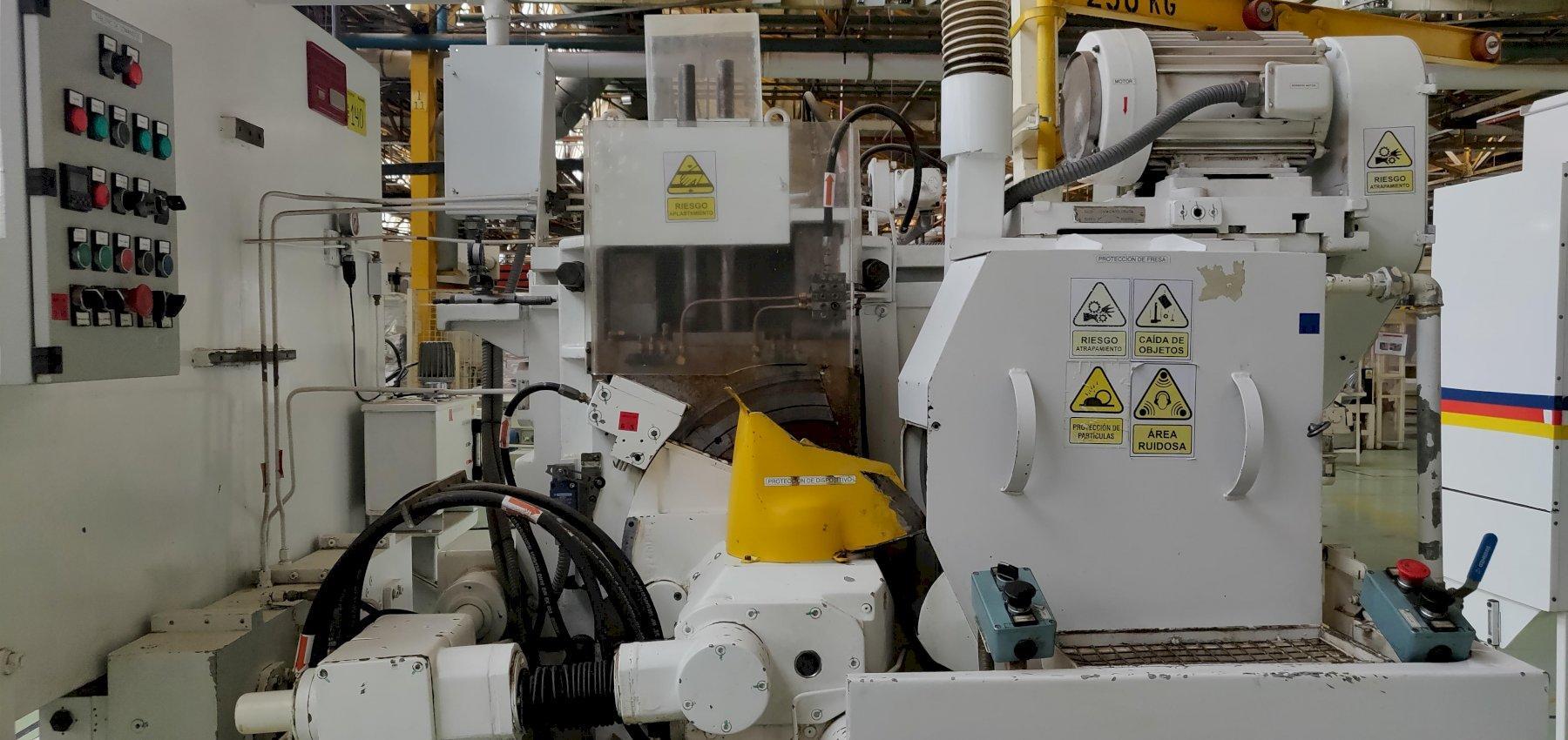

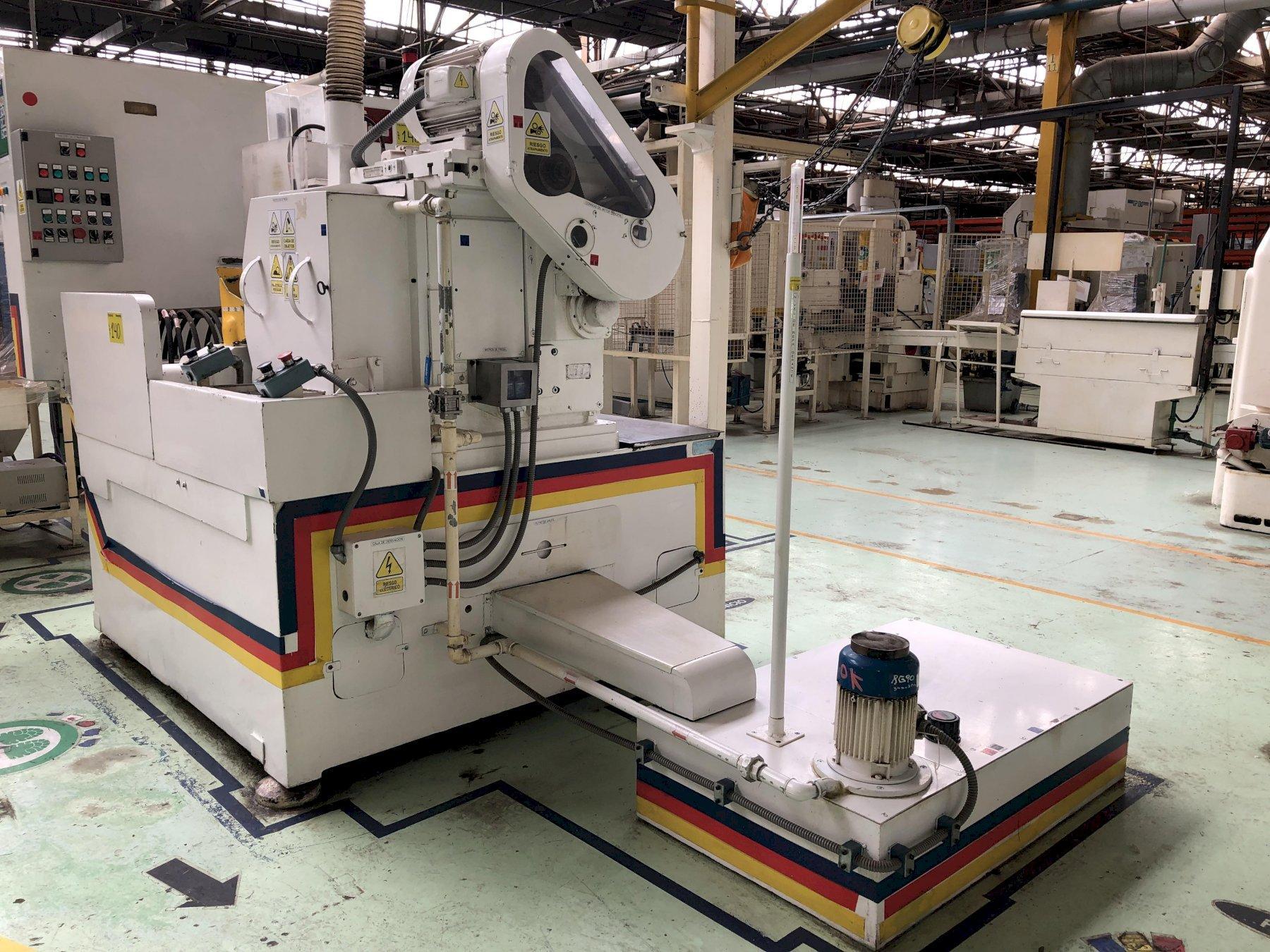

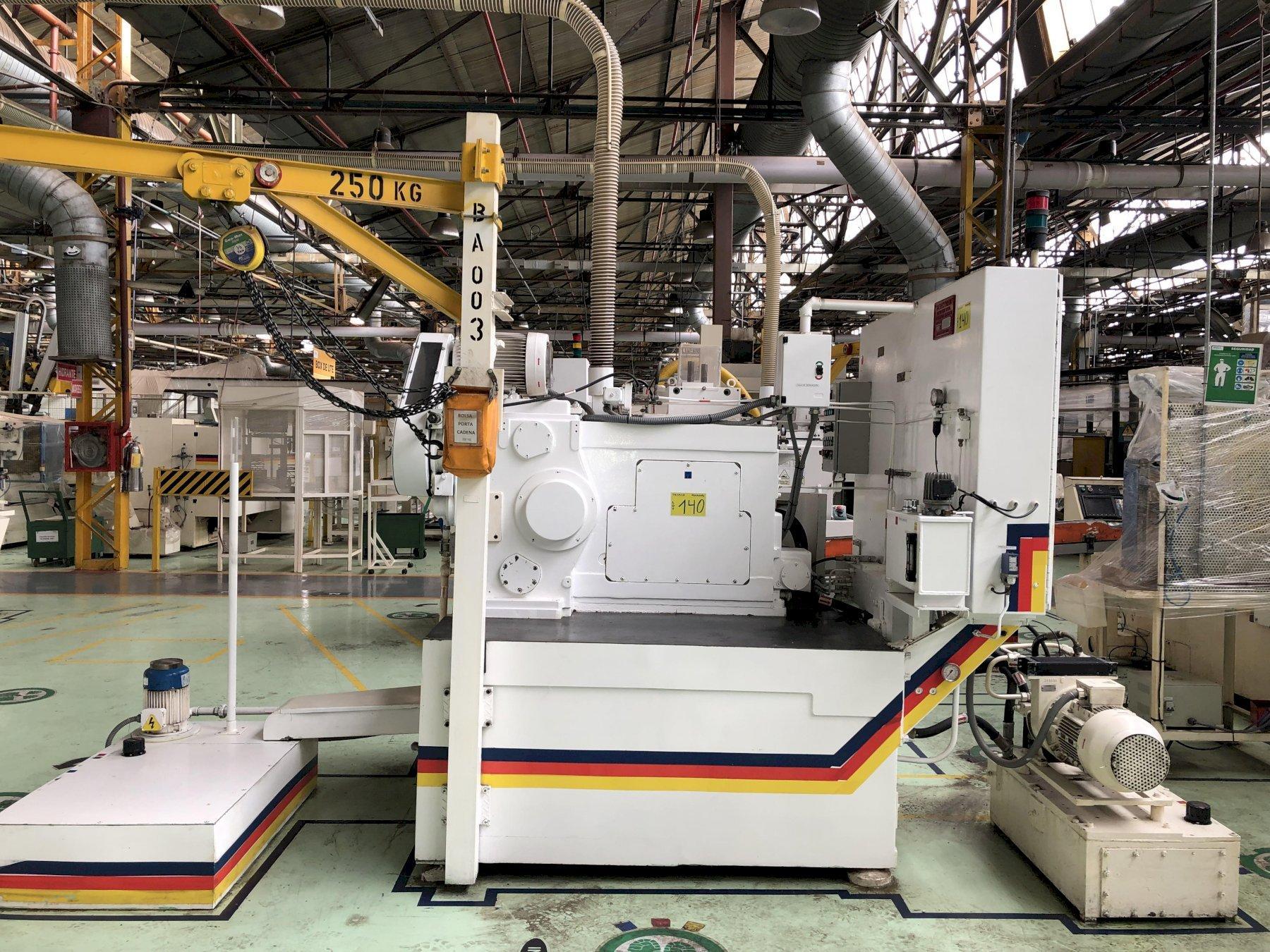

Gleason No. 726 Straight Bevel Revacycle

Manufacturer

GLEASON PFAUTER

Category

Gear Machines

Type

GEAR ACCESSORIES, PARTS & TOOLING

Stock

140

Model

No. 726 Revacycle

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

CNC Control - no
Type of CNC Control - Manual
Dimensions - 126" x 90"
Weight - 19100 pounds


SPECIFICATIONS:
Pitch Diameter- Manual: 152mm
Face Width At Root-21 Inch Cutters: 28mm
Index Range: 8-50
Work Spindle:
Diameter Of Tapered Hole At Large End: 99.22mm
Taper Per Foot: 15.48mm
Depth Of Taper: 15.8mm
Counterbore Behind Taper: 57.2 X 77.9 mm
Diameter Of Hole Through Spindle: 22.3mm
Feeds And Speeds:
Cutter Speeds 21 Inch Cutters: 107-163 FT/Min.
Feeds 21 Inch Cutters: 2.0-3.1 Sec/Tool
Main Drive Motor-10HP: 1800 RPM
Hydraulic Motor-7.5HP: 1800 RPM
Machine Dimensions L X W Automatic: 3.2 X 2.26m
Machine Weight Manual/Automatic: 7484/8664 KG

EQUIPPED WITH:
Multiple Cutter Bodies
Blades
Auto Lube
Coolant System
Motor and Push Button Controls
