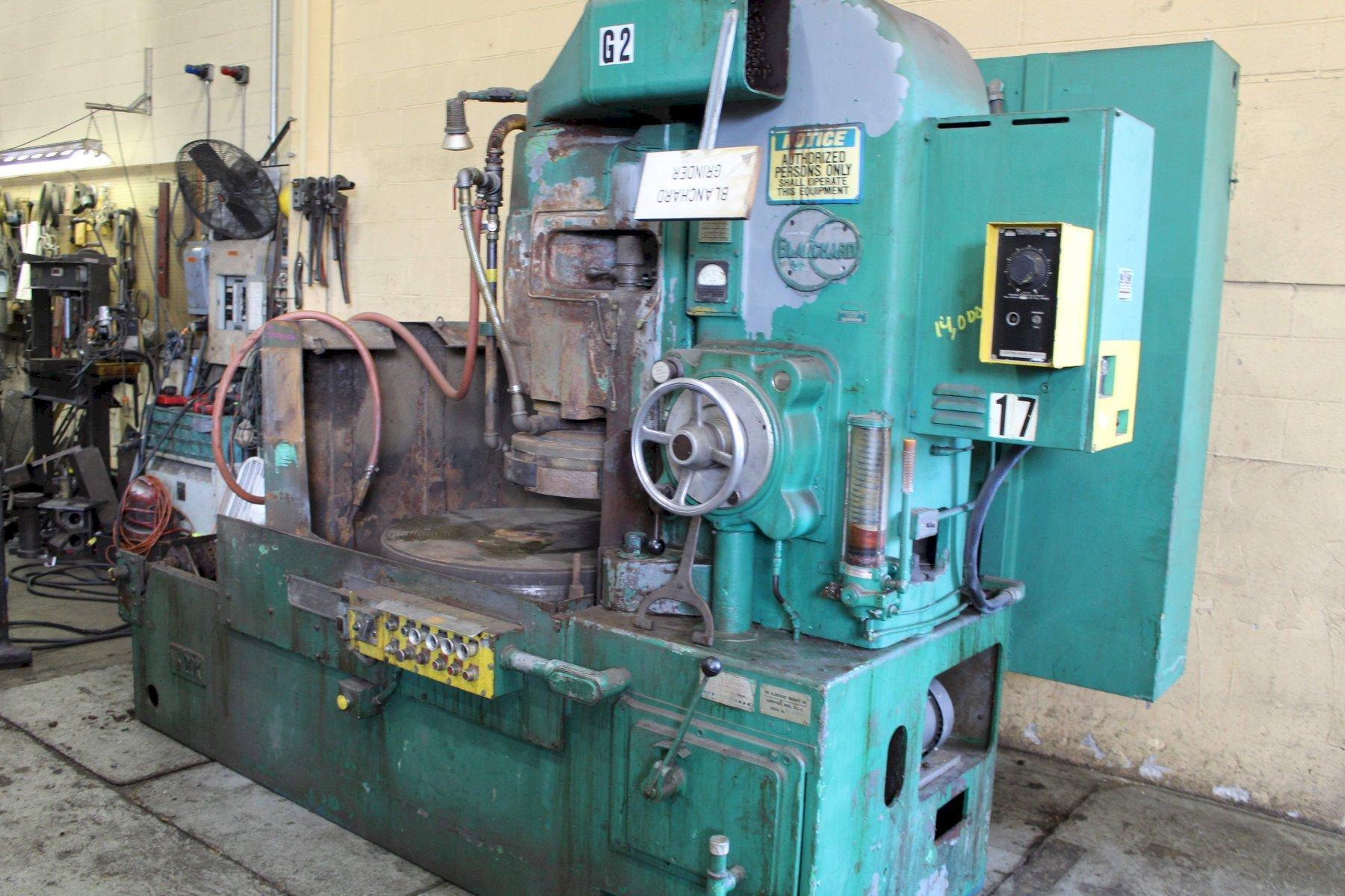

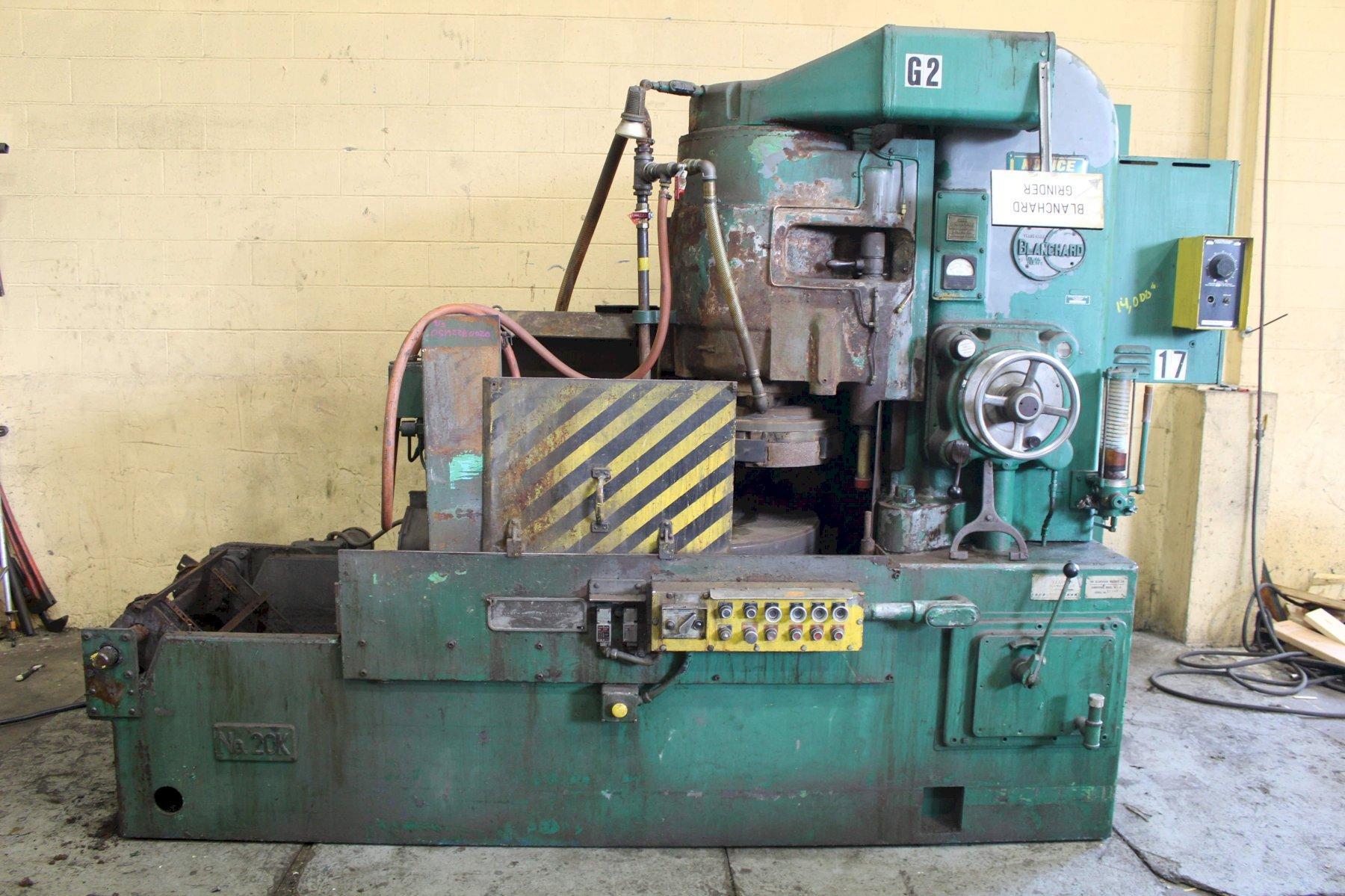

36" BLANCHARD MODEL #20 ROTARY SURFACE GRINDER: STOCK #71966

Manufacturer

BLANCHARD

Category

Grinding Machines

Type

GRINDERS, SURFACE, ROTARY TYPE, (Horizontal Spindle)

Stock

71966

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

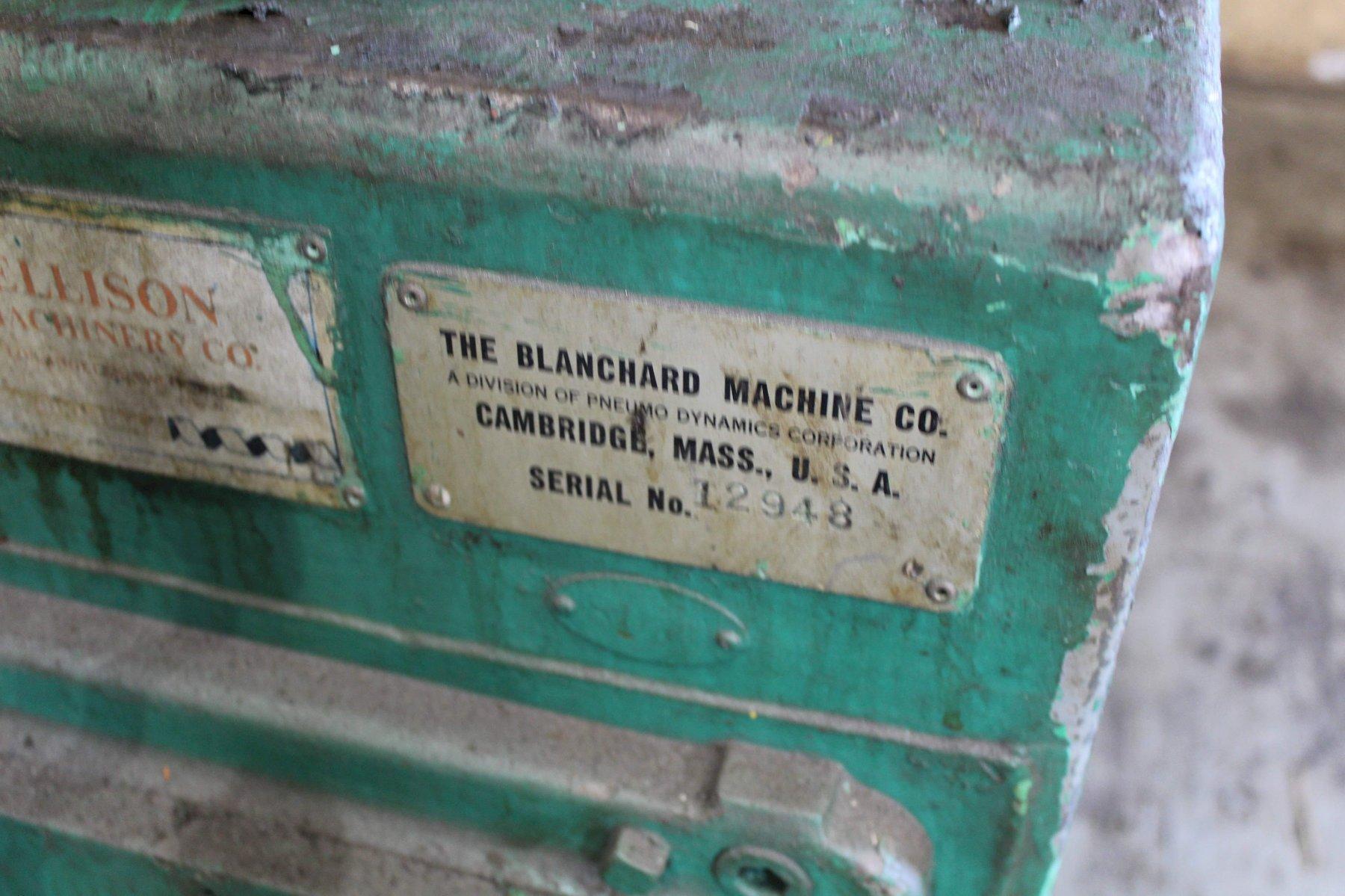

SERIAL ................................. 12948
MODEL .................................. 20K

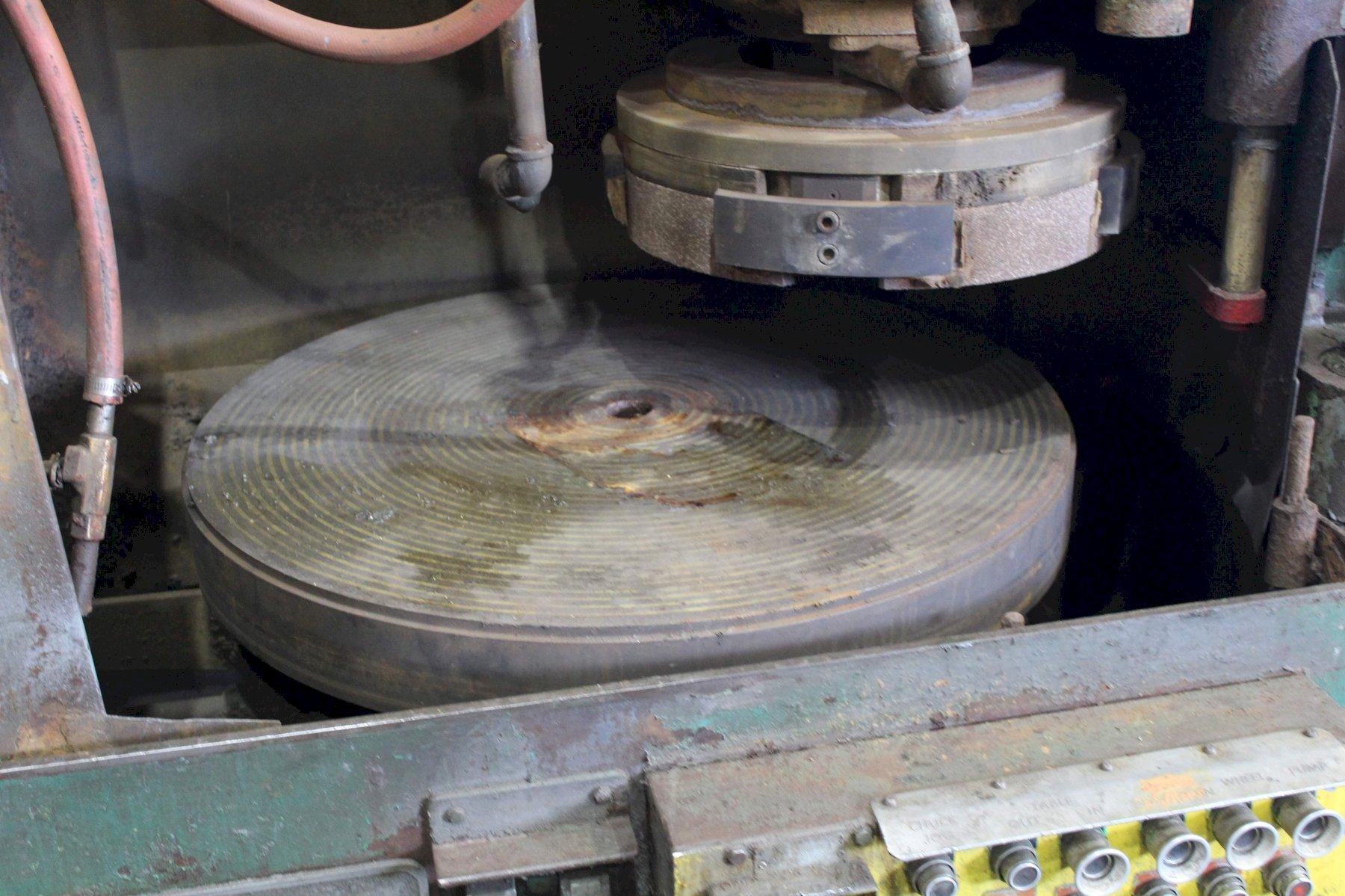

DIAMETER OF MAGNETIC CHUCK ............. 36"
MAXIMUM SWING INSIDE WATER GUARDS ...... 42"
DIAMETER OF SEGMENTED WHEEL ............ 20"
TABLE SPEEDS ........................... (6) 6,9,12,18,25 & 33 RPM
MAXIMUM UNDER WHEEL .................... 12"
AUTOMATIC DOWN FEED .................... .004 TO .080 IPM
POWER HEAD ELEVATION ................... YES
POWER TABLE TRAVEL ..................... YES
WHEEL DRESSER .......................... YES
HARDEN WAYS ............................ YES
TRABON LUBE SYSTEM ..................... YES
COOLANT SYSTEM ......................... YES
CLEAN OUT CONVEYOR ..................... YES
NUTRIFIER & RECTIFIER CHUCK ............ VARIABLE HOLD
SPINDLE MOTOR .......................... 50 HORSEPOWER
ROTATION MOTOR ......................... 2 HORSEPOWER
