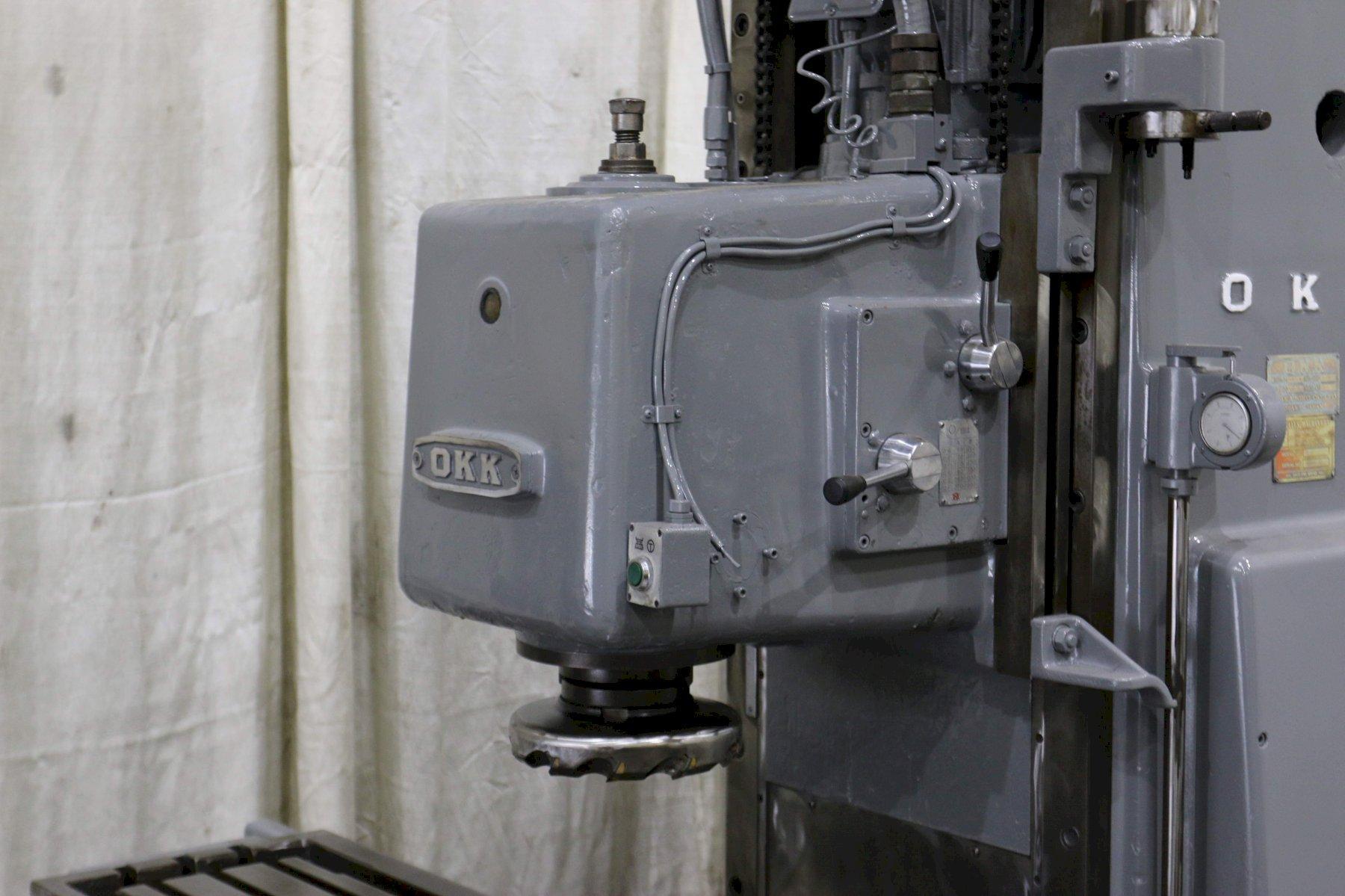

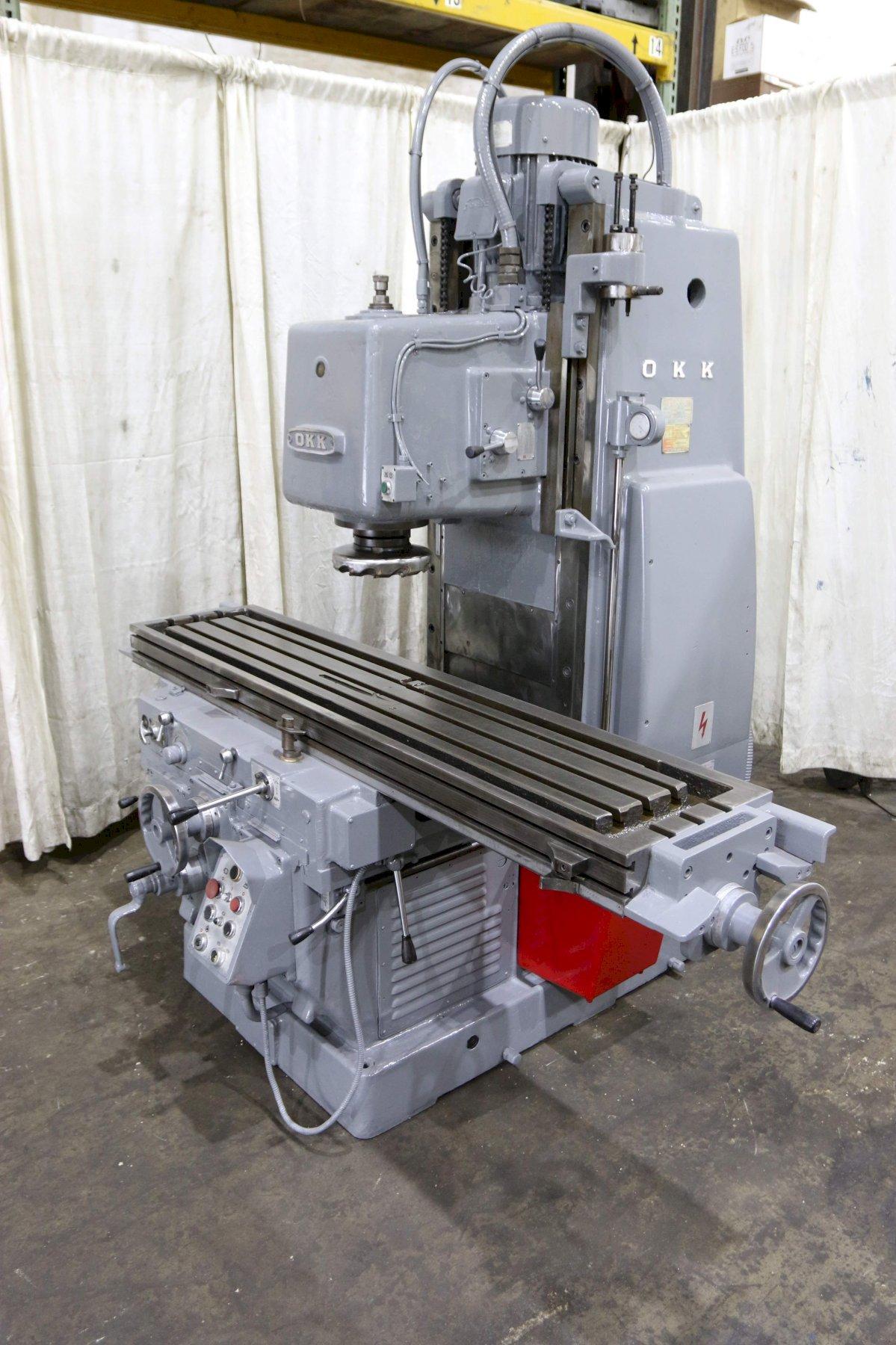

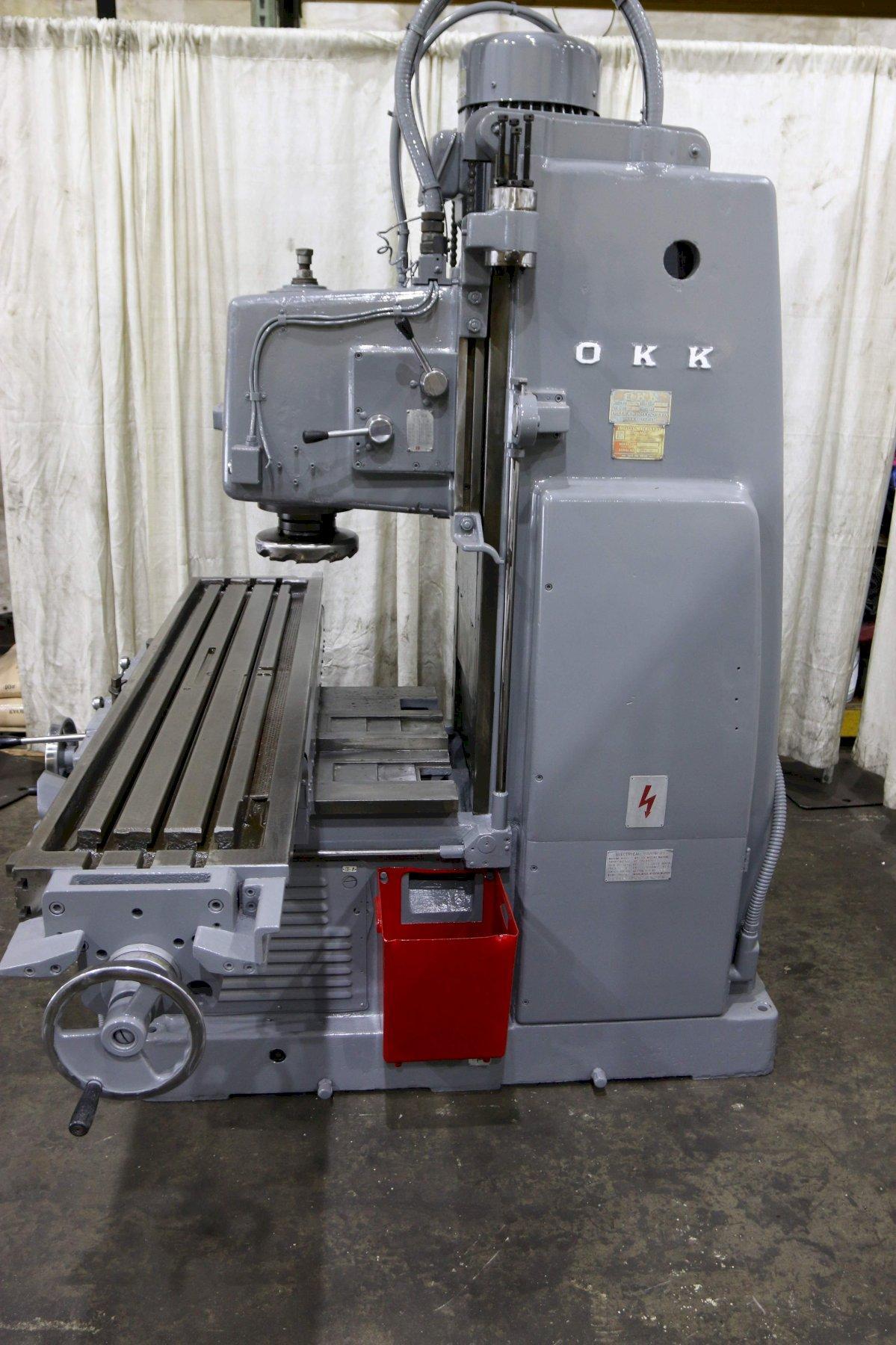

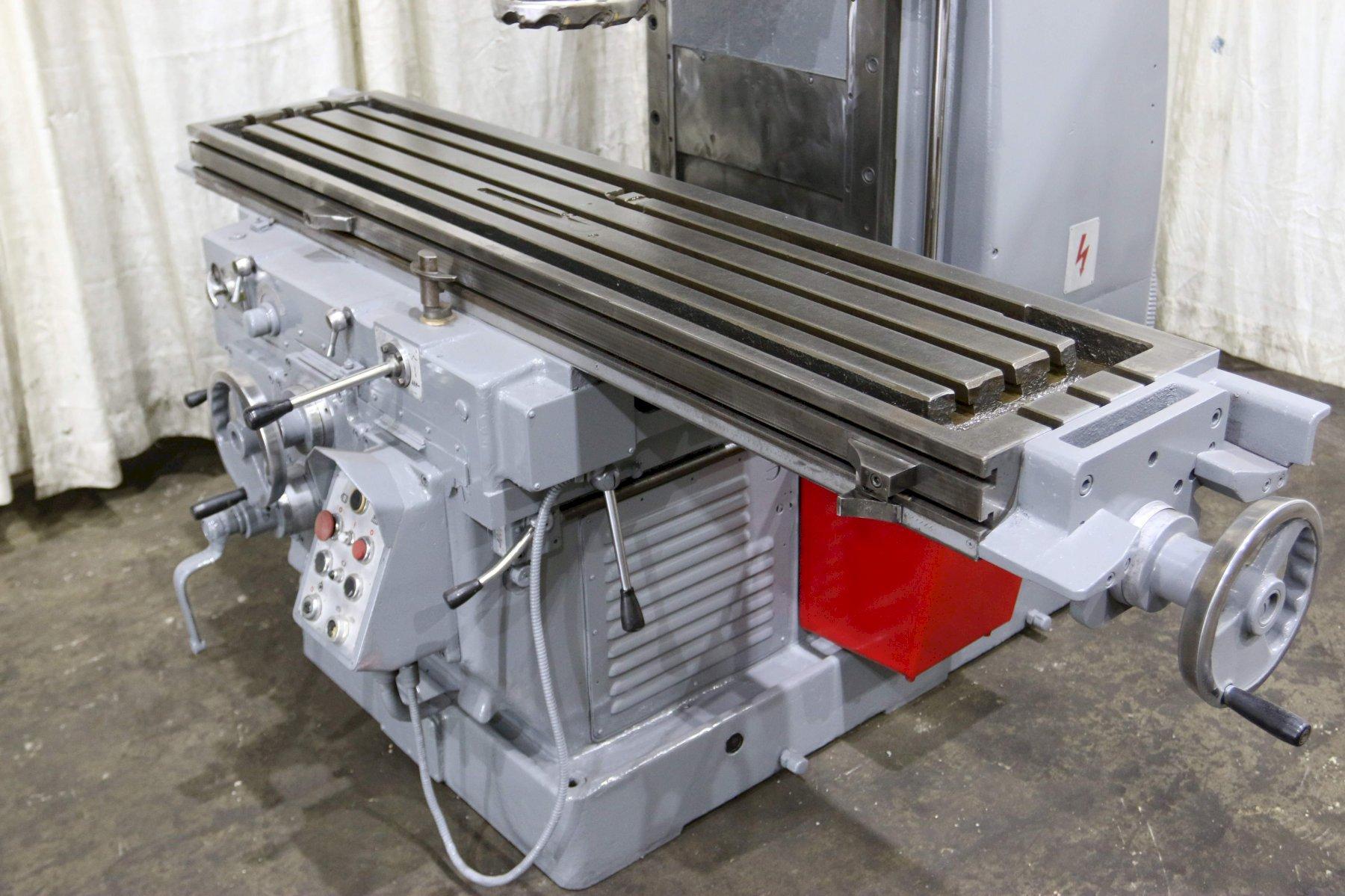

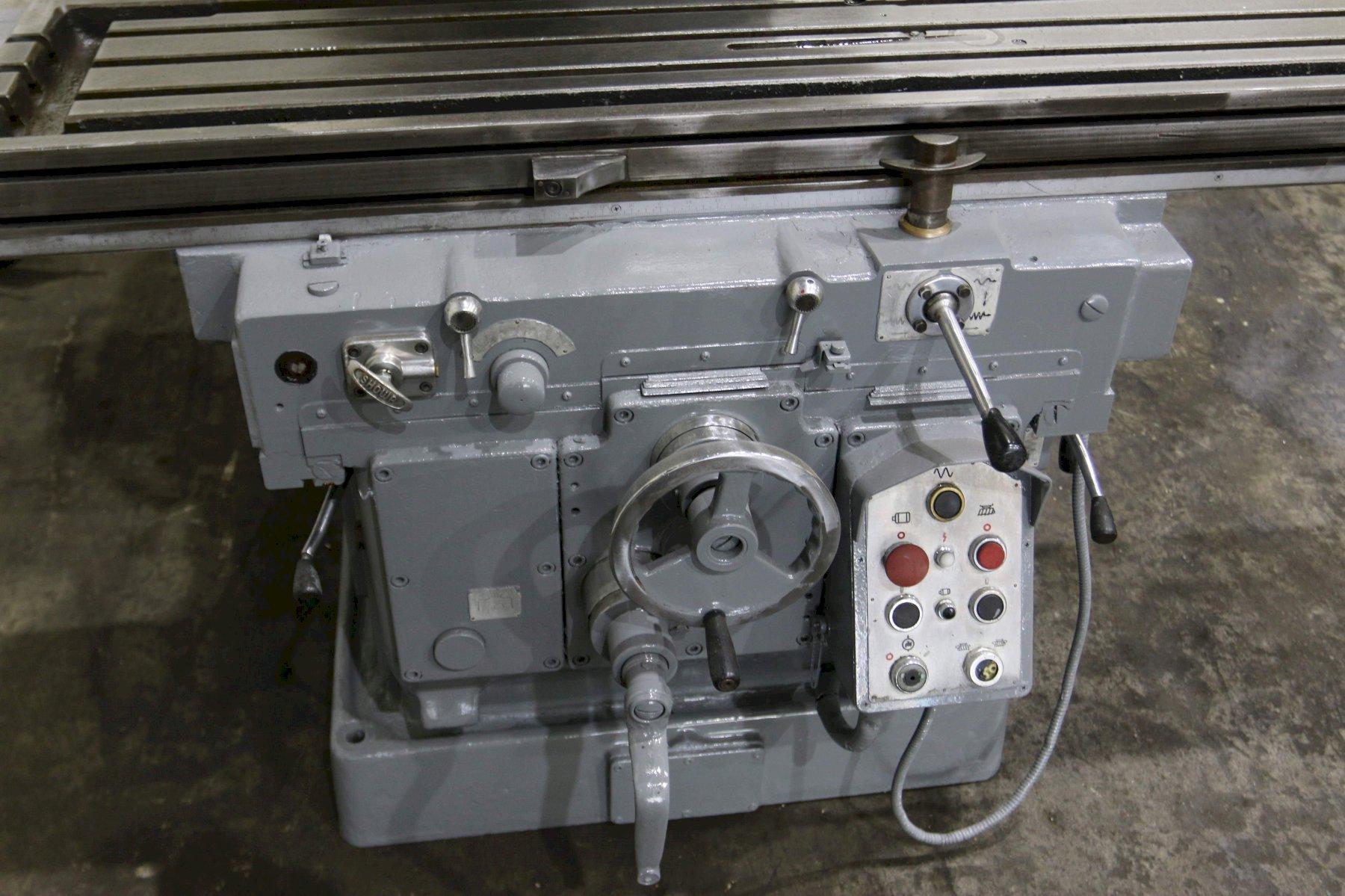

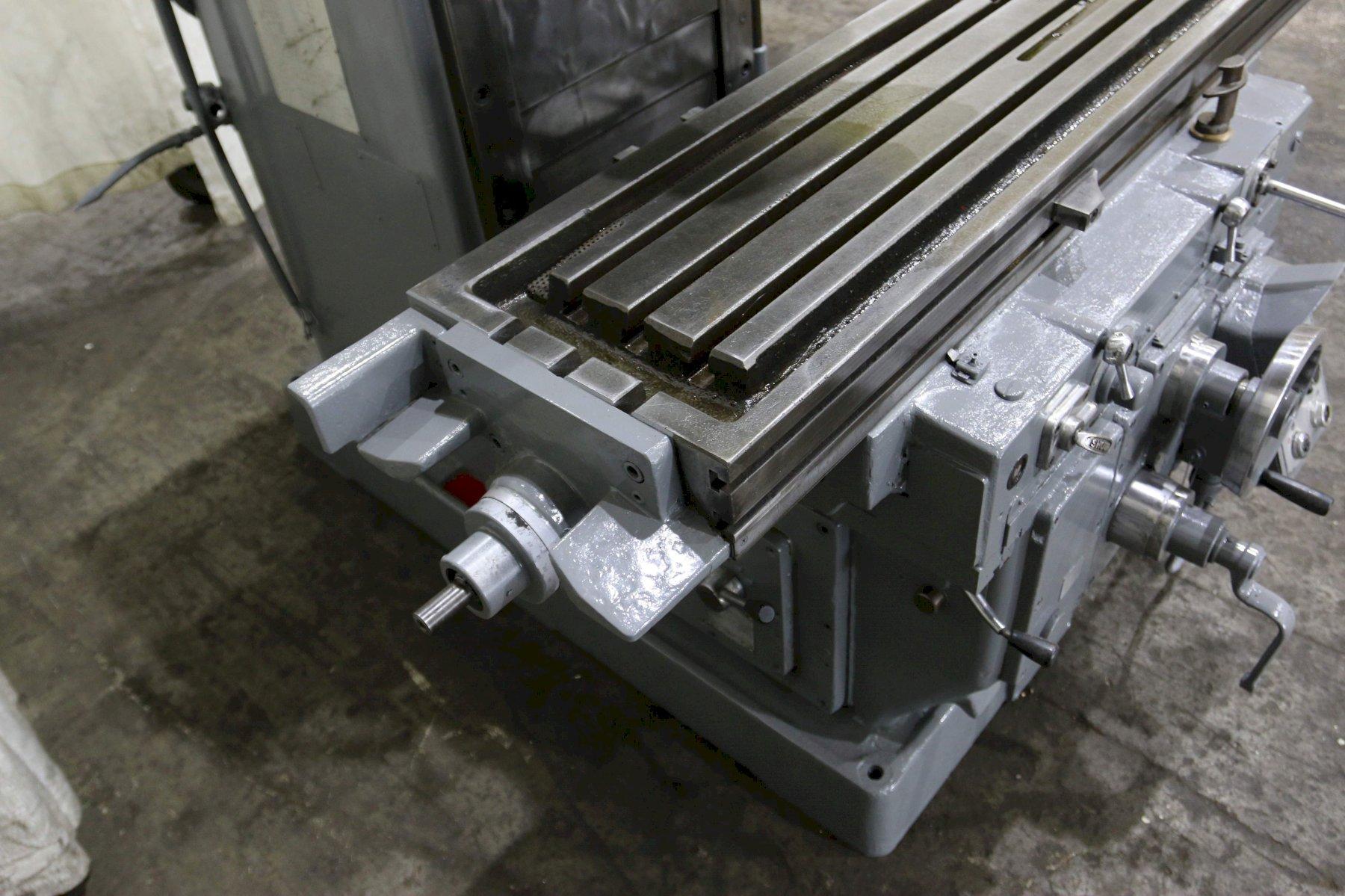

OKK MODEL #MH-3V VERTICAL MILL: STOCK #71027

Manufacturer

Category

Milling Machines

Stock

71027

Model

3 MH3V

Dealer Location

Ohio

Spec Sheet



SERIAL ................................. 777
MODEL ...................................MH-3V
TABLE SIZE ............................. 65" x 14 1/4"
LONGITUDINAL TRAVEL .................... 36-1/4"
SADDLE CROSS TRAVEL .................... 11-3/4"

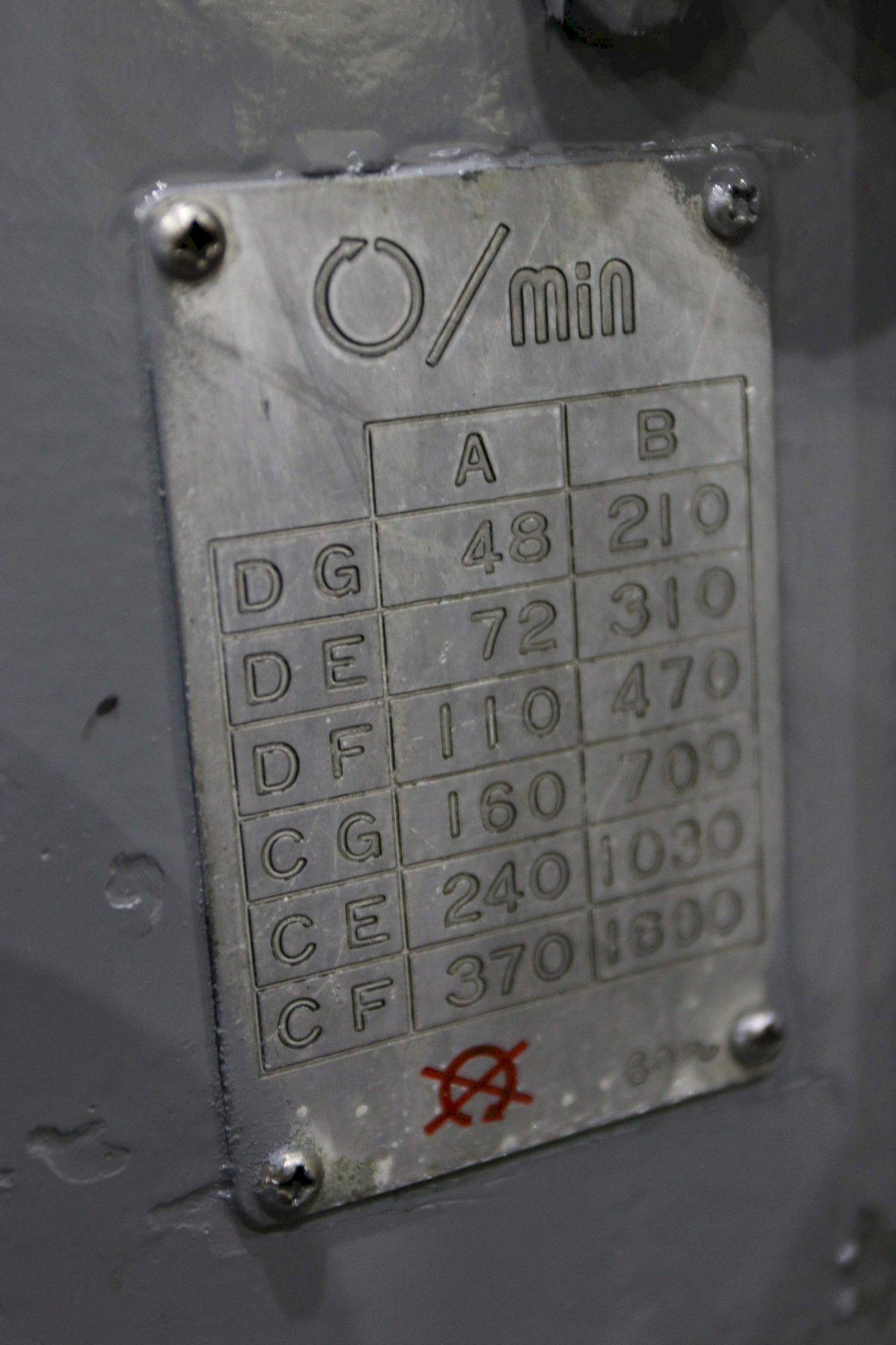

SPINDLE SPEEDS ......................... 19 TO 1900 RPM (24)
TABLE FEEDS ............................ (12) 1/2 TO 86 1/4 IPM
VERTICAL FEEDS ......................... (12) 1/5 TO 34 1/2 IPM
POWER RAPID TRAVERSE ................... 125 IPM
VERTICAL TRAVEL OF HEAD ................ 15-3/4"
SPINDLE TO TABLE ....................... 3-1/8" TO 18-7/8"
SPINDLE TAPER .......................... #50 NS
POWER FEEDS ............................ 3 AXIS
COOLANT SYSTEM ......................... YES
AUTO LUBE .............................. YES
MAIN MOTOR ............................. 10 HORSEPOWER
FEED MOTOR ............................. 2 HORSEPOWER
