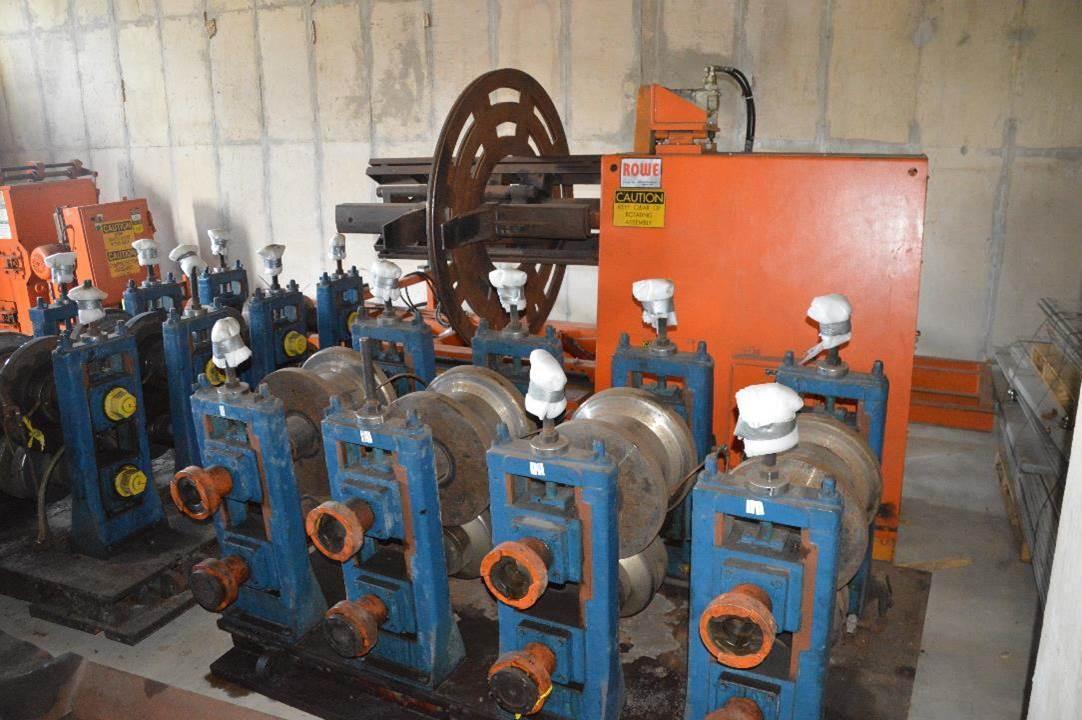

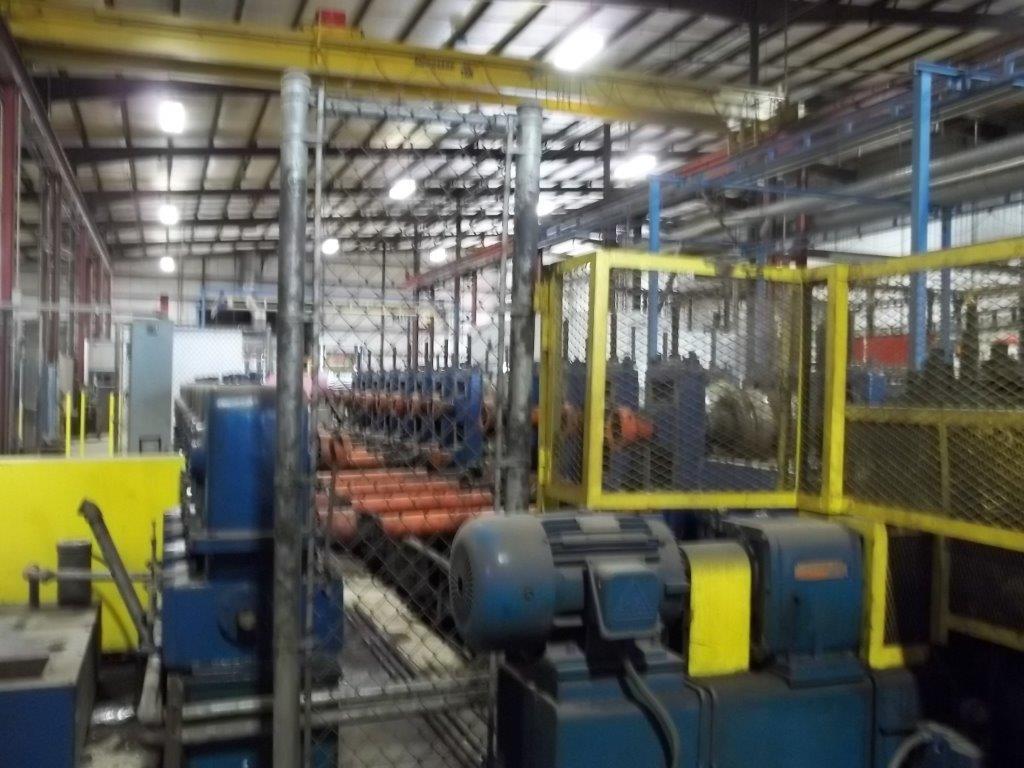

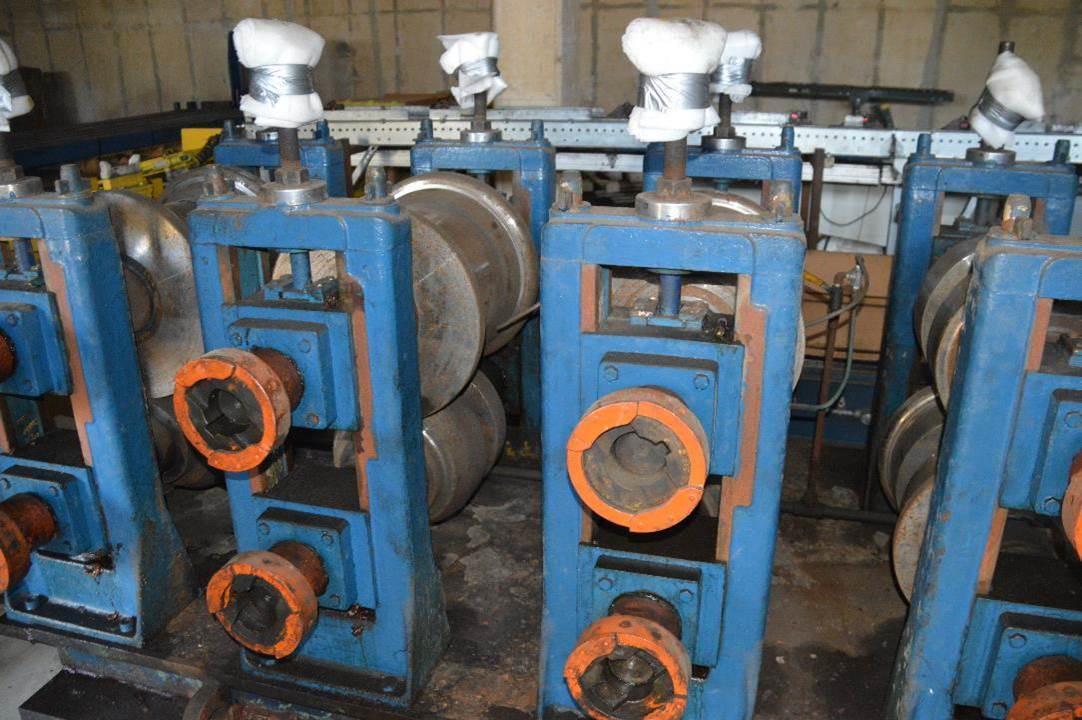

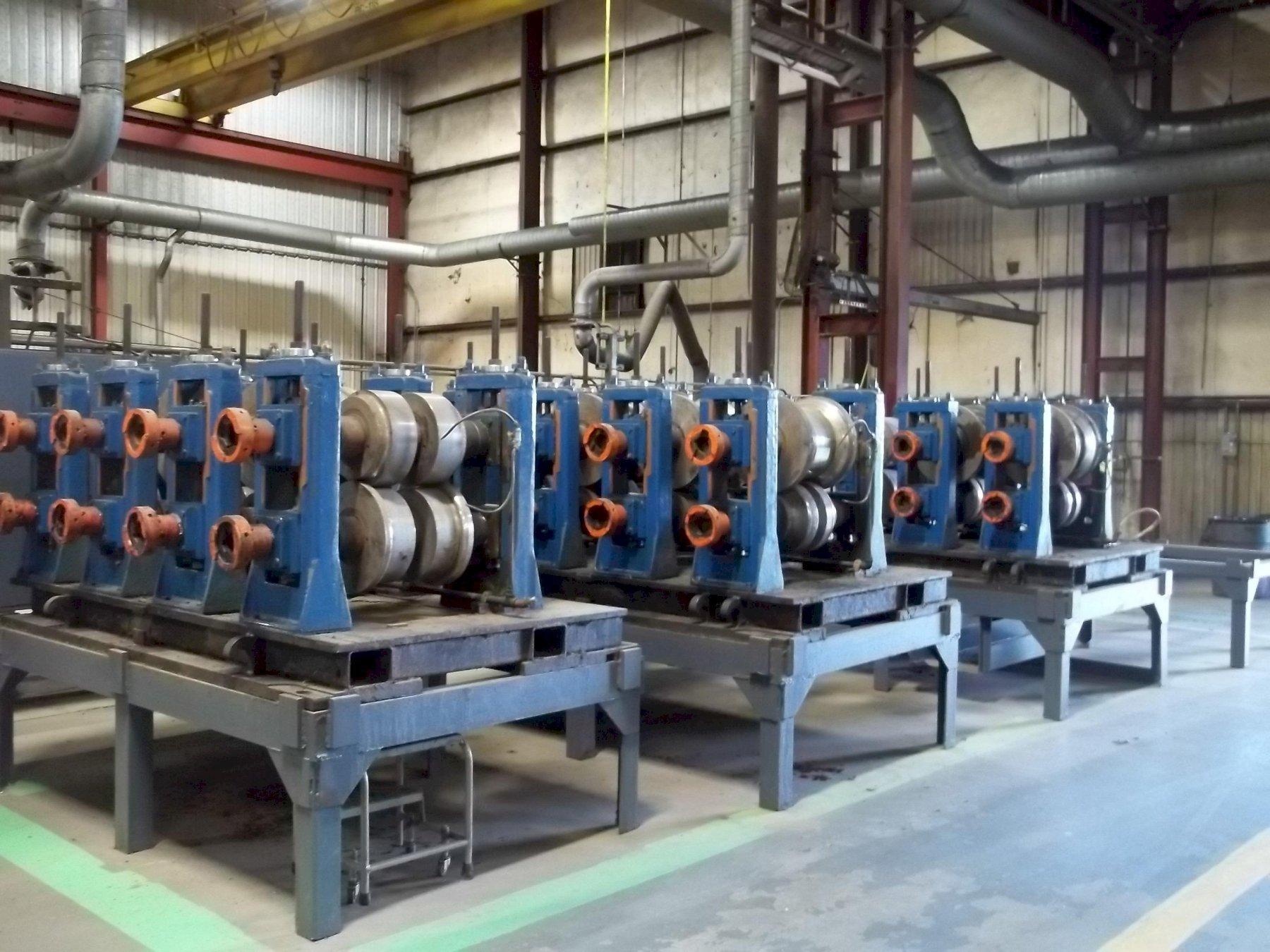

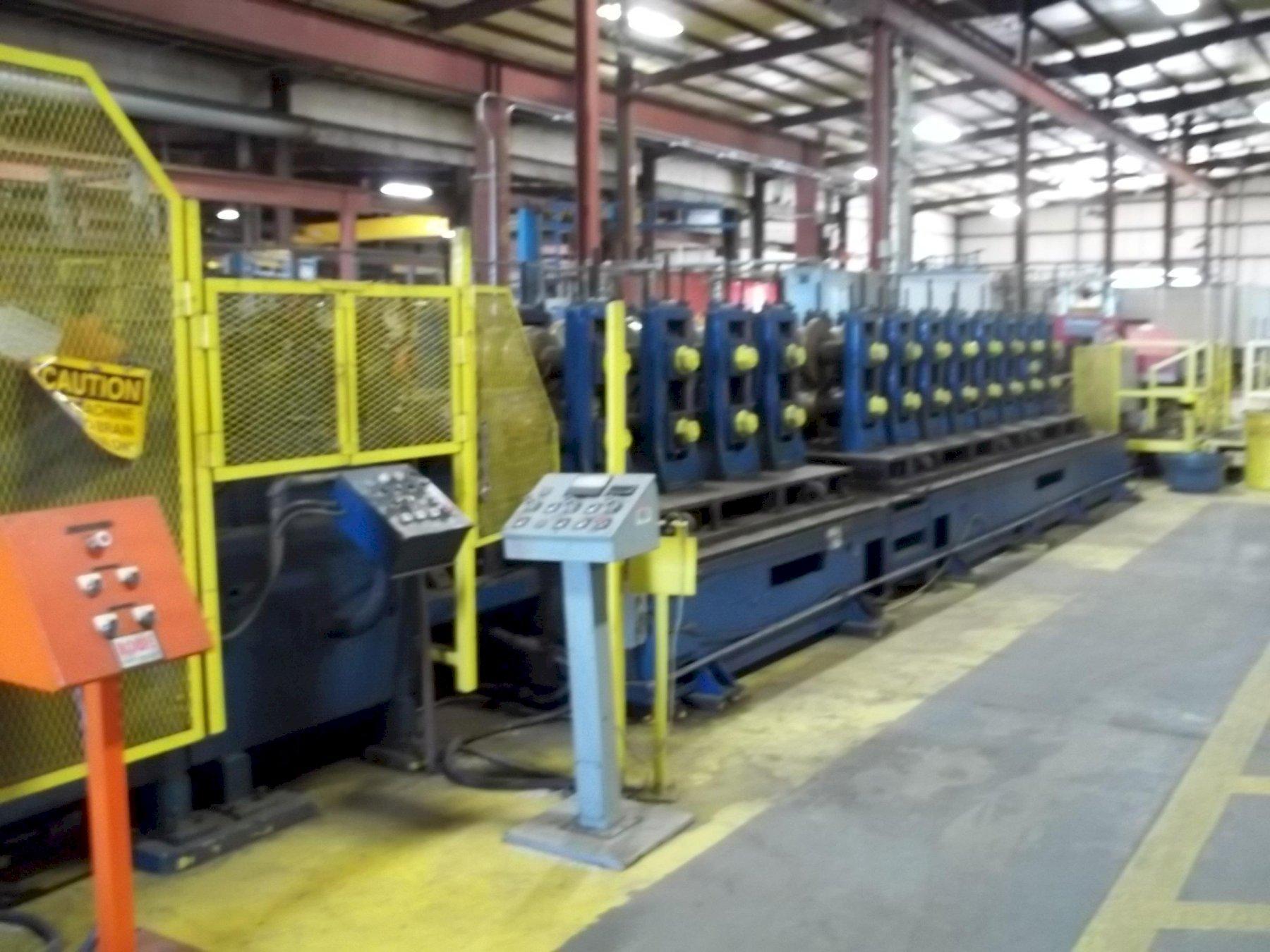

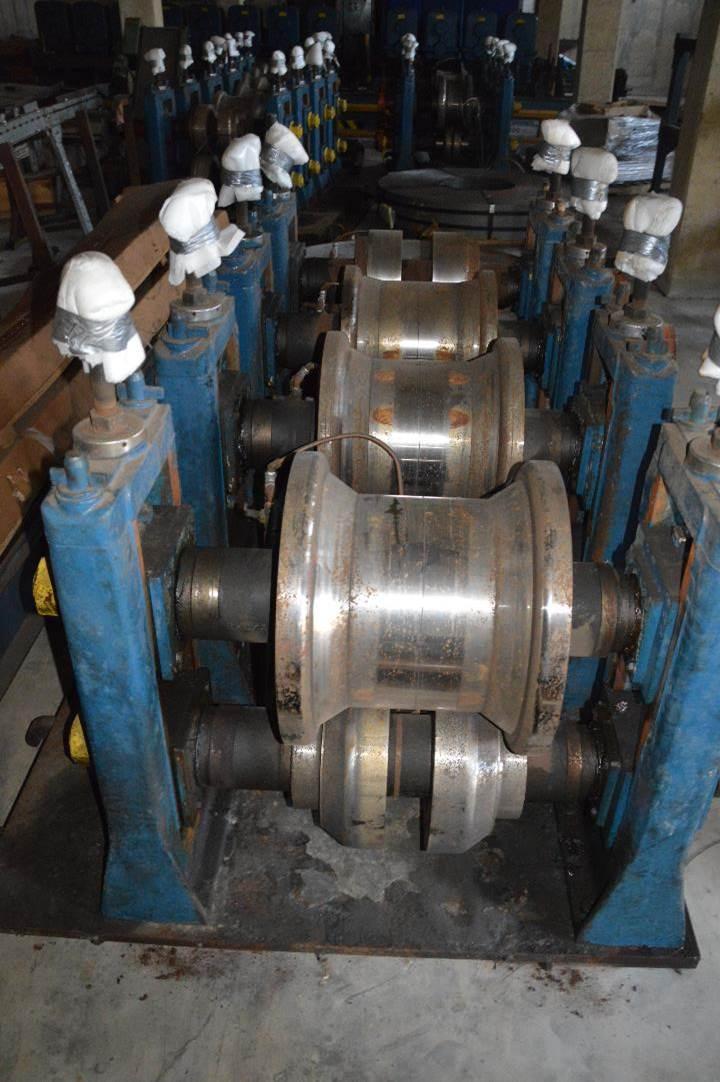

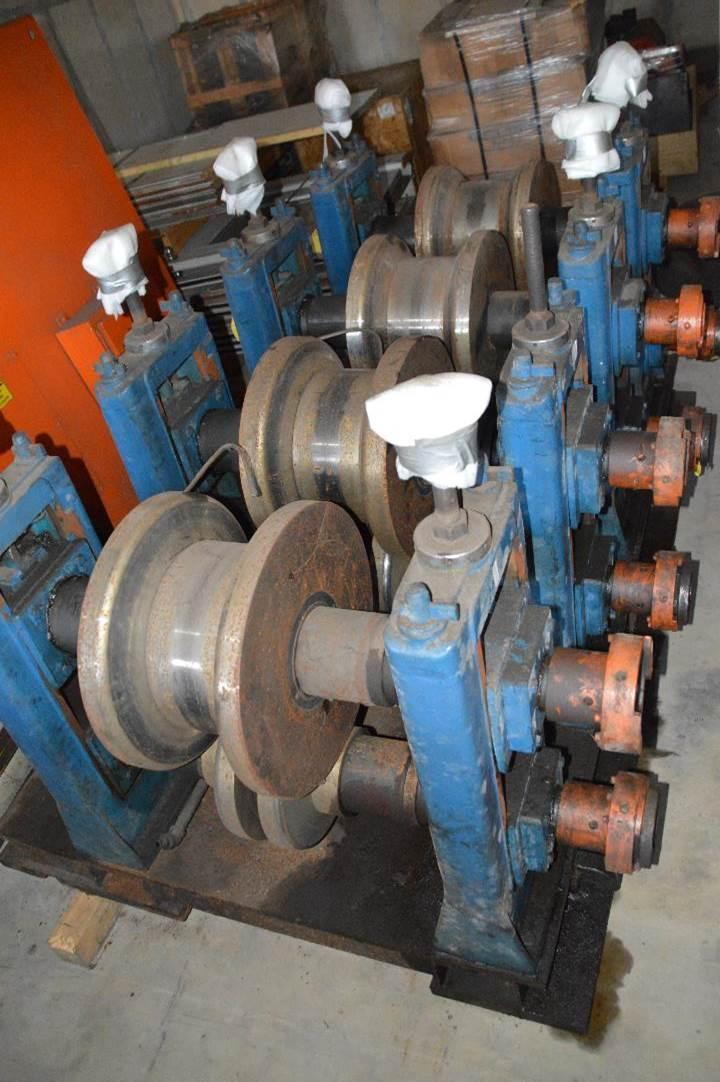

12 STAND X 4-1/2" X 32" YODER W35 RAFTED ROLLFORMER LINE: STOCK # 69878

Manufacturer

YODER

Category

Roll Formers

Type

ROLL FORMERS

Stock

69878

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

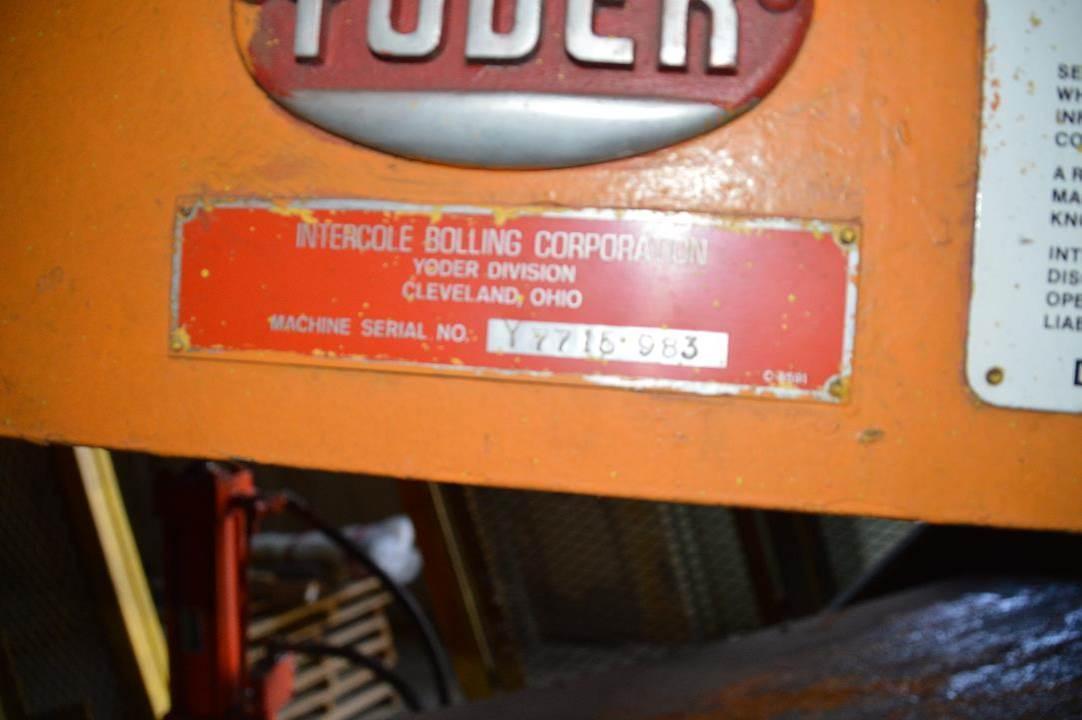

SERIAL ............................ Y7715
MODEL ............................. W35
YEAR NEW .......................... 1983

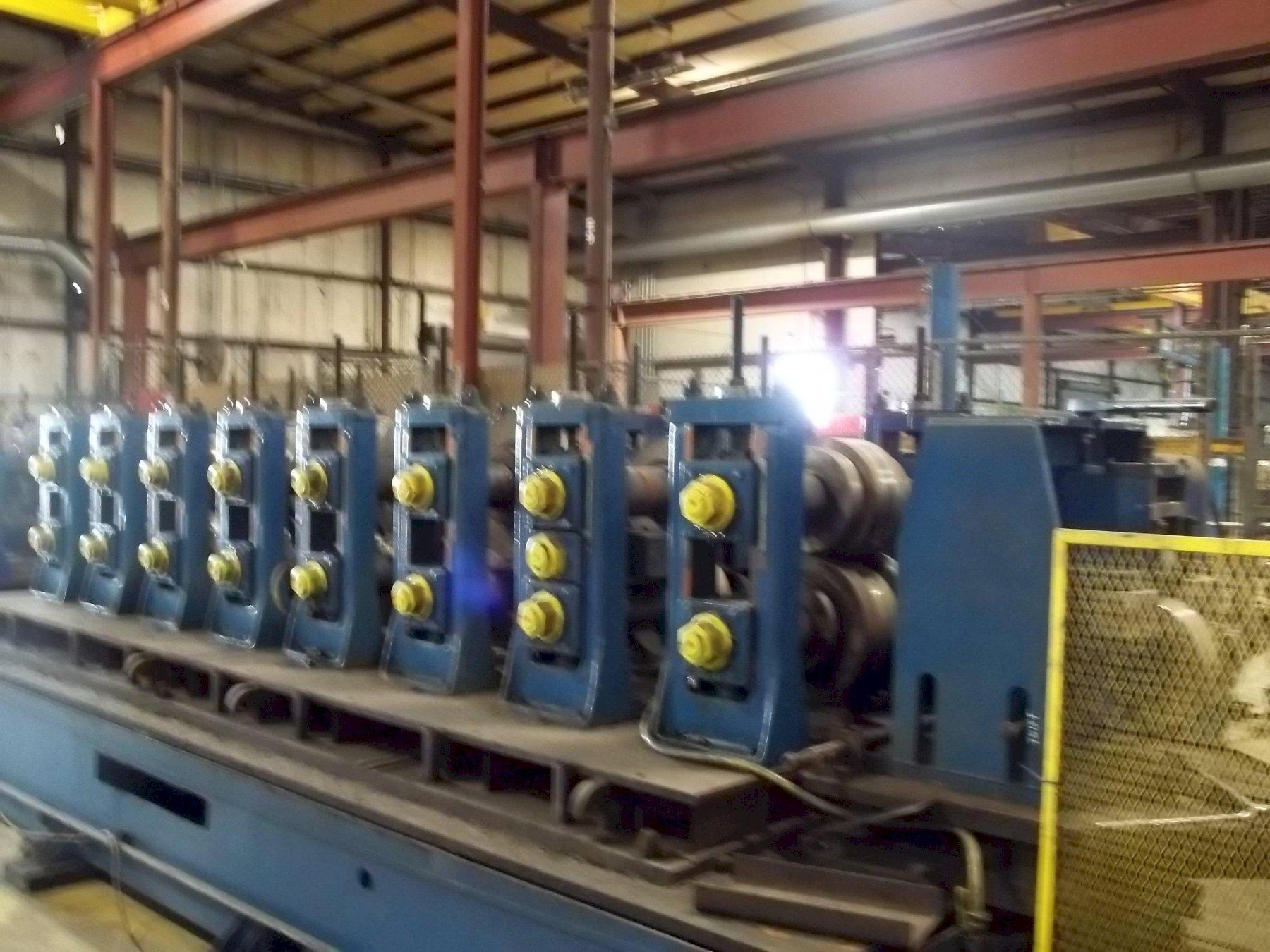

NUMBER OF STANDS .................. 12
SHAFT DIAMETER .................... 4-1/2"
ROLL SPACE ........................ 26"
VERTICAL CENTER ................... 8" TO 14"
HORIZONTAL CENTER ................. 24"
BASE TO BOTTOM SHAFT CENTERLINE ... 11"
DIRECTION OF TRAVEL ............... R TO L
RAFTED ............................ YES

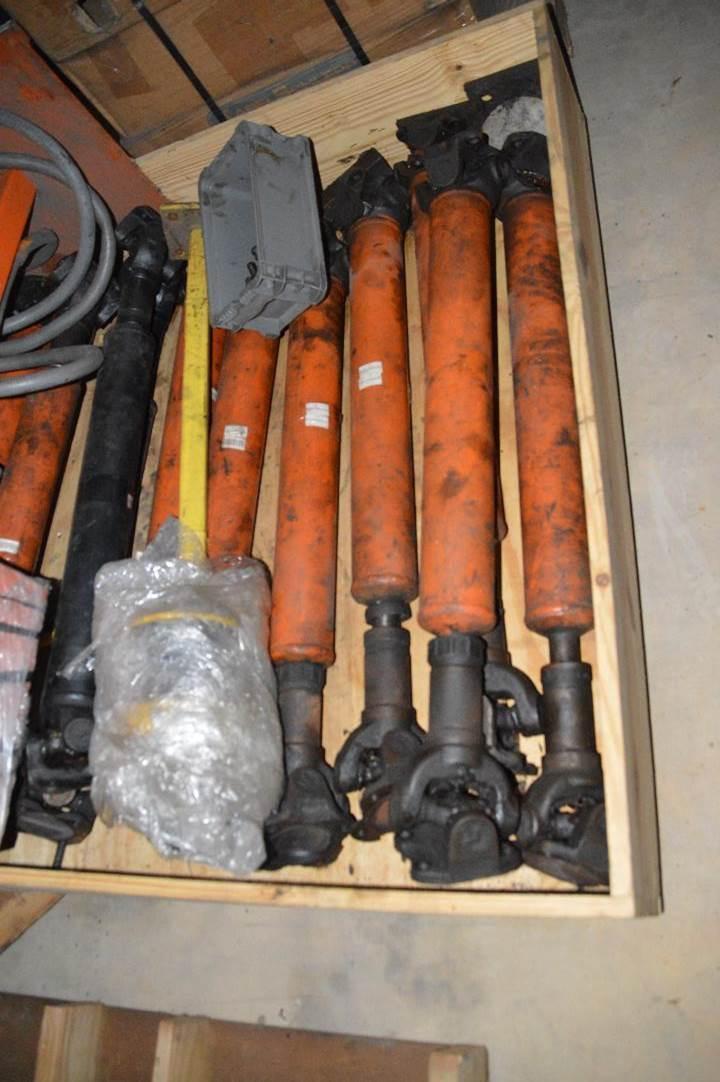

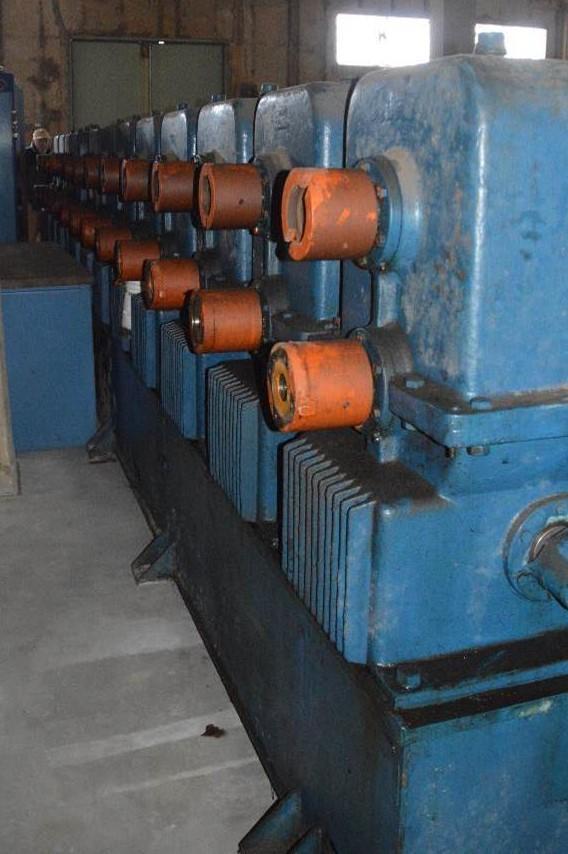

U-JOINT DRIVE ..................... YES
ENTRY EDGE GUIDES ................. YES
TURKS HEAD ........................ YES
AC MOTOR & CONTROLS ............... YES

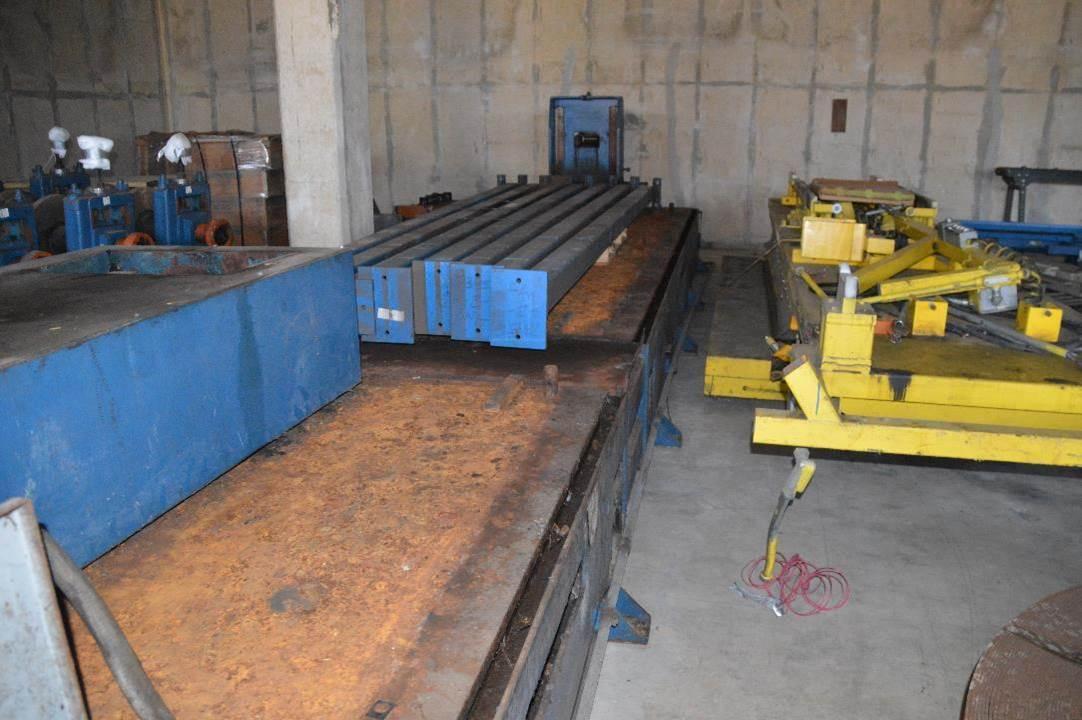

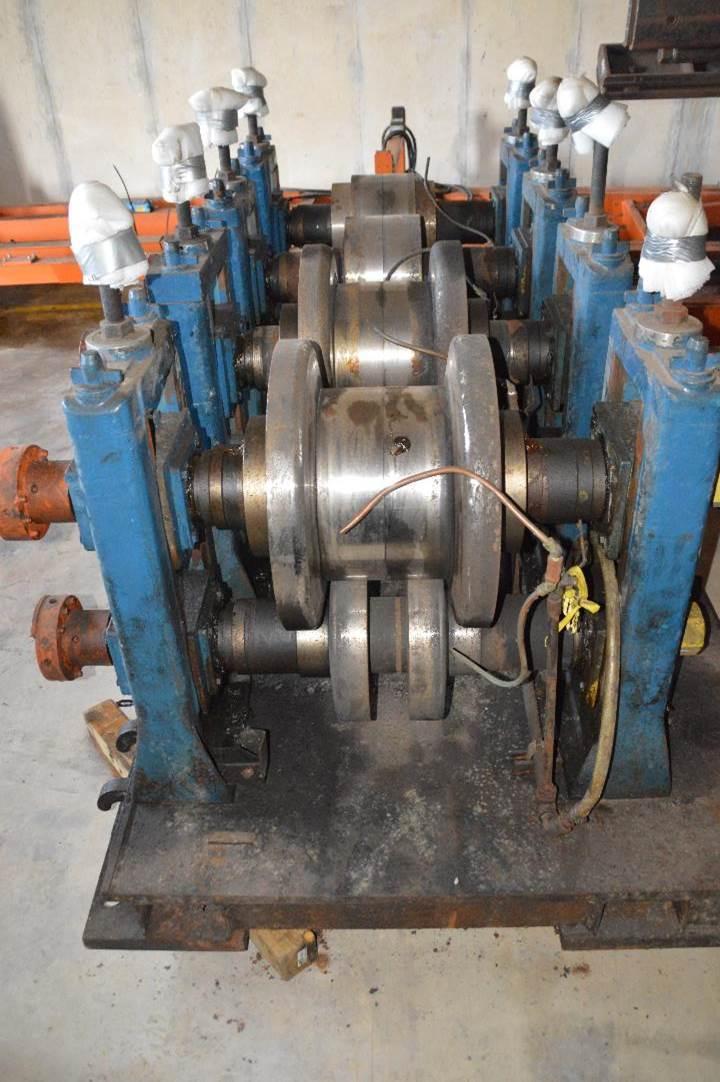

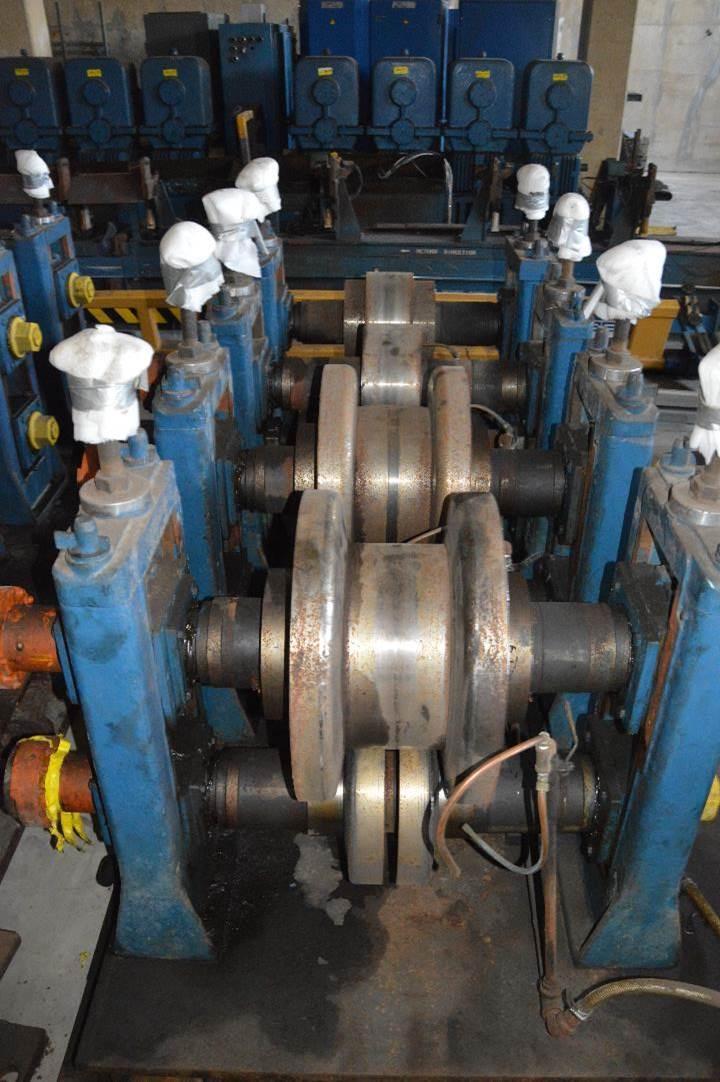

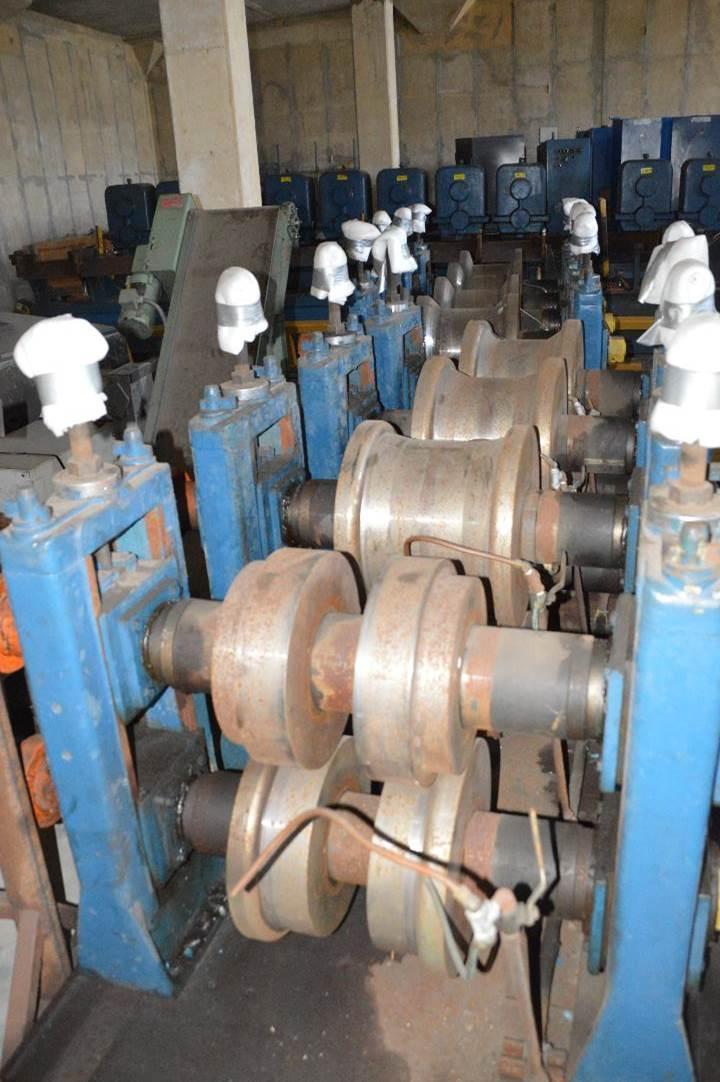

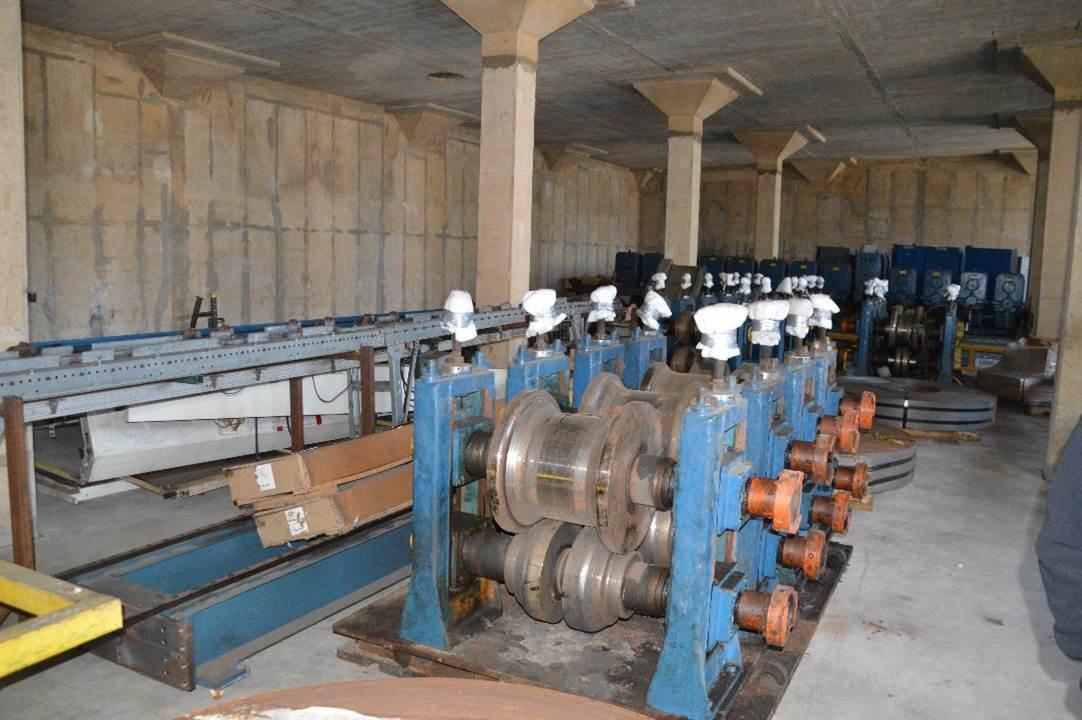

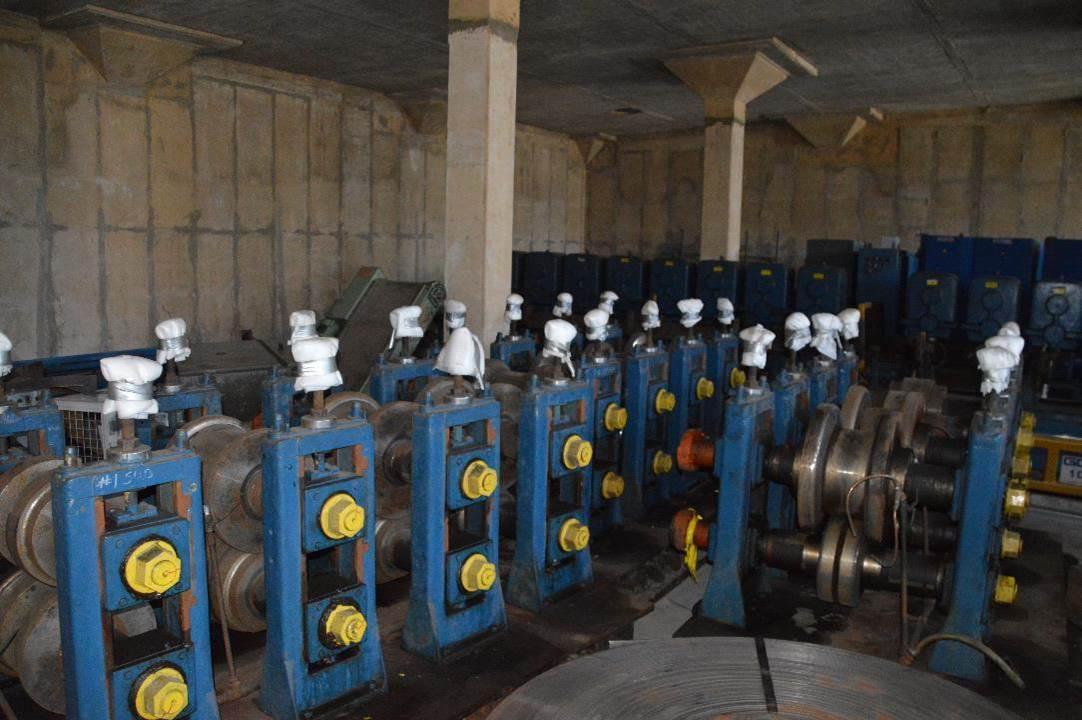

RAFTED HEADS (ADDITIONAL) ......... 12 HEADS ON 3 STANDS

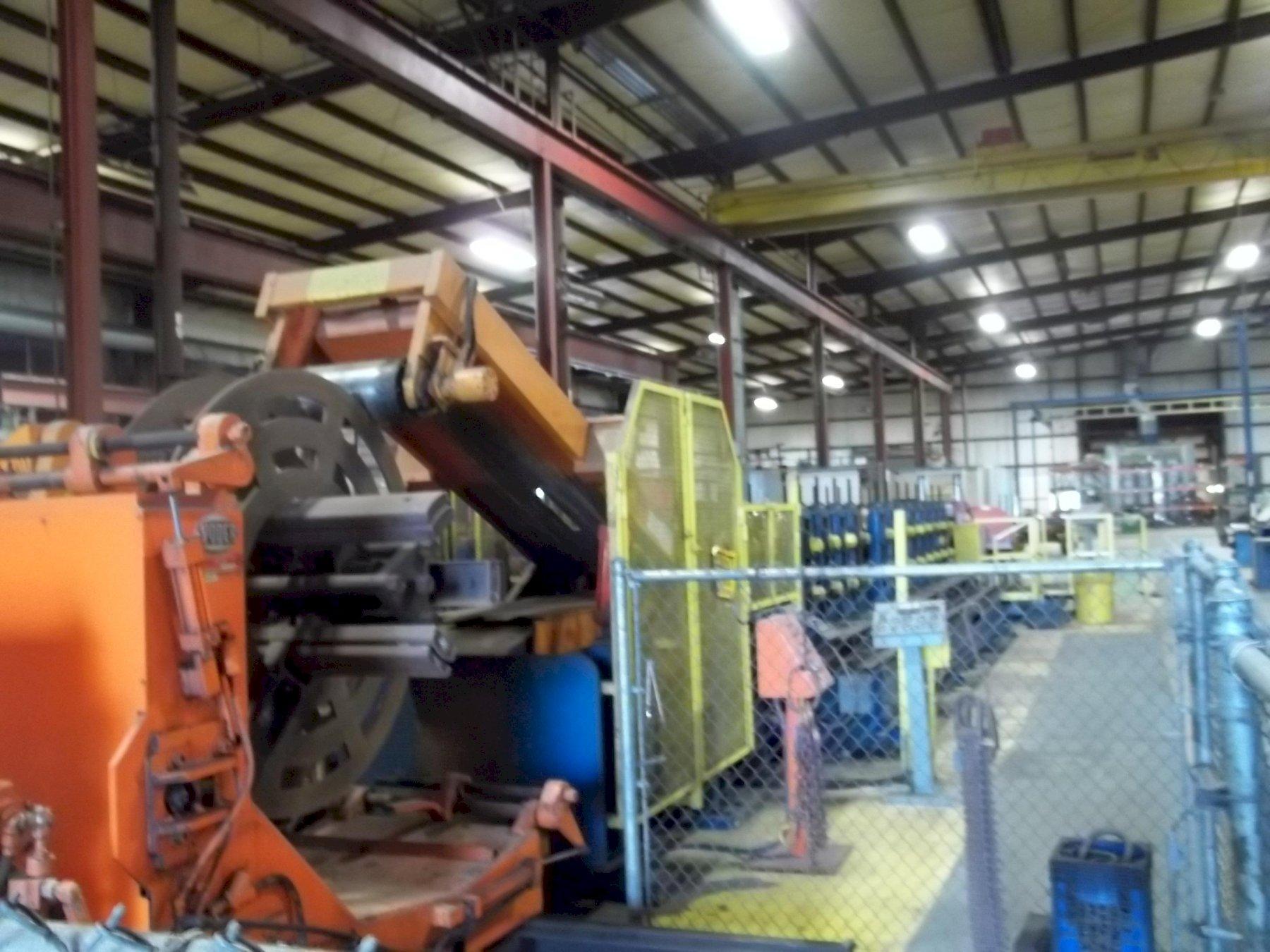

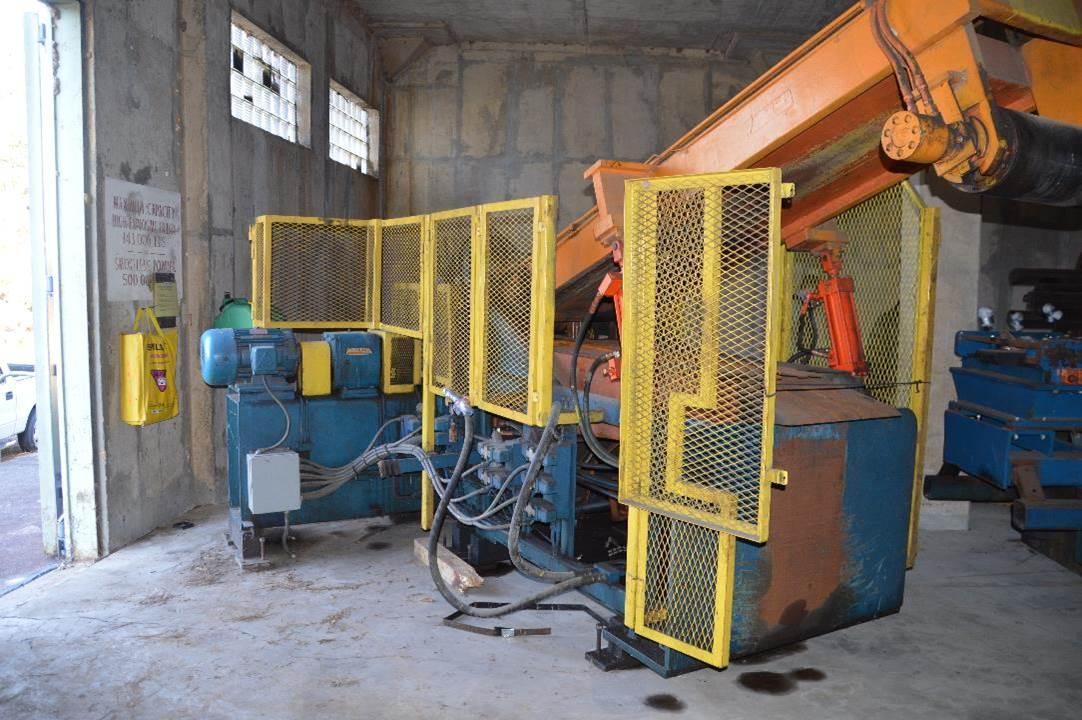

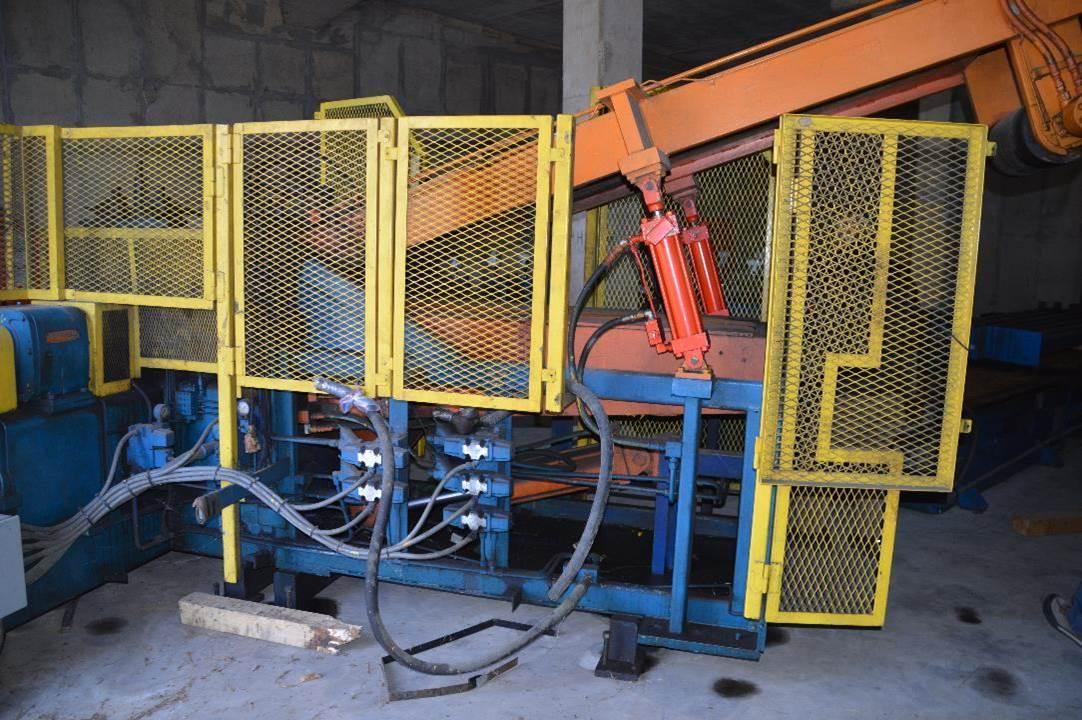

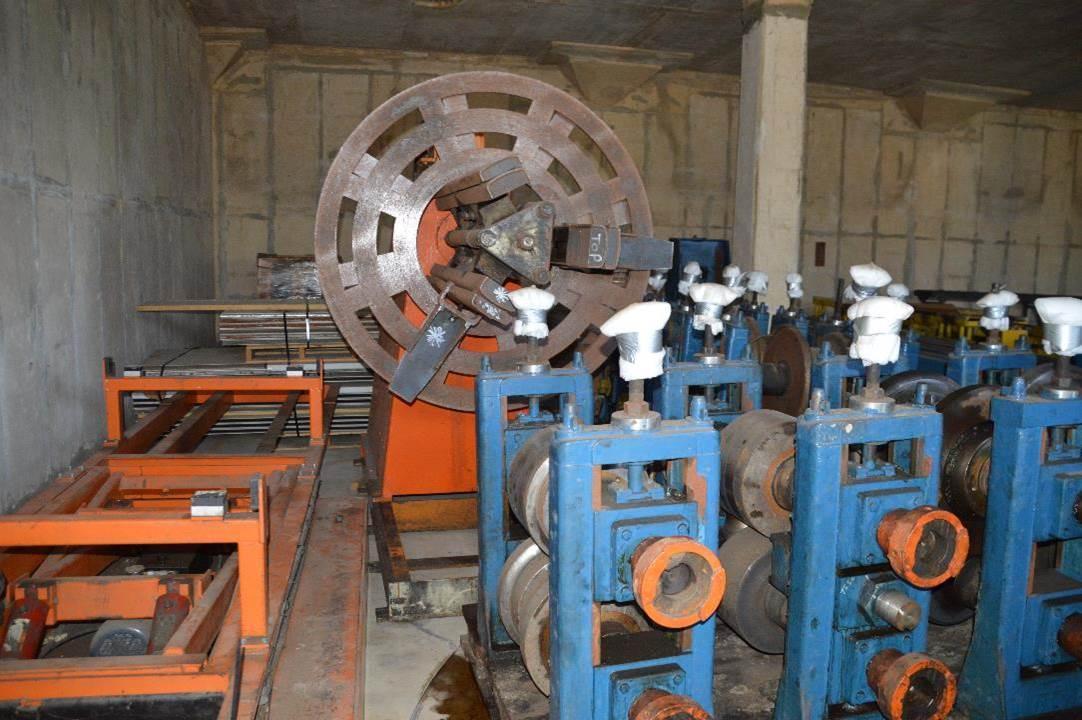

20,000 LB X 32" MOTORIZED UNCOILER:
YEAR ............................. 1986
CAPACITY ......................... 20,000 LBS
MAX WIDTH ........................ 32"
COIL ID .......................... 16-20"
COIL ID (WITH BUILD UP LEAVES).... 24"
COIL OD .......................... 60"
HYDRAULIC EXPANSION .............. YES
DRAG BRAKE ....................... YES

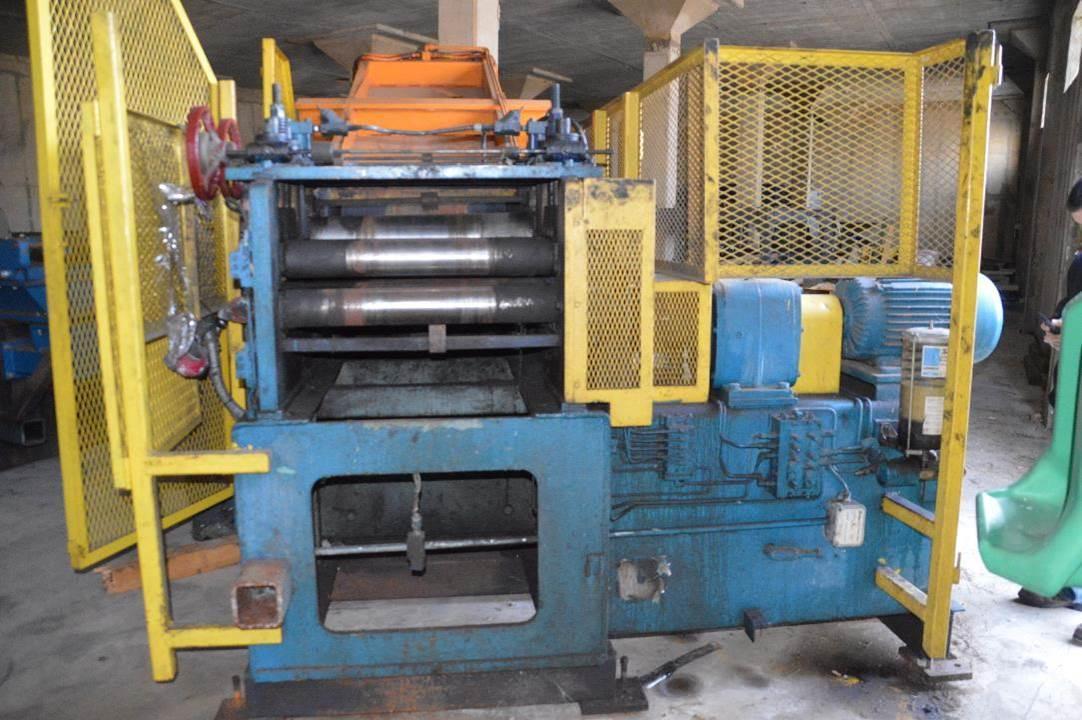

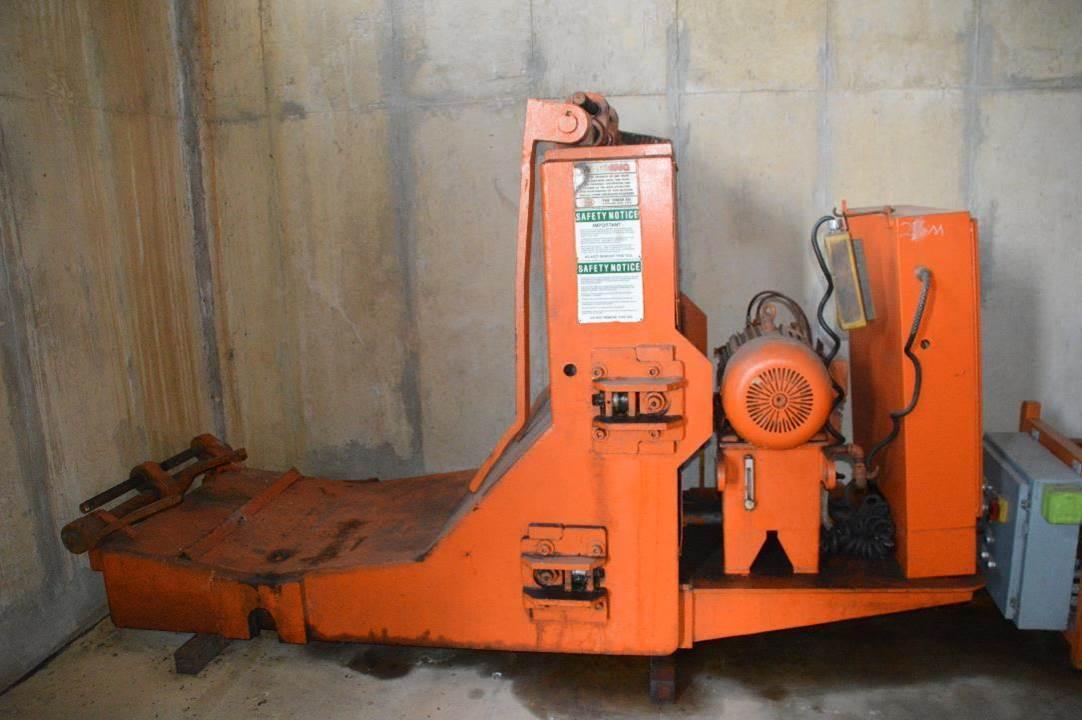

YODER STRAIGHTENER WITH HOLD DOWN & PEELER:
CAPACITY ....................... 24" X 1/4"
ROLL DIAMETER .................. 4-1/2"
ROLL FACE ...................... 32"
NUMBER OF STRAIGHTENING ROLLS .. 5
HYDRAULIC HOLD DOWN ............ YES
OVER & UNDER PEELER ............ YES
