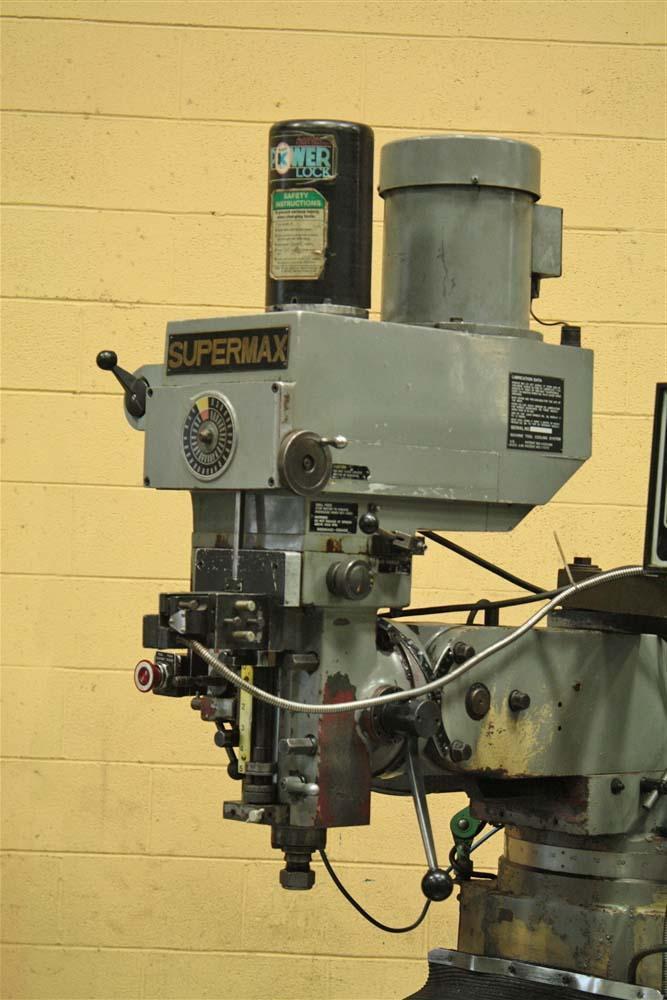

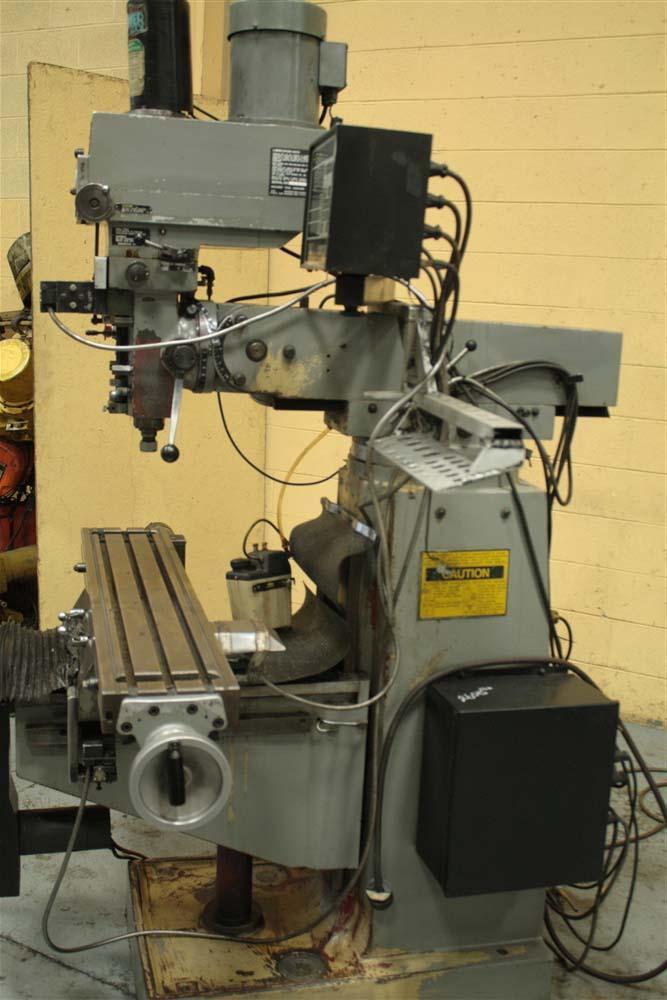

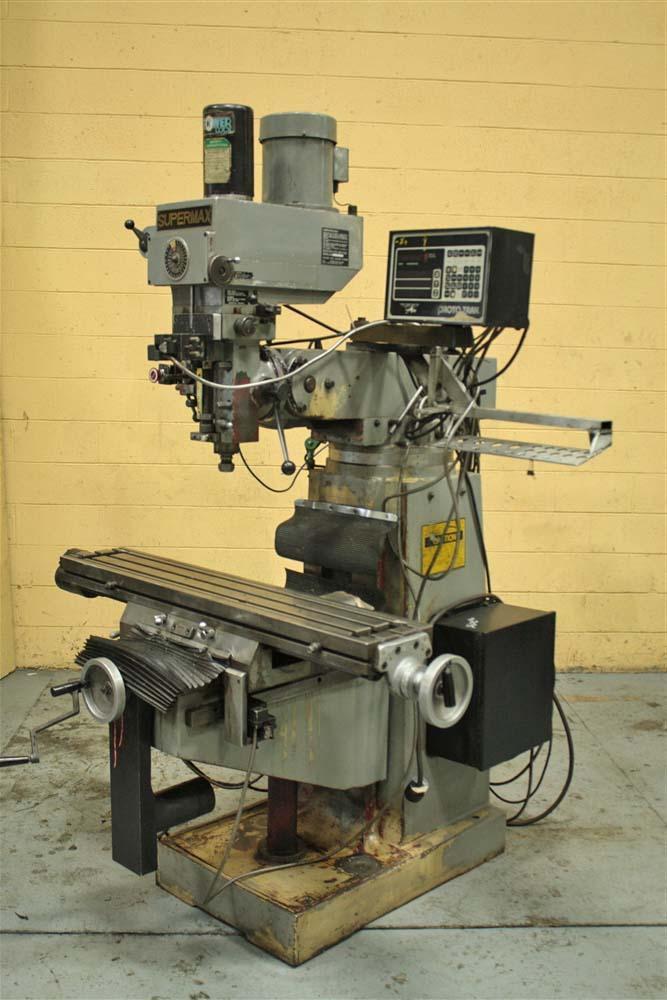

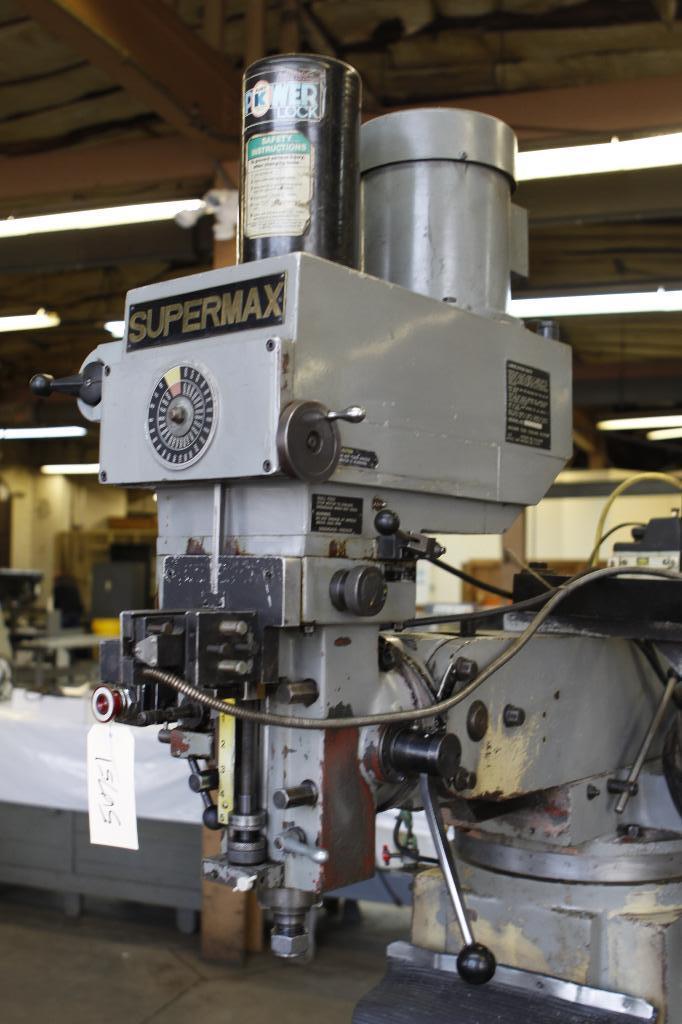

SUPERMAX MODEL YCM-16VS CNC VERTICAL MILL, PROTOTRAK: STOCK #56751

Manufacturer

Category

Milling Machines

Type

MILLERS, KNEE, CNC

Stock

56751

Model

YCM-16VS

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

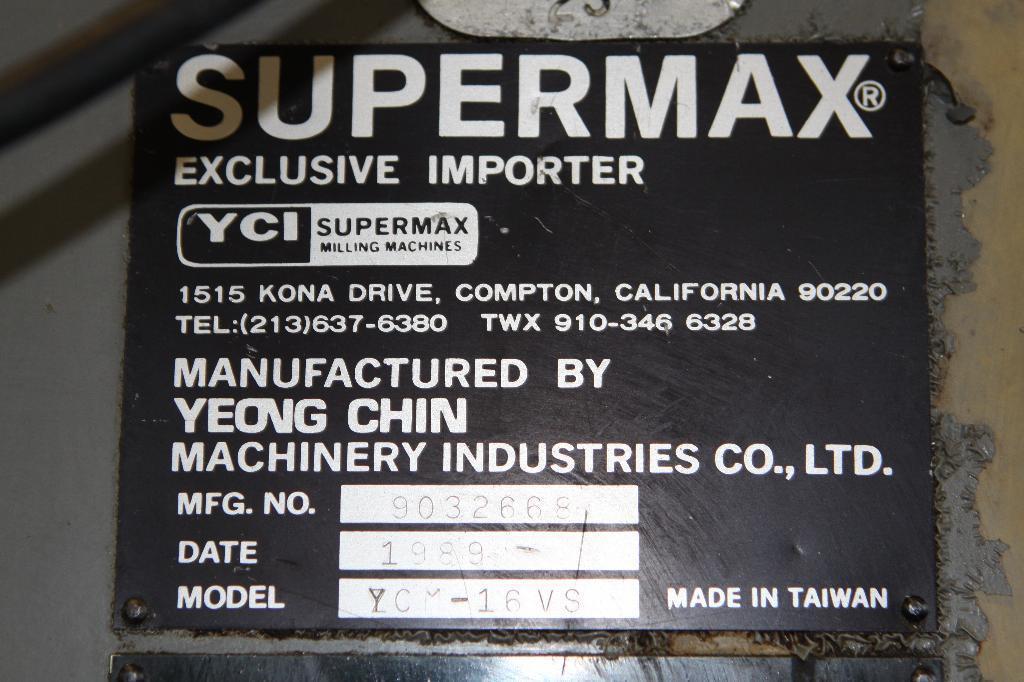

SERIAL ................... 9032668
MODEL .................... YCM-16VS
YEAR ..................... 1989

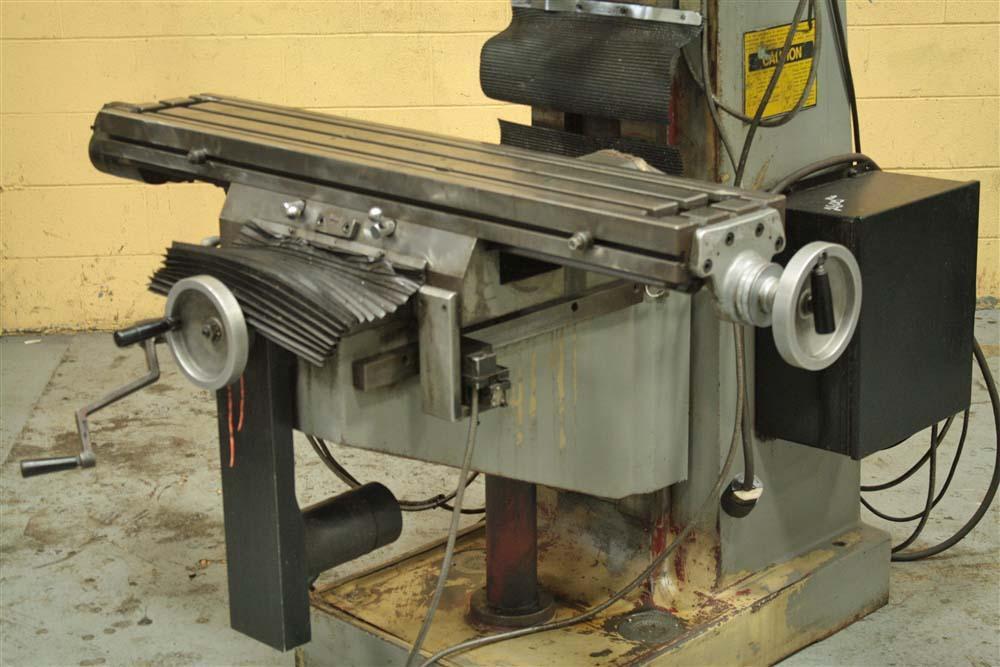

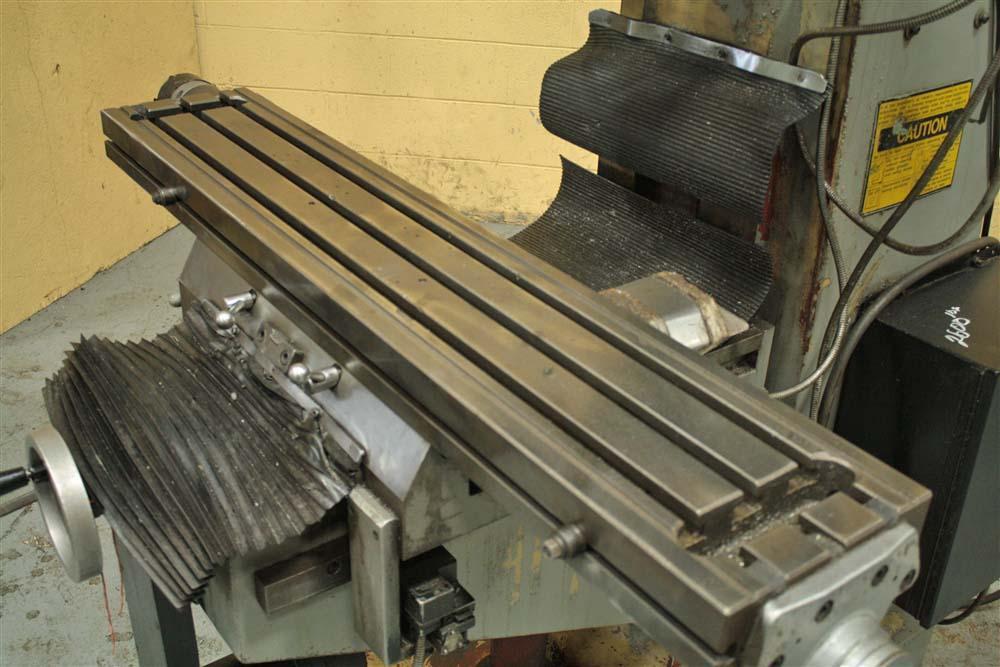

TABLE SIZE ............... 9" X 49"
LONGITUDINAL TRAVEL ...... 37" MANUAL; 36-3/4" POWER
CROSS TRAVEL ............. 16"
VERTICAL KNEE TRAVEL ..... 16"
RAM TRAVEL ............... 18"
TURRET ROTATION .......... 360 DEG.
SPINDLE SPEEDS ........... (LOW) 60-500 RPM; (HIGH) 500-4200 RPM
SPINDLE TAPER ............ R-8
COLLET CAPACITY .......... 1/16" TO 7/8"

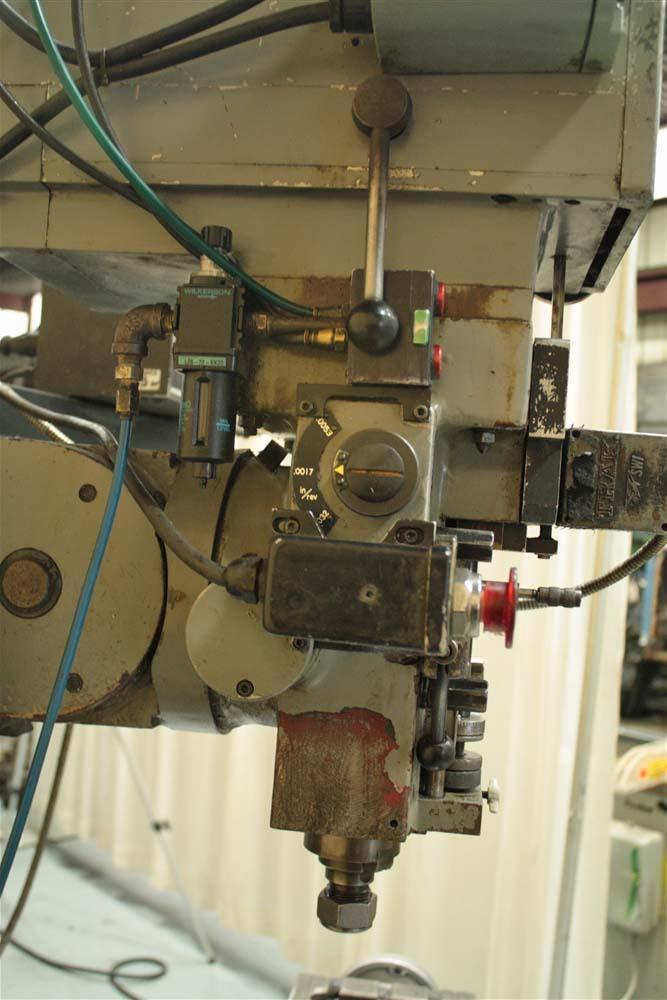

QUILL TRAVEL ............. 5"
QUILL DIAMETER ........... 3-3/8"
DRILLING CAPACITY ........ POWER: 3/8" MILD STEEL/ HAND: 3/4" MILD STEEL
BORING RANGE ................ UP TO 6" DIAMETER

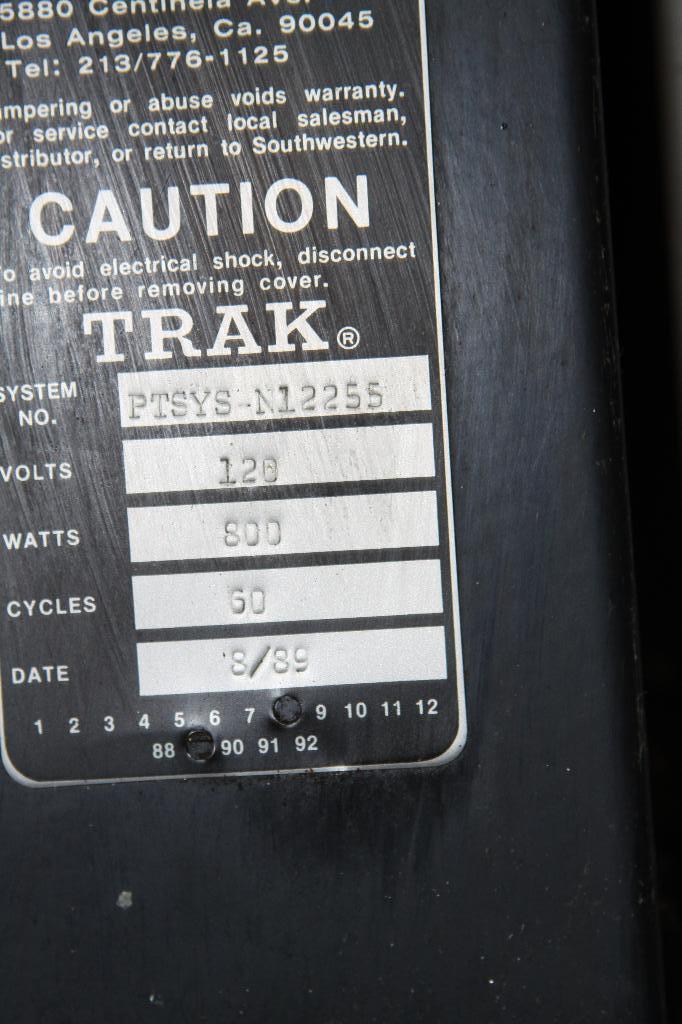

CNC CONTROLS ................ SOUTHWEST INDUSTRIES (SWI) PROTO TRAX
