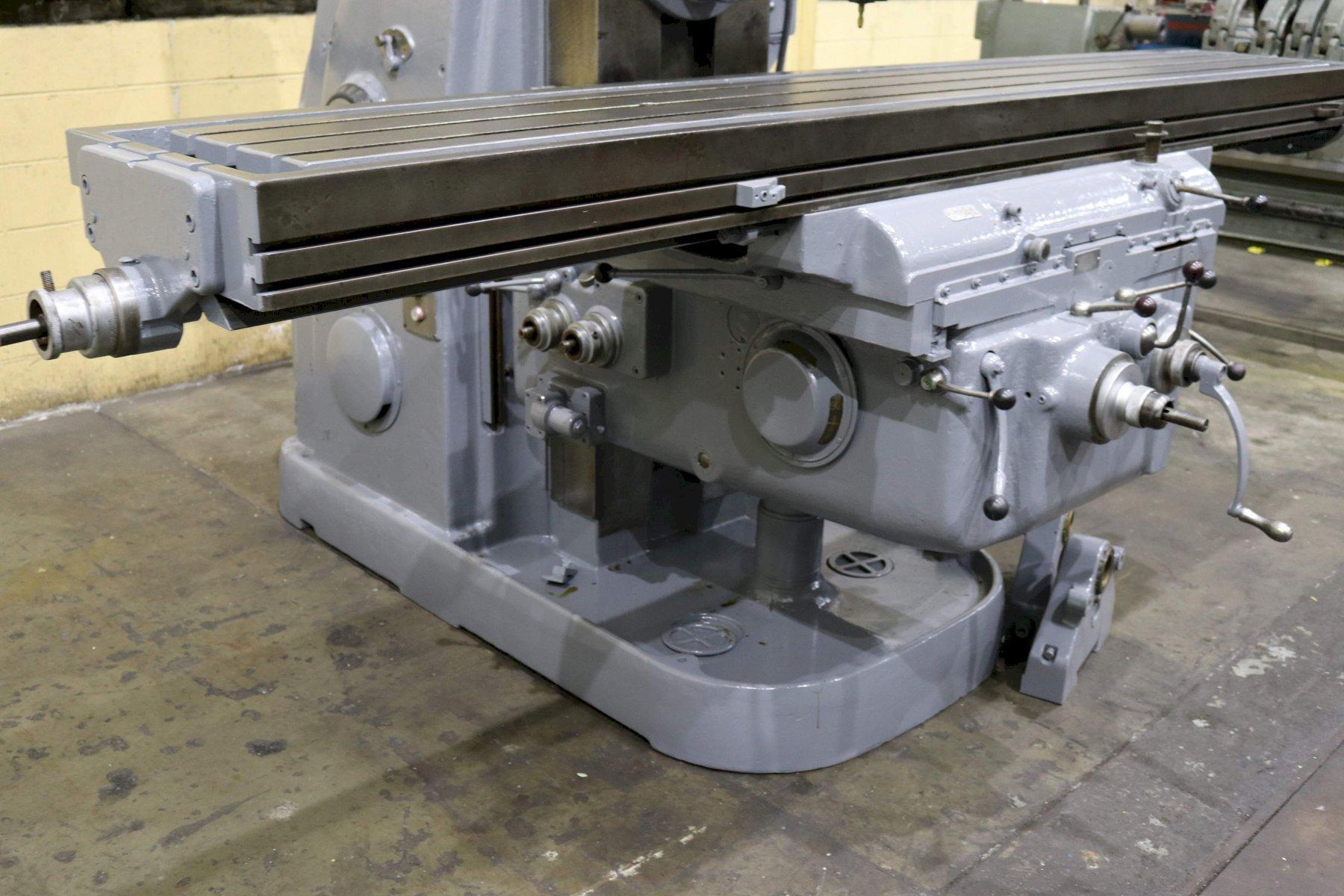

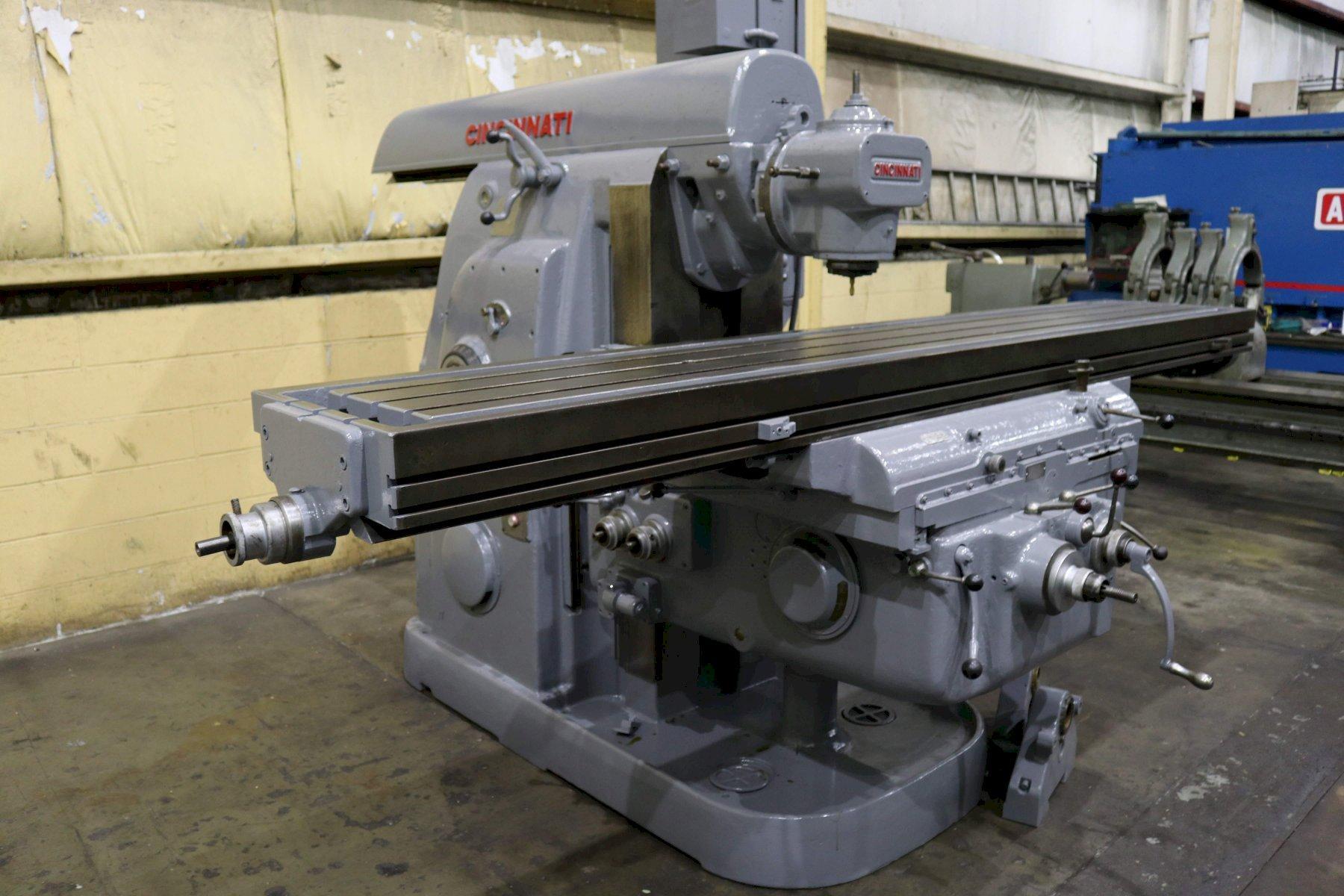

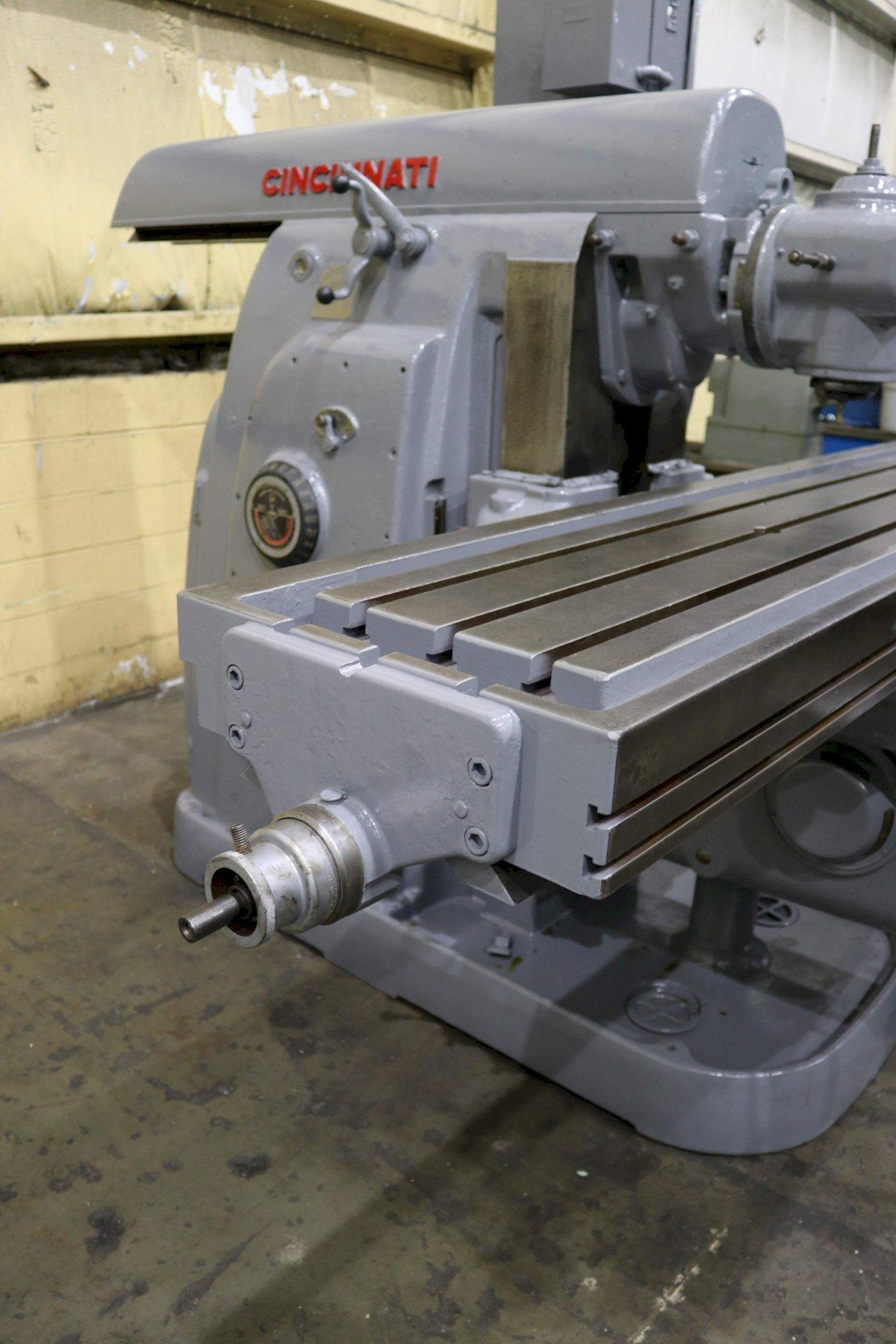

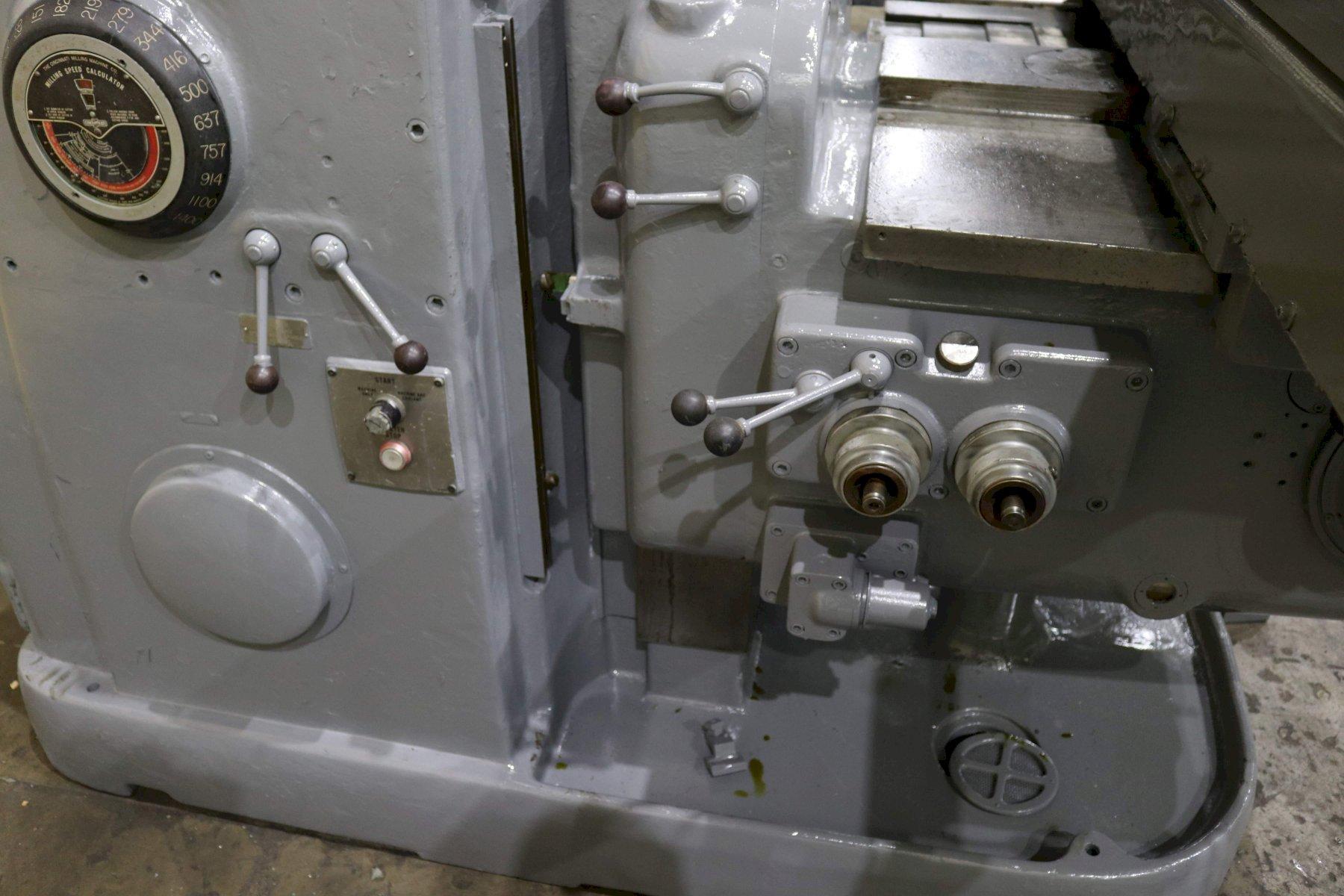

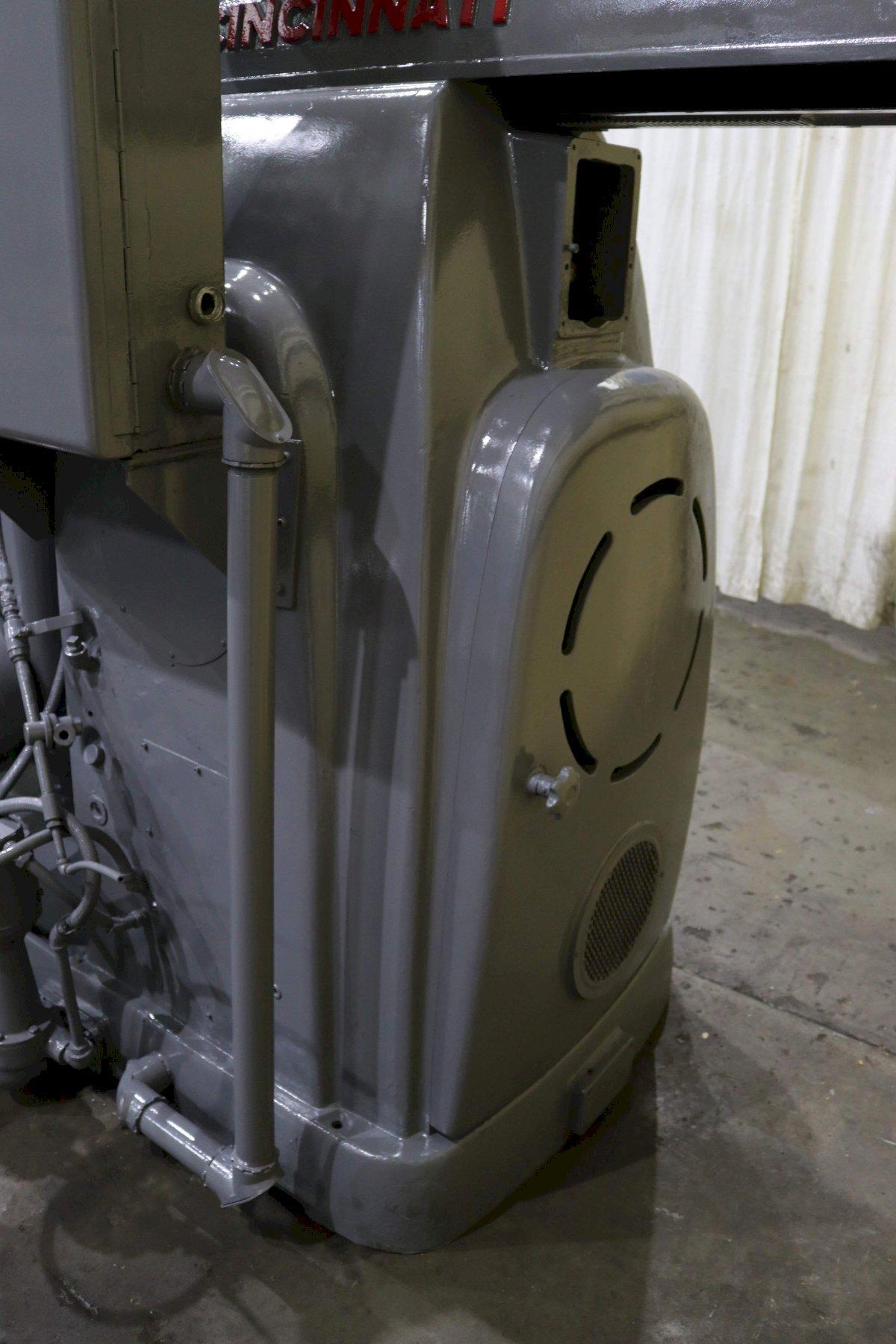

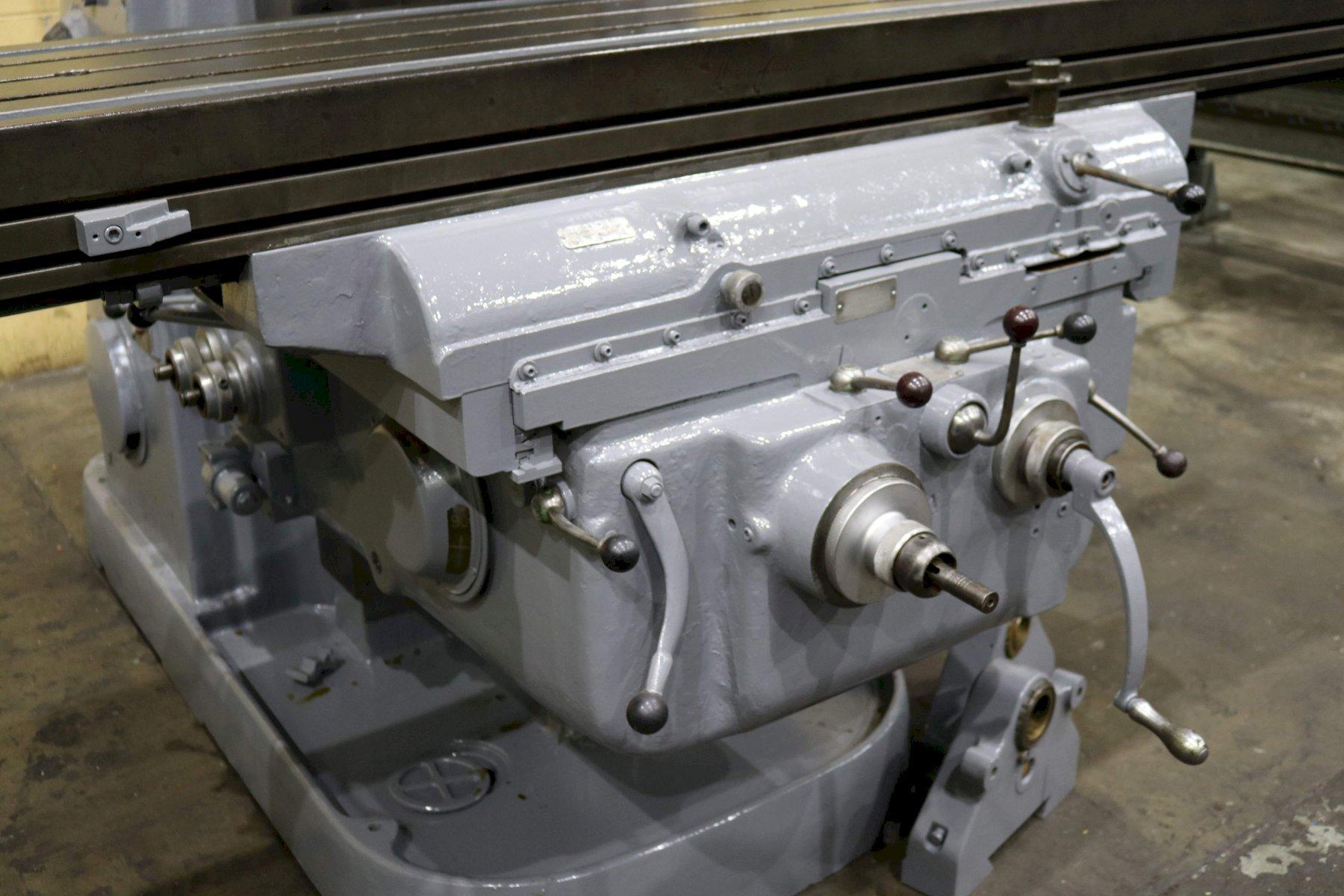

CINCINNATI #6 HORIZONTAL MILL: STOCK #72873

Stock

72873

Model

6

Dealer Location

Ohio

Spec Sheet



SERIAL ................................. #4J6P5E -11
MODEL .................................. #6

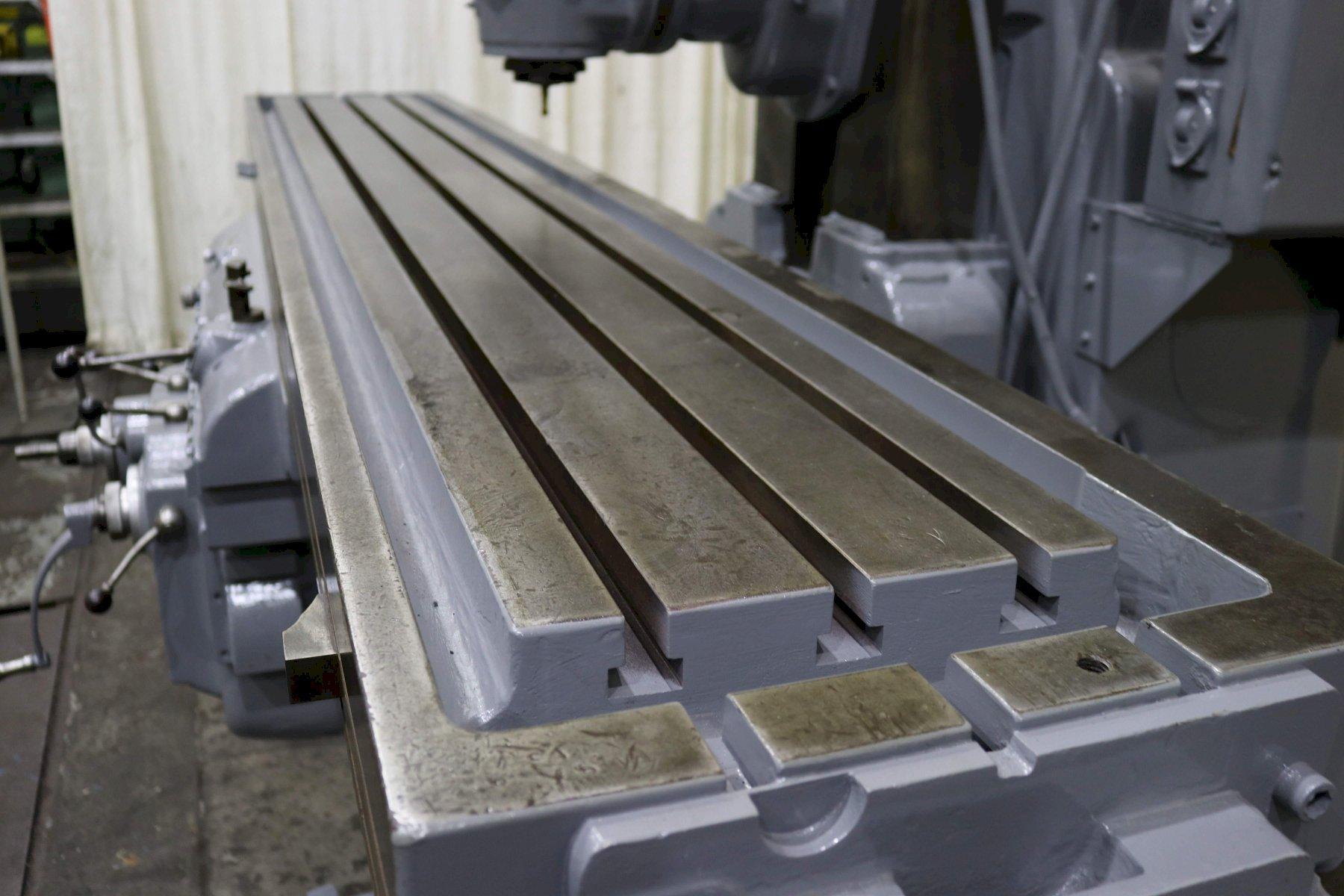

AREA OF TABLE .......................... 116-1/2" X 20"

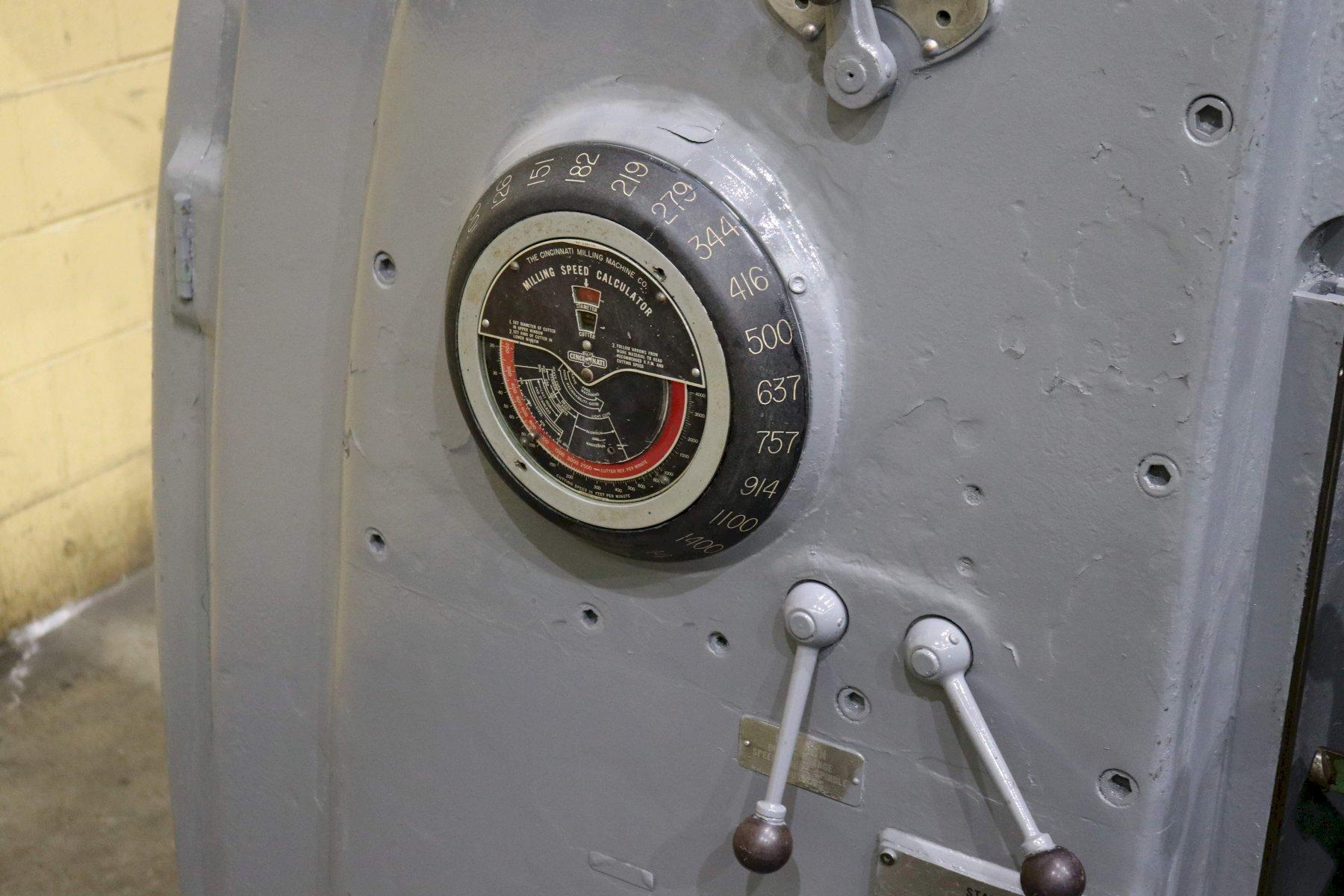

HORIZONTAL SPINDLE SPEEDS .............. (24) 14 TO 1400 RPM
VERTICAL SPINDLE SPEEDS ................ (8) 75 TO 1125 RPM
LONGITUDINAL AND CROSS FEEDS ........... (32) 3/8 TO 90 IPM
VERTICAL FEEDS ......................... (32) 3/16 TO 45 IPM
LONGITUDINAL TRAVEL .................... 72"
CROSS TRAVEL ........................... 14"
VERTICAL KNEE TRAVEL ................... 20"
TABLE TO CENTERLINE OF SPINDLE ......... 0" MIN, 20" MAX
RAPID TRAVERSE ......................... 150 IPM
TAPER IN HORIZONTAL SPINDLE ............ #50 NS
TAPER IN VERTICAL SPINDLE .............. #50 NS
DUAL CONTROLS .......................... YES

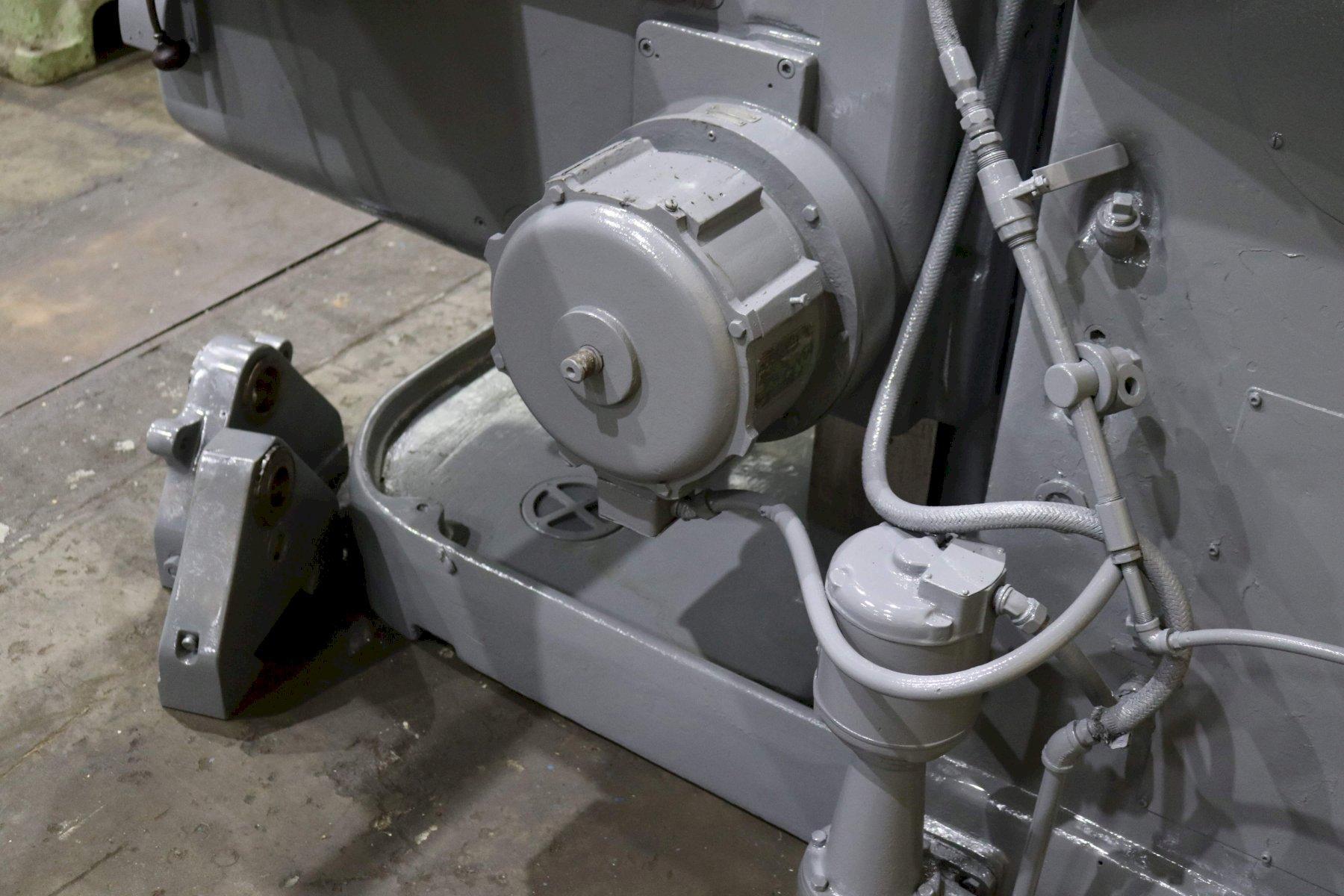

COOLANT ................................ YES

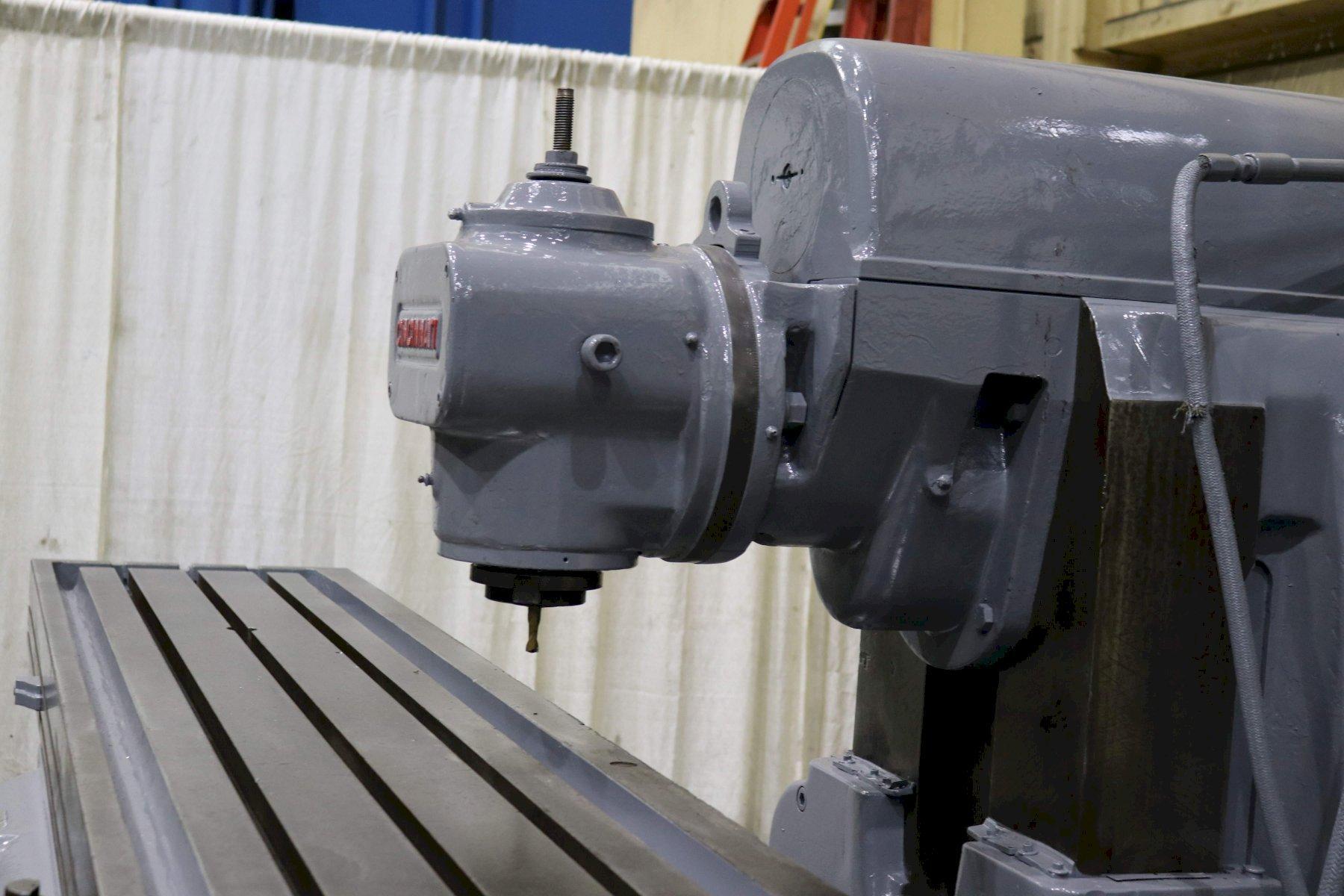

UNIVERSAL VERTICAL HEAD ATTACHMENT ..... YES
HORIZONTAL SPINDLE MOTOR, HORSEPOWER ... 25
