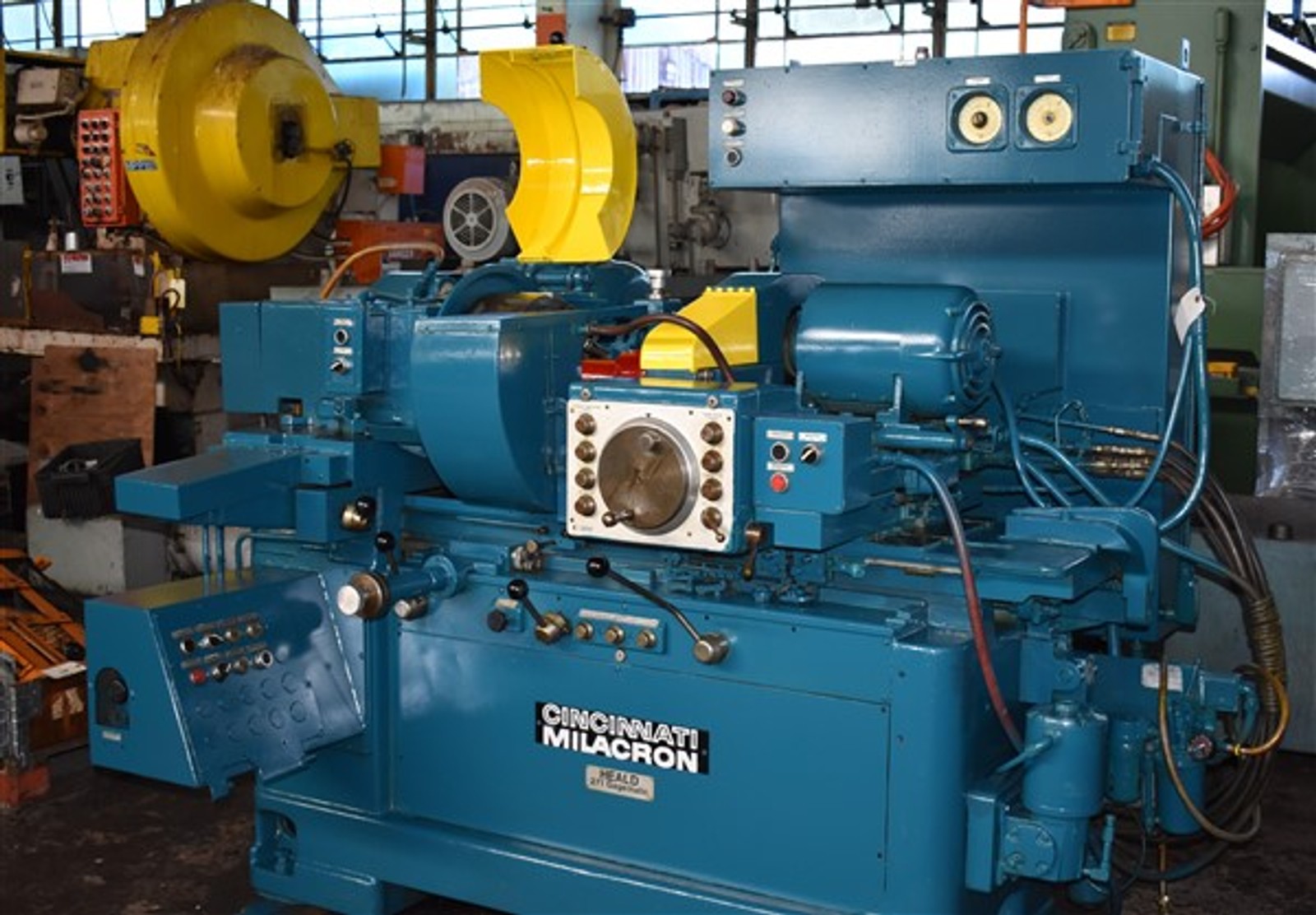

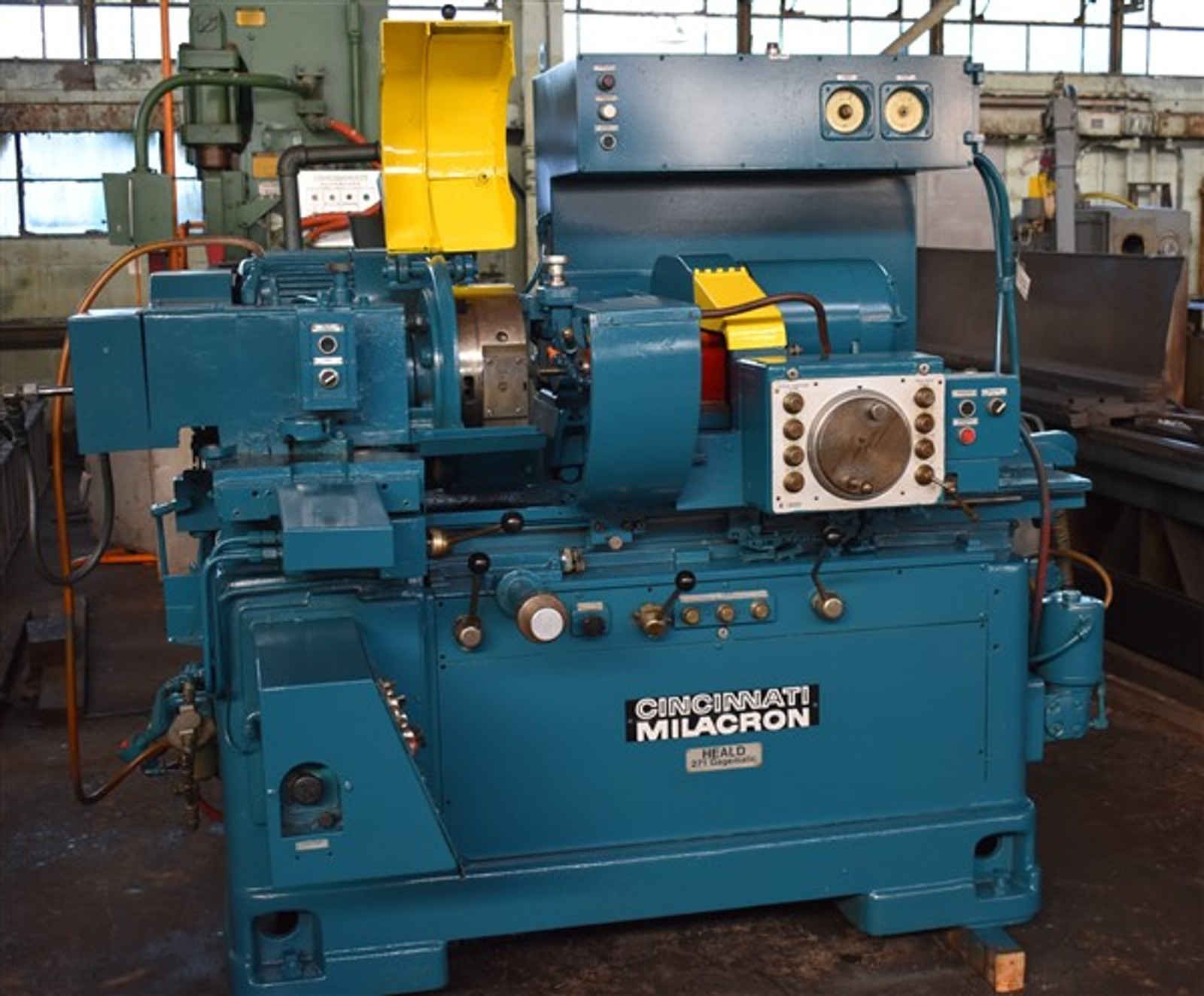

#271 CINCINNATI-MILACRON/HEALD "GAGE-MATIC" INTERNAL GRINDER

Manufacturer

CINCINNATI MILACRON HEALD

Category

Grinding Machines

Type

GRINDERS, INTERNAL

Stock

29225

Model

271

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

#271 CINCINNATI-MILACRON/HEALD "GAGE-MATIC"
INTERNAL GRINDER
New 1975, Serial No 47145, Model 271, Series
"GAGE-MATIC"

EQUIPPED WITH:
Electrically Operated Behind Wheel Dresser
20000 RPM Heald "Red-Head" Grinding Spindle

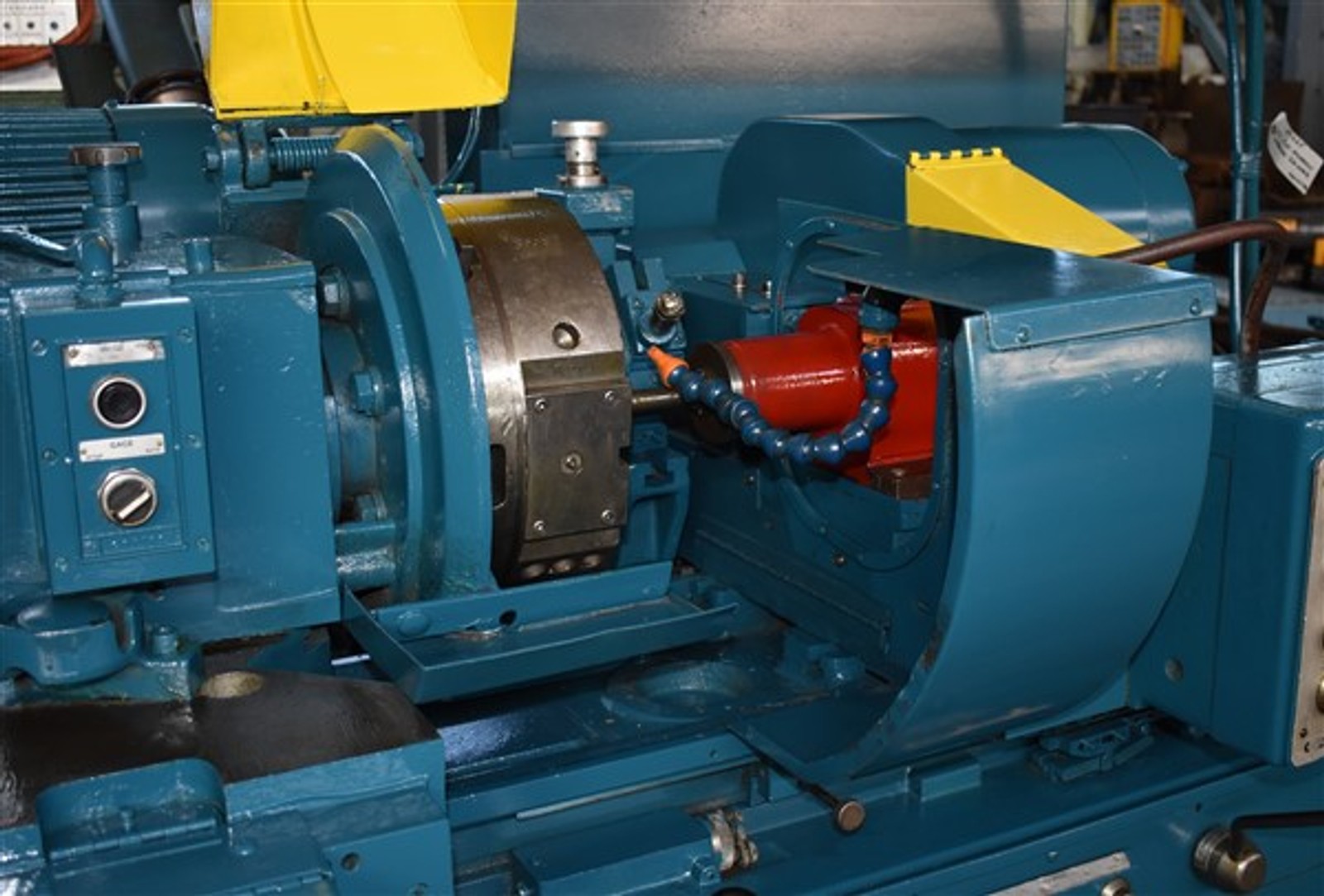

13" 3-Jaw Work Holding Fixture
Rough & Finishing Timer

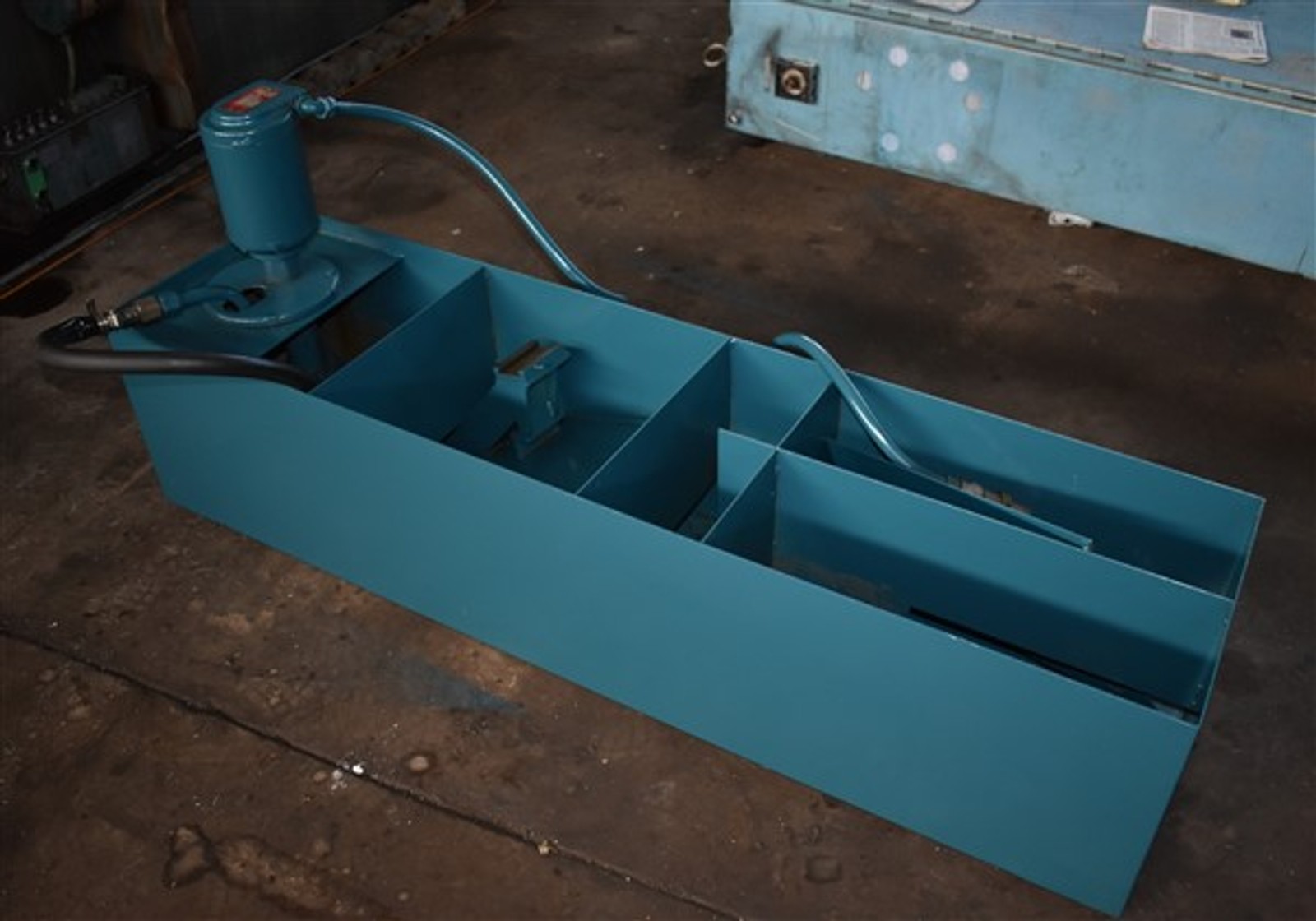

Built-In Coolant System

CATALOG SPECIFICATIONS:
Swing Over Table, Maximum................ 18"
Swing Inside Standard Guard.............. 12"
Bore Diameter Ground, Maximum............ 5.5"
Bore Length Ground, Maximum.............. 5"
Table Longitudinal Travel................ 16"
Hole Thru Work H-ead Spindle, Diameter... 1.59"
Grinding Angle, Maximum Included......... 60-DEGREES
Grinding Table Speeds, Infinite.......... 0 TO 20 FPM
Power Rapid Table Traverse............... 35 FPM
Grinding Spindle Motor, Horsepower....... 5 HP/3500 RPM
Electrical System........................ 220-440/3/60
Overall Dimensions, W x D................ 11' X 7'
Overall Height........................... 7'
Weight, Approximately.................... 8000 LBS

NOTE: This Machine Is Designed As An Automatic
Internal Grinder For Small To Medium Work. This Machine Has
Both Gage-Matic And Size-Matic Capabilities.
When Operated Size-Matically, Bores Can Be Straight
Or Tapered, Open Or Blind, With Or Without Keyways
And Splines. The Gage-Matic Method Is Used On
Straight, Open Holes, Also With Or Without Keyways Or Splines.
