New Bendmak BDL12S-12M Beam Drill (#3944)

Manufacturer

Category

Fabricating Machines

Type

FABRICATING EQUIPMENT

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

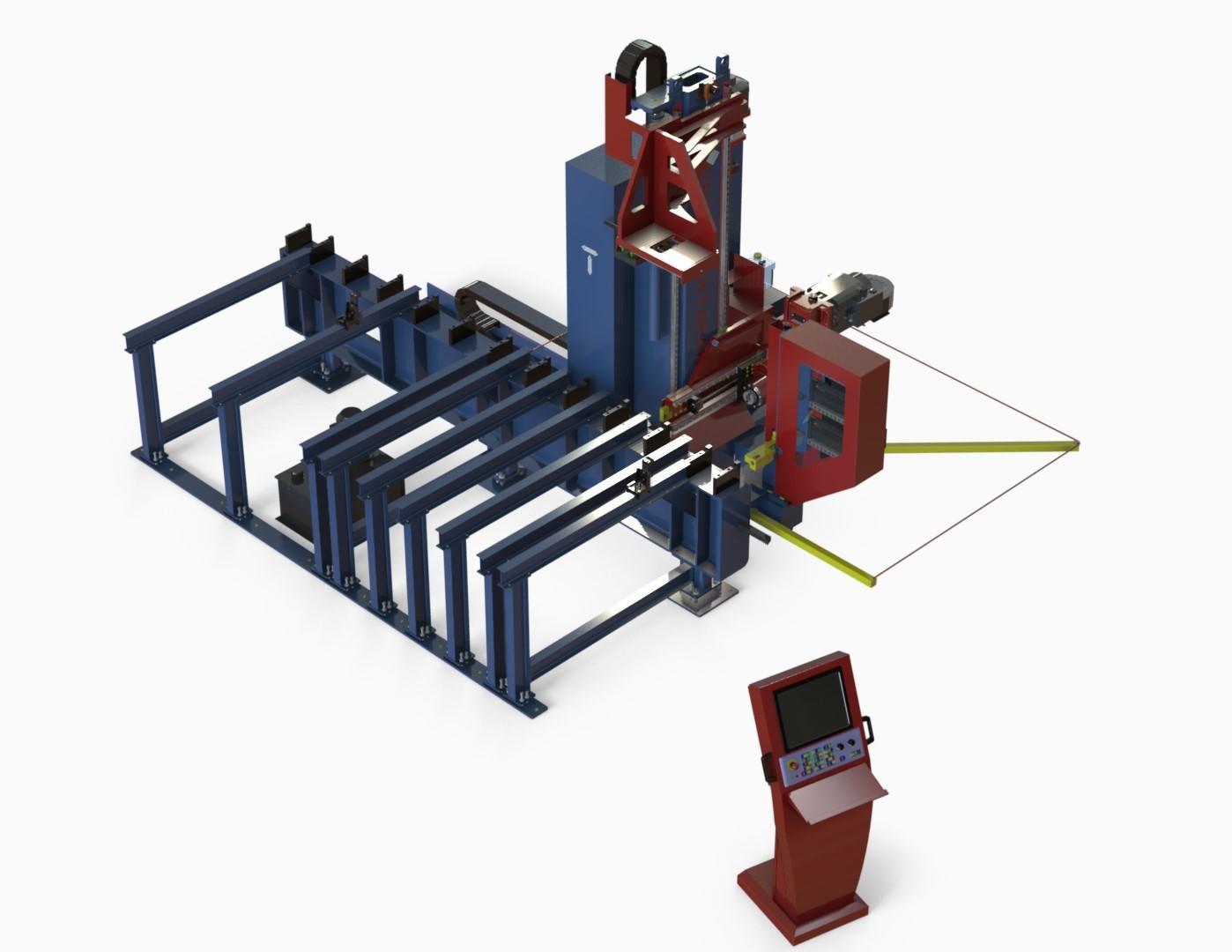

47.25” X 47.25” Beam Drill Line with Bendmak BDL Motion Control System, BDL 1200 CNC Drilling, Minimum Quantity Lubrication, 3 Axis Servo Motors, 20 HP Spindle Motor Power, Automatic Tool Changing, Automatic Tool and Material Measurement.

GENERAL SPECIFICATIONS


  • Working Length: 39.3’

  • Profile Height: 2” - 47.25”

  • Profile Width: 2” - 47.25”

  • Support Table Height: 39.4”

  • Length: 57.3’

  • Height: 10.8’

  • Width: 12.2’

  • Weight: 26,500 LBS

  • Maximum Tool Length: 12”

  • Tapping: M12 - M20

  • Drilling Capacity: ⅜” — 1-¼”

  • RPM: 10 RPM - 1,500 RPM

  • Spindle Motor Power: 14 HP

  • Total Power: 60 HP

  • Tools ATC: 6 Stations



INCLUDES: Bendmak BDL Motion Control System, BDL 1200 CNC Drilling, Minimum Quantity Lubrication, 3 Axis Servo Motors, 20 HP Spindle Motor Power, Automatic Tool Changing, Automatic Tool and Material Measurement.


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
