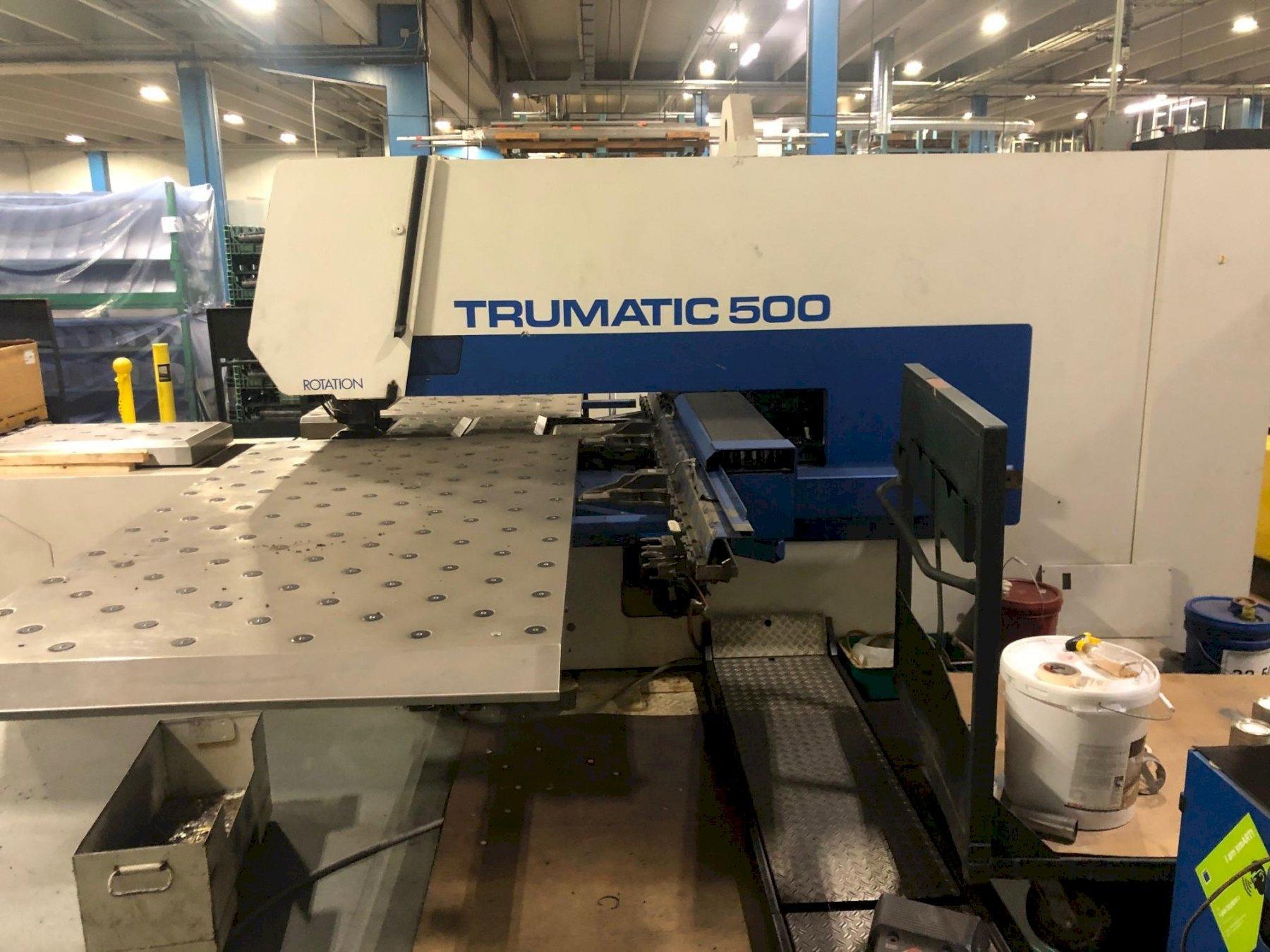

1994 Trumpf TC-500 Turret Punch (#4014)

Manufacturer

Category

Punches

Type

PUNCHES, TURRET

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



50” X 100” 25 Ton CNC Hydraulic Punching System with Bosch Trumagraph CC 220- S Controller and Full Light Guarding.

GENERAL SPECIFICATIONS


  • Working Range: 50” X 100” (Without Repo, w/ Full Table Support)

  • Punching System: Hydraulic

  • Maximum Strokes Per Minute: 780

  • Punching Force: 25 Tons

  • Controller Make: Trumagraph Controller Model CC220S

  • Maximum Sheet Thickness: .31”

  • Maximum Workpiece Weight: 507 LBS

  • Maximum Punching Diameter: 3”

  • Max Positioning Speed X - Axis: 3600 IPM

  • Max Positioning Speed Y - Axis: 2400 IPM

  • Max Positioning Speed Combined: 4300 IPM

  • Electrical: 17 kVA

  • Pneumatic: 101.5 PSI

  • Dimensions: 311” X 248” X 87”

  • Weight: 28,660 LBS

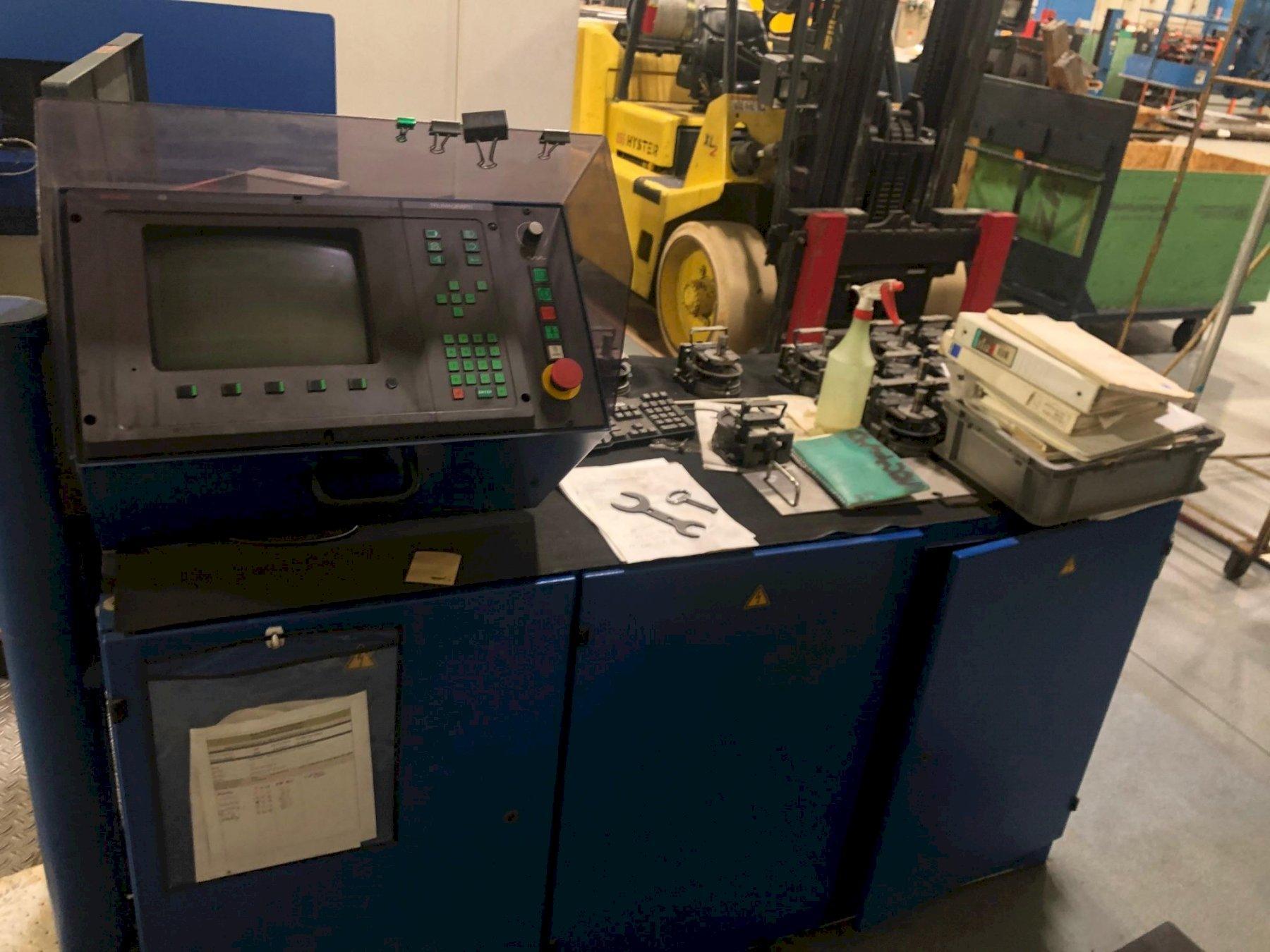

INCLUDES: Bosch Trumagraph CC 220- S Controller and Full Light Guarding.


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
