New Wysong MB66-82  Hydraulic Press Brake (#4231)

Manufacturer

Category

Brakes (including Press Brakes)

Type

PRESS BRAKES

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

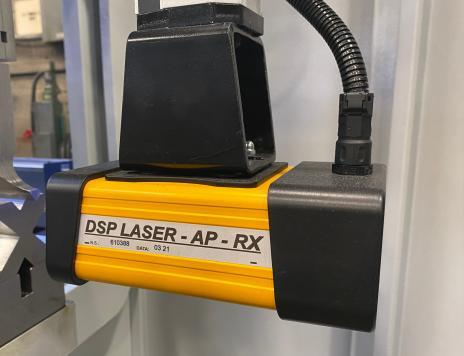

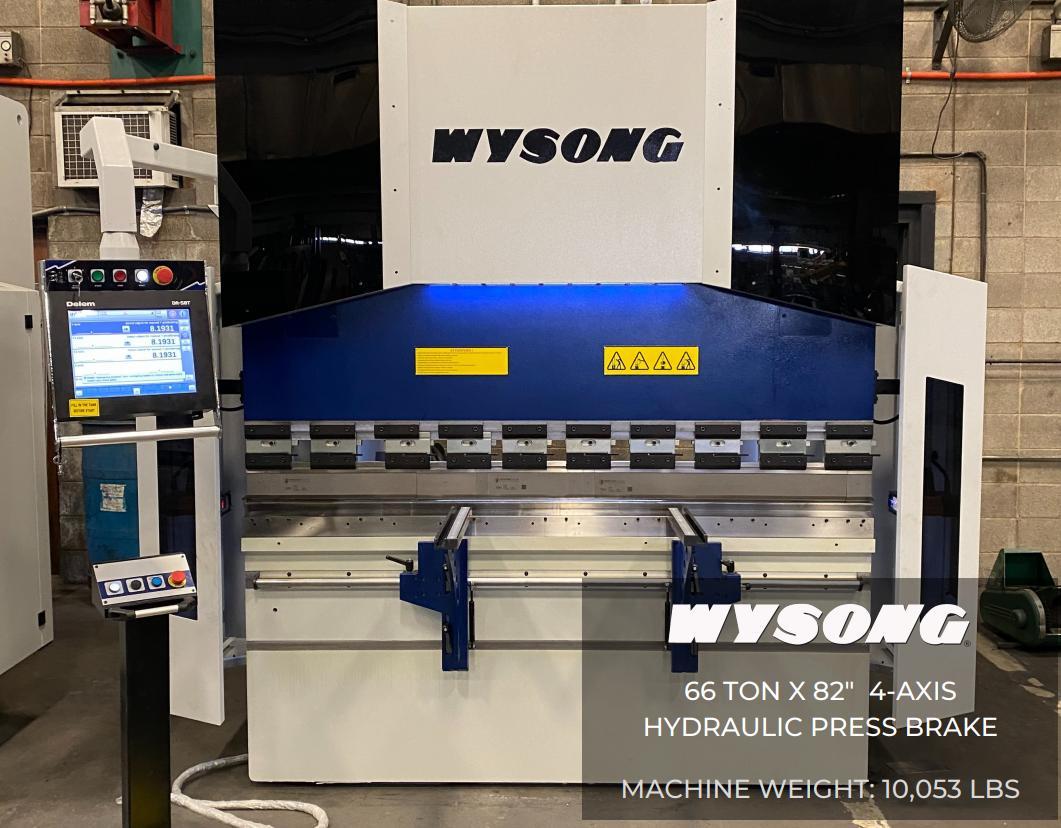

66Ton X 82" Hydraulic Press Brake with Delem 58T Control, 4-Axis, Adjustable Front Supports, Illuminated Work Area, DSP Laser Safety, Rear Light Curtain, Rigid Rack & Pinion Back Gauge and Full Length Segmented Tooling and Quick Release Punch Clamps.

GENERAL SPECIFICATIONS:


  • Tonnage: 66

  • Bed Length: 82”

  • Machine Weight: 10,053 Lbs

  • Distance Between Frames: 63”

  • Daylight /Stroke /Throat: 18” /10” /16”

  • Approach /Bend Speed: 378 /24 IPM

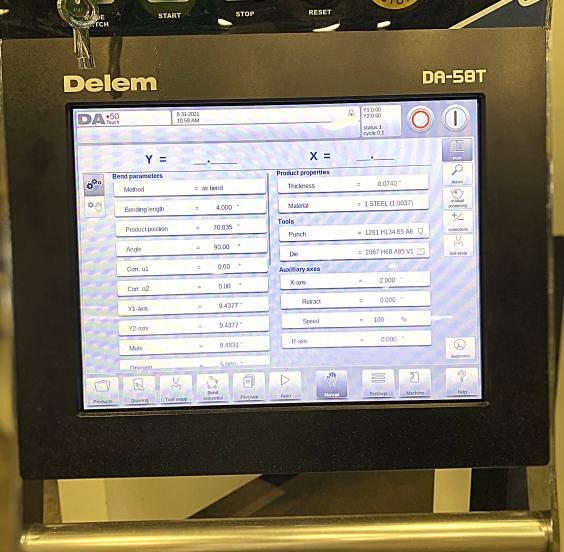

  • Control: Delem 58T

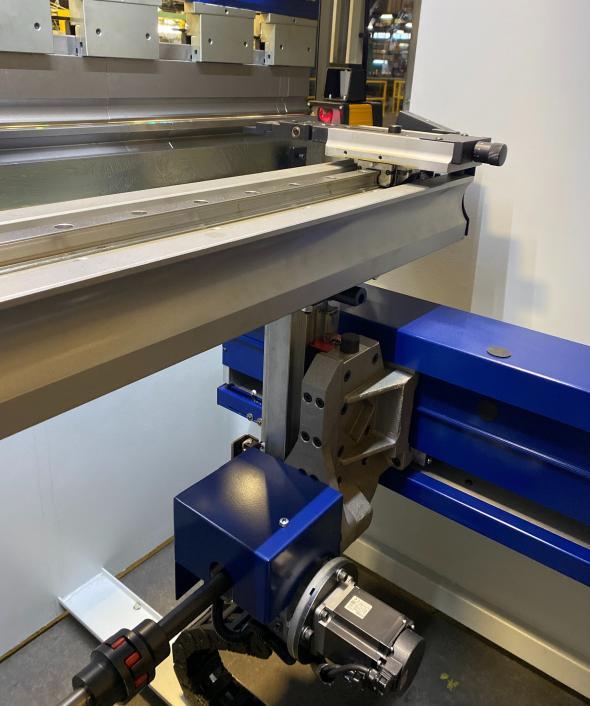

  • 2-Axis Servo Driven Back Gauge: (x=30” , R=10”

  • Back Gauge Fingers: 2 Pieces

  • B /G Speed (x-axis): 7.87 IPS

  • Power: 460V - 3 - 60 hz

  • Main Motor: 7 HP

  • Machine Dimensions: 144” X 86” X 114” H

  • Machine Weight: 10,053 Lbs




INCLUDES: Delem 58T Control, 4-Axis, Adjustable Front Supports, Illuminated Work Area, DSP Laser Safety, Rear Light Curtain, Rigid Rack & Pinion Back Gauge and Full Length Segmented Tooling and Quick Release Punch Clamps.

***We strongly encourage personal inspection of all pieces of used equipment**  ***All Price, Location and Specifications Subject to Change without Notice***
