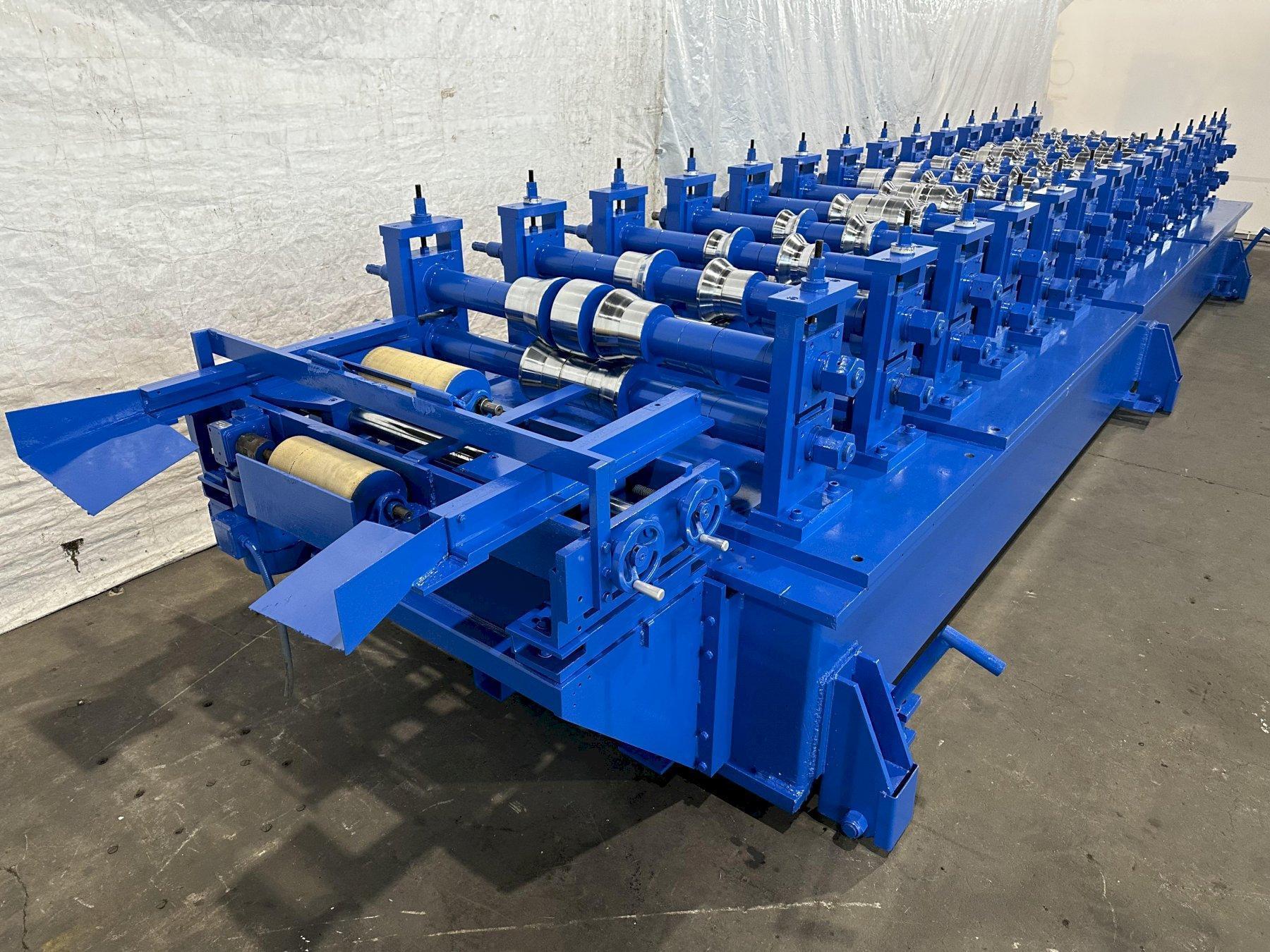

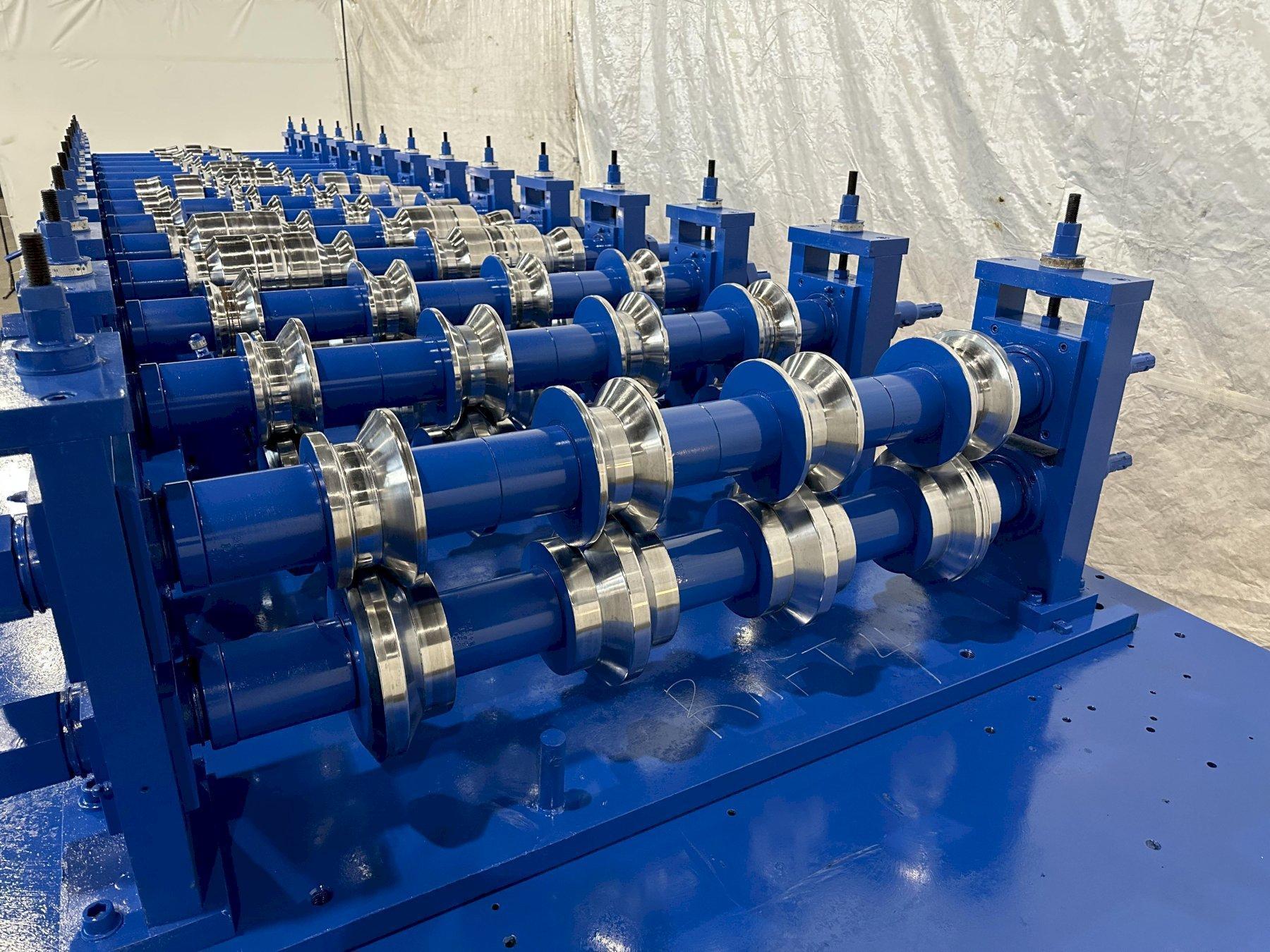

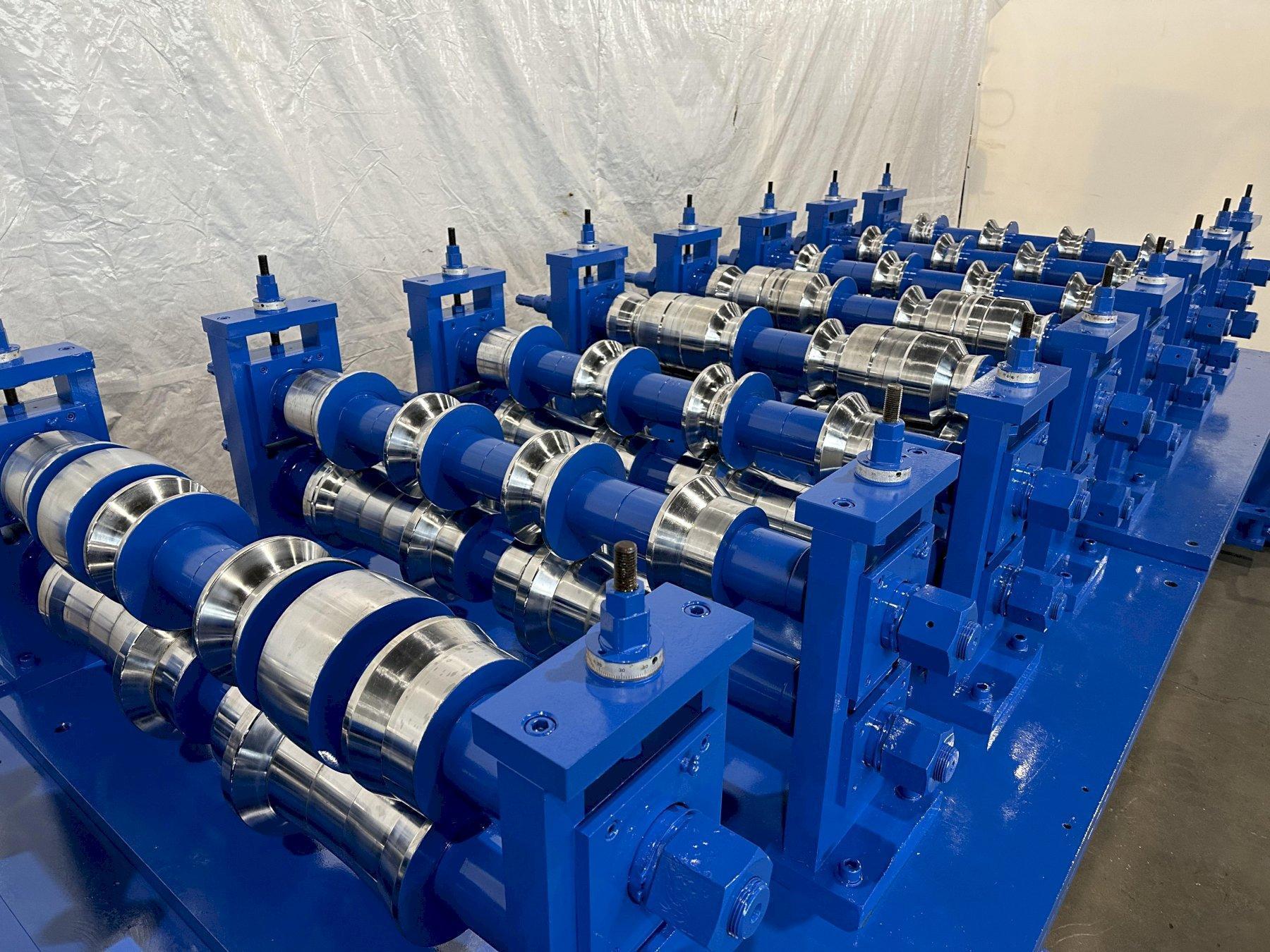

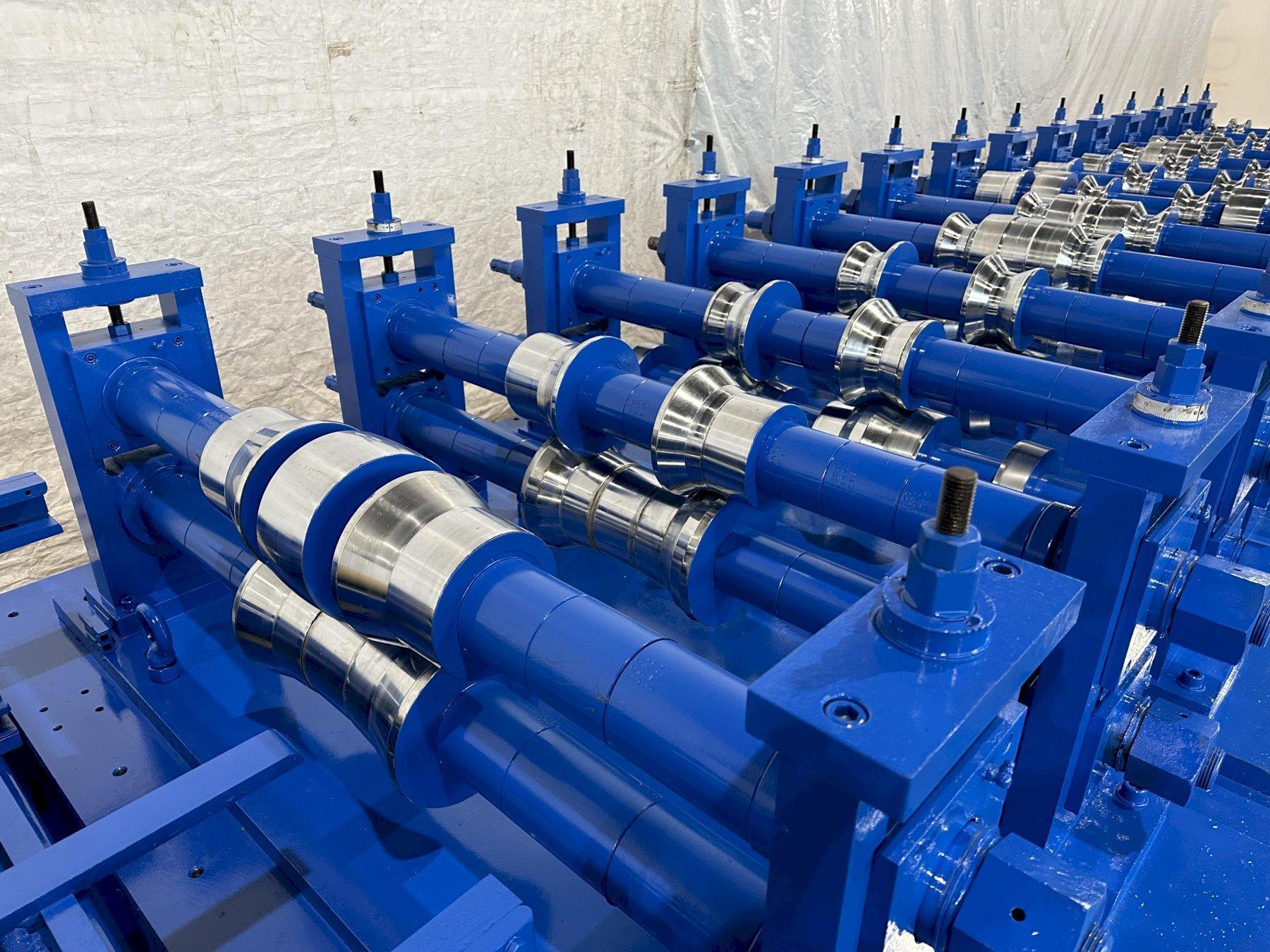

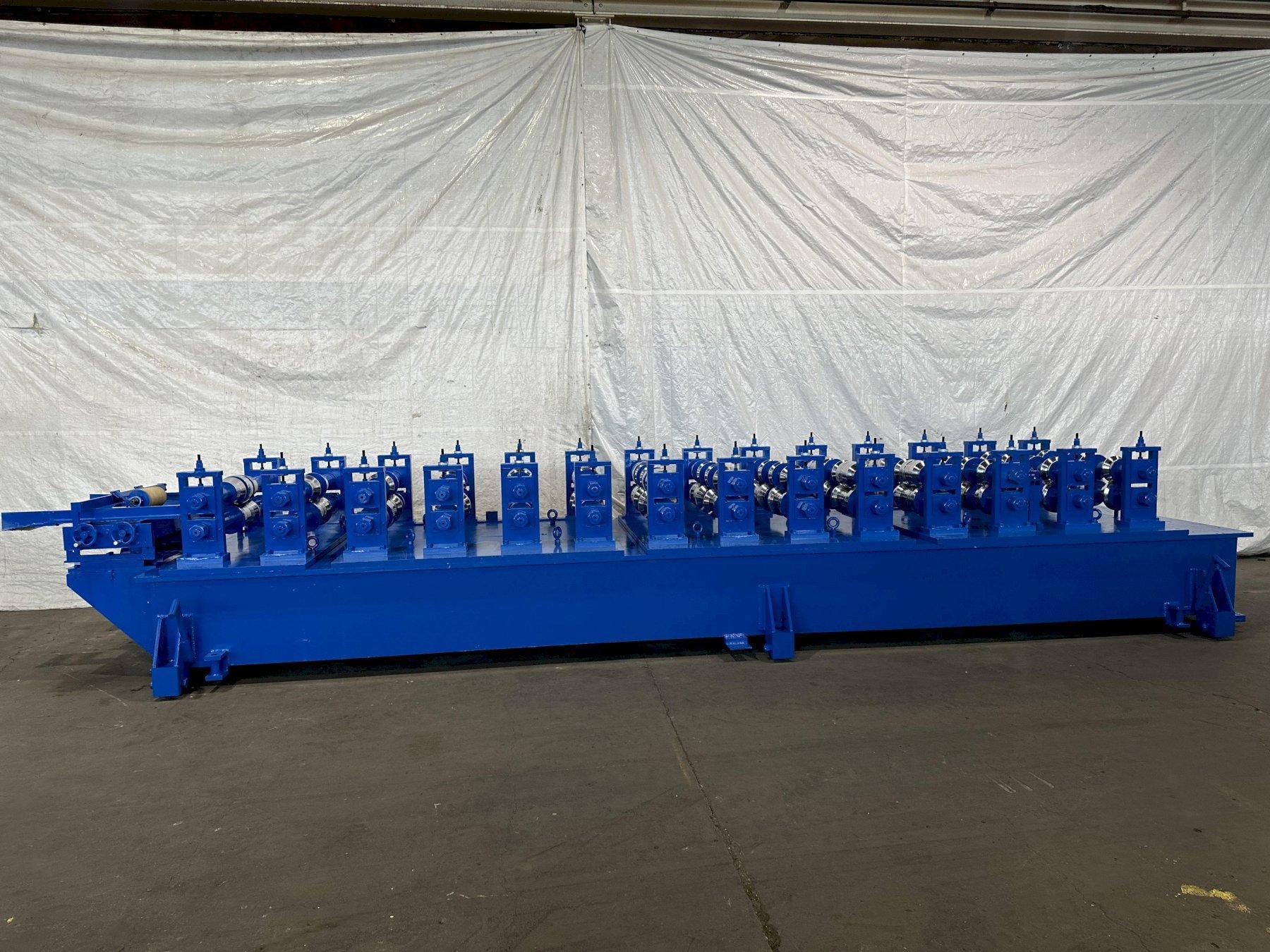

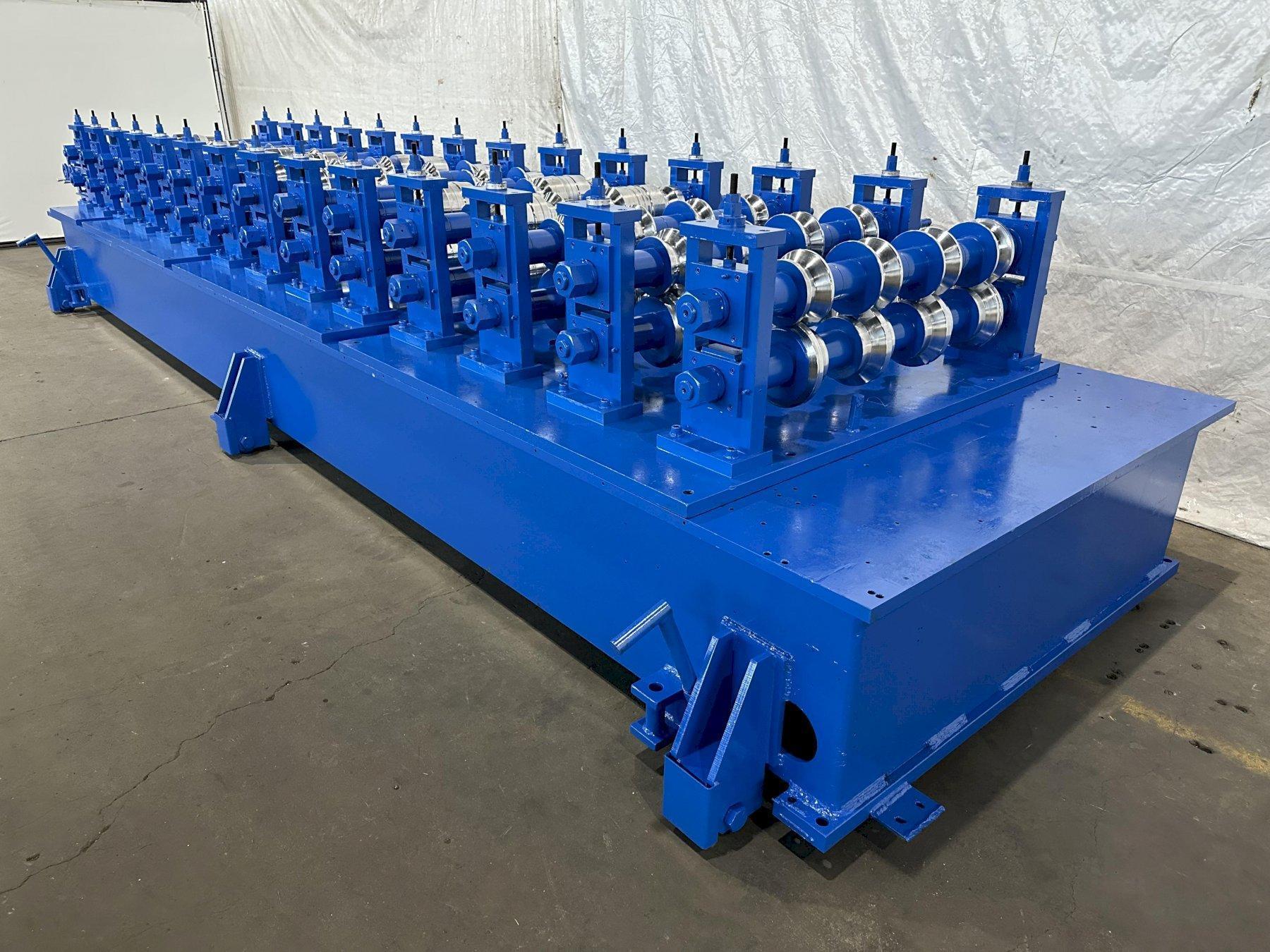

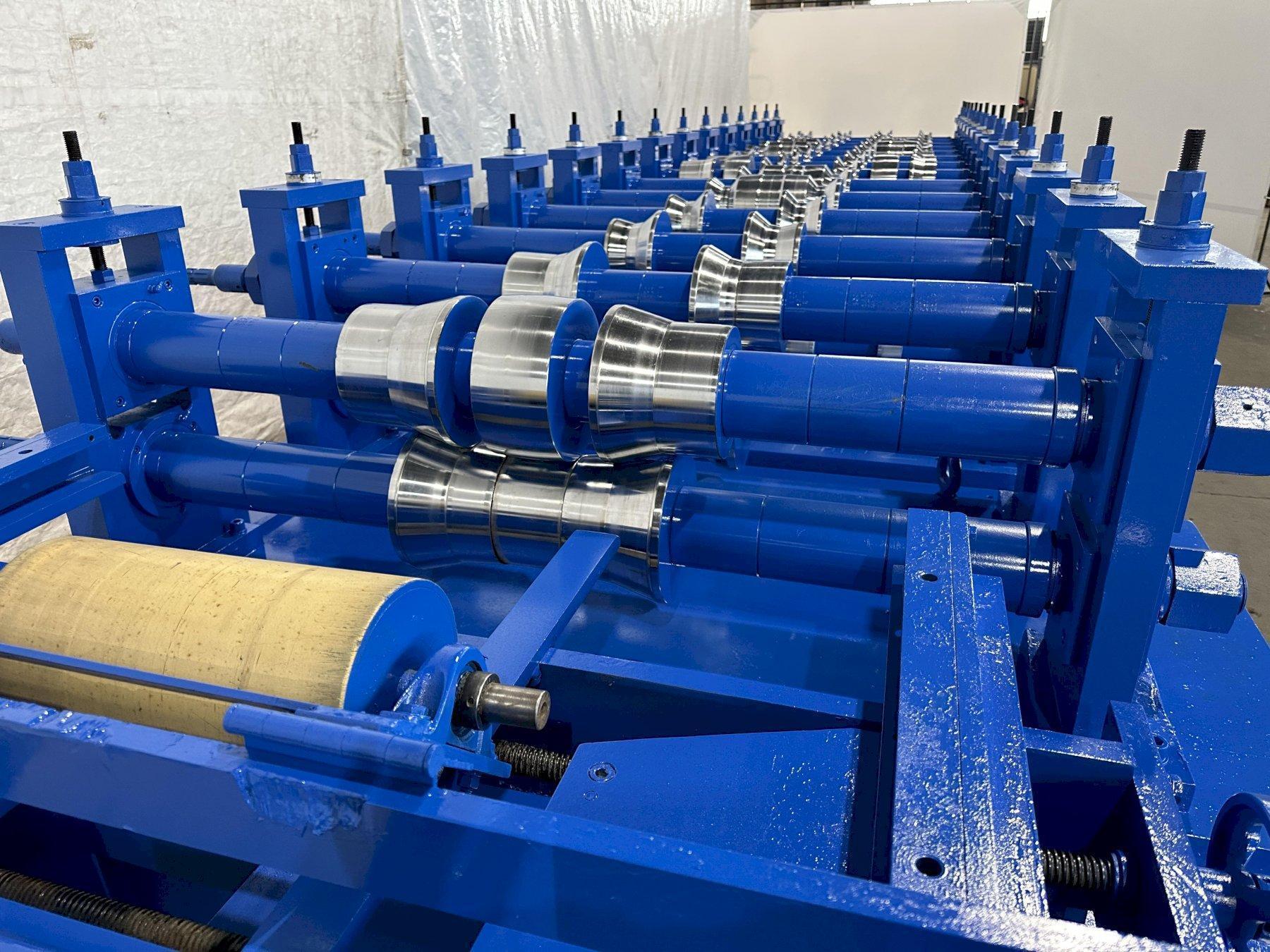

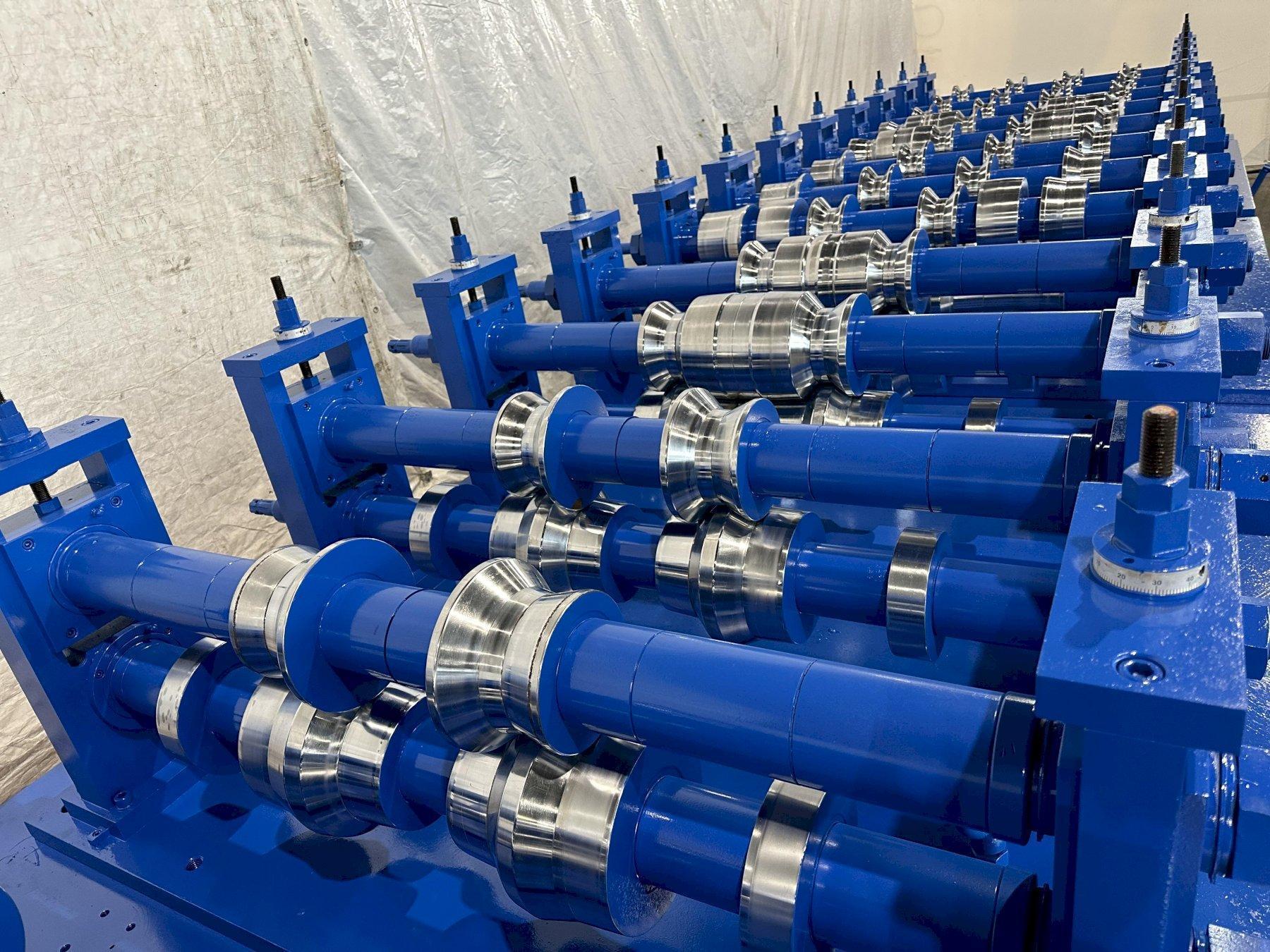

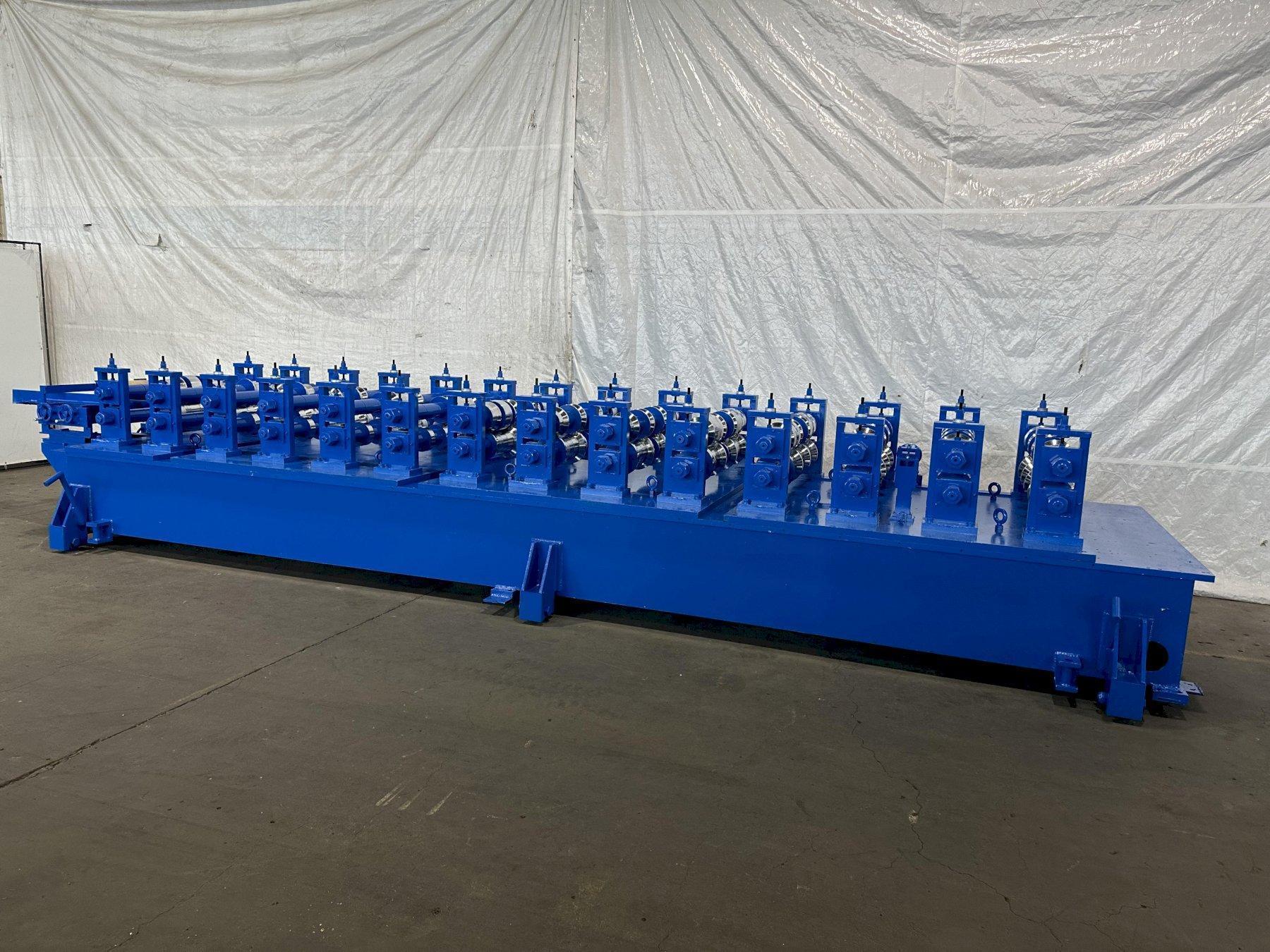

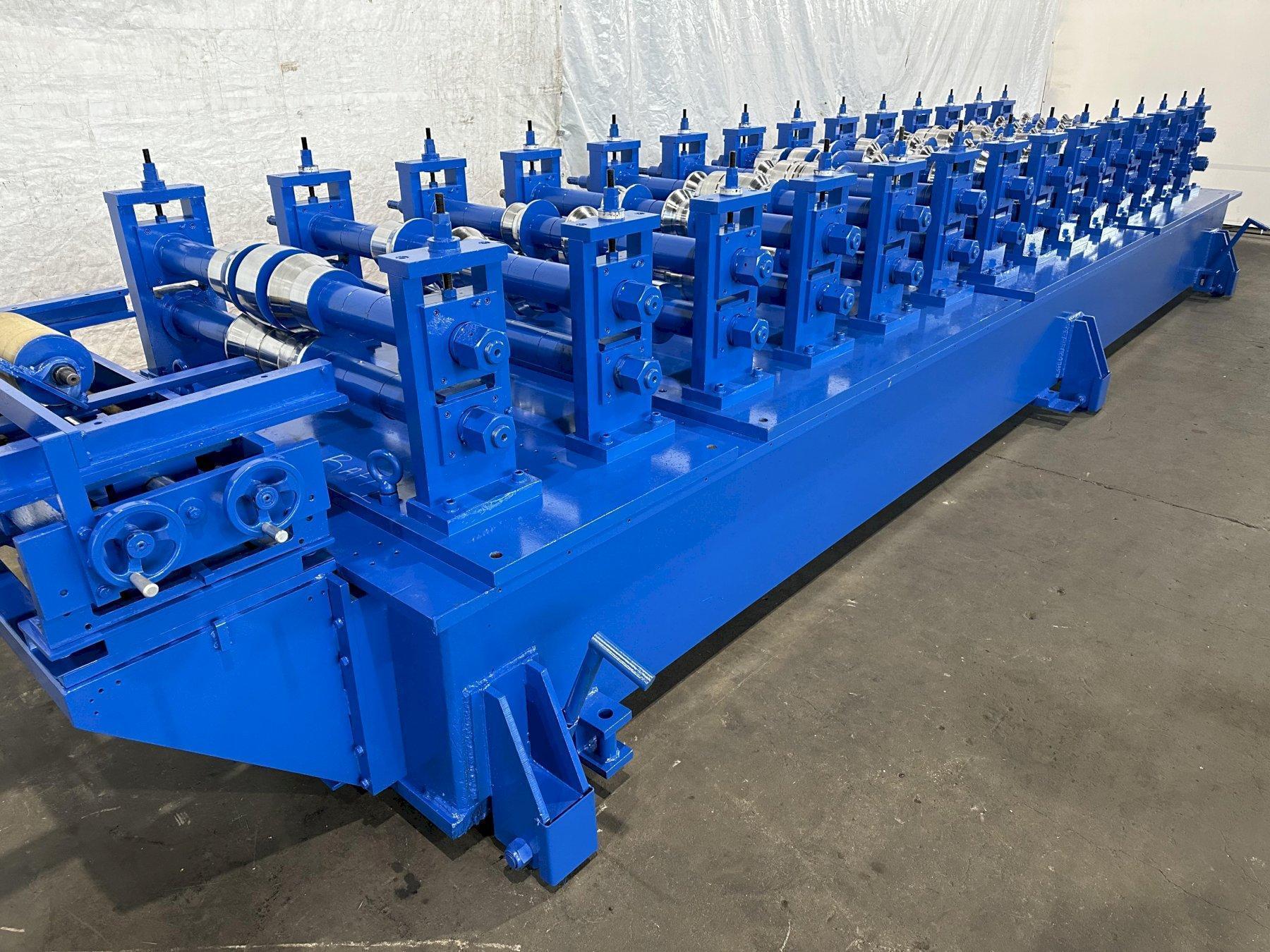

14 STAND x 3.5" x 48" BRADBURY "36" SHADOW WALL PANEL" RAFTED ROLLFORMER: STOCK #16209

Manufacturer

BRADBURY

Category

Roll Formers

Type

ROLL FORMERS

Stock

16209

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



NUMBER OF STANDS ............ 14
NUMBER OF RAFTS ............. 3 RAFTS OF 4, 1 OF 2
ARBOR DIAMETER .............. 3-1/2"
ROLL SPACE .................. 50"
HORIZONTAL CENTERS .......... 20"
VERTICAL ADJUSTMENT ......... 5" - 10"
EQUAL GEARING ............... YES

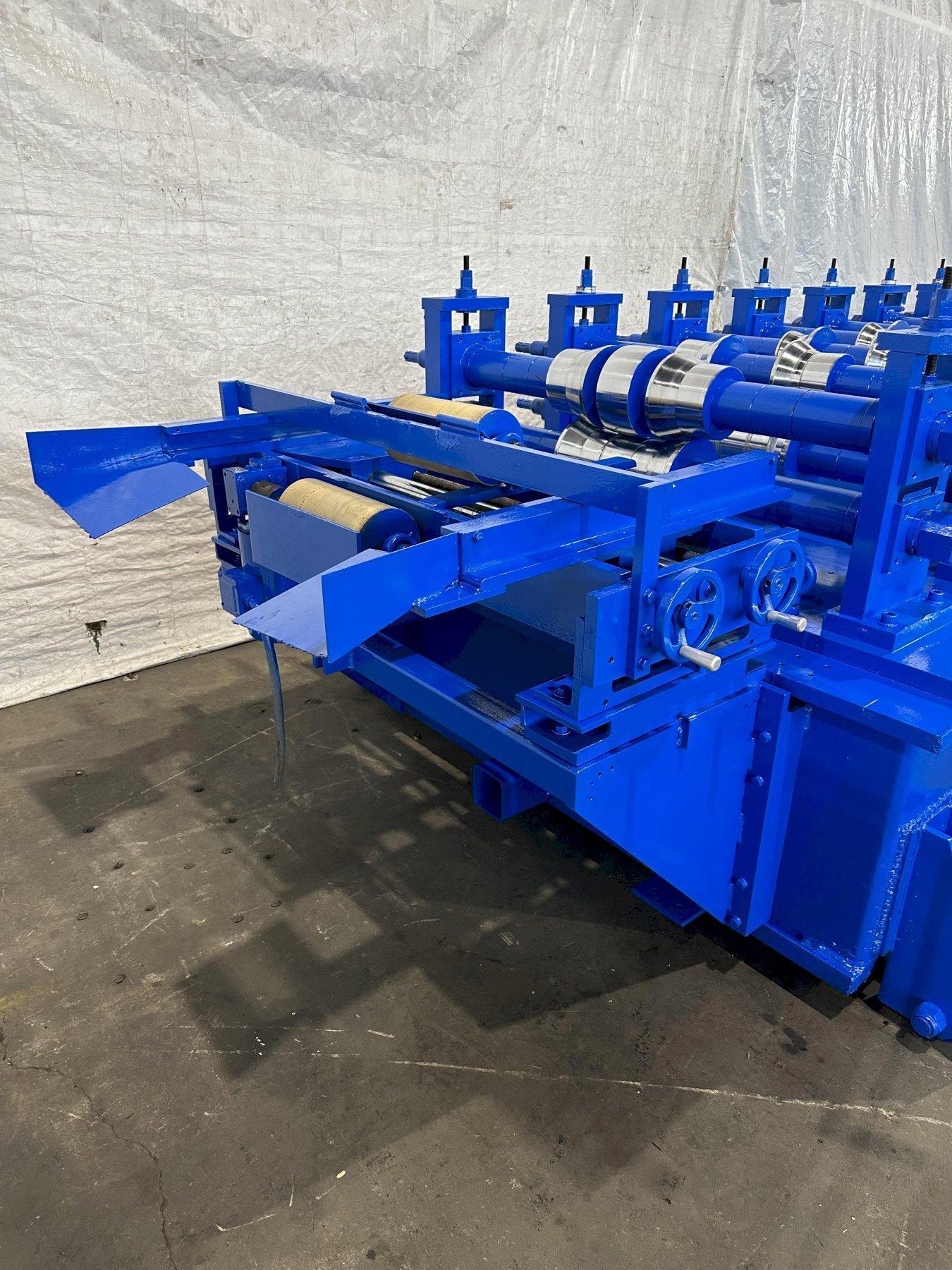

ENTRY GUIDES ................ YES, ADJUSTABLE

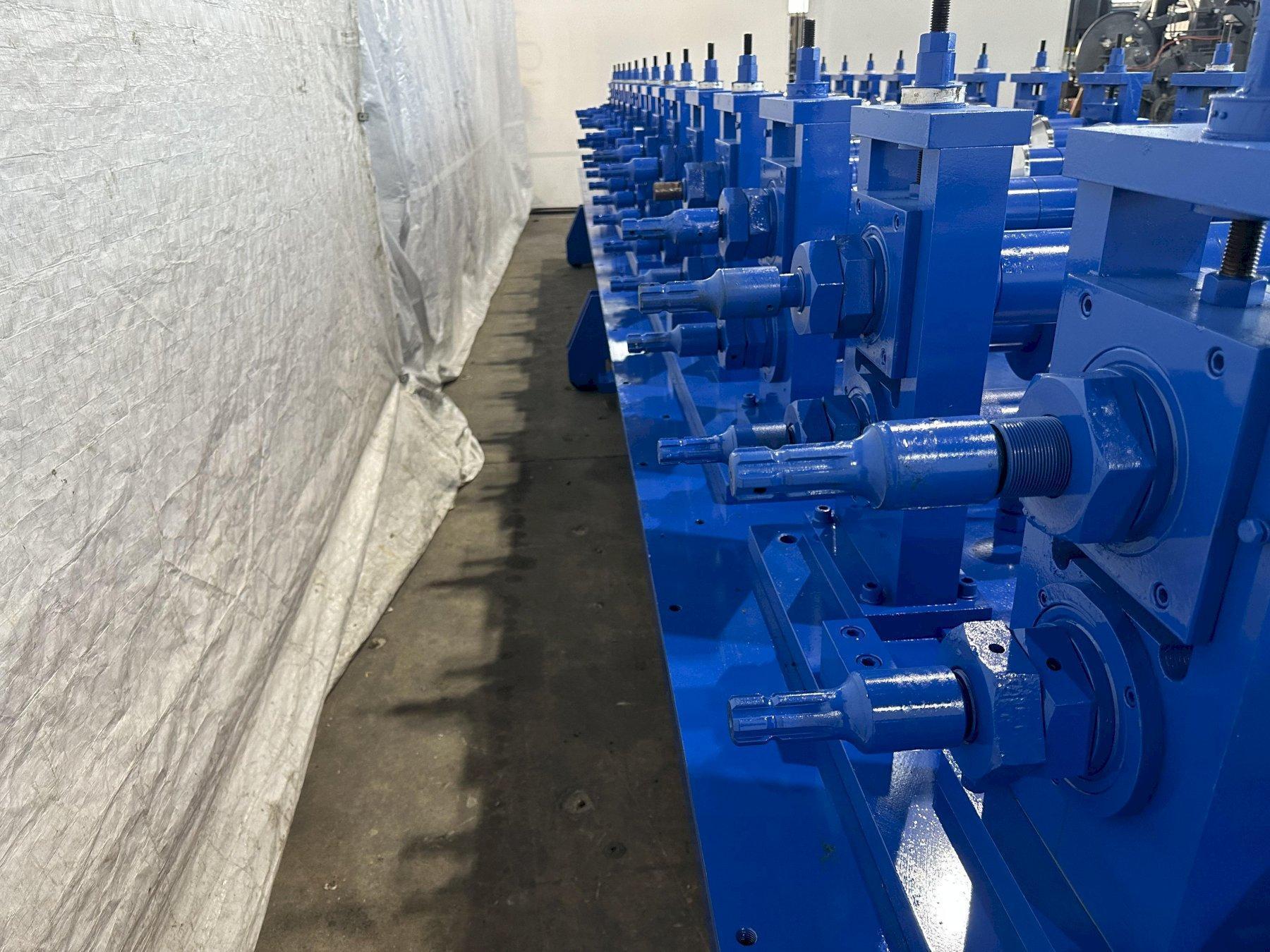

UNIVERSAL U JOINT DRIVE ..... YES
U JOINT DRIVE GEAR BOXES..... YES
MOTOR ....................... 60 HP

TOOLED FOR SHADOW & CENTENNIAL PANEL

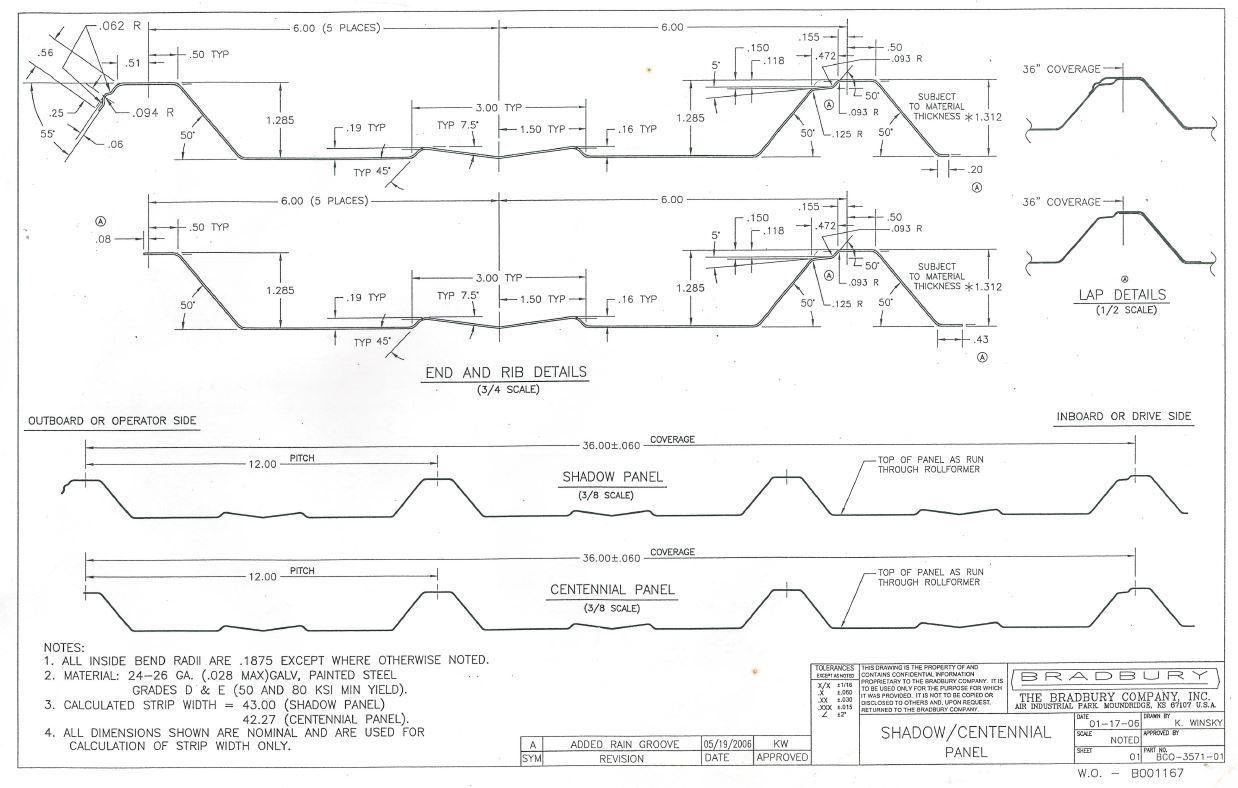

PANEL PROFILE ............... SEE DRAWING
BEGINNING STRIP WIDTH ....... 43"
WIDTH OF PANEL COVERAGE ..... 36"
MATERIAL CAPACITY ........... 24-26 GA
NUMBER OF RIBS .............. 4
DISTANCE BETWEEN RIBS ....... 12"
DEPTH OF RIBS ............... 1.312"
