Haas VR-11 5-Axis VMC, X-120", Y-40", Z-30", 120" x 28" Table, Thru Spindle Coolant, 32 ATC, #31743

Manufacturer

HAAS

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

31743

Model

VR-11

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31743

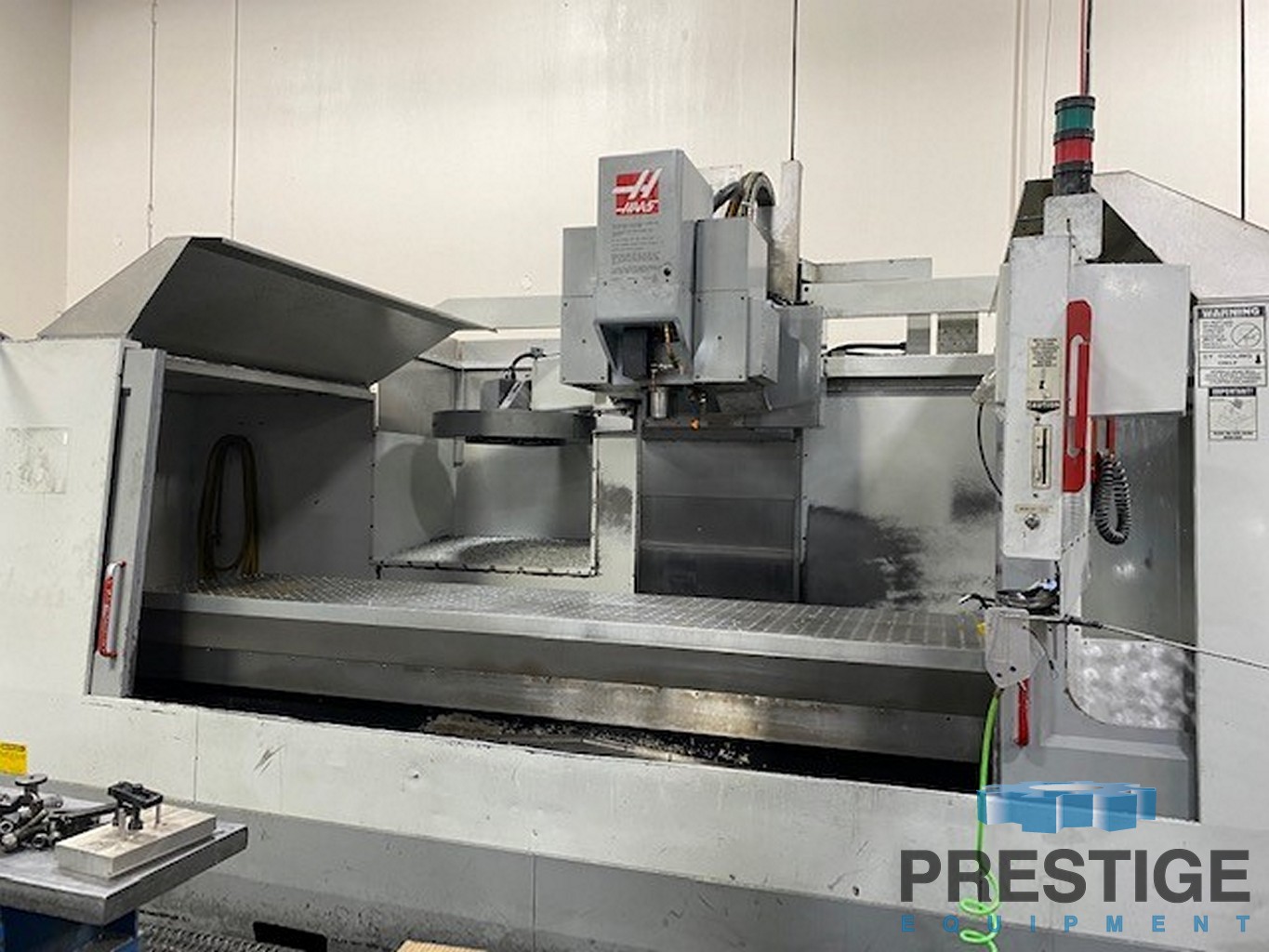

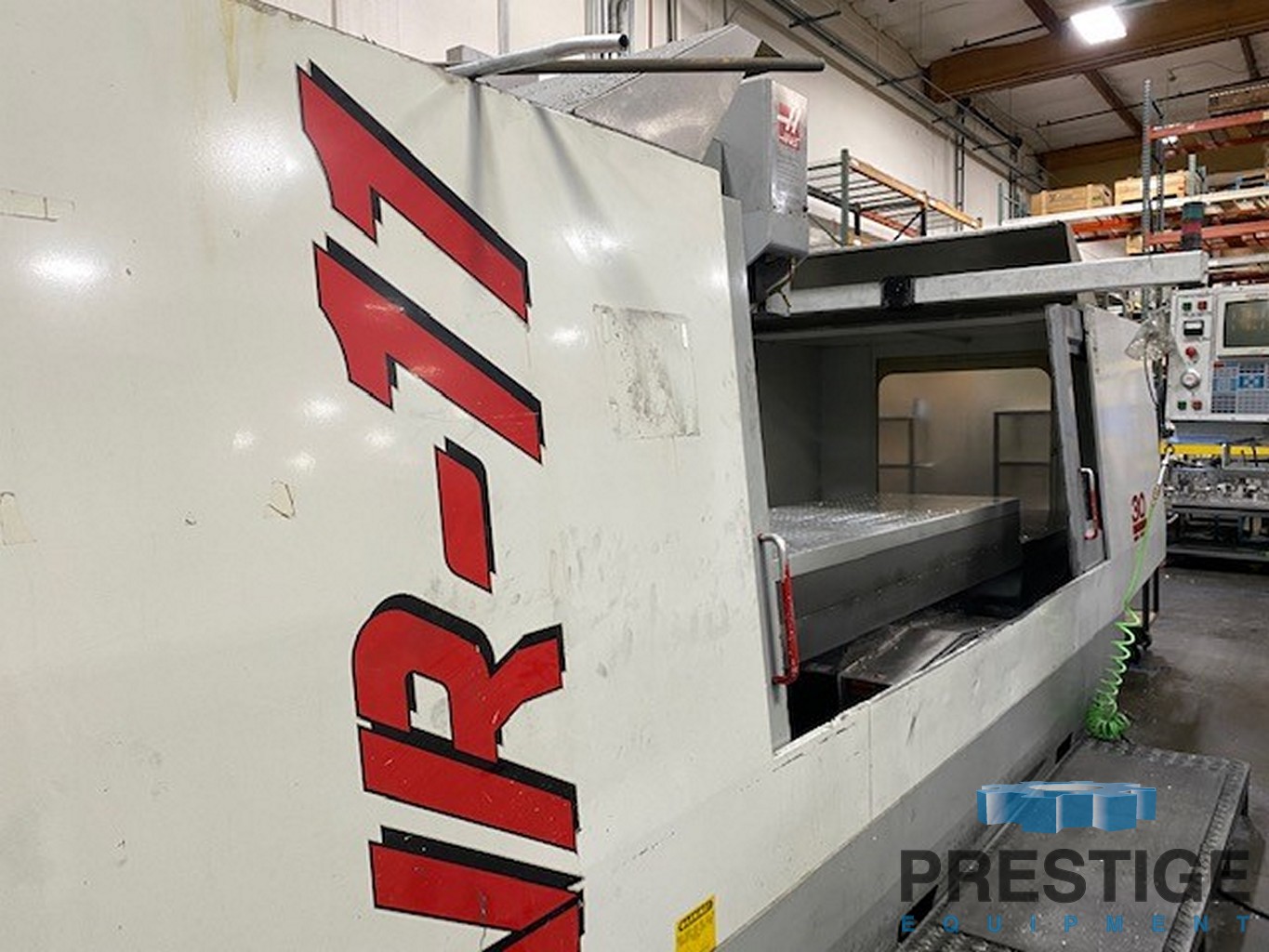

Haas VR-11 5-Axis Vertical Machining Center

FEATURES:
Haas 5-Axis 32-Bit CNC Control
High Speed Machining
Rigid Tapping
Thru Spindle Coolant
32-Station Automatic Tool Changer

SPECIFICATIONS:
X-Axis Travel ......................... 120"
Y-Axis Travel ......................... 40"
Z-Axis Travel ......................... 30"
B-Axis Tilt ........................... +/- 120 Degrees
C-Axis Rotation ....................... +/- 245 Degrees
Table Size ............................ 120" x 28"
Maximum Weight on Table ............... 4,000 Lbs.
Spindle Drive Motor ................... 30 HP
Rapids (X-Axis) ....................... 360 IPM
Rapids (Y/Z Axis) ..................... 600 IPM
Cutting Feed Rates ................... 360 IPM
Spindle Speeds (2-Speed Geared Head) .. 0-7,500 RPM
Spindle Taper ......................... CAT #40
Approximate Machine Weight ............ 33,500 Lbs.

EQUIPPED WITH:
Haas 5-Axis 32-Bit CNC Control
16 MB Extended Memory
High Speed Machining
Programmable Coolant
Quick Code Programming
Remote Jog Handle
Rigid Tapping
Thru Spindle Coolant
32-Station Automatic Tool Changer
Rigid Tapping
