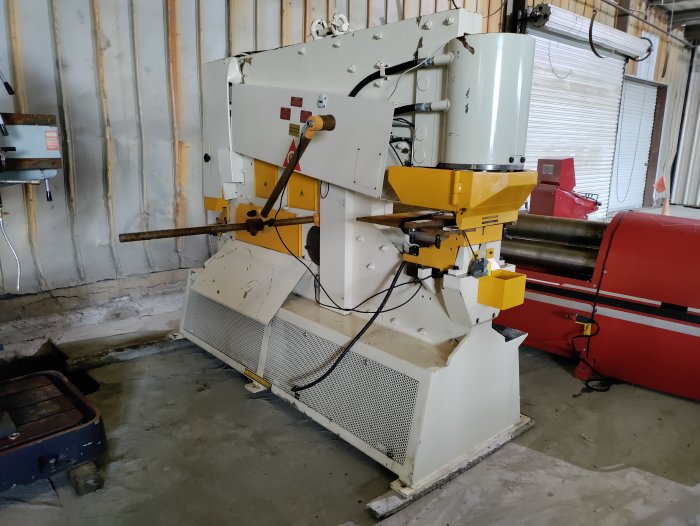

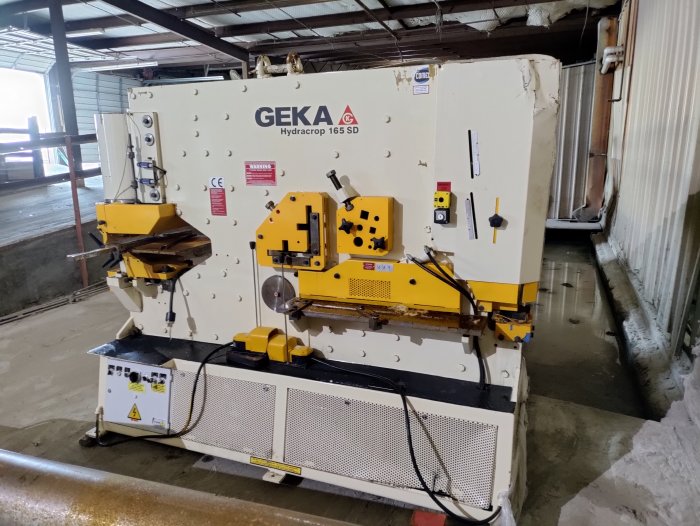

8" x 8" x 3/4" ANGLE 185 TON GEKA HYDRACROP 165/SD IRONWORKER

Manufacturer

GEKA

Category

Punches

Type

PUNCH-SHEARS, IRONWORKERS

Stock

4533

Model

165SD

Dealer Location

California

Request a Quote
View Contact Information

Spec Sheet

MAKE: GEKA
MDL: 165/SD
YR: 2020
S/N:UNKNOWN

PUNCH-
CAPACITY 185 TON
PUNCH CAPACITY: 01-1/2" THRU 1-1/4"
THROAT DEPTH: 24"

ANGLE SHEAR-
ANGLE SQUARE: 8" X 8" X 3/4"
ANGLES ON 45 DEGREE MITRE (LEG IN): 3" X 3" X 5/16"

BAR SHAR-
ROUND BARS: 2-3/8"
SQUARE BARS: 2-3/8"

PLATE SHEAR-
FLAT BAR: 30" X 3/4" OR 16" X 1-1/8"
BLADE LENGH: 30-1/2"

NOTCHER-
THICKNESS: 5/8"
DEPTH: 4-5/16"
WIDTH: 2-1/4"

MACHINE DIMENSIONS: 116"L, X 63"W, X 87"H
APPROX WEIGHT: 15,900 LBS.

LOCATION: DALLAS, TX 75241

***PURCHASED THOUGH AN INSURANCE COMPANY,
TORNADO MINOR DENTS & SCATCHES

***SPECIFICATION SHOWN ARE TO BE
USED AS A GUIDELINE ONLY. IT IS
THE CUSTOMER RESPONSIBILITY TO
CHECK FOR SIZE AND FEATURES BEFORE
PURCHASING WE WILL NOT BE RESPONSIBLE
FOR ERROR OR OMISSIONS.
